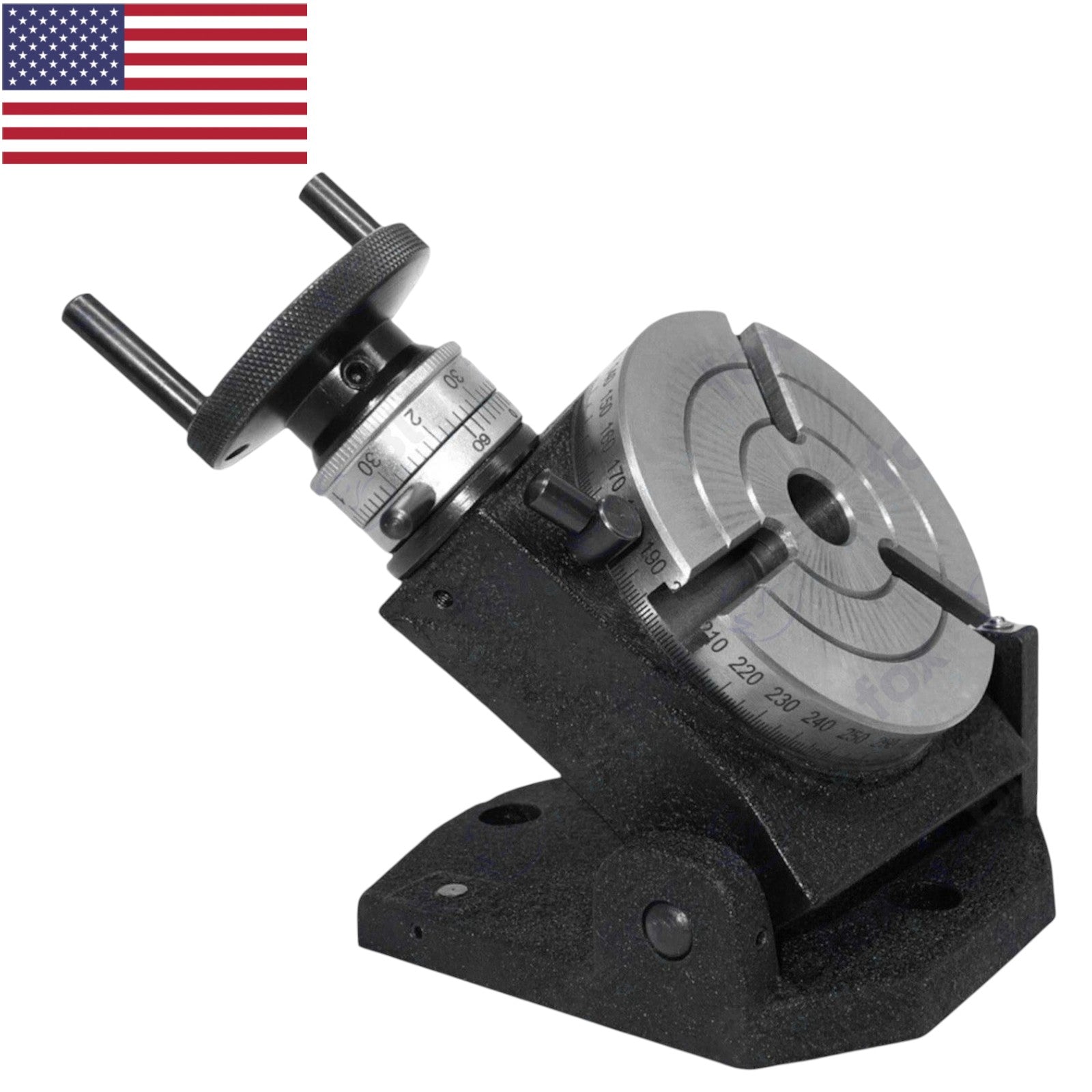

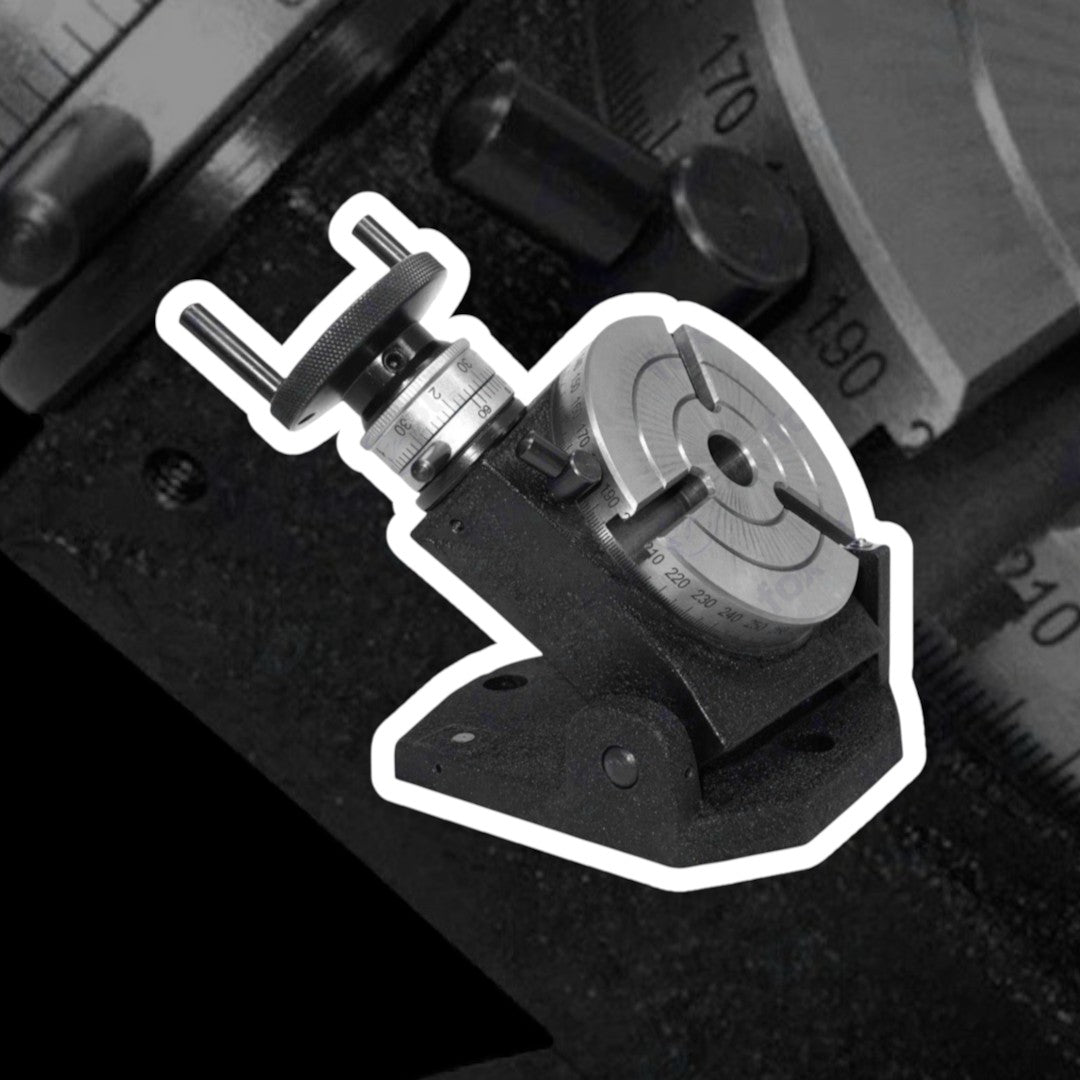

Expand the capabilities of your milling machine with the BLUEFOX TOOLS 4" / 100mm Tilting Rotary Table, a versatile machining accessory designed for indexing, circular milling, drilling, slotting, engraving, positioning, and model engineering.

This compact horizontal and vertical rotary table can also be tilted from 0° to 90°, giving you additional flexibility for angled machining operations. The integrated MT2 (2 Morse Taper) center bore provides a convenient locating point, while the 3 radial T-slots allow workpieces and fixtures to be securely mounted.

Constructed from high-quality cast iron, the rotary table combines a compact footprint with a stable machining platform. The 360° table graduation and finely graduated handwheel provide controlled positioning for a wide range of workshop applications.

⭐ Key Features

🔄 Horizontal & Vertical Operation – Use the rotary table horizontally or vertically according to your machine setup and machining requirement.

📐 0°–90° Tilting Range – Adjustable tilting function allows angled positioning for versatile machining operations.

🎯 MT2 Center Bore – Built-in MT2 / 2 Morse Taper bore provides a useful center locating feature.

🔩 3 Radial T-Slots – Secure workholding fixtures, clamps and components to the rotary table.

⚙️ 360° Table Graduation – Table is graduated from 0° to 360° in 5° divisions for controlled angular positioning.

🎯 Fine Handwheel Graduation – Handwheel features 5-minute divisions for finer positioning adjustments.

🔄 Disengageable Worm Drive – Worm drive can be disengaged for rapid table rotation when appropriate.

💪 Cast Iron Construction – High-quality cast iron construction provides a stable platform for machining applications.

🛠️ Compact Workshop Design – Suitable for bench mills, mini milling machines, drill mills, lathe vertical slides and cross slides.

📏 Product Specifications

Specification Details
🔧 Brand BLUEFOX TOOLS
📐 Table Diameter 4" / 100mm
⚙️ Type Tilting Rotary Table
🔄 Operation Horizontal / Vertical / Tilting
📐 Tilt Range 0°–90°
🎯 Center Bore MT2 / 2 Morse Taper
🔩 T-Slots 3 Radial T-Slots
📏 T-Slot Width 5/16" / Approx. 8mm
🔄 Table Graduation 0°–360° in 5° divisions
🎯 Handwheel Graduation 5-minute divisions
📏 Overall Height, Flat 66mm
🔩 Base Size 145 × 126mm
🔧 Mounting Holes 2 × 10mm
📐 Hole Spacing 110mm
⚖️ Approx. Weight 4.9kg
💪 Material High-Quality Cast Iron

🛠️ Applications

⚙️ Milling Machine Rotary Table – Ideal for circular milling, indexing and angular machining.

🔧 Mini Milling Machine – Compact size makes it suitable for smaller milling machines and bench mills.

🎯 Drill Mill Operations – Useful for accurately positioning workpieces for drilling patterns.

📐 Angled Machining – 0°–90° tilting capability allows workpieces to be positioned at different angles.

🔩 Slotting & Circular Cutting – Useful for machining slots, arcs and circular features.

✨ Engraving – Suitable for positioning components during engraving work.

🛠️ Model Engineering – Practical rotary table for model makers and small-scale engineering projects.

🏭 Machine Shop & Tool Room – Suitable for general metalworking and machining applications.

💡 Why Choose This 100mm Tilting Rotary Table?

✔️ 4" / 100mm compact rotary table
✔️ Horizontal and vertical operation
✔️ 0°–90° tilting capability
✔️ MT2 center bore
✔️ 3 radial T-slots
✔️ 360° table graduations
✔️ 5-minute handwheel graduations
✔️ Disengageable worm drive for rapid rotation
✔️ High-quality cast iron construction
✔️ Suitable for milling, drilling, indexing, slotting and engraving

📦 Package Includes

  • 🔧 1 × 4" / 100mm Tilting Rotary Table
  • 🎯 MT2 Center Bore Built-In

💙 BLUEFOX TOOLS – Right Quality. Right Performance.

A versatile 4" / 100mm MT2 tilting rotary table designed for milling machines, mini mills, drill mills, lathe slides, model engineering, precision drilling, indexing, circular milling and general metalworking.
