🔧 4-1/2" SWIVEL HEAD KNURLING TOOL – 3/4" DIAMOND KNURL WHEELS | 1/2" × 1/2" SHANK | LATHE KNURLING TOOL
🔧 4-1/2" SWIVEL HEAD KNURLING TOOL – 3/4" DIAMOND KNURL WHEELS | 1/2" × 1/2" SHANK | LATHE KNURLING TOOL
🔧 4-1/2" SWIVEL HEAD KNURLING TOOL – 3/4" DIAMOND KNURL WHEELS | 1/2" × 1/2" SHANK | LATHE KNURLING TOOL
Schlagworte: / / / / / / / / / / / / / / / / / / / / / / / / / /

🔧 4-1/2" SWIVEL HEAD KNURLING TOOL – 3/4" DIAMOND KNURL WHEELS | 1/2" × 1/2" SHANK | LATHE KNURLING TOOL

$19.94
$19.94

Inkl. MwSt.

Stock Availability

FBB221, 29 WYSOCKI PL, HACKENSACK, NJ 07601-6804 US
Phone: +1 646 224 0700
662/8-A, Gali No 1, First Floor,
Punjabi Basti, Anand Parbat
Phone: +91 8860055906
Orange Connex Fulfilment Centre – UK04
Mill Road, Rugby, England
GB-CV21 1PR
Phone: +44 7747 770826
Orange Connex Fulfillment Center – DE04
Bochumer Str. 119, Nordrhein-Westfalen
DE-44866 Bochum
Phone: +49 15563617045
Orange Connex Fulfilment Centre – AU03
Warehouse L, Building 5, 161 Manchester Rd
Auburn, New South Wales
AU-2144
Phone: +61 416 989 802
AVAILABLE IN INDIA   •   AVAILABLE IN USA   •   AVAILABLE IN UNITED KINGDOM   •   AVAILABLE IN GERMANY   •   AVAILABLE IN AUSTRALIA
Secured Payment
Beschreibung
Beschreibung
x

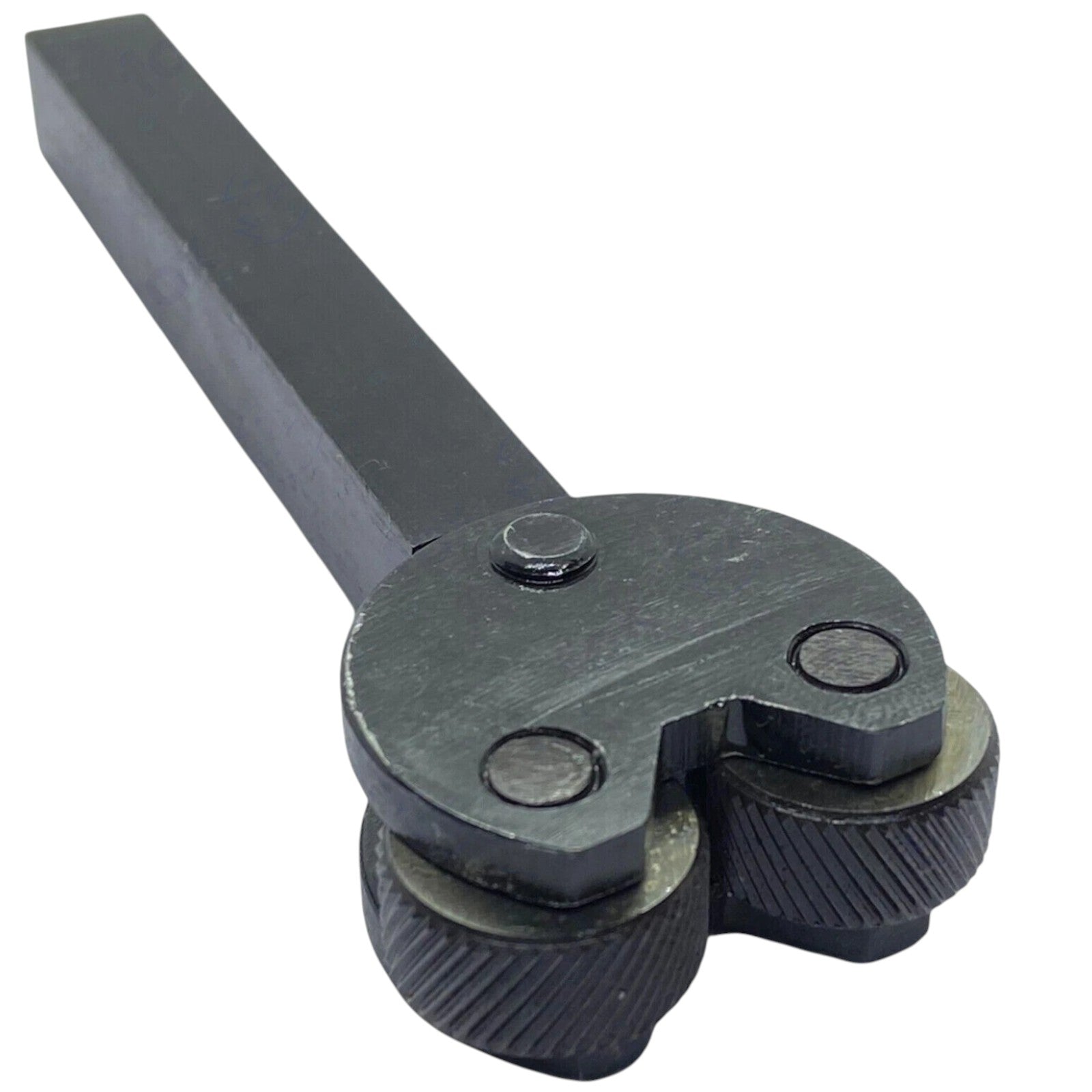

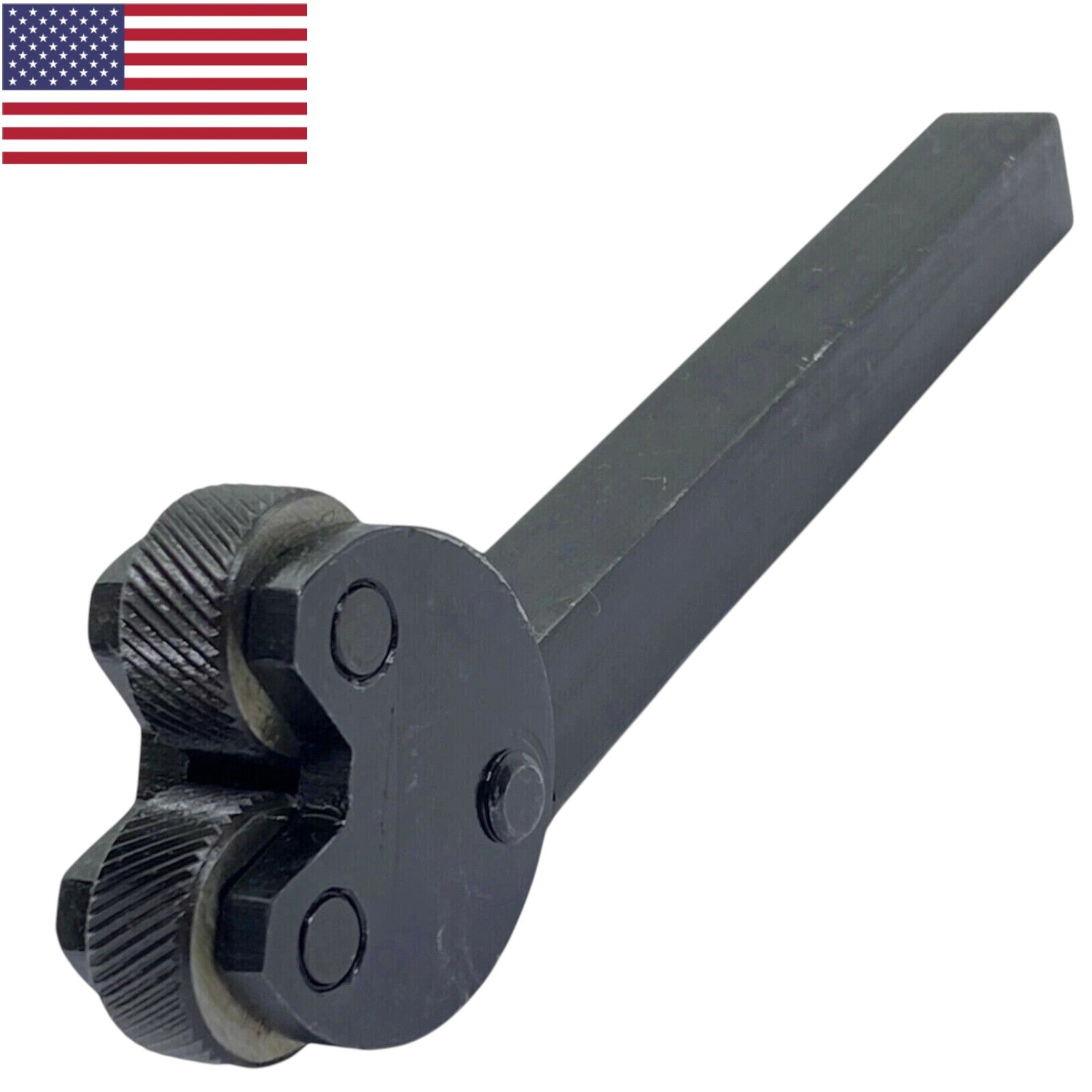

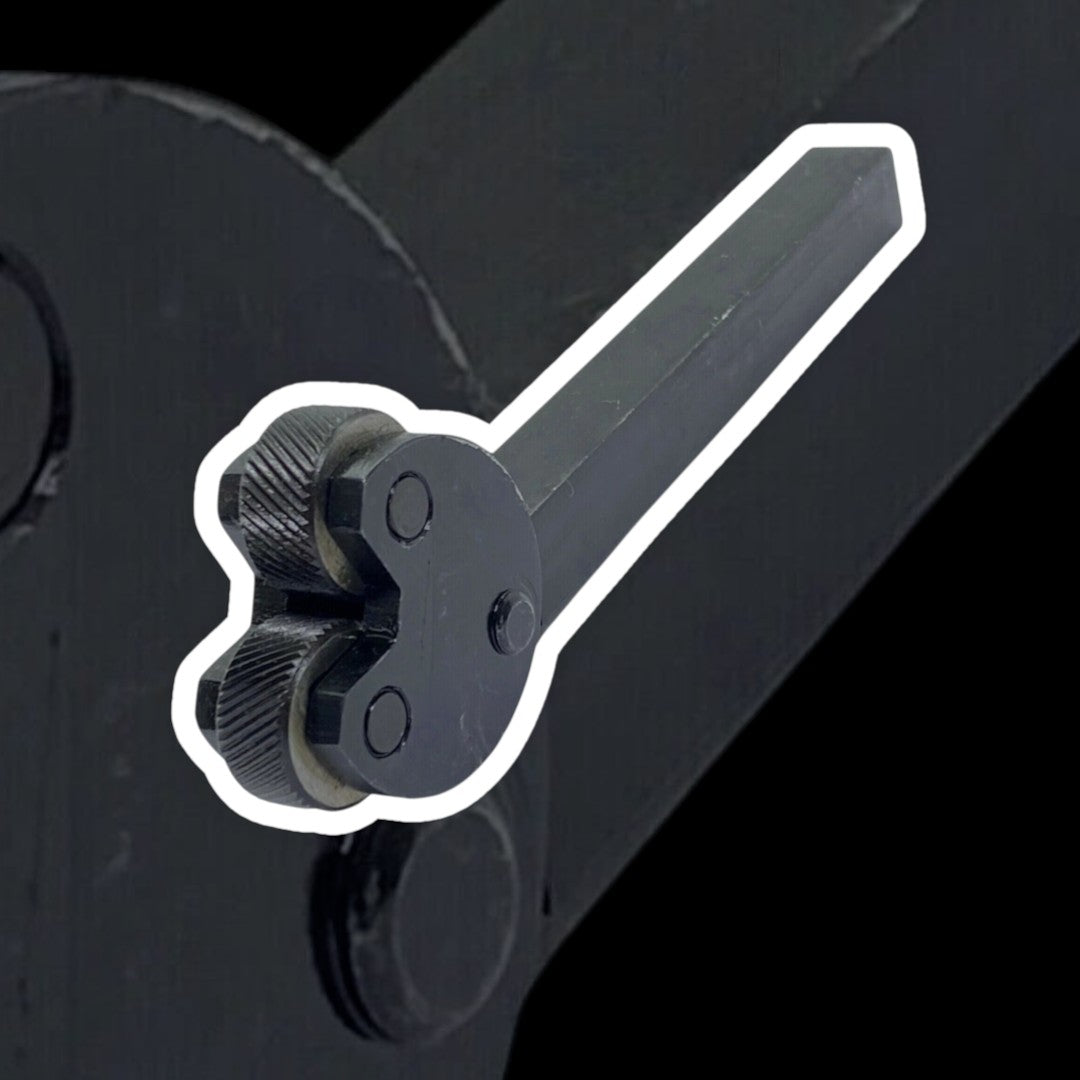

Upgrade your lathe machining setup with the BLUEFOX TOOLS 4-1/2" Swivel Head Knurling Tool, designed for knurling operations on small to medium-sized lathes. This pivot-head knurling tool features two hardened alloy steel knurls with left-hand and right-hand diagonal lines that produce a traditional diamond-pattern knurl on suitable workpieces.

The swivel/pivot head design allows the knurling wheels to follow the workpiece during the knurling operation, making it a practical choice for general turning and metalworking applications.

With a 1/2" × 1/2" shank and 4-1/2" overall holder length, this lathe knurling tool is suitable for compatible lathe tool holders and machine-tool setups.

🔩 Key Features

  • 🔧 Swivel / Pivot Head Design – Designed for practical lathe knurling operations.
  • ⚙️ 2 Hardened Alloy Steel Knurls – Includes two knurling wheels for diamond-pattern knurling.
  • 💎 Diamond Pattern Knurling – Medium LH & RH diagonal line knurls form a cross-hatched diamond pattern.
  • 📏 3/4" Knurl Diameter – Knurl wheel diameter approx. 19 mm.
  • 🔩 1/2" × 1/2" Shank – Suitable for compatible lathe tool holders.
  • ⚙️ 4-1/2" Overall Length – Holder length approx. 115 mm.
  • 🎯 1.0 mm & 1.5 mm Pitch – Supplied knurls provide these knurling pitch options.
  • 🛠️ Small to Medium Lathes – Suitable for general workshop and machining applications.
  • 🔥 New Tool – Brand-new knurling tool supplied with two knurls.

📐 Specifications

Specification Details
🛠️ Tool Type Swivel Head Knurling Tool
🔩 Head Type Pivot / Swivel Head
⚙️ Knurls Included 2
💎 Knurl Pattern Diamond
🔥 Knurl Material Hardened Alloy Steel
📏 Knurl Diameter 3/4" / 19 mm
📐 Knurl Width 3/8" / 9.52 mm
🔩 Knurl Bore 1/4" / 6.35 mm
⚙️ Knurl Pitch 1.0 mm & 1.5 mm
📏 Holder Shank 1/2" × 1/2"
📐 Holder Size 12.7 × 12.7 mm
📏 Overall Length 4-1/2" / 115 mm
🛠️ Application Lathe Knurling
🏭 Recommended Lathe Small to Medium Sized Lathes

🛠️ Applications

🔧 Lathe Knurling – Create diamond-pattern knurling on suitable cylindrical workpieces.

⚙️ Metalworking – Suitable for general metalworking and machining applications.

🎯 Machine Shop Work – Useful for machinists, engineers and workshop users performing knurling operations.

🔩 Turning & Finishing Work – Helps create textured surfaces for improved grip and functional or decorative finishes.
