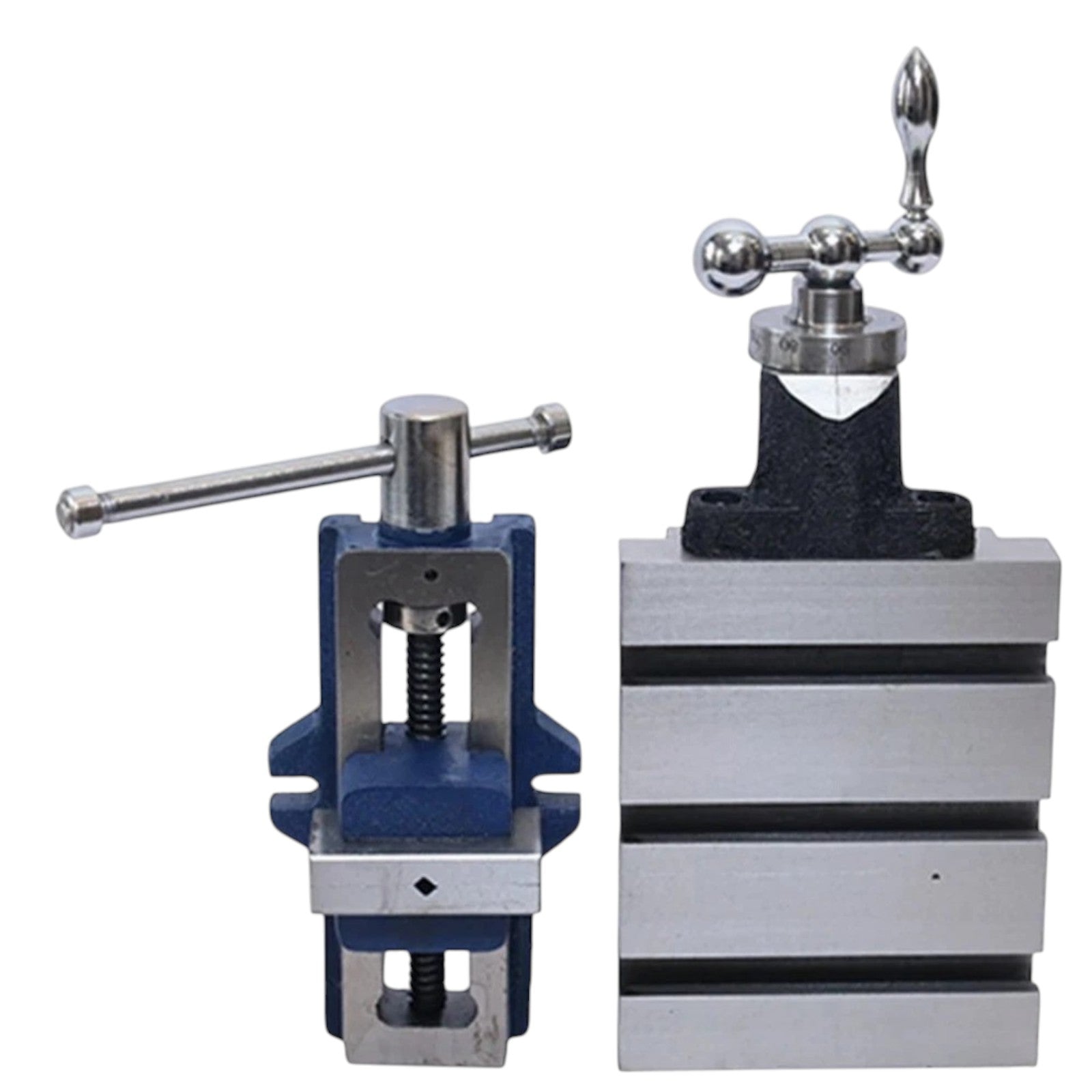

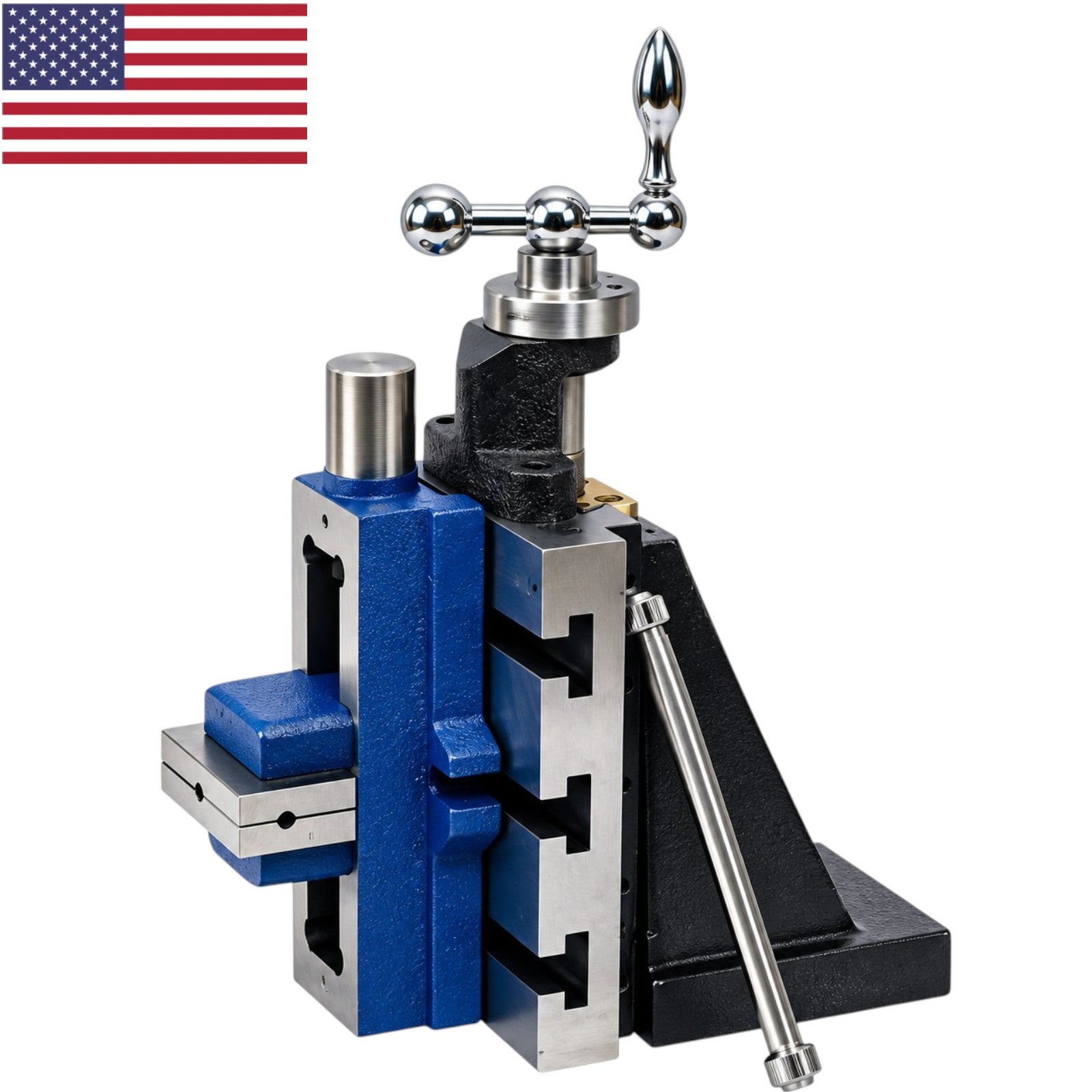

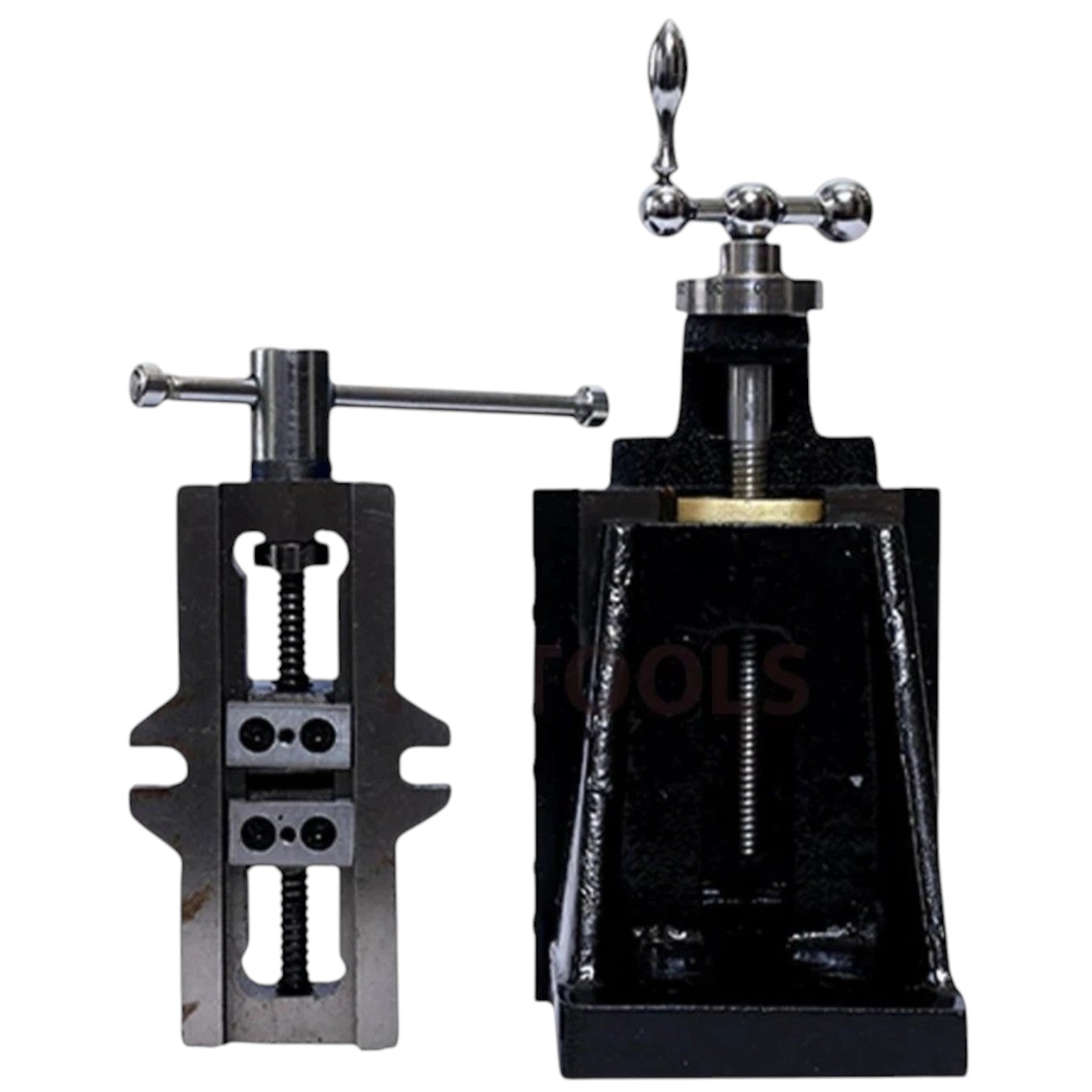

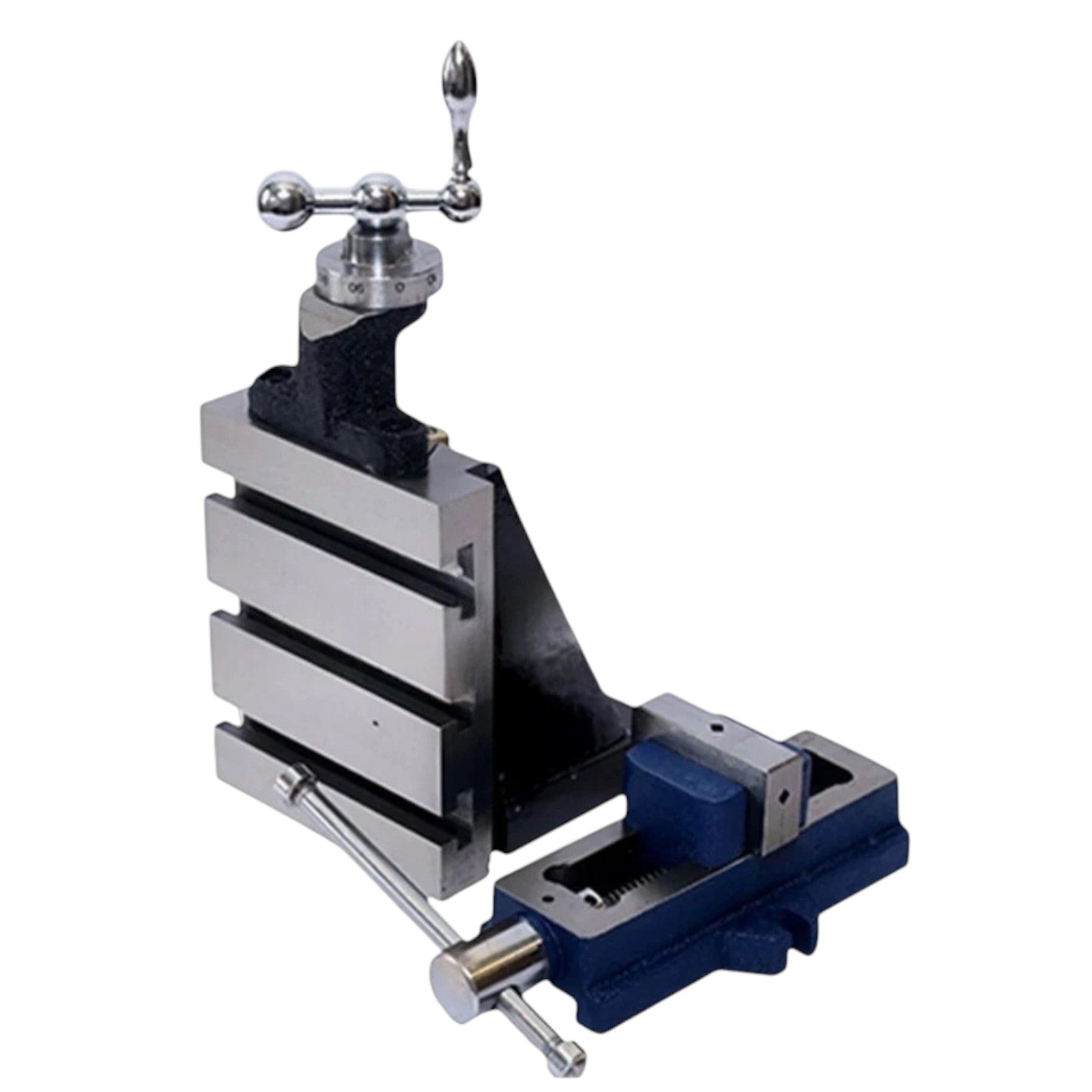

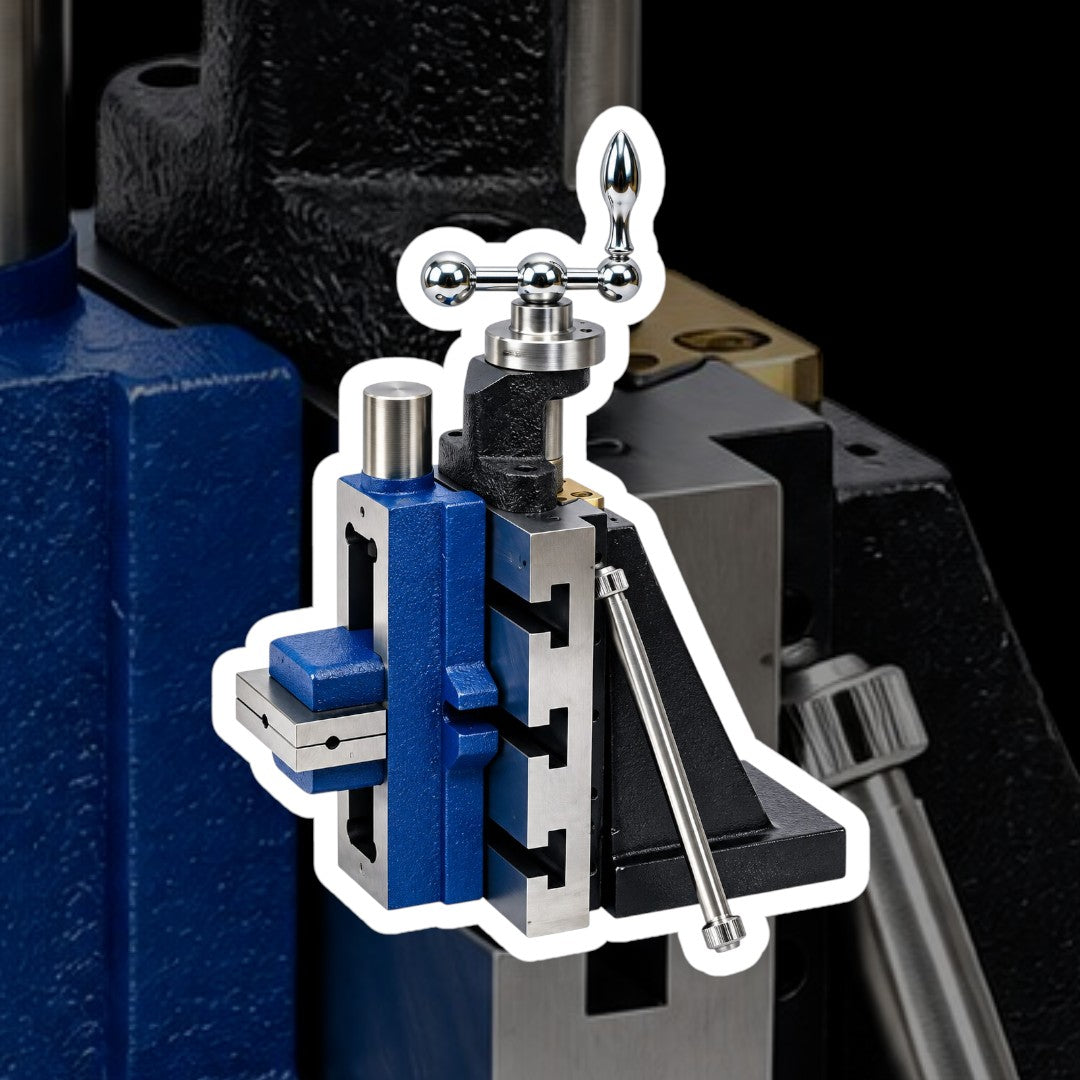

Transform your compatible lathe into a more versatile milling and drilling setup with the BLUEFOX TOOLS 4" × 5" Fixed Base Vertical Milling Slide with 50mm Self-Centering Vice.

This complete lathe vertical milling attachment combines a precision-machined vertical slide with a compact 2" / 50mm self-centering machine vice, providing a practical solution for milling, drilling, slotting, facing, and other metalworking operations.

The vertical slide features an 80mm vertical travel and machined T-slots for secure fixture mounting. Its fixed-base configuration provides a stable platform for machining work, while the included T-nuts and bolts allow the vice to be mounted securely.

🎯 The 50mm self-centering vice uses an opposite-thread mechanism that moves both jaws simultaneously, helping position the workpiece centrally and reducing repeated manual adjustment during setup.

⭐ Key Features

🔧 Complete Milling Attachment Set – Includes the vertical milling slide, 50mm self-centering vice, T-nuts, bolts and Allen key.

⚙️ 4" × 5" Milling Table – Compact 100 × 125mm table provides a useful workholding surface for small machining applications.

📏 80mm Vertical Travel – Provides approximately 3-1/8" vertical slide travel for milling and drilling operations.

🎯 50mm Self-Centering Vice – Opposite-thread mechanism moves both jaws together to help automatically center the workpiece.

🔩 T-Slot Mounting – Machined slots allow secure mounting of the included vice and other suitable fixtures.

💪 Fixed Base Design – Provides a stable mounting arrangement for compatible lathe setups.

🛠️ Multi-Purpose Machining Tool – Suitable for milling, drilling, slotting, facing and general metalworking.

🏭 Ideal for Small Workshops – Suitable for hobby machinists, engineers, model makers and repair workshops.

📐 Vertical Milling Slide Specifications

Specification Details
🔧 Type Fixed Base Vertical Milling Slide
📏 Table Size 4" × 5" / 100 × 125mm
⚙️ Vertical Travel 3-1/8" / 80mm
🔩 Slot Width 3/8"
📐 Lower Slot Width 5/8"
📏 Upper Slot Height 7/32"
⚙️ Lower Slot Height 5/32"

🔩 50mm Self-Centering Vice Specifications

Specification Details
🔧 Vice Type Self-Centering Machine / Milling Vice
📏 Jaw Width 2" / 50mm
🎯 Maximum Jaw Opening 2" / 50mm
📐 Jaw Depth 1" / 25mm
⚙️ Vice Height 2-3/8" / 60mm
🔄 Jaw Movement Self-Centering Opposite Thread System
🎨 Finish Blue

🛠️ Applications

⚙️ Lathe Milling Attachment – Add milling capability to a compatible lathe setup.

🔧 Milling Operations – Suitable for small-scale milling and machining work.

🎯 Drilling Applications – Secure workpieces for drilling operations.

🔩 Slotting & Keyway Work – Useful for machining slots and similar features.

📐 Facing Operations – Suitable for facing and surface machining applications.

🏭 Metalworking Workshops – Practical accessory for engineering and repair workshops.

🛠️ Model Engineering – Useful for hobby machinists and model-making applications.

💡 Compatible Setup

This vertical milling slide attachment is intended for use with compatible Myford-style lathes, mini lathes and small lathe machining setups. Please verify the mounting dimensions and available space on your machine before ordering.

📦 Package Includes

✔️ 1 × 4" × 5" Vertical Milling Slide
✔️ 1 × 50mm Self-Centering Vice
✔️ 2 × T-Nuts
✔️ 2 × Bolts
✔️ 1 × Allen Key

💙 BLUEFOX TOOLS – Right Quality. Right Performance.

A versatile lathe vertical milling slide with 50mm self-centering vice, designed for compatible small lathes and suitable for milling, drilling, slotting, facing, metalworking and model engineering applications.
