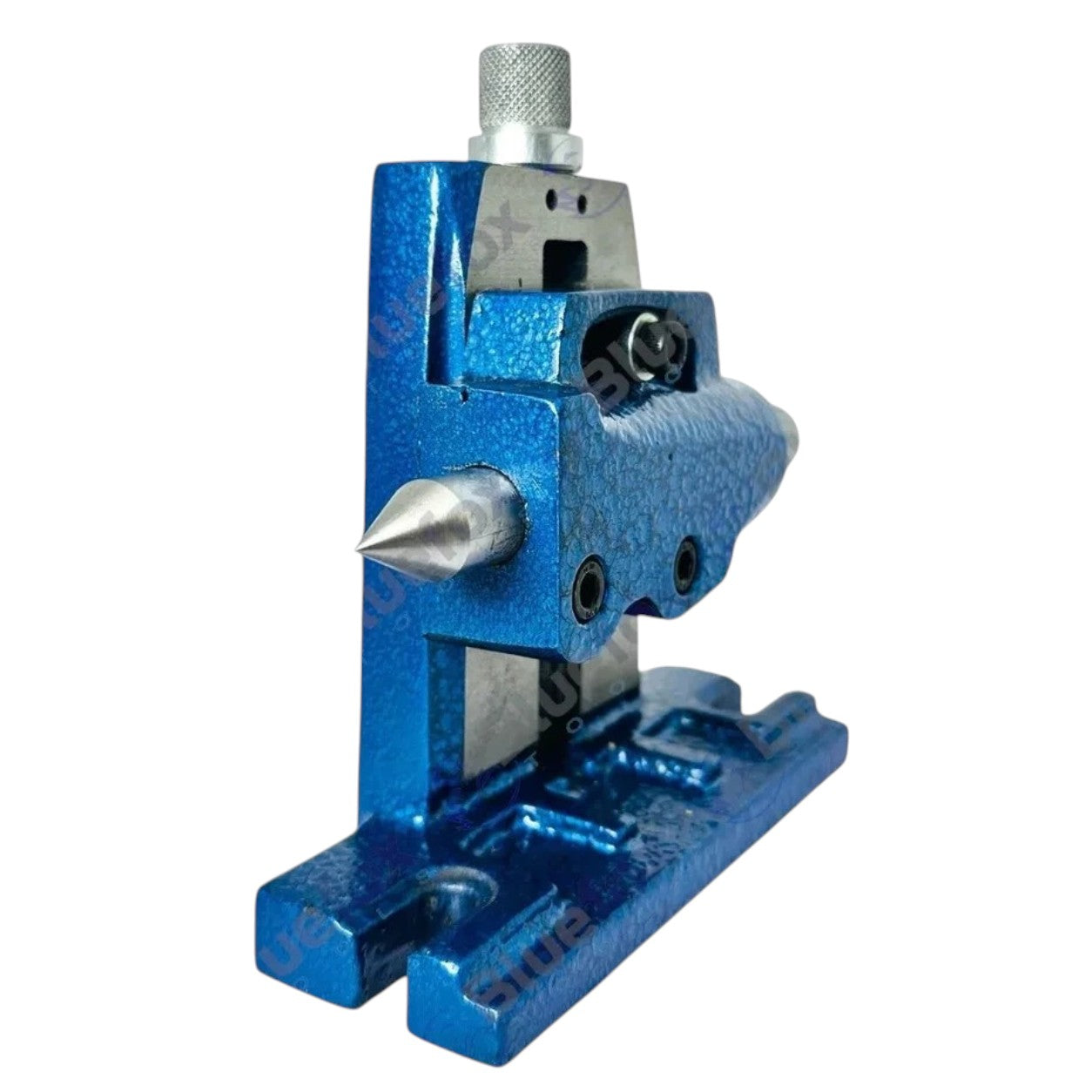

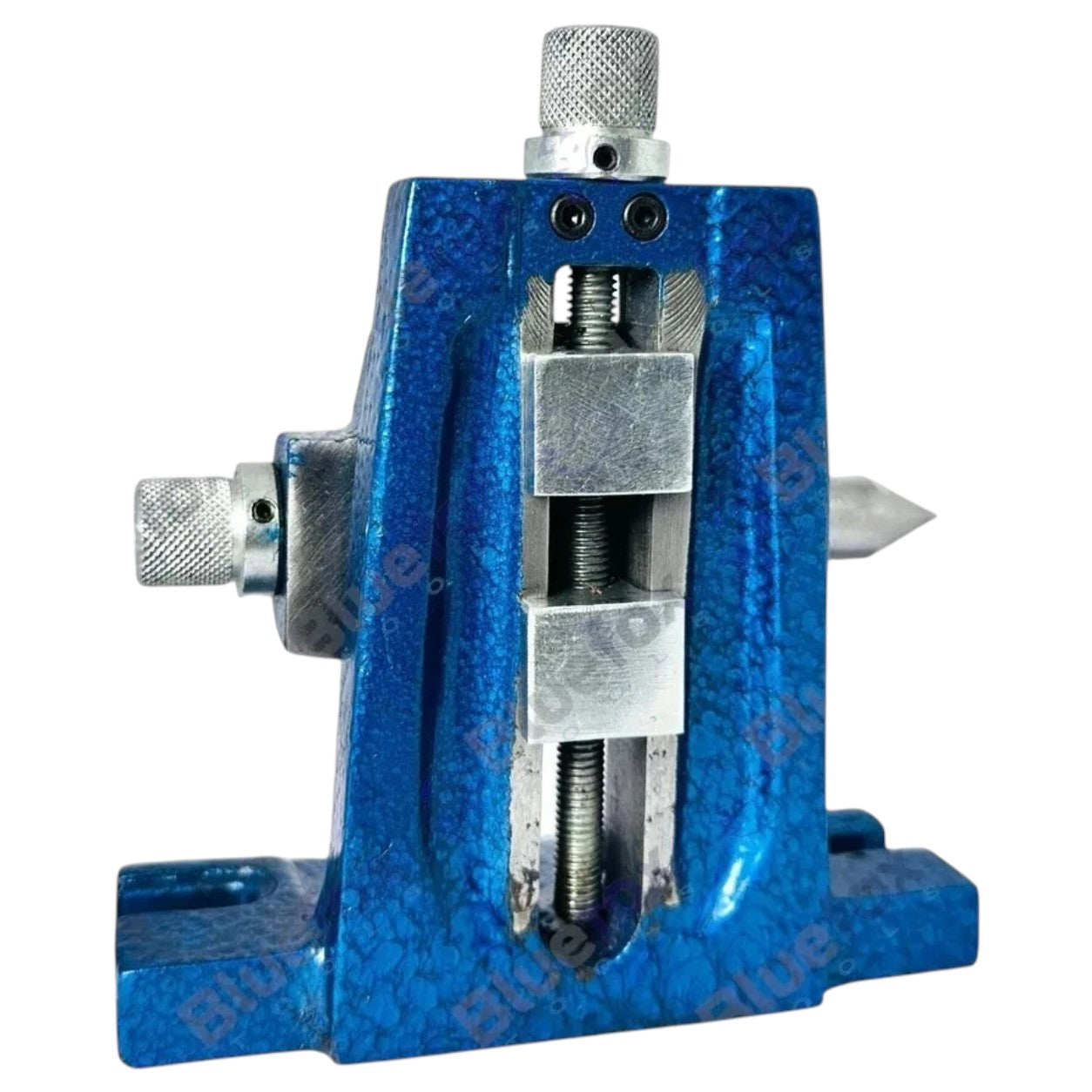

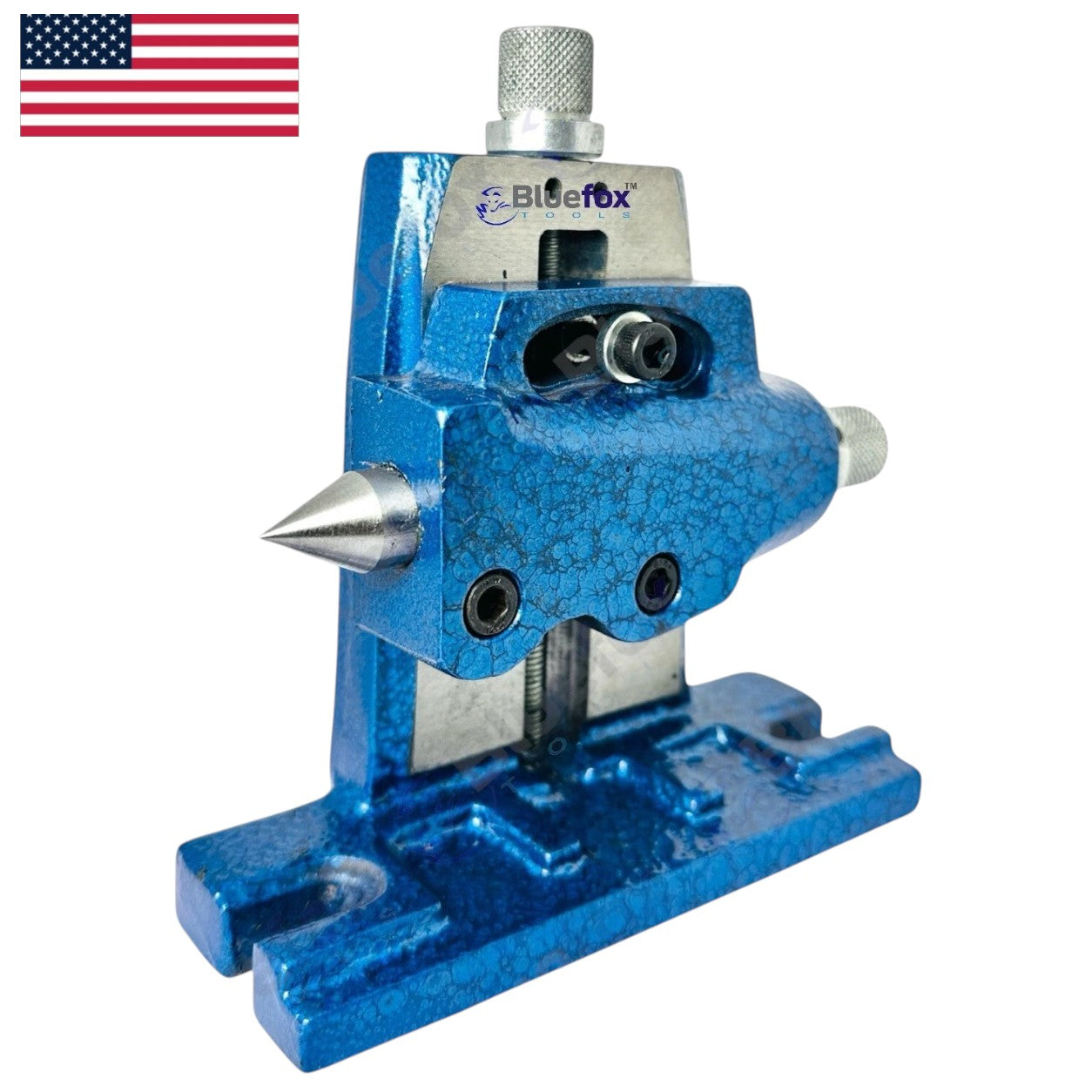

🔧 BLUEFOX TOOLS Universal Adjustable Swivelling Tailstock for Dividing Head & Rotary Table – 45–80mm Centre Height

⚙️ Height-Adjustable Tailstock for Dividing Head – C45E Steel Centre Support

Improve workpiece support and alignment with the BLUEFOX TOOLS Universal Adjustable Tailstock for Dividing Heads and compatible rotary table setups. Designed for milling, machining and engineering applications, this adjustable tailstock helps support workpieces positioned between a dividing head and tailstock, providing a practical solution for accurate setup and stable positioning.

Featuring an adjustable centre height of 45–80mm, this versatile machine tool accessory allows the centre tip to be positioned to suit compatible dividing head arrangements. The clamping screw secures the selected height, while the horizontal position can also be locked in place. A convenient knurled adjustment knob allows lateral positioning of the centre tip across a horizontal travel range of 27mm.

The centre tip is manufactured from C45E steel with a specified hardness of 40–45 HRC, making this adjustable tailstock a useful addition to engineering workshops, milling machine setups and precision machining environments.

✨ Key Features

• 🔧 Adjustable Centre Height: Suitable for centre heights from 45mm to 80mm when the dividing head is positioned vertically.

• ⚙️ Dividing Head Compatibility: Designed to support workpieces in compatible dividing head and rotary table machining setups.

• 📏 27mm Horizontal Adjustment: Knurled rotary knob allows convenient lateral adjustment of the centre tip.

• 🔩 Secure Clamping Mechanism: Clamping screw secures the selected centre height and the horizontal position.

• 🛠️ C45E Steel Centre Tip: Made from C45E steel with a specified hardness of 40–45 HRC.

• 🎯 Workpiece Support and Alignment: Helps position and support suitable workpieces during machining setup.

• 🏭 Workshop-Ready Accessory: Suitable for engineering, milling and general machine-tool applications.

📐 Technical Specifications

• Brand: BLUEFOX TOOLS

• Product Type: Adjustable / Swivelling Tailstock

• Application: Dividing Head and Compatible Rotary Table Setups

• Centre Height Range: 45–80mm

• Centre Tip Diameter: 15mm

• Centre Tip Material: C45E Steel

• Specified Tip Hardness: 40–45 HRC

• Horizontal Tip Travel: 27mm

• Base Dimensions: 140 × 57mm

• Total Height: 155mm

• Net Weight: 2.4kg

🏭 Applications

• ⚙️ Supporting workpieces on dividing head setups

• 🔧 Milling machine and machining operations

• 📏 Horizontal workpiece positioning and alignment

• 🛠️ Workpiece support between a dividing head and tailstock

• 🔩 Engineering workshop and machine-tool applications

• 🎯 Suitable setups requiring adjustable centre support

🔩 How to Use

1. Check the centre height: Ensure the dividing head is positioned vertically and its centre height falls within the 45–80mm adjustment range.

2. Position the workpiece: Arrange the workpiece between the dividing head and tailstock.

3. Adjust the height: Move the centre tip to the required position and secure it using the clamping screw.

4. Adjust horizontally: Turn the knurled knob to position the tip within its 27mm horizontal travel.

5. Secure before machining: Lock the adjustments and verify alignment and stability before starting the machine.

📦 Package Includes

• 1 × Universal Adjustable Tailstock for Dividing Head
