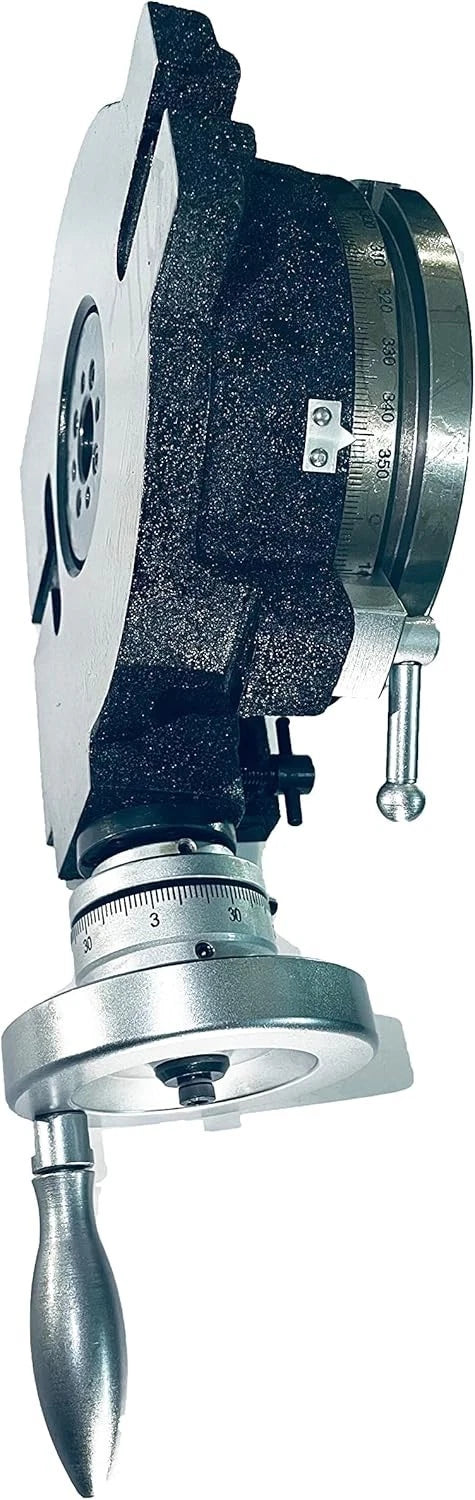

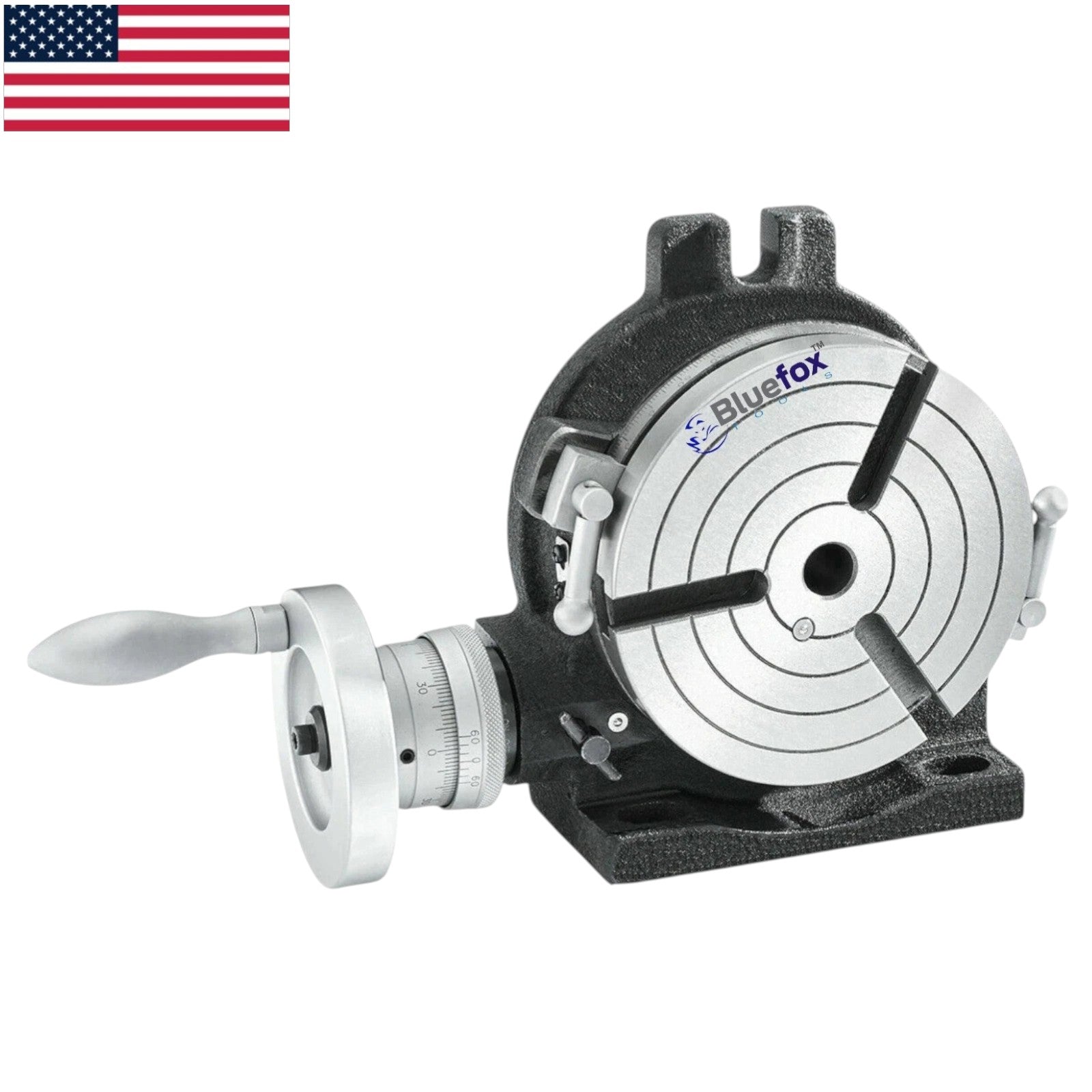

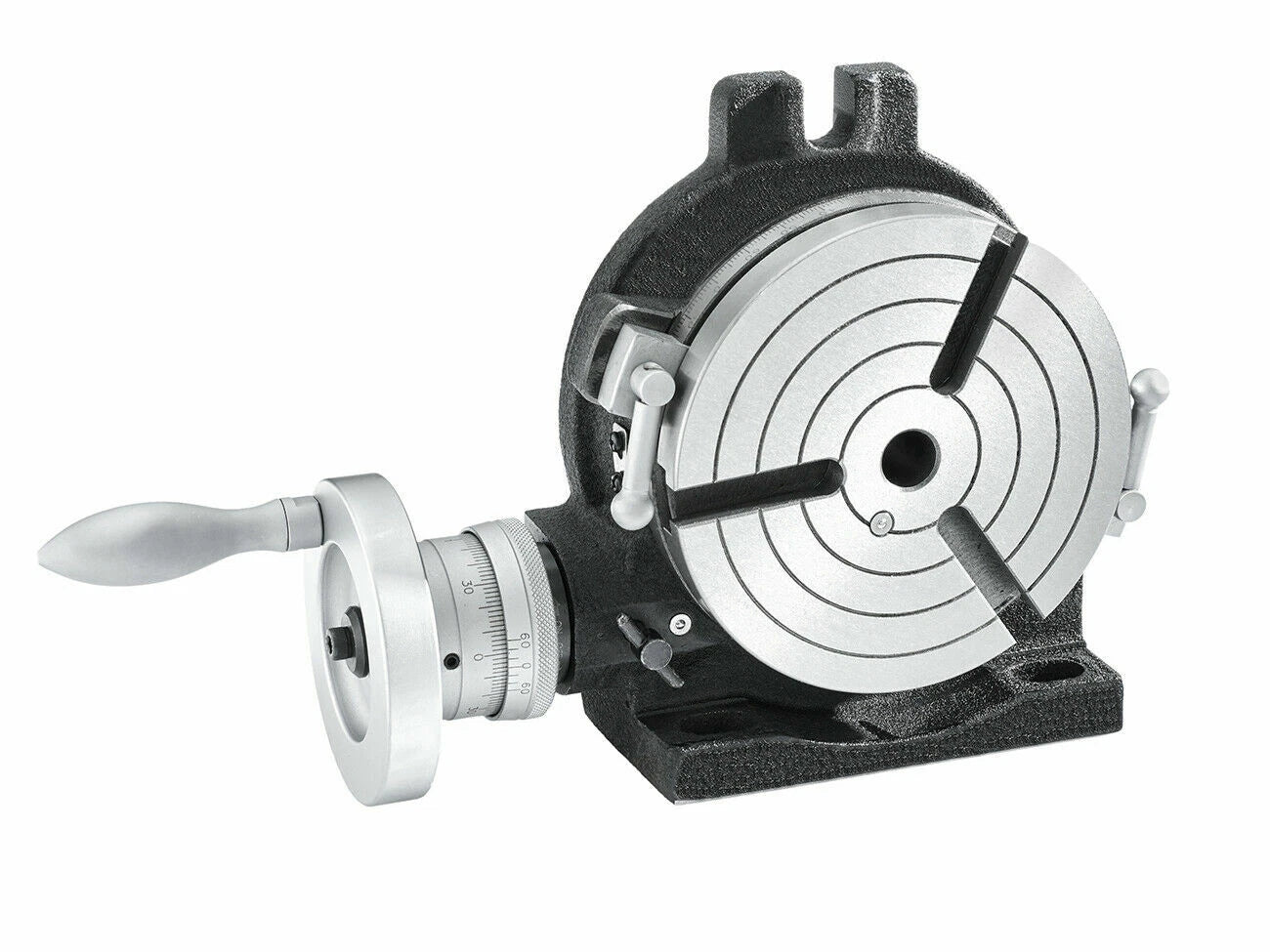

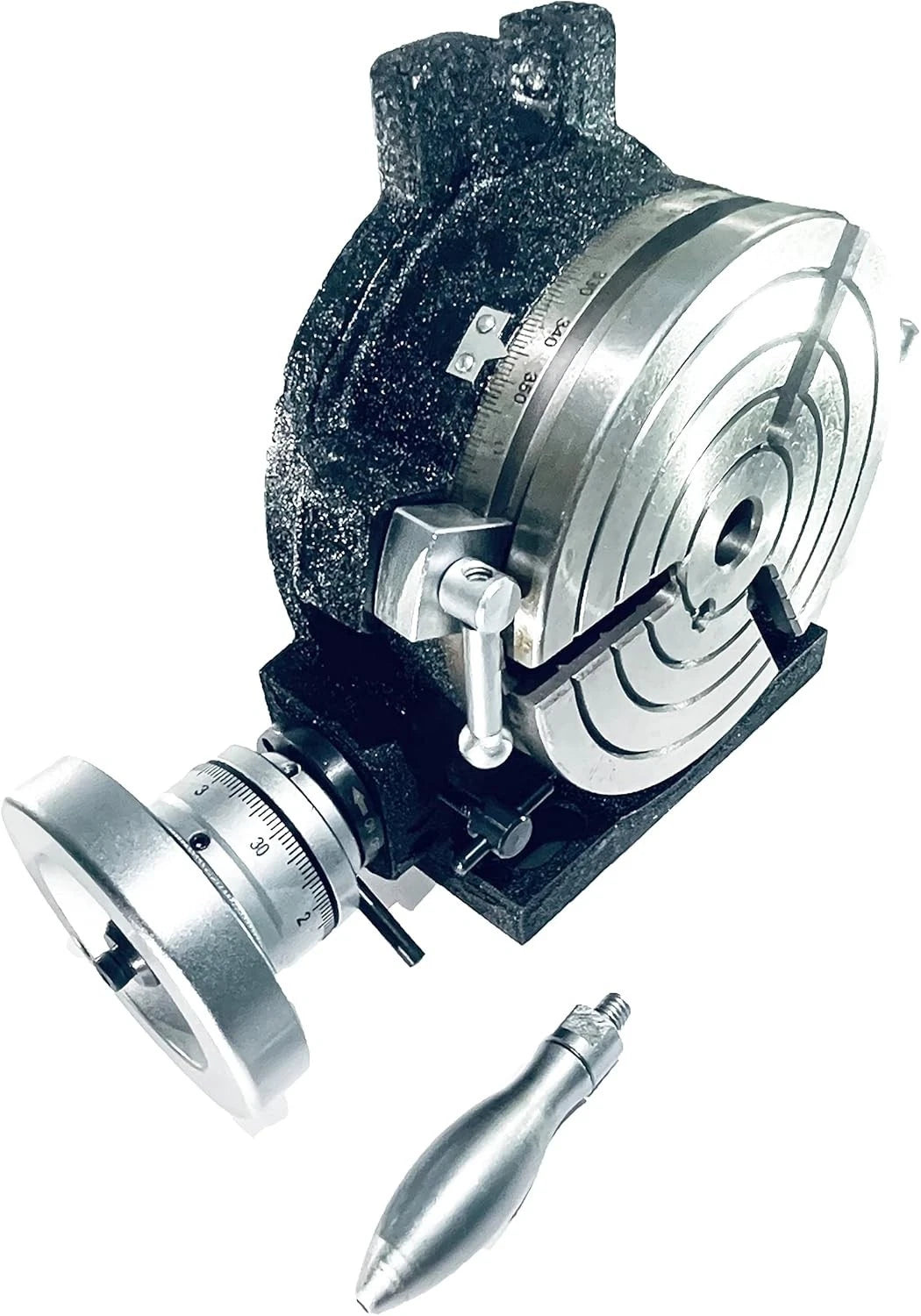

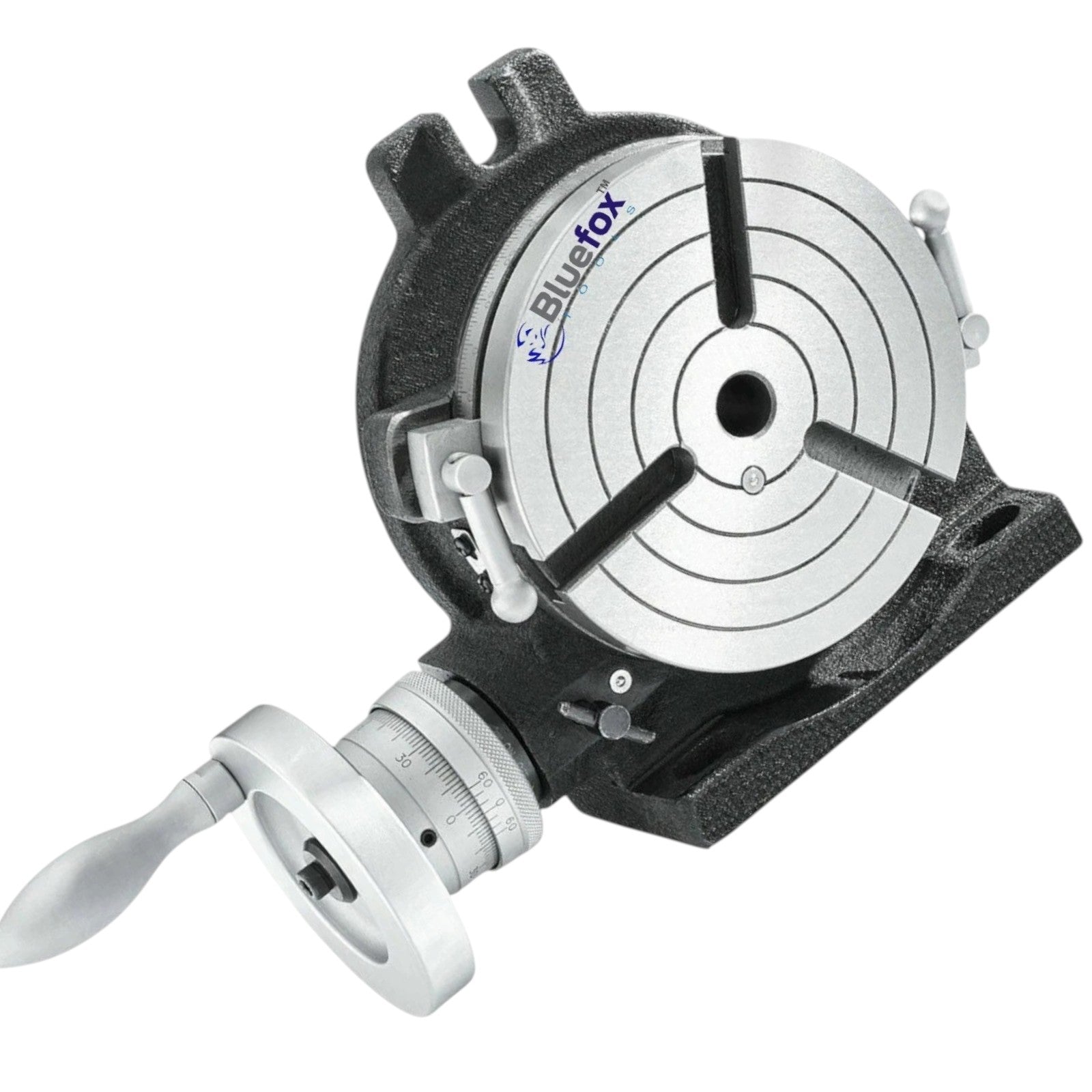

⚙️ BLUEFOX TOOLS HV6 6" (150mm) Precision Horizontal & Vertical Rotary Table – 3 Slot

Upgrade your milling machine with the BLUEFOX TOOLS HV6 Precision Rotary Table, a versatile workholding accessory designed for accurate indexing, circular milling, drilling, machining and angular positioning. With a 150mm (6-inch) worktable and horizontal and vertical mounting capability, this rotary table offers flexibility for professional engineering workshops, machine shops and model engineering applications.

Featuring a 90:1 worm gear ratio with a hardened and ground worm, the HV6 is designed for smooth, controlled rotation and precise workpiece positioning. The worktable is graduated through 360 degrees, while the gear ratio provides a 4-degree table rotation for each complete turn of the handwheel.

The MT2 (2 Morse taper) centre bore accommodates compatible tooling and accessories, while the three T-slots help secure workpieces using suitable clamps and fixtures.

💎 BLUEFOX TOOLS – Right Quality. Right Performance.

⚙️ Key Features

  • 🔄 Horizontal & Vertical Operation: Mount the rotary table in either orientation for flexible milling and machining setups.

  • 📏 150mm (6-Inch Worktable: Generous working surface for a range of small and medium-sized components.

  • ⚙️ 90:1 Worm Gear Ratio: Supports controlled, accurate manual rotation and indexing.

  • 💪 Hardened & Ground Worm: Designed for durability and smooth gear engagement.

  • 🎯 360° Graduated Worktable: Helps with angular positioning and repeatable indexing operations.

  • 🔧 4° Rotation per Handwheel Revolution: One complete handwheel turn rotates the table by 4 degrees.

  • 🔩 MT2 Centre Bore: 2 Morse taper centre bore for compatible centres and accessories.

  • 🛠️ Three T-Slots: Provide workholding options for clamping suitable components and fixtures.

  • 🏭 Precision Machining Accessory: Suitable for milling, drilling, circular machining and workshop indexing tasks.

📐 Technical Specifications

  • 🏷️ Brand: BLUEFOX TOOLS

  • 🔧 Model: HV6

  • ⚙️ Product Type: Precision Rotary Table

  • 📏 Table Diameter: 150mm (6")

  • 🔄 Mounting Orientation: Horizontal & Vertical

  • 📐 Height (Horizontal): 80mm

  • 🎯 Vertical Centre Height: 100mm

  • ⚙️ Worm Gear Ratio: 90:1

  • 💪 Worm Construction: Hardened & Ground

  • 📏 Table Graduation: 360°

  • 🔄 Table Rotation per Handwheel Revolution: 4°

  • 🔩 Centre Bore: MT2 (2 Morse Taper)

  • 🛠️ T-Slots: 3

  • ✋ Operation: Manual

🎯 Applications

Ideal for a wide range of precision machining and engineering tasks:

  • ⚙️ Milling machine indexing and positioning

  • 🔩 Circular milling and slot machining

  • 🎯 Angular drilling and bolt-circle machining

  • 🏭 Engineering and machine shop operations

  • 🛠️ Model engineering and hobby machining

  • 📐 Machining angled surfaces and components

  • 🔧 Precision metalworking and fabrication

  • ⚙️ Workpiece positioning for drilling and milling

💎 Why Choose the BLUEFOX TOOLS HV6 Rotary Table?

The BLUEFOX TOOLS HV6 6-inch rotary table combines a spacious 150mm worktable, horizontal-vertical versatility and a 90:1 worm gear mechanism for controlled manual indexing. Its hardened and ground worm, 360-degree graduations and three T-slots make it a valuable addition to a milling machine setup.

Whether you are machining circular components, drilling accurate hole patterns or carrying out angular milling operations, the HV6 helps expand your machine's workholding and positioning capabilities.

🔧 Choose BLUEFOX TOOLS for precision-focused machining accessories and dependable workshop performance.
