⚙️ BLUEFOX TOOLS HV4 HV6 Rotary Table Indexing Plate Set | 3-Piece Dividing Plates for Milling Machine

Improve indexing accuracy and expand your milling capabilities with the BLUEFOX TOOLS 3-Piece Indexing Plate Set for HV4 and HV6 Rotary Tables. Designed for compatible rotary table setups, these dividing plates help machinists position workpieces at specific angular intervals for precision milling, indexing and repetitive machining operations.

This rotary table dividing plate set includes three plates with multiple hole-circle options, allowing a variety of indexing divisions. It is a practical accessory for engineering workshops, toolrooms, model engineering and metalworking applications where repeatable positioning is essential.

Manufactured for compatibility with HV4 and HV6 rotary tables, the set includes the necessary screws, washers and handles for installation and use with a suitable compatible setup.

✨ Key Features

• ⚙️ HV4 & HV6 Compatibility: Designed for use with compatible HV4 and HV6 rotary tables.

• 📦 Complete 3-Piece Set: Includes three indexing plates with multiple hole-circle patterns.

• 🎯 Versatile Indexing Options: Supports a range of dividing operations for machining and workpiece positioning.

• 🔩 Multiple Hole Circles: Includes hole counts from 15 to 49, as listed below.

• 📏 100mm Plate Diameter: Compact plates designed for compatible rotary table assemblies.

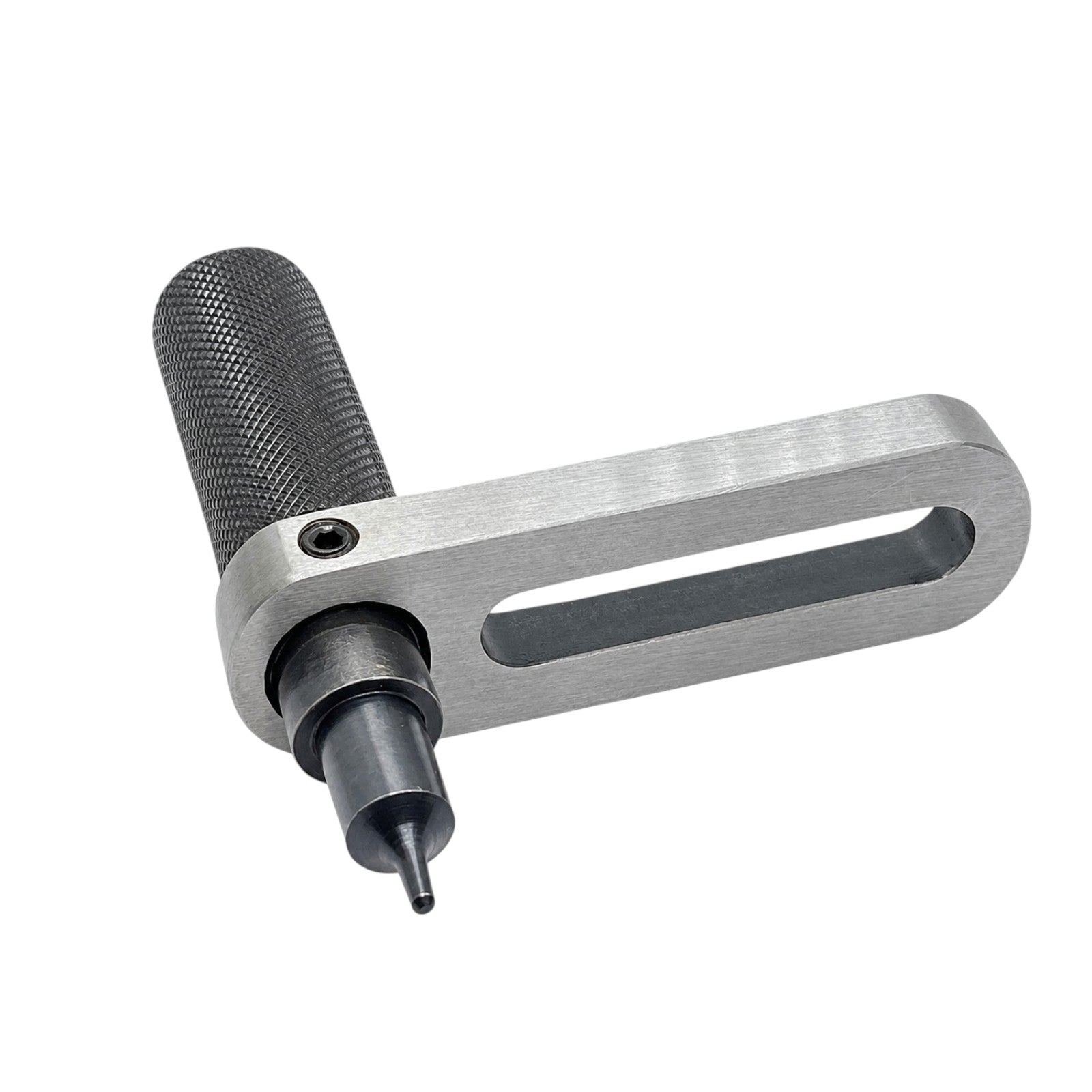

• 🛠️ Workshop Accessory Kit: Includes necessary screws, washers and handles.

• 🏭 Precision Machining Applications: Useful for milling, indexing, repetitive machining and engineering work.

📋 Product Specifications

• Brand: BLUEFOX TOOLS

• Product Type: Rotary Table Indexing / Dividing Plate Set

• Quantity: 3 Plates

• Compatible Rotary Tables: HV4 and HV6

• Plate Diameter: 100mm

• Inside Diameter: 21mm

• Plate Thickness: 7.5mm

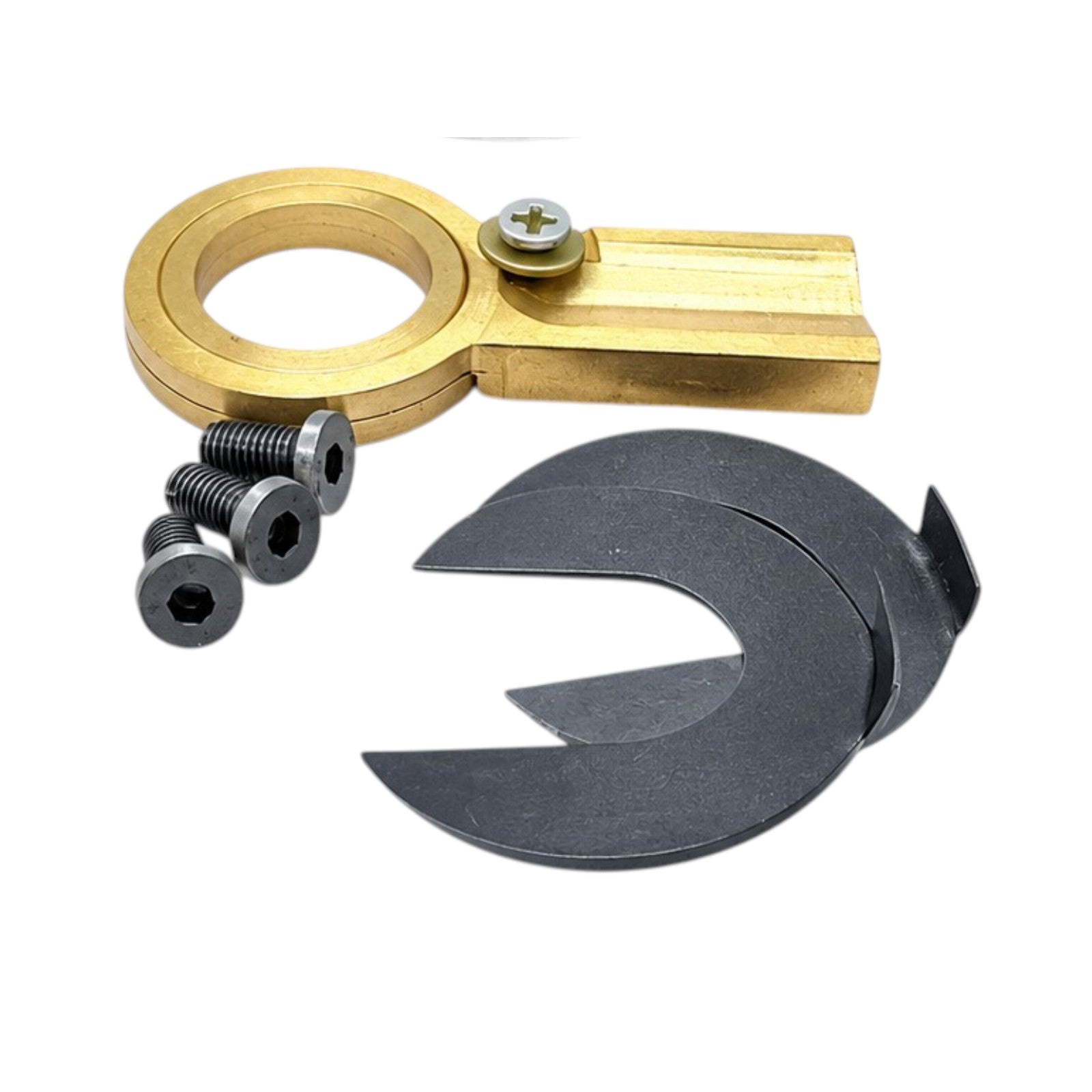

• Accessories Included: Screws, washers and handles

• Application: Rotary table indexing, dividing and milling operations

📐 Indexing Plate Hole Patterns

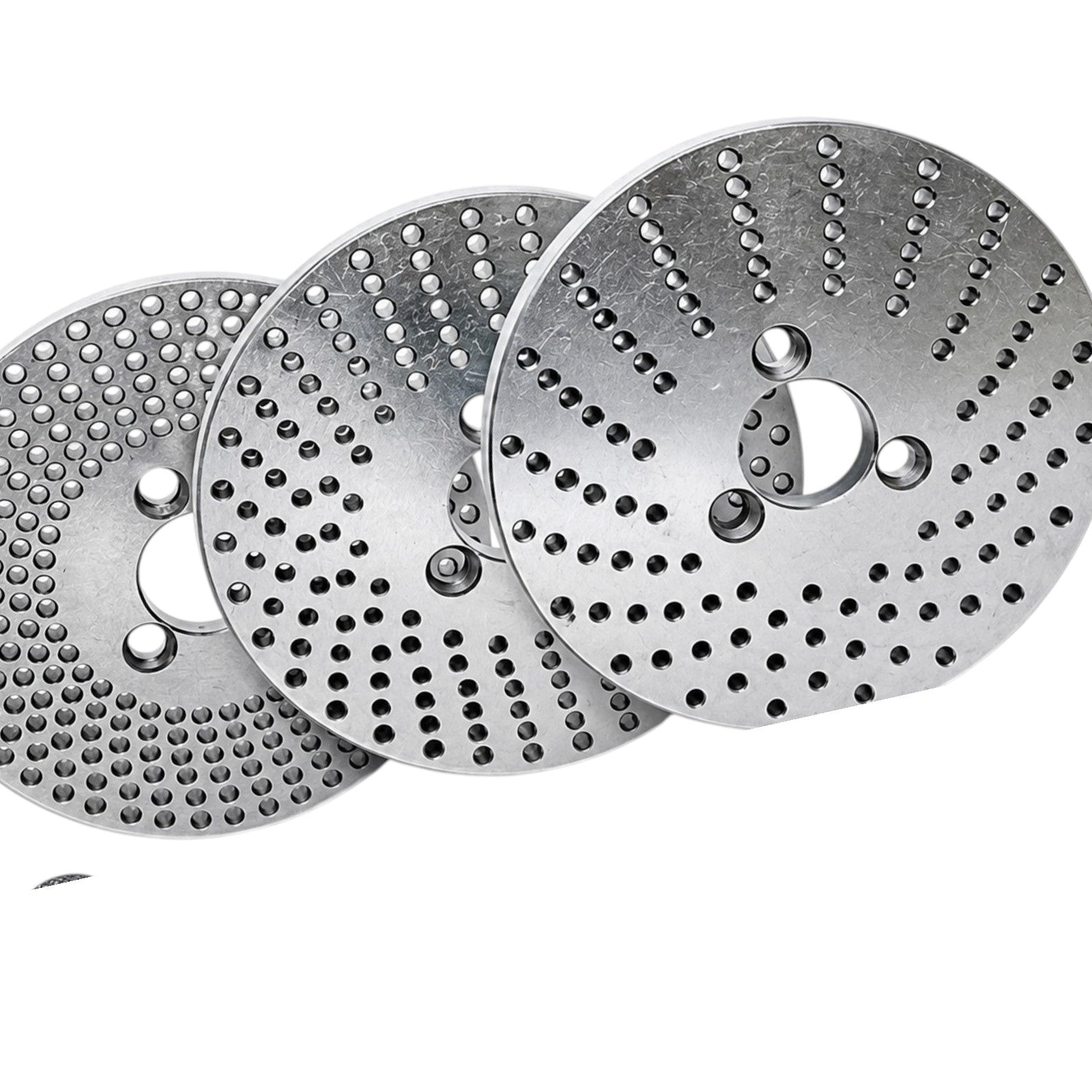

• Plate 1: 15, 16, 17, 18, 19 and 20 holes

• Plate 2: 21, 23, 27, 29, 31 and 33 holes

• Plate 3: 37, 39, 41, 43, 47 and 49 holes

These different hole circles provide a range of indexing options when used with a compatible rotary table indexing mechanism.

🛠️ Applications

• ⚙️ Precision milling and indexing

• 🔩 Repetitive machining operations

• 🎯 Angular positioning of workpieces

• 🏭 Engineering and machine shop work

• 🛠️ Model engineering and metalworking

• 📐 Dividing operations for compatible rotary table setups

💙 Why Choose BLUEFOX TOOLS?

The BLUEFOX TOOLS indexing plate set is a useful addition for machinists who need more dividing options from their compatible rotary table. With three plates, multiple hole patterns and included mounting accessories, it supports a range of workshop indexing and milling tasks.

BLUEFOX TOOLS – Right Quality. Right Performance.

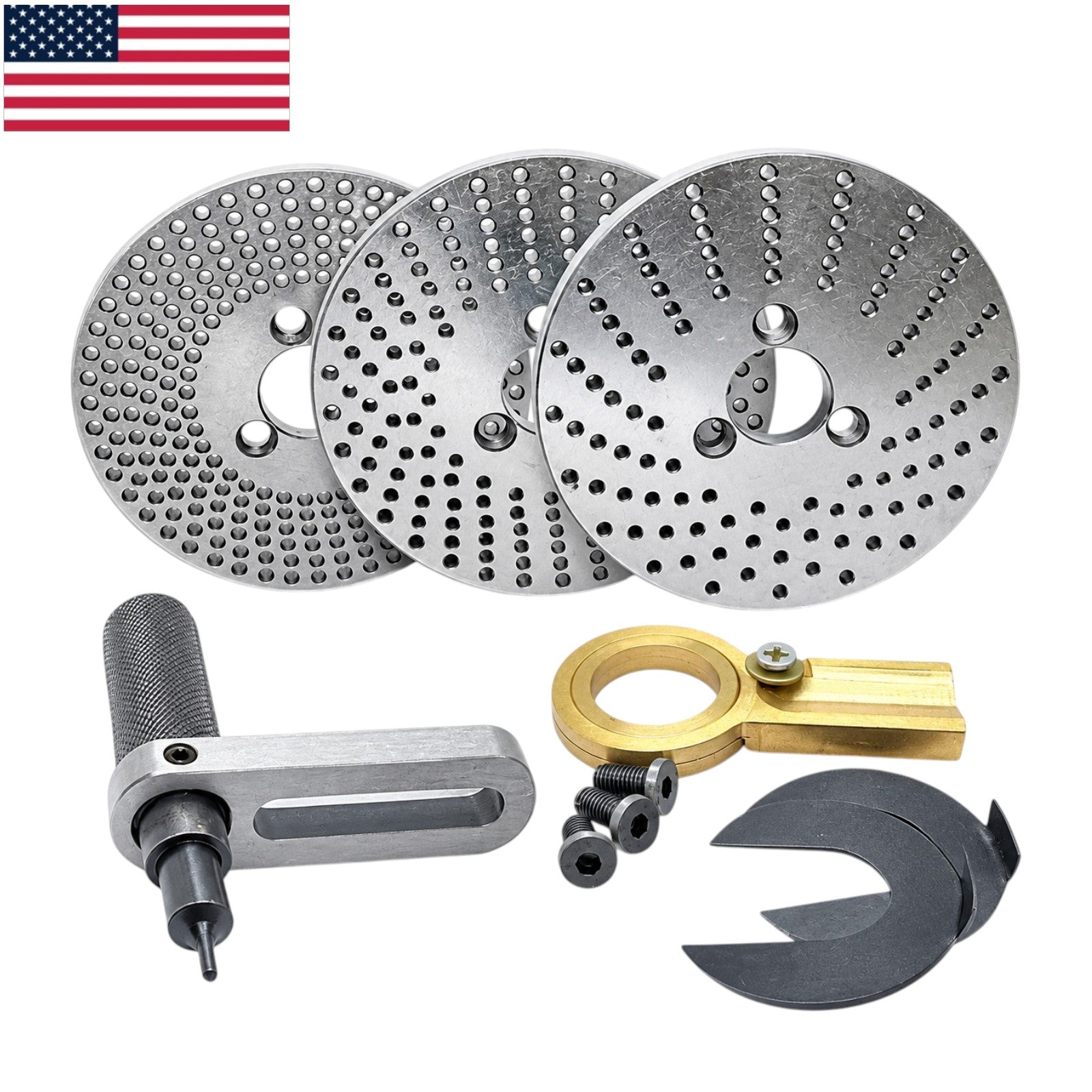

📦 Package Includes

• 3 × Rotary Table Indexing / Dividing Plates

• Necessary Screws

• Washers

• Handles

⚠️ Compatibility Note: Designed for compatible HV4 and HV6 rotary tables. Please verify your rotary table model, mounting arrangement and indexing mechanism before ordering. The rotary table itself is not included unless explicitly stated.
