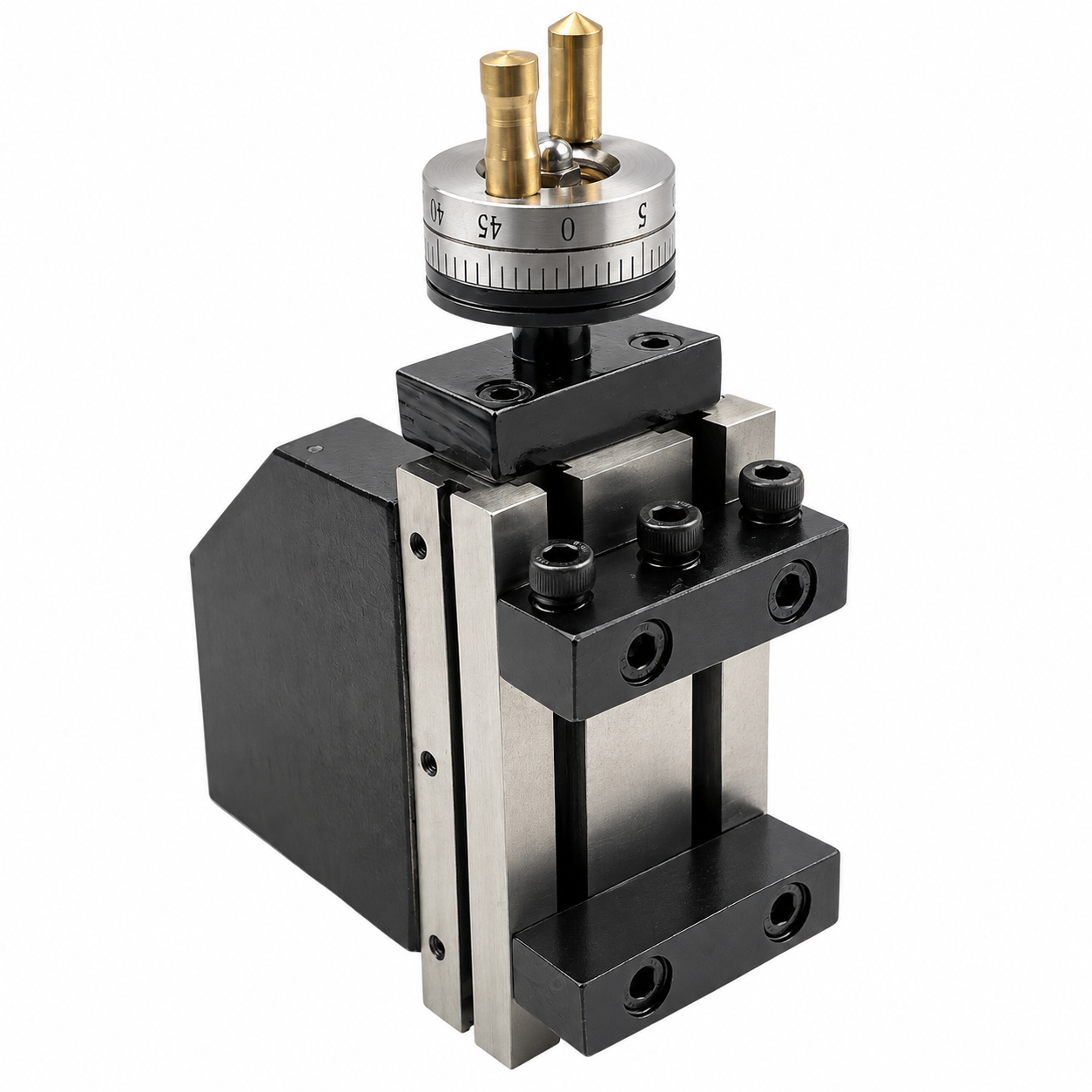

The Mini Lathe Vertical Slide with 50mm Diameter Backplate is a compact milling attachment designed for use with smaller lathes.

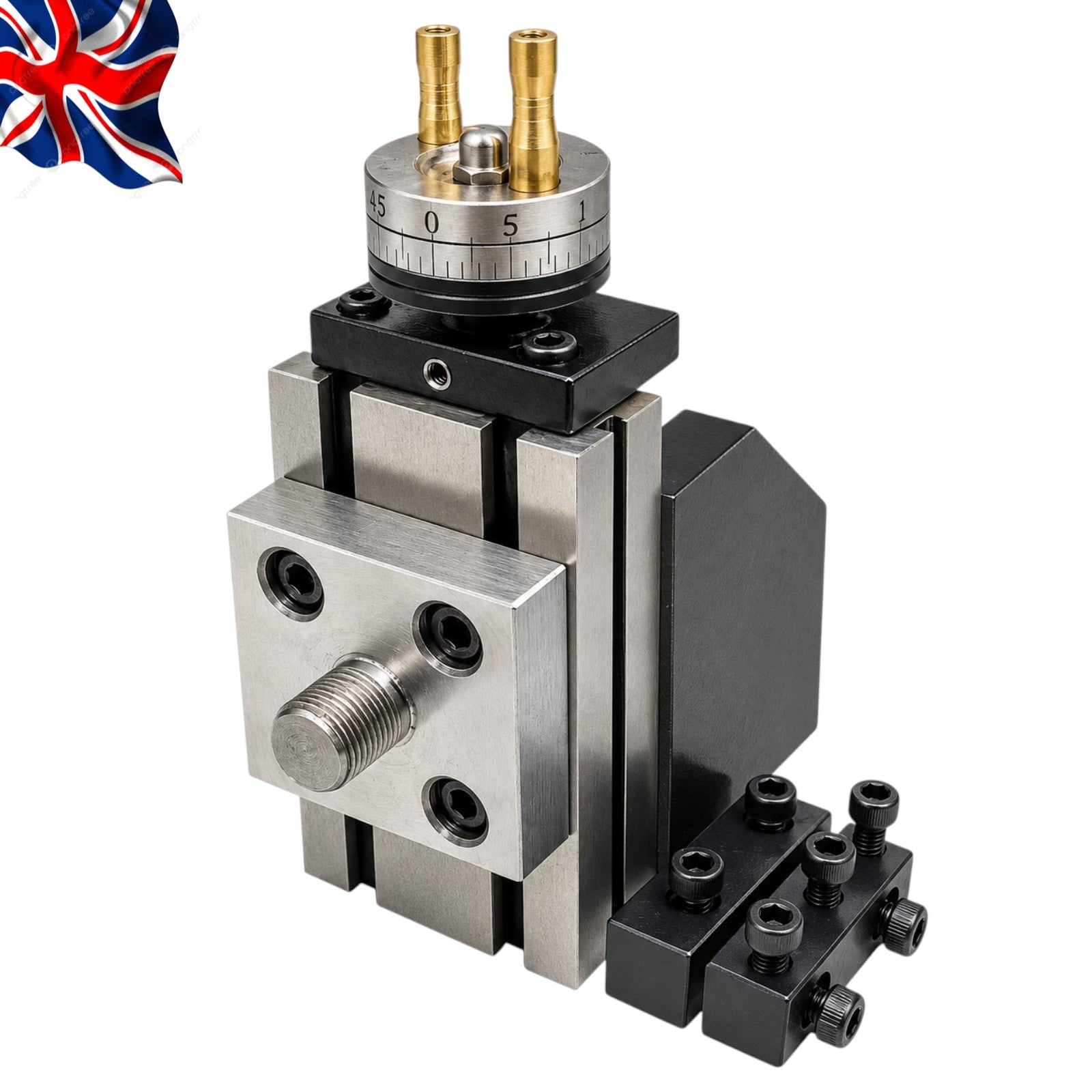

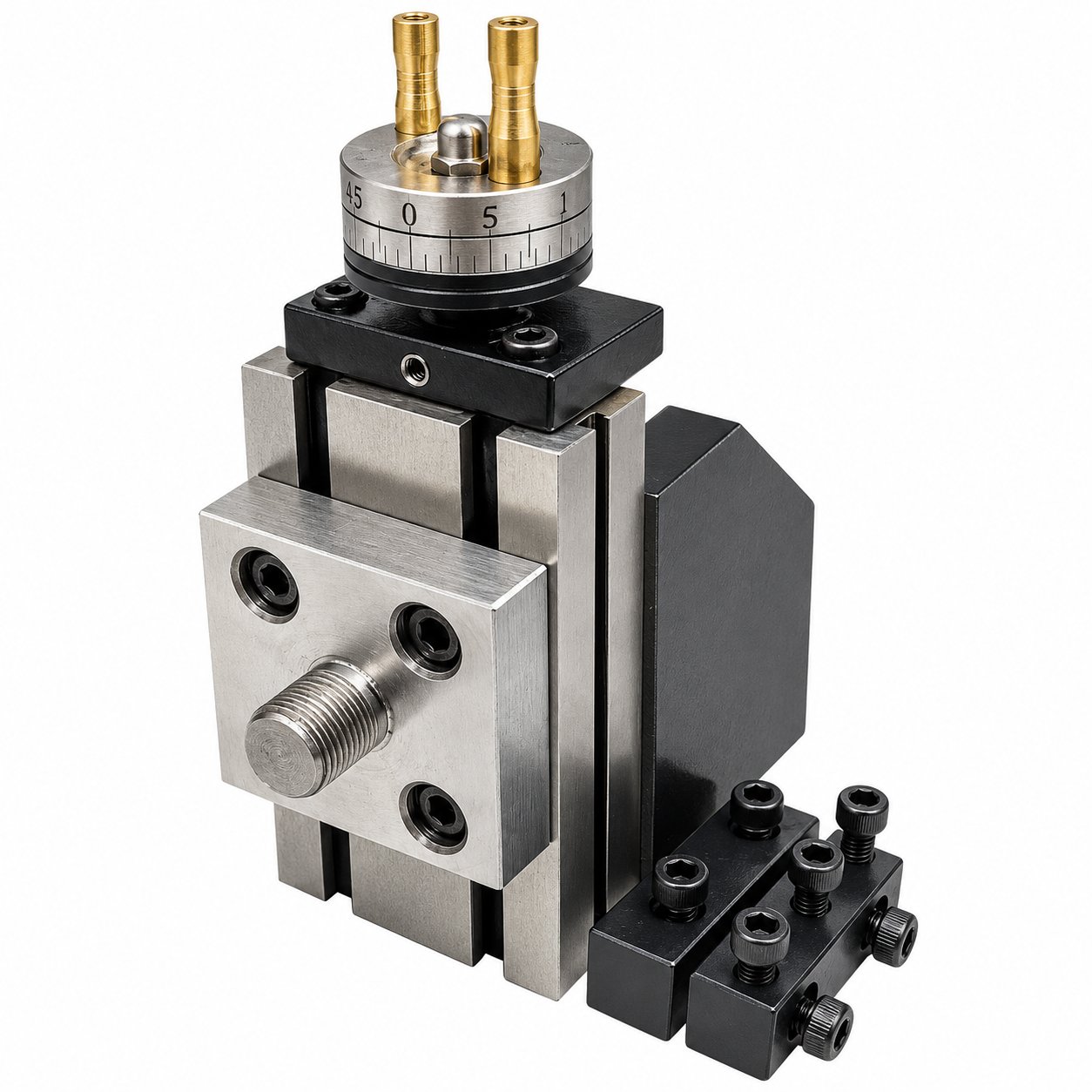

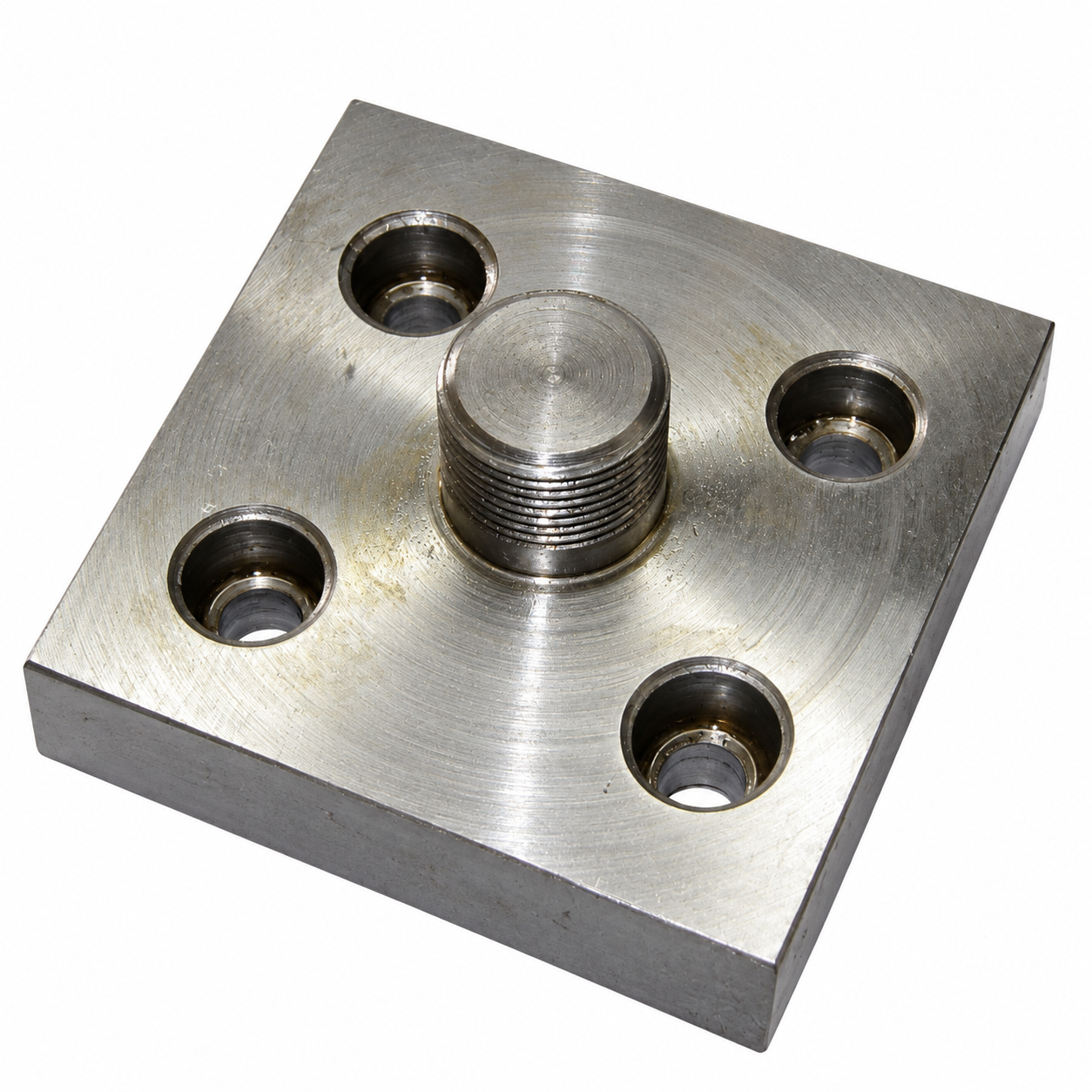

This vertical milling slide is supplied with a sliding backplate featuring an M14 × 1 thread, which mounts directly onto the vertical slide. The backplate can be used to mount a compatible lathe chuck on the mini vertical slide.

The attachment features a 3/8" T-slot and is secured using T-nuts and studs, providing a practical setup for small-lathe milling and workholding applications.

⭐ KEY FEATURES

  • 🔧 Mini Lathe Vertical Milling Slide
  • 📏 50mm Diameter Sliding Backplate
  • 🔩 M14 × 1 Backplate Thread
  • ⚙️ Designed for Smaller Lathes
  • 🔄 Sliding backplate mounts directly to the vertical slide
  • 🛠️ Backplate can mount a compatible Lathe Chuck
  • 📐 3/8" T-Slot
  • 🔩 Attaches via 2 T-Nuts
  • 🔧 Supplied with 4 T-Nuts & Studs for mounting
  • 💪 Compact design for mini-lathe applications

📋 ITEM SPECIFICATIONS

🔹 Specification 📌 Details
🔧 Product Type Mini Lathe Vertical Milling Slide
📏 Backplate Diameter 50mm
🔩 Backplate Thread M14 × 1
📐 Height 4"
📏 Width 2"
⚙️ T-Slot Size 3/8"
📐 Base Size 2-3/4" Square
🔩 Slide Attachment 2 T-Nuts
🔧 Mounting Hardware 4 T-Nuts & Studs
🛠️ Application Mini Lathe Milling & Workholding

⚙️ APPLICATIONS

  • 🛠️ Mini-lathe milling operations
  • 🔧 Vertical milling on smaller lathes
  • ⚙️ Mounting compatible lathe chucks
  • 🔩 Small-lathe workholding
  • 📐 Slotting and general milling setups
  • 🏭 Engineering and workshop applications

📦 PACKAGE INCLUDES

  • 1 × Mini Lathe Vertical Milling Slide
  • 1 × 50mm Diameter Sliding Backplate – M14 × 1
  • T-Nuts & Studs as specified

⚠️ IMPORTANT NOTE

🔍 Please verify your mini lathe's available mounting arrangement and the M14 × 1 thread compatibility before purchasing.

The backplate is designed to mount a compatible lathe chuck; chuck is not specified as included.
