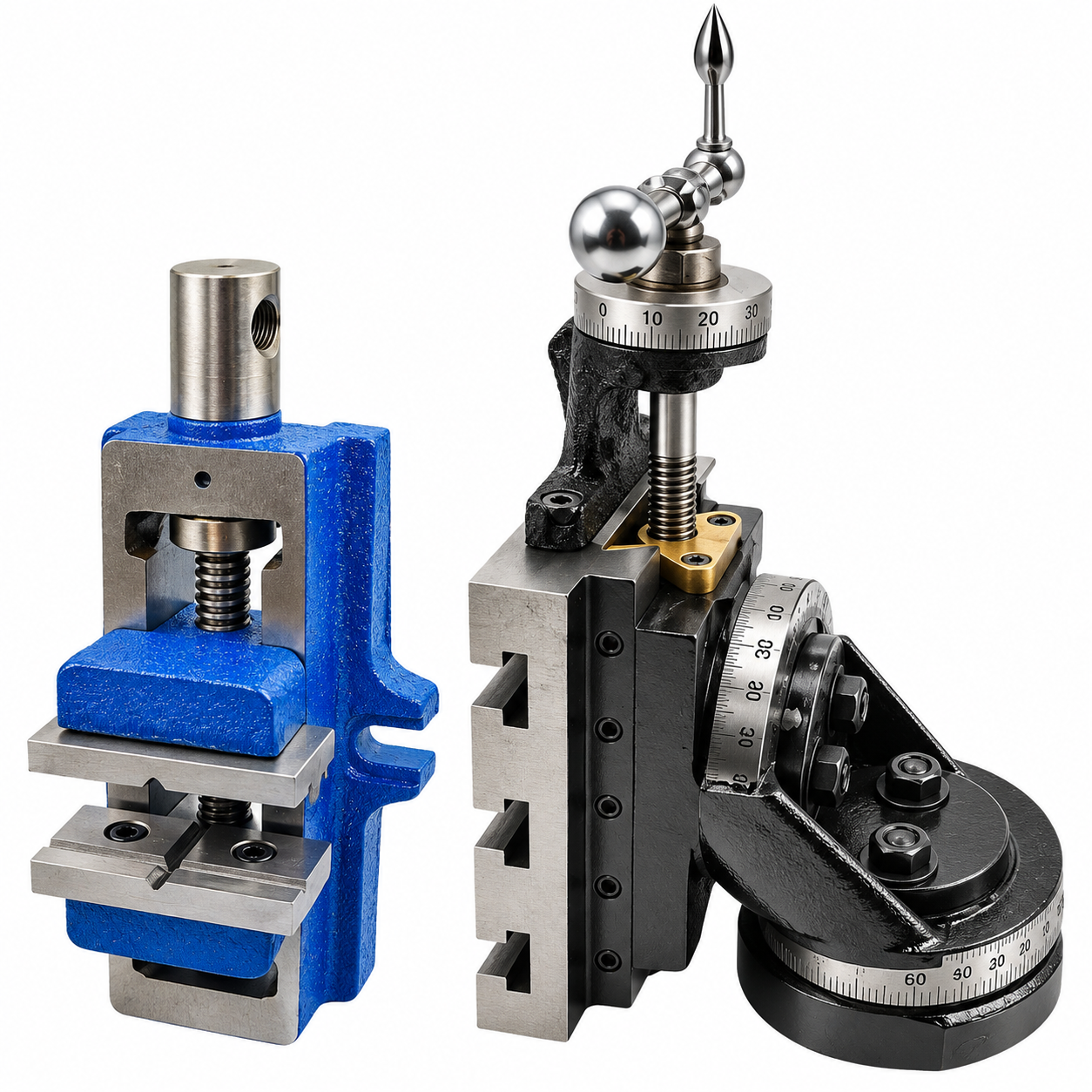

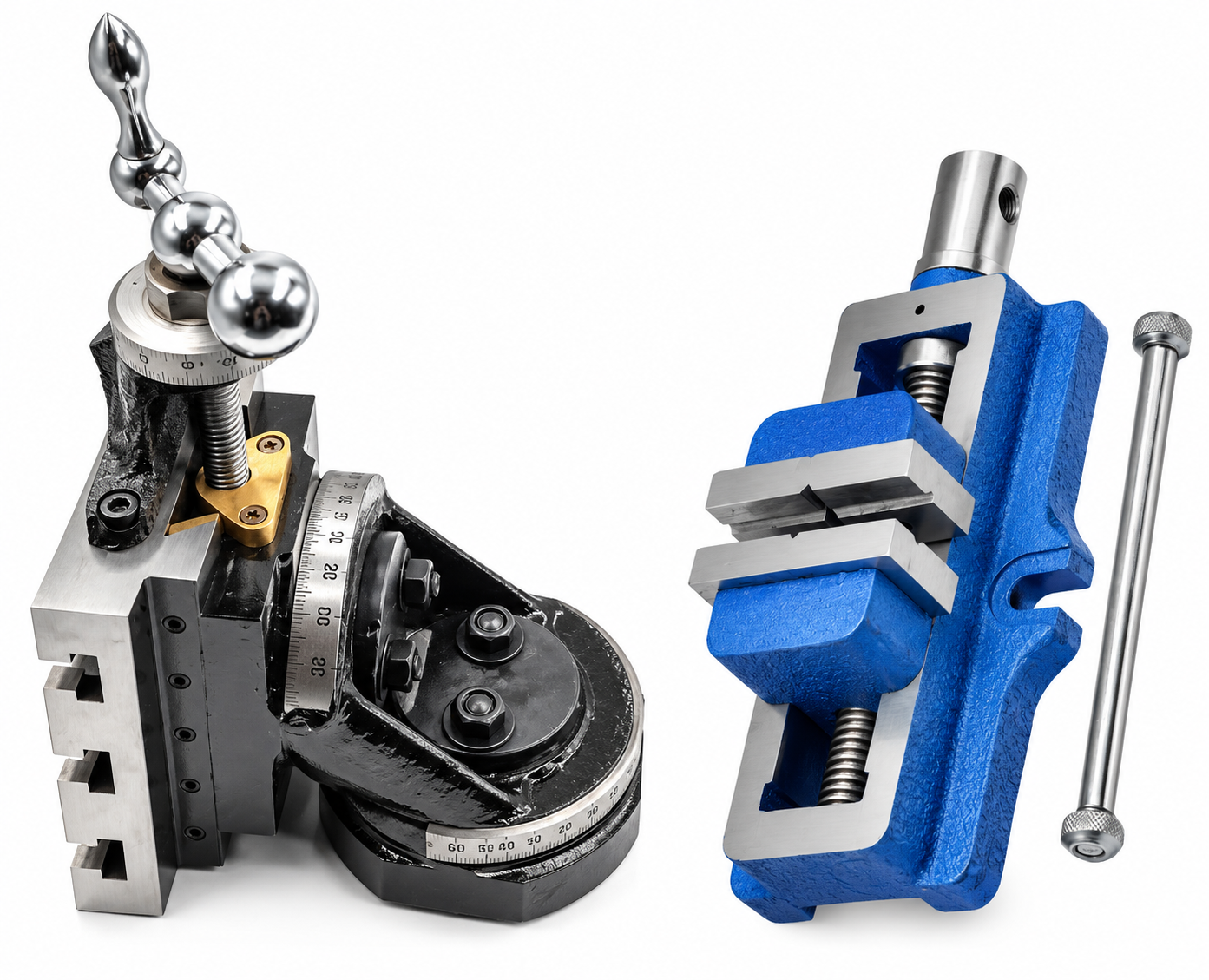

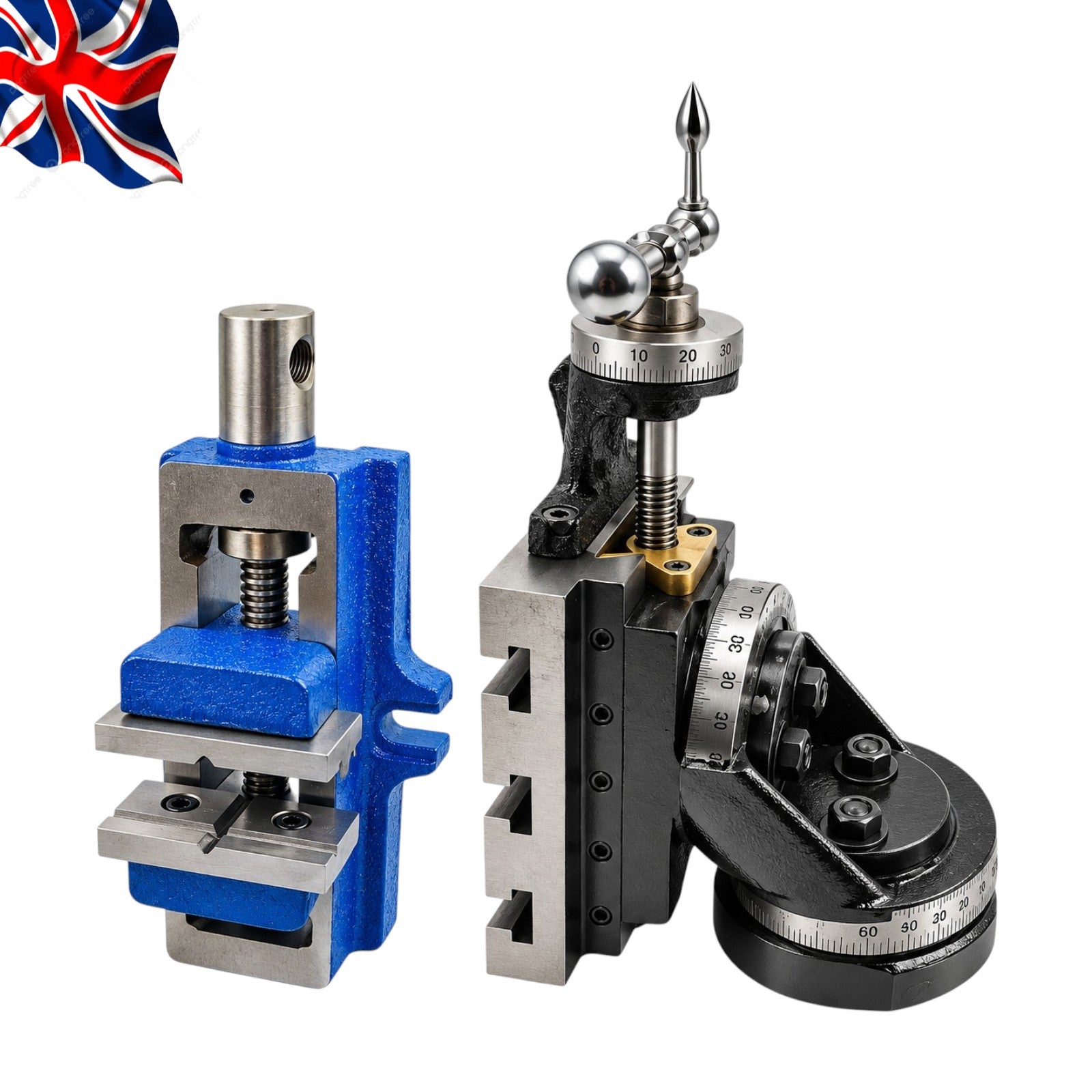

Vertical Milling Slide 4" x 5" with Double Swivel Base & 2" 50mm Self-Centering Vice for Myford 7 Super 7 Lathe, 80mm Travel, Metric Graduated | UK STOCK

⚙️ VERTICAL MILLING SLIDE 4" × 5" WITH DOUBLE SWIVEL BASE + 2" / 50MM SELF-CENTERING VICE | MYFORD 7 / SUPER 7

Upgrade your lathe machining capabilities with this Brand New Vertical Milling Slide with Double Swivel Base and 2" / 50mm Self-Centering Vice, designed as a direct-fit accessory for compatible Myford 7 Series and Super 7 lathes. 🔧⚙️ It can also be suitable for other machines where the mounting dimensions and specifications match.

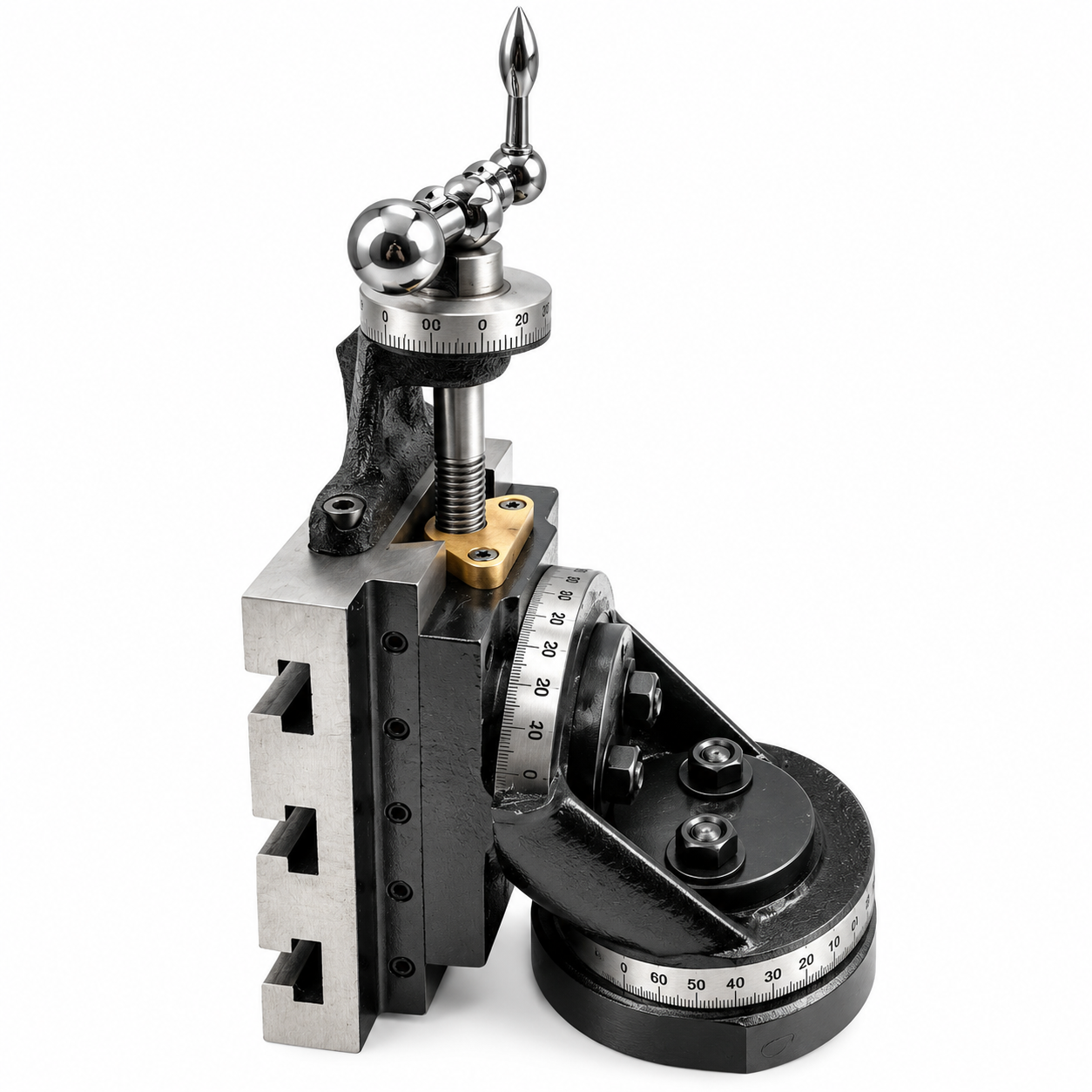

The vertical milling slide features a useful double swivel action, allowing greater flexibility when positioning the workpiece for milling, drilling, slotting and angular machining operations. The slide is fully graduated in metric, helping with accurate positioning and repeatable setups. 🎯📐

The slide table measures approximately 4" × 5" (100 × 125mm) and provides approximately 80mm of table travel. The footprint is 140 × 100mm, while the overall height including the handle is approximately 250mm. Mounting studs are spaced approximately 30mm between centres.

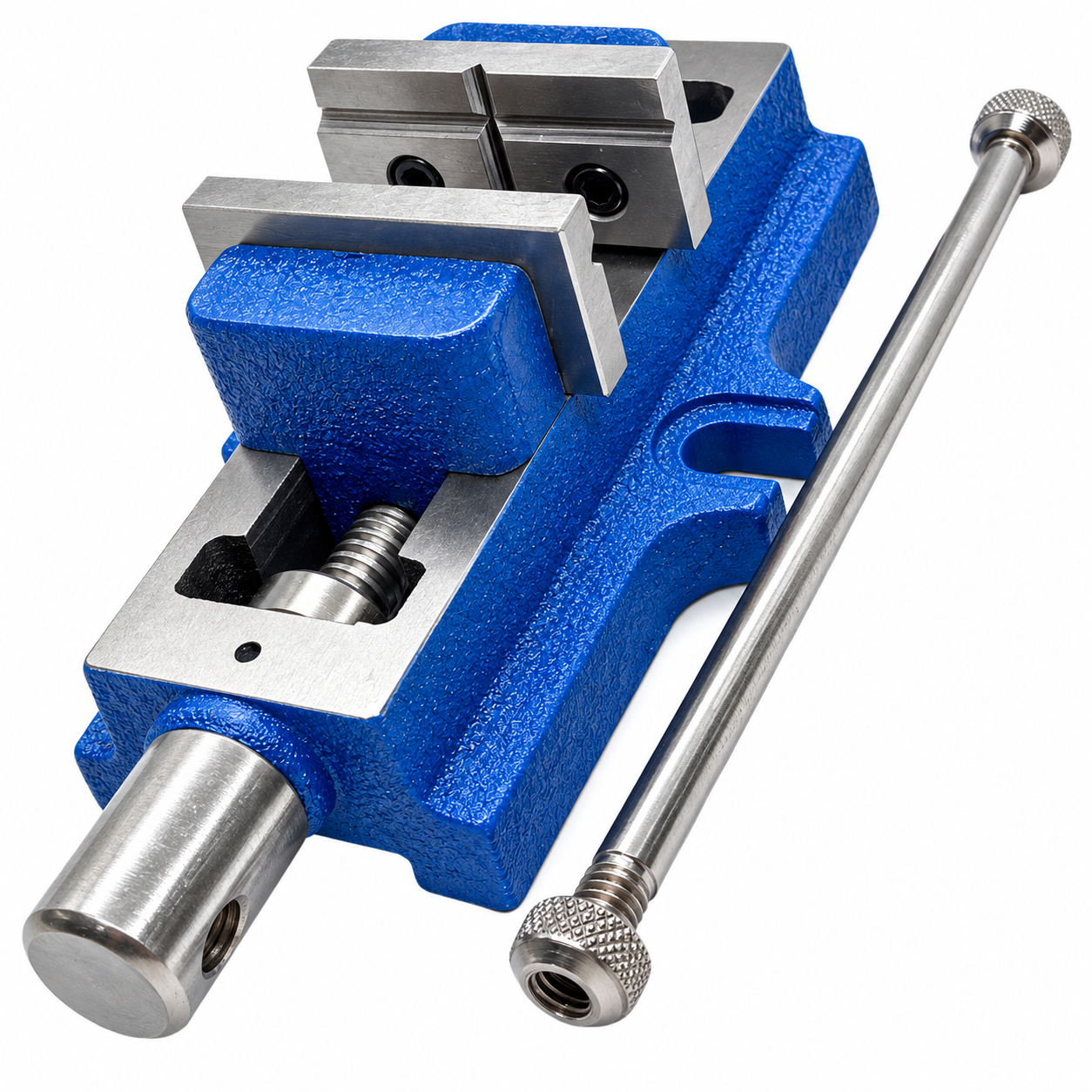

Included is a 2" / 50mm Self-Centering Vice with a high-quality seasoned casting body and hardened jaws. The jaws feature horizontal and vertical V-grooves, providing additional support for suitable round, cylindrical and irregular workpieces during drilling and milling. 🔩🛠️

With a maximum jaw opening of approximately 55mm and jaw depth of 28mm, this compact vice provides practical workholding capacity for a wide range of small machining jobs.

⭐ KEY FEATURES

• 🔧 Vertical Milling Slide Attachment – Converts a suitable lathe into a versatile milling and drilling setup.
• 🔄 Double Swivel Action – Allows flexible angular positioning of the slide and workpiece.
• 📐 Fully Graduated Metric Scale – Helps with accurate positioning and repeatable machining setups.
• 🏭 Myford 7 / Super 7 Compatible – Designed as a direct fit for compatible Myford 7 Series lathes.
• 📏 4" × 5" Table – Approx. 100 × 125mm working table.
• 🎯 80mm Table Travel – Provides useful movement for small milling and drilling operations.
• 🔩 30mm Stud Spacing – Mounting studs approximately 30mm between centres.
• 💪 2" / 50mm Self-Centering Vice Included – Provides convenient and secure workholding.
• 🔥 Hardened Vice Jaws – Designed for durable clamping performance.
• 🔻 Horizontal & Vertical V-Grooves – Helps hold suitable round workpieces securely.
• 📏 55mm Maximum Jaw Opening – Accommodates a useful range of workpiece sizes.
• 🛠️ Versatile Workshop Accessory – Suitable for milling, drilling, slotting, facing and general machining.

📋 VERTICAL MILLING SLIDE SPECIFICATIONS

🔩 SELF-CENTERING VICE SPECIFICATIONS

🛠️ IDEAL APPLICATIONS

⚙️ Lathe Milling Conversion
🔧 Vertical Milling
🎯 Drilling Operations
🔩 Slotting & Keyway Work
📐 Angular Machining
🛠️ Small Component Machining
🏭 Engineering Workshops
👨🔧 Myford & Model Engineering

📦 PACKAGE INCLUDES

✅ 1 × Vertical Milling Slide with Double Swivel Base
✅ 1 × 2" / 50mm Self-Centering Vice
