High-Pressure Diesel Injector Nozzle Pop Testers: The
Ultimate Calibration Guide
In the architecture of compression-ignition combustion
systems, fuel atomization dictates mechanical efficiency. Unlike gasoline
engines that rely on spark timing, diesel powertrains depend entirely on
structural injection pressures, volumetric delivery, and micro-fine spray
dispersal to maximize thermal output and control tailpipe emissions. The
slightest variance in an injector's mechanical opening baseline will compromise
fuel economy, trigger excessive exhaust smoke, and increase engine vibration.
Blue
Fox Tool Mart provides a professional selection of diesel injector
nozzle pop testers. These heavy-duty, manual diagnostic fixtures allow
automotive technicians, agricultural mechanics, and marine engine re-builders
to verify opening pressures, detect structural fuel leakage, and analyze
droplet atomization patterns with master-gauge precision.
1. The Fluid Mechanics of Mechanical Fuel Injection
Testing
A mechanical diesel injector operates as a spring-loaded
needle valve balanced against internal fuel hydraulic force. When high-pressure
fuel from the injection pump overcomes the internal spring tension, the needle
lifts off its seat, allowing fuel to spray into the combustion chamber.
A manual pop tester provides a controlled way to replicate
this process outside the engine. By pumping the hand lever, the technician
displaces fluid through a high-pressure line directly into the injector body.
The dual-scale master gauge monitors the rising pressure in real time,
capturing the exact moment the valve snaps open, commonly referred to as the
"pop" point.
Critical Diagnostic Evaluations
- Opening
Pressure Calibration: Measures the exact pressure required to lift the
internal nozzle needle. Correct opening pressure ensures that fuel enters
the engine cylinder precisely when intended by the injection timing
system. - Spray
Profile Symmetry: Allows visual inspection of the fuel spray coming
from the nozzle holes. The spray must show a balanced, even pattern to
prevent unburned fuel from washing down cylinder walls or hitting piston
crowns, which can cause component melting. - Droplet
Atomization Quality: Verifies the nozzle's ability to turn liquid fuel
into a fine mist rather than a solid stream. Fine misting is essential for
clean combustion and preventing heavy soot buildup. - Seat
Leakage & Dribble Auditing: Tests the injector under sustained
pressure just below its opening point to ensure it does not leak fuel. A
leaking nozzle causes fuel to drip into the cylinder between firing
cycles, leading to rough idling, pre-ignition knock, and white exhaust
smoke.

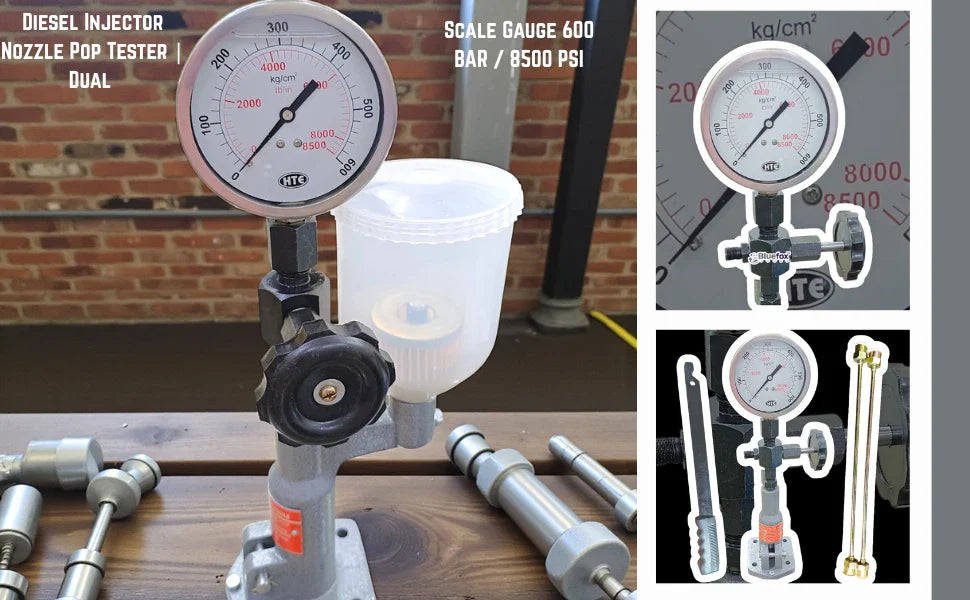

2. Structural Features of Professional Diagnostic Testers
To withstand regular exposure to industrial diesel fuel,
calibration fluids, and extreme hydraulic forces, professional pop testers
feature a heavy-duty, robust design.
Key Engineering Features
- High-Capacity
Master Gauges: Built with broad dual-scale readouts (available in
0–400 BAR / 0–5800 PSI or 0–600 BAR / 0–8500 PSI ranges). These large
faces make it easy to read subtle needle drops at the exact point of
injection. - Stainless
Steel Fluid Circuitry: Built with a durable stainless steel body and
thick-walled connecting lines to prevent metal contamination and eliminate
pressure line flexing during testing. - Threaded
Connector Adaptability: Comes standard with hardened metric line
fittings (including 12mm × 1.5mm and 14mm × 1.5mm sizes) to connect
securely to a wide range of automotive, agricultural, and industrial
injectors. - Stable
Bench-Mount Design: Features a heavy cast-iron base with pre-drilled
bolt holes for rigid bench mounting, preventing the tool from tipping or
shaking during manual pumping cycles.
3. Practical Troubleshooting: Analyzing Common Fault
Patterns
Using a pop tester helps quickly identify specific internal
component issues inside worn mechanical injectors:
Early Opening Pressures (Weak Spring Conditions)
If the pressure gauge drops well below the manufacturer's
specified limit when the injector fires, the internal pressure spring has
fatigued or taken a set. This causes fuel to inject too early, leading to
pre-ignition knock, reduced engine power, and increased tailpipe emissions.
Elevated Opening Pressures (Sticky Needle Internal
Faults)
When the gauge climbs well past standard operating limits
before the injector fires, the internal nozzle needle is binding or carbon
deposits have clogged the exit holes. This places extra stress on the engine's
injection pump and can lead to mid-range power loss.
Weak Atomization (Nozzle Chatter Failures)
During slow lever strokes, a healthy injector should produce
a distinct buzz or "chatter" sound as the needle cycles open and
closed rapidly. A quiet, steady stream of liquid fuel indicates a worn or
damaged needle seat that requires replacement.
Technical Specifications: Diesel Diagnostics Matrix
Engineering Metric
400 BAR Calibration System
600 BAR Production System
Primary Application Target
Max Operating Limit
400 BAR / 5,800 PSI
600 BAR / 8,500 PSI
Heavy-duty commercial repair
Gauge Architecture
Bourdon Tube Dual-Scale
Glycerin-Damped Dual-Scale
Vibration-isolated verification
Fittings Package
M12 & M14 Hardened Lines
M12, M14 & M16 High-Flex Lines
Broad agricultural & marine fleets
Fluid Containment
Semi-Transparent Cup
Reinforced Steel Reservoir
Daily workshop service centers
4. Professional Setup and Operation Standards
To achieve clean, repeatable measurements and ensure
workplace safety, follow this structured testing process:
Workspace Setup
- Rigid
Mounting: Securely bolt the tester base to a clean, level workbench.
Loose mounting can shake the pressure gauge, causing inaccurate readings. - Fluid
Selection: Fill the reservoir with clean, dedicated ISO 4113 injection
calibration fluid. Avoid using standard commercial diesel fuel for testing
when possible, as its lower flash point increases fire risks, and it can
harbor biological growth during storage. - Circuit
Priming: Pump the hand lever several times with the discharge line
open into a waste container to flush out any trapped air bubbles before
attaching the injector.
Executing the Diagnostic Routine
- Step
1: Measuring Opening Pressure: Stroke the lever smoothly at a rate of
roughly one pump per second. Note the highest pressure reading shown right
before the gauge needle drops sharply. - Step
2: Checking Seat Leakage: Wipe the injector tip completely dry. Pump
the pressure up to roughly 10–20 BAR below the certified opening point and
hold it steady for 10 seconds. Watch for any fuel dampness or drips
forming on the tip. - Step
3: Checking Atomization Quality: Pump the lever rapidly (4–6 strokes
per second). Look for a uniform, fine mist spraying evenly from all
discharge holes.
5. Maintenance and Storage Protocols
Keep your testing equipment accurate and working smoothly
over years of service with these regular care practices:
Fluid Care and Filtration
- Use
a Dust Cover: Keep the fluid reservoir reservoir closed when not in
use to stop shop dust and metal shavings from getting inside. - Periodic
Fluid Flushing: Change out the testing fluid if it looks cloudy, dark,
or shows signs of water separation. Debris in the fluid can quickly score
the tester's internal pump cylinder.
Protecting the Pressure Gauge
- Isolate
the Gauge During Flushing: Use the built-in shut-off valve to isolate
the master gauge when rapidly flushing out dirty or badly clogged
injectors. This protects the gauge's internal mechanism from sudden
pressure spikes. - Storage
Best Practices: Store the tool with the hand lever down to relieve
tension on internal springs. Keep the unit inside a clean, dry cabinet
away from grinding areas or high-humidity zones.
6. Critical Workshop Safety Guidelines
- Avoid
Fuel Injection Injuries: NEVER place your hands, fingers, or
exposed skin near the spraying nozzle tip. High-pressure fuel mist can
easily penetrate human skin, causing severe tissue damage and blood
poisoning. Always wear heavy nitrile gloves and safety glasses, and vent
the spray into a clear collection container. - Use
Proper Ventilation: Work in an area with good airflow or use a
dedicated exhaust hood to clear out fine fuel mist, keeping shop air safe
to breathe. - Relieve
Fluid Pressure Safely: Loosen the injector connection lines slowly
when removing parts to vent any remaining line pressure safely, preventing
accidental sprays.
Strategic Shop Integration: Live Collection Architecture
Optimize your industrial workshop and service garage layouts
by exploring our primary tool collections:
7. Diesel Technology Evolution: Mechanical to Electronic
Systems
While modern diesel engines use electronically controlled
Common Rail Injection (CRI) systems operating at pressures over 2,000 BAR,
manual pop testers remain essential for servicing millions of mechanical
systems. They are the go-to tool for maintaining classic marine engines,
standby power generators, agricultural equipment, and commercial transport
fleets.
For modern shops, a manual pop tester provides a quick,
cost-effective way to check baseline nozzle conditions and uncover mechanical
issues before moving parts to complex electronic test stands, saving valuable
diagnostic time.
Frequently Asked Questions (FAQs)
What is a fuel injection injury, and why is it dangerous?
A fuel injection injury happens when high-pressure fuel mist
hits exposed skin and penetrates deep into underlying tissues. Because pop
testers generate pressures that can exceed 400 BAR, the fluid streams can cut
through skin easily. This traps toxic fuel inside tissues, which can lead to
rapid infection and serious medical emergencies if not treated immediately by a
doctor. Always use a clear collection container to catch fuel spray safely.
Can I use standard commercial pump diesel fuel in my
nozzle pop tester?
You can use it for quick field checks, but it is better to
use dedicated ISO 4113 injection calibration fluid for regular shop work.
Standard diesel has a lower flash point, creating a higher fire hazard when
atomized into a fine mist. It can also degrade over time, gumming up the
tester's internal valves and corroding precision parts.
Why does a healthy injector make a buzzing or
"chattering" sound during a test?
The chattering sound is a sign of a properly working needle
valve. As high-pressure fluid moves into the injector, the internal needle
lifts up, releases a burst of mist, and drops back down instantly as the
pressure dips. This cycling happens multiple times per second during a lever
stroke, producing a distinct buzzing sound that shows the needle is moving
freely and sealing correctly.
How does air trapped inside the tester circuit affect my
measurement results?
Trapped air bubbles act like mini shock absorbers because
air compresses far more easily than hydraulic fluid. Air in the lines will make
the hand lever feel soft or spongy, cause the pressure gauge needle to bounce
wildly, and prevent the injector from opening cleanly, making it difficult to
get an accurate reading.
What are the metric line sizes included with standard pop
testers used for?
Most pop testers include M12 × 1.5mm and M14 × 1.5mm
hardened steel connection lines. These are the standard thread sizes used on
the fuel inlets of popular mechanical injectors found in automotive,
agricultural, and marine diesel engines worldwide, ensuring a secure, leak-free
connection.
What causes an injector to drip fuel between test
strokes?
Dripping is typically caused by carbon deposits buildup on
the needle seat, physical wear on the sealing faces, or a distorted internal
spring. A leaking tip drops raw fuel directly onto the piston crown during
engine operation, causing rough idling, heavy black smoke, and high exhaust
temperatures.
How do you clean carbon deposits off a dirty injector
nozzle tip safely?
Soak the nozzle assembly in a carbon-clearing solvent bath
for several hours to soften hard deposits. Use a soft brass wire brush or a
specialized nozzle cleaning needle kit to clean out the tiny spray holes. Avoid
using stiff steel wire brushes or abrasive emery cloth, as they can scratch the
precision-ground tip and ruin the spray pattern.
What is the difference between a 400 BAR and a 600 BAR
pop tester system?
The main difference is the pressure capacity of the built-in
master gauge and pump cylinder. A 400 BAR unit is perfect for standard cars,
tractors, and small industrial engines. A 600 BAR system offers the higher
pressure range needed to test larger commercial trucks, marine engines, and
heavy construction equipment.
How do shim washers adjust the opening pressure of a
mechanical injector?
Inside a mechanical injector, the opening pressure is set by
the tension of an internal coil spring. To adjust it, technicians open the
injector body and add or remove small, precision-ground steel shim washers
behind the spring. Adding shims compresses the spring further, raising the
opening pressure, while removing shims lowers it.
Why should I isolate the master pressure gauge when
flushing a badly clogged injector?
When an injector tip is completely blocked with carbon,
pumping the lever sends a sharp hydraulic shock wave back through the fluid
line. If the gauge channel is left open, this sudden spike can bend the
internal Bourdon tube, throwing off the gauge's calibration and ruining its
accuracy.
Can a manual pop tester check modern electronic common
rail injectors?
No, manual pop testers cannot test modern electronic common
rail injectors. Common rail units use electronic solenoids or piezoelectric
crystals that require computerized electrical signals to open the valve, along
with much higher continuous operating pressures than a manual pump can provide.
What does white exhaust smoke indicate about an engine's
injectors?
White exhaust smoke often means fuel is entering the
combustion chamber but not burning completely. This is usually caused by poor
atomization or a low opening pressure that injects fuel too late in the
combustion cycle. The unburned fuel vaporizes in the hot exhaust stream,
creating white smoke.
How often should workshop pop testers undergo accuracy
recalibration?
For busy service centers, it is best to check the tester's
calibration against a certified master gauge every 12 months. If the tool is
used less often in a small shop or training lab, a calibration check every two
years is usually enough to ensure dependable performance.
Why does the tester base feature heavy cast-iron
construction?
The heavy cast-iron base provides structural weight and
stiffness, keeping the tool steady when bolted down. This rigidity prevents the
tester from rocking or flexing when pumping the lever against high pressures,
making it safer to use and easier to read the gauge accurately.
How do I know if an injector's spray holes are partially
blocked?
When you pump the lever quickly, look at the spray pattern.
If one or more fluid streams shoot out sideways, look weak, or fail to spray
entirely, the corresponding exit holes are blocked with carbon or metal debris,
meaning the nozzle needs a deep cleaning or replacement.
What is the purpose of the transparent cup reservoir on
top of the tester?
The clear fluid cup lets you monitor the level and condition
of your testing fluid at a glance. It makes it easy to spot floating dirt,
water bubbles, or dark discoloration, letting you know when it is time to flush
the system and change the fluid.
Can a pop tester help diagnose internal engine knocks?
Yes, an engine knock is often caused by a "lazy"
injector that opens too early or drips fuel constantly, causing pre-ignition
knock. Testing the injectors on a pop tester lets you find and fix the faulty
unit, smoothing out engine operation.
What is the purpose of the dual-scale display on the
master gauge face?
The dual-scale layout shows readings in both BAR and PSI at
the same time. This saves time by allowing technicians to match readings
instantly with manufacturer specifications from different regions without
needing manual conversions during a test.
Should I grease the internal pump cylinder of the pop
tester?
No, do not use heavy grease inside the pump assembly. The
tool is designed to be lubricated by the calibration fluid or light oil flowing
through the circuit. Applying heavy grease can clog the internal check valves
and throw off your pressure readings.
What should I do if the tester lever stays down and
doesn't return smoothly?
This is usually caused by air trapped in the pump cylinder
or a sticking internal check valve. Try opening the relief valve completely and
pumping the lever rapidly a few times to clear out any air blocks. If it still
binds, disassemble the valve housing, wash the components in clean solvent,
check for burrs, and put it back together.
