🔧 30mm Micro Boring Head with MT3 Shank Arbor – Adjustable Milling Boring Tool
🔧 30mm Micro Boring Head with MT3 Shank Arbor – Adjustable Milling Boring Tool
🔧 30mm Micro Boring Head with MT3 Shank Arbor – Adjustable Milling Boring Tool
Tags: / / / / / / / / / / / / / / / / /

🔧 30mm Micro Boring Head with MT3 Shank Arbor – Adjustable Milling Boring Tool

$62.69
$62.69

Tax included

Stock Availability

FBB221, 29 WYSOCKI PL, HACKENSACK, NJ 07601-6804 US
Phone: +1 646 224 0700
662/8-A, Gali No 1, First Floor,
Punjabi Basti, Anand Parbat
Phone: +91 8860055906
Orange Connex Fulfilment Centre – UK04
Mill Road, Rugby, England
GB-CV21 1PR
Phone: +44 7747 770826
Orange Connex Fulfillment Center – DE04
Bochumer Str. 119, Nordrhein-Westfalen
DE-44866 Bochum
Phone: +49 15563617045
Orange Connex Fulfilment Centre – AU03
Warehouse L, Building 5, 161 Manchester Rd
Auburn, New South Wales
AU-2144
Phone: +61 416 989 802
AVAILABLE IN INDIA   •   AVAILABLE IN USA   •   AVAILABLE IN UNITED KINGDOM   •   AVAILABLE IN GERMANY   •   AVAILABLE IN AUSTRALIA
Secured Payment
Description
Description
x

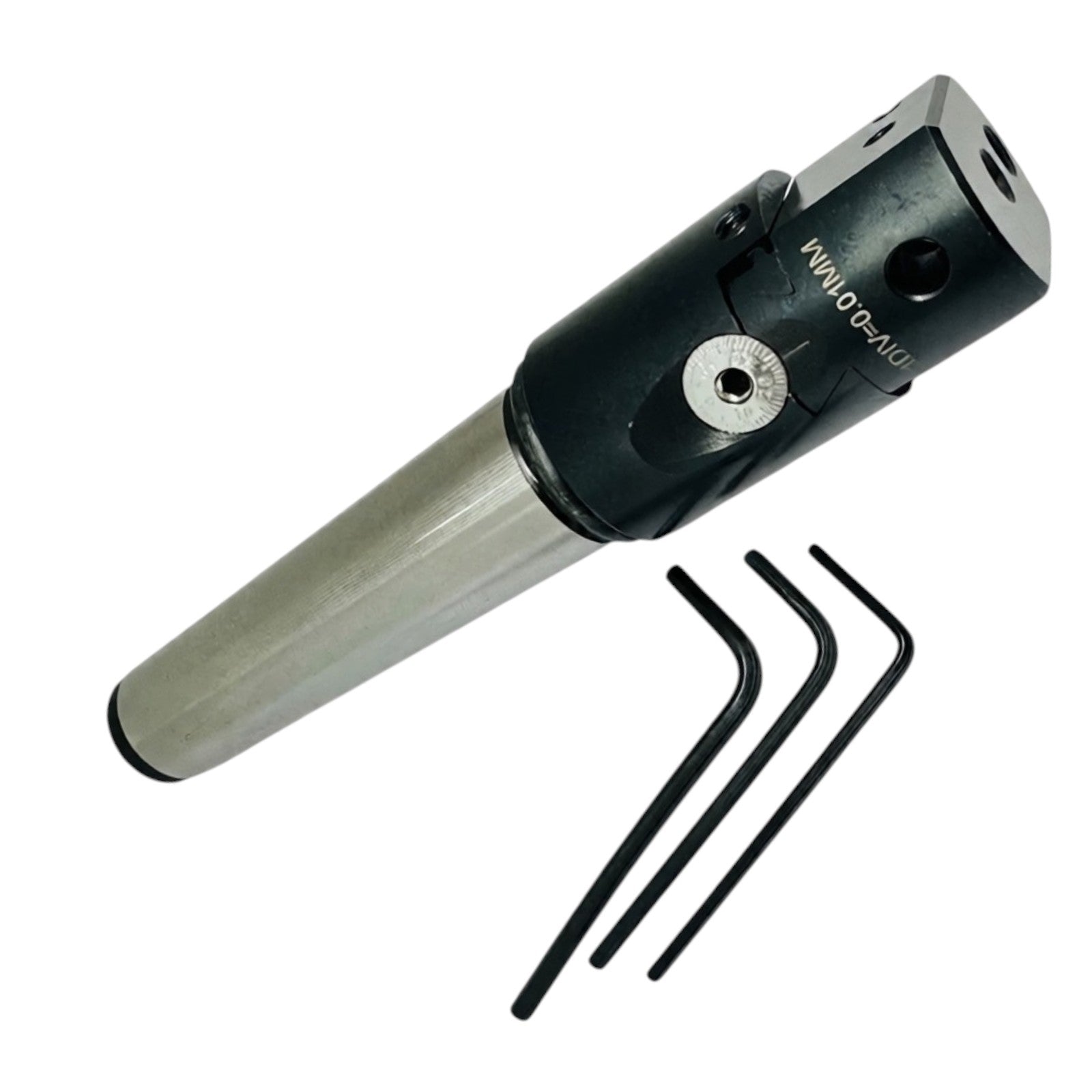

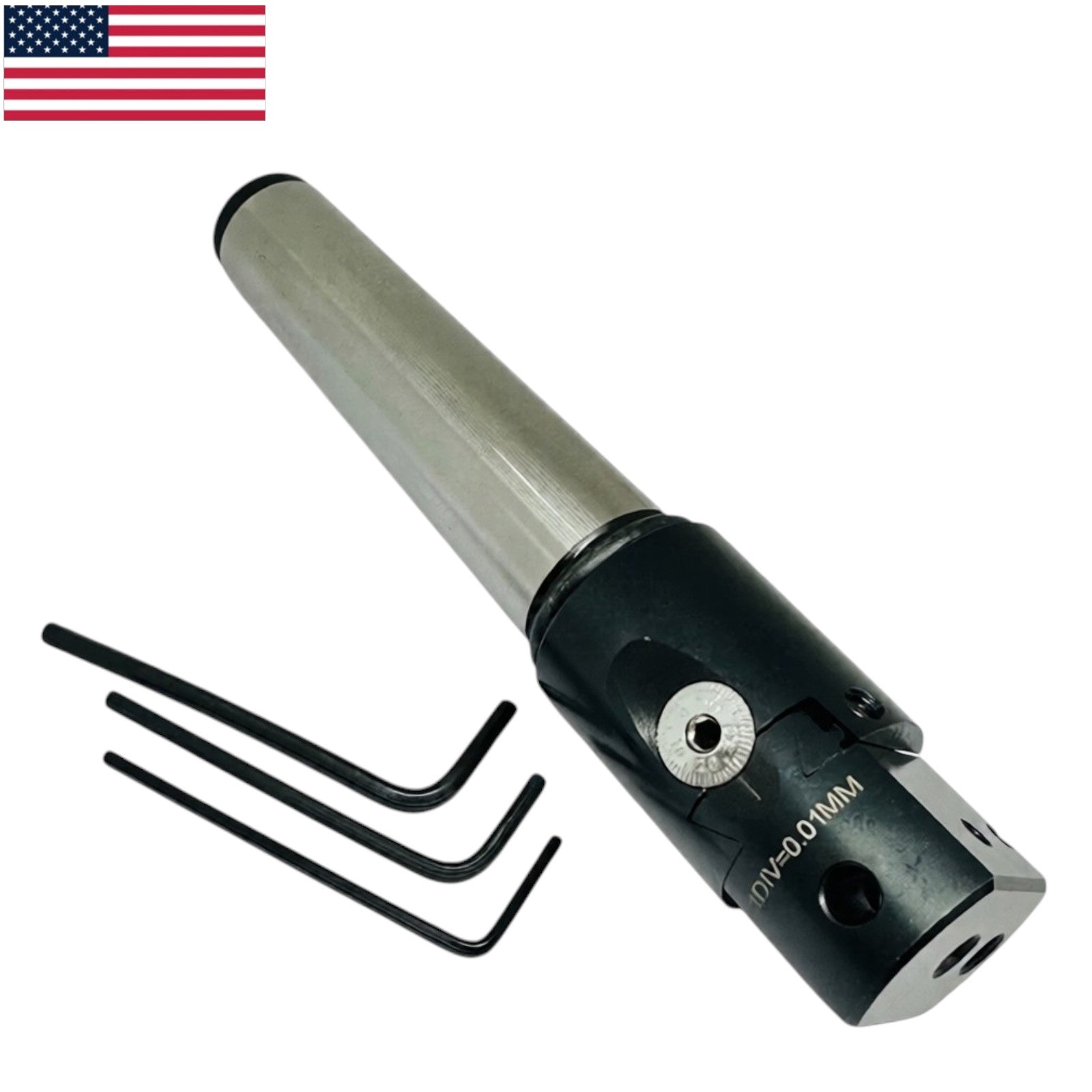

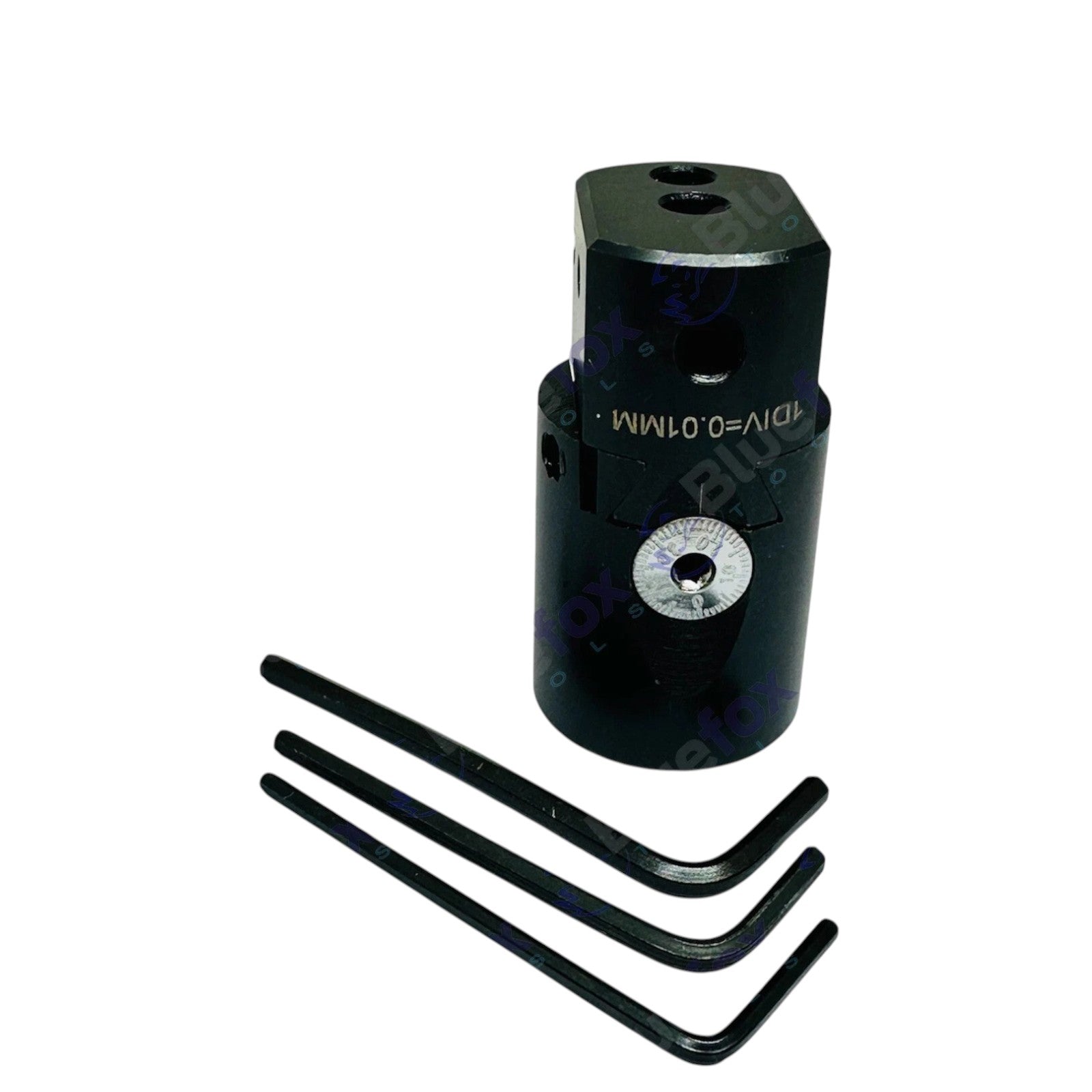

Achieve accurate and versatile bore machining with this 30mm Micro Boring Head with MT3 Shank Arbor, designed for compatible milling machines, Bridgeport-style mills and precision machining setups. 🛠️⚙️ This finely engineered adjustable boring head provides controlled boring adjustment for producing and enlarging holes with excellent precision.

With a 30mm diameter boring head and a 0–30mm boring capacity when using the vertical tool position, this compact milling boring head is ideal for bore enlargement, precision hole machining, internal boring and general workshop milling applications. 🎯🔩

The boring head features two vertical boring bar positions, including centre and offset positions, allowing flexibility in achieving different boring diameters. It also includes two horizontal boring bar positions for additional tooling configurations.

⭐ KEY FEATURES

  • 🔧 30mm Micro Boring Head – Compact and precision-engineered boring head for milling applications.
  • ⚙️ MT3 Shank Arbor – Designed for compatible MT3 milling machine spindles.
  • 📏 0–30mm Capacity – Boring capacity up to 30mm with the vertical tool position.
  • 🎯 Micro Adjustment – Metric adjustment of 1 division = 0.01mm.
  • 🔩 6mm Tooling Diameter – Designed for compatible 6mm boring tools/bars.
  • 🛠️ Two Vertical Positions – Centre and offset positions for flexible boring operations.
  • ⚙️ Two Horizontal Positions – Additional boring bar positions for versatile setups.
  • 💪 Durable Construction – Well-engineered design for reliable workshop use.
  • 🏭 Milling Machine Tooling – Suitable for compatible Bridgeport-style and other milling machines.
  • 🔩 M12 × 1.75 Drawbar Thread – MT3 arbor designed for compatible M12 × 1.75 drawbars.

📐 PRODUCT SPECIFICATIONS

Specification Details
🔧 Product Type Micro Milling Boring Head
📏 Head Diameter 30mm
⚙️ Boring Capacity 0–30mm with Vertical Tool
🔩 Tool Diameter 6mm
🎯 Adjustment 1 Division = 0.01mm
🔧 Vertical Positions 2 – Centre & Offset
⚙️ Horizontal Positions 2
🔩 Shank Type MT3
🛠️ Drawbar Thread M12 × 1.75
🏭 Application Milling & Precision Boring

🎯 PRECISION BORING & MILLING

The micro-adjustable boring head allows the operator to make controlled diameter adjustments during boring operations. The 0.01mm-per-division metric adjustment provides fine control for precision machining and bore enlargement.

The centre and offset vertical boring bar positions provide additional flexibility when working with different bore sizes, while the horizontal positions offer further tooling options. ⚙️🔧

🏭 IDEAL APPLICATIONS

🔩 Bore Enlargement
🎯 Precision Hole Machining
⚙️ Internal Boring
🔧 Milling Machine Boring
🛠️ Bridgeport-Style Milling
🏭 Workshop Machining
🔩 Toolroom Applications
⚙️ Engineering & Metalworking
🛠️ Model Engineering
🎯 Precision Machining

👨🔧 SUITABLE FOR

  • 🔧 Milling Machine Operators
  • 🏭 Machine Shops
  • ⚙️ Tool Rooms
  • 🛠️ Engineering Workshops
  • 👨🔧 Machinists
  • 🔩 Model Engineers
  • 🎯 Precision Machining Enthusiasts

📦 PACKAGE INCLUDES

✅ 1 × 30mm Micro Boring Head
✅ 1 × MT3 Shank Arbor
