1/2" x 1/2" x 4" Single Wheel Knurling Tool Holder with 6 HSS Knurling Wheels, 12mm Square Shank, 0.5mm 1mm 1.5mm Fine Medium Coarse Knurls for Lathe | USA STOCK
- $35.15
- $35.15
- Unit price
- per
Tax included
Stock Availability
FBB221, 29 WYSOCKI PL, HACKENSACK, NJ 07601-6804 US
Phone: +1 646 224 0700
Phone: +1 646 224 0700
662/8-A, Gali No 1, First Floor,
Punjabi Basti, Anand Parbat
Phone: +91 8860055906
Punjabi Basti, Anand Parbat
Phone: +91 8860055906
Orange Connex Fulfilment Centre – UK04
Mill Road, Rugby, England
GB-CV21 1PR
Phone: +44 7747 770826
Mill Road, Rugby, England
GB-CV21 1PR
Phone: +44 7747 770826
Orange Connex Fulfillment Center – DE04
Bochumer Str. 119, Nordrhein-Westfalen
DE-44866 Bochum
Phone: +49 15563617045
Bochumer Str. 119, Nordrhein-Westfalen
DE-44866 Bochum
Phone: +49 15563617045
Orange Connex Fulfilment Centre – AU03
Warehouse L, Building 5, 161 Manchester Rd
Auburn, New South Wales
AU-2144
Phone: +61 416 989 802
Warehouse L, Building 5, 161 Manchester Rd
Auburn, New South Wales
AU-2144
Phone: +61 416 989 802
AVAILABLE IN INDIA •
AVAILABLE IN USA •
AVAILABLE IN UNITED KINGDOM •
AVAILABLE IN GERMANY •
AVAILABLE IN AUSTRALIA
Secured Payment
Description
x1/2" x 1/2" x 4" Single Wheel Knurling Tool Holder | 6 HSS Knurls | 12mm Shank
🔧 DESCRIPTION

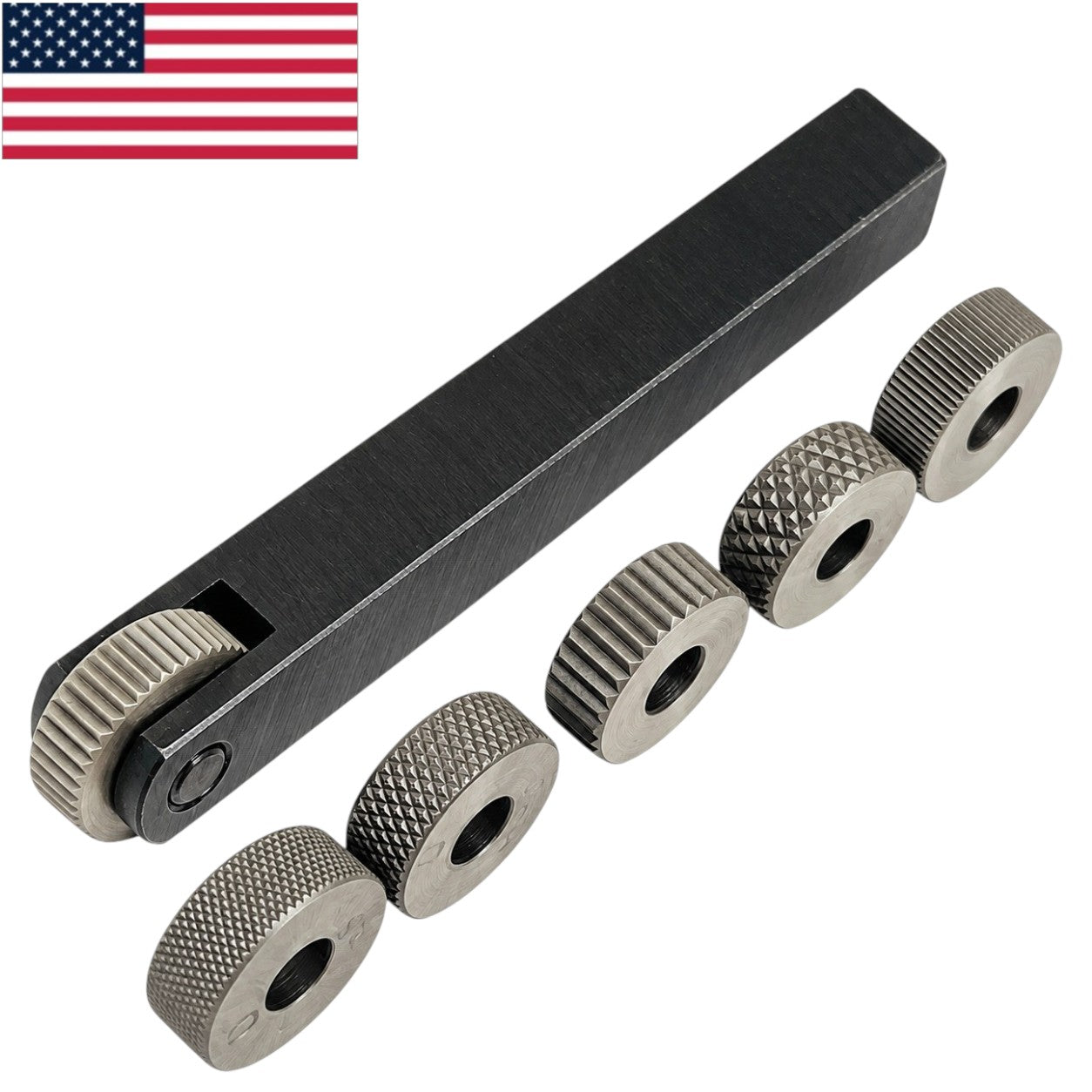

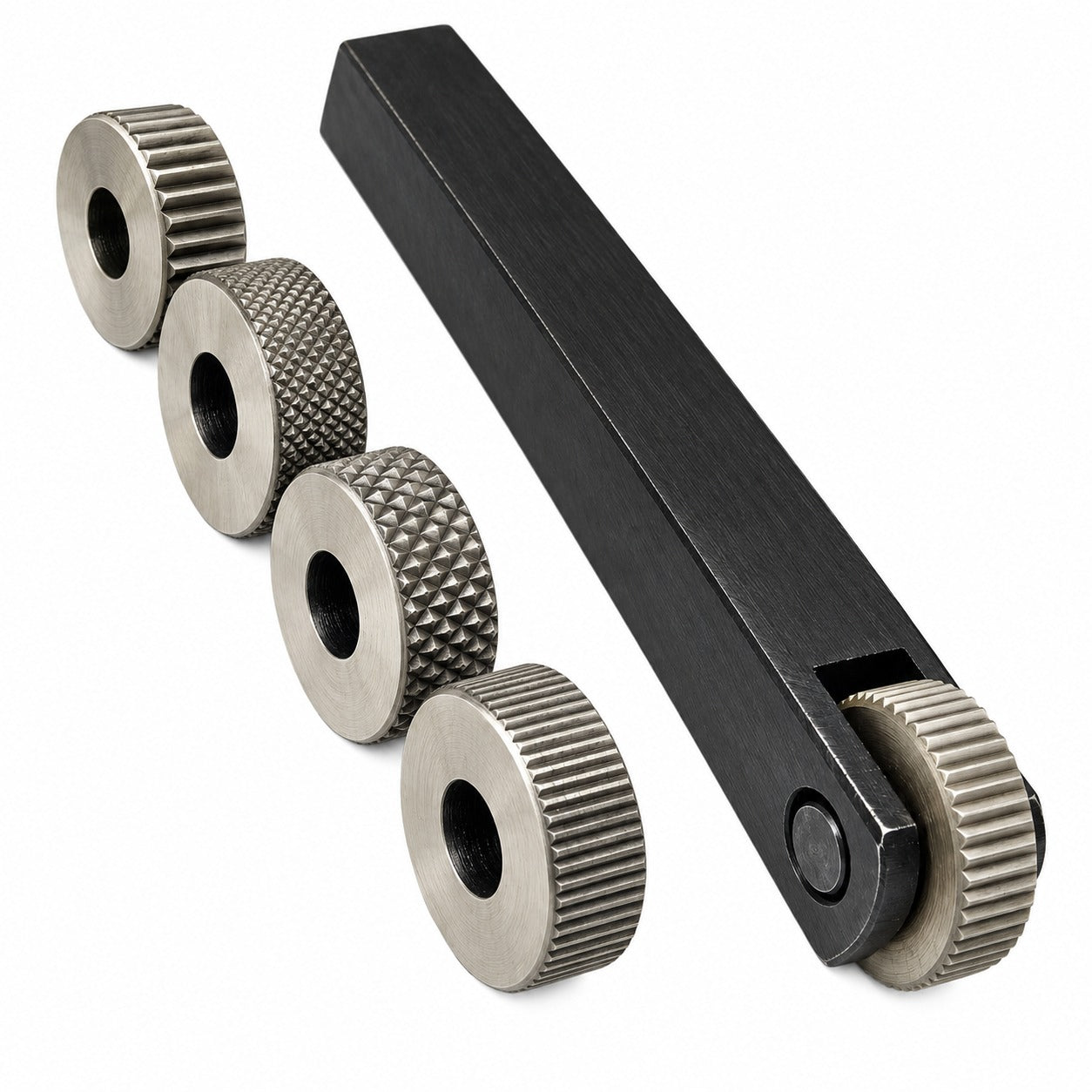

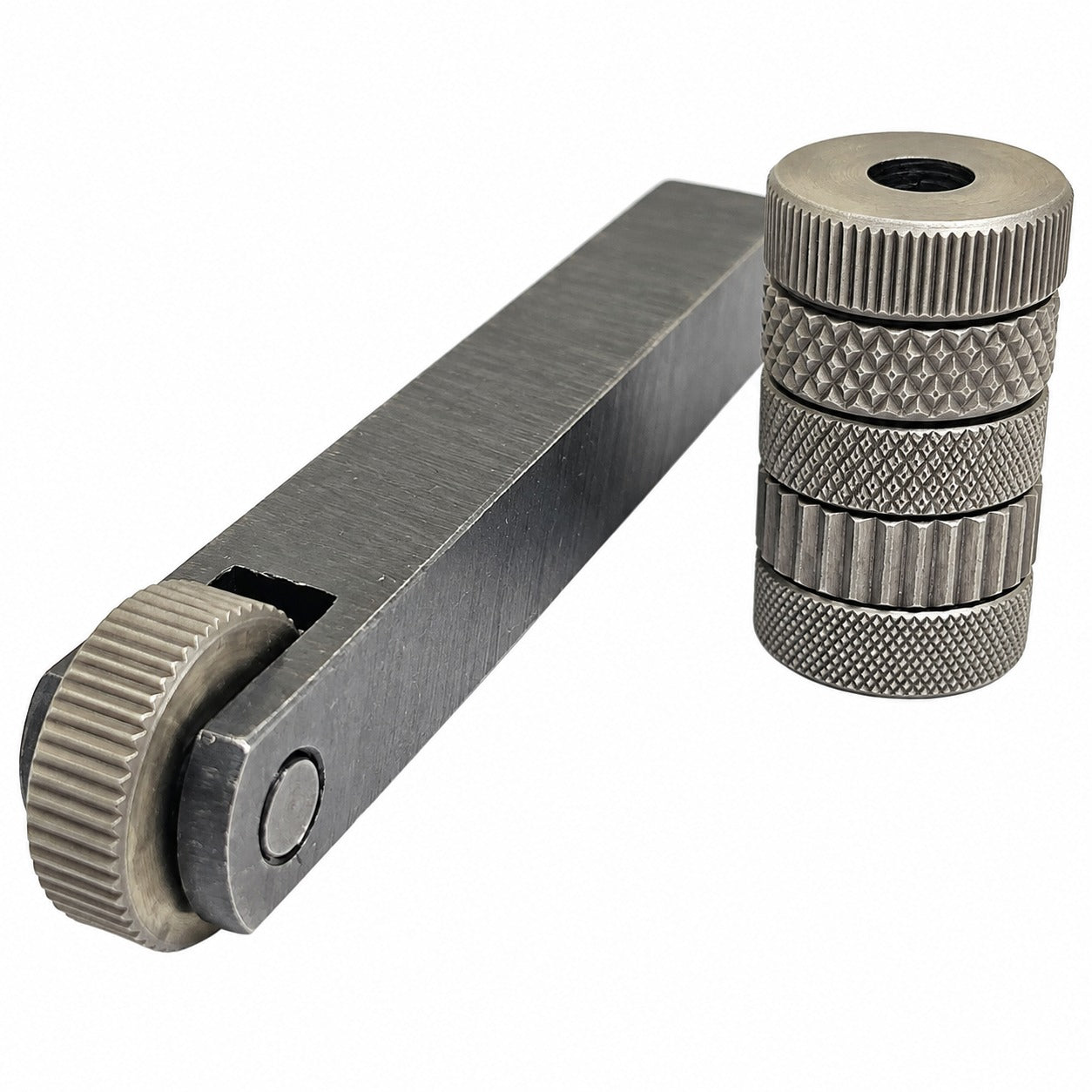

The Single Wheel Knurling Tool Holder with 6 HSS Knurling Wheels is designed for creating accurate knurled patterns on cylindrical workpieces using a compatible lathe.
The holder features a 12mm × 12mm square shank with a 100mm (4") length and is manufactured from durable tool steel for reliable workshop use. The set includes six interchangeable HSS knurling wheels, providing different options for cross-knurling and straight/axis-parallel grooves.
The interchangeable wheels allow you to produce fine, medium and coarse patterns depending on the selected wheel. This makes the tool suitable for general turning, repair work and creating functional or decorative surface patterns.
⚙️ KEY FEATURES
- 🛠️ Single Wheel Knurling Tool Holder
- 📏 12mm × 12mm × 100mm / 1/2" × 1/2" × 4"
- 🔩 Durable tool steel holder body
- ⚙️ Includes 6 interchangeable HSS knurling wheels
- 🔄 Suitable for different knurling patterns
- ✚ Fine, medium & coarse cross knurling
- ➖ Fine, medium & coarse straight/axis-parallel grooves
- 📐 Wheel pitches: 0.5mm, 1.0mm & 1.5mm
- 💪 Good hardness, rigidity and wear resistance
- 🔧 Useful for replacing damaged or worn knurling wheels
- 🏭 Suitable for lathe and general metalworking applications

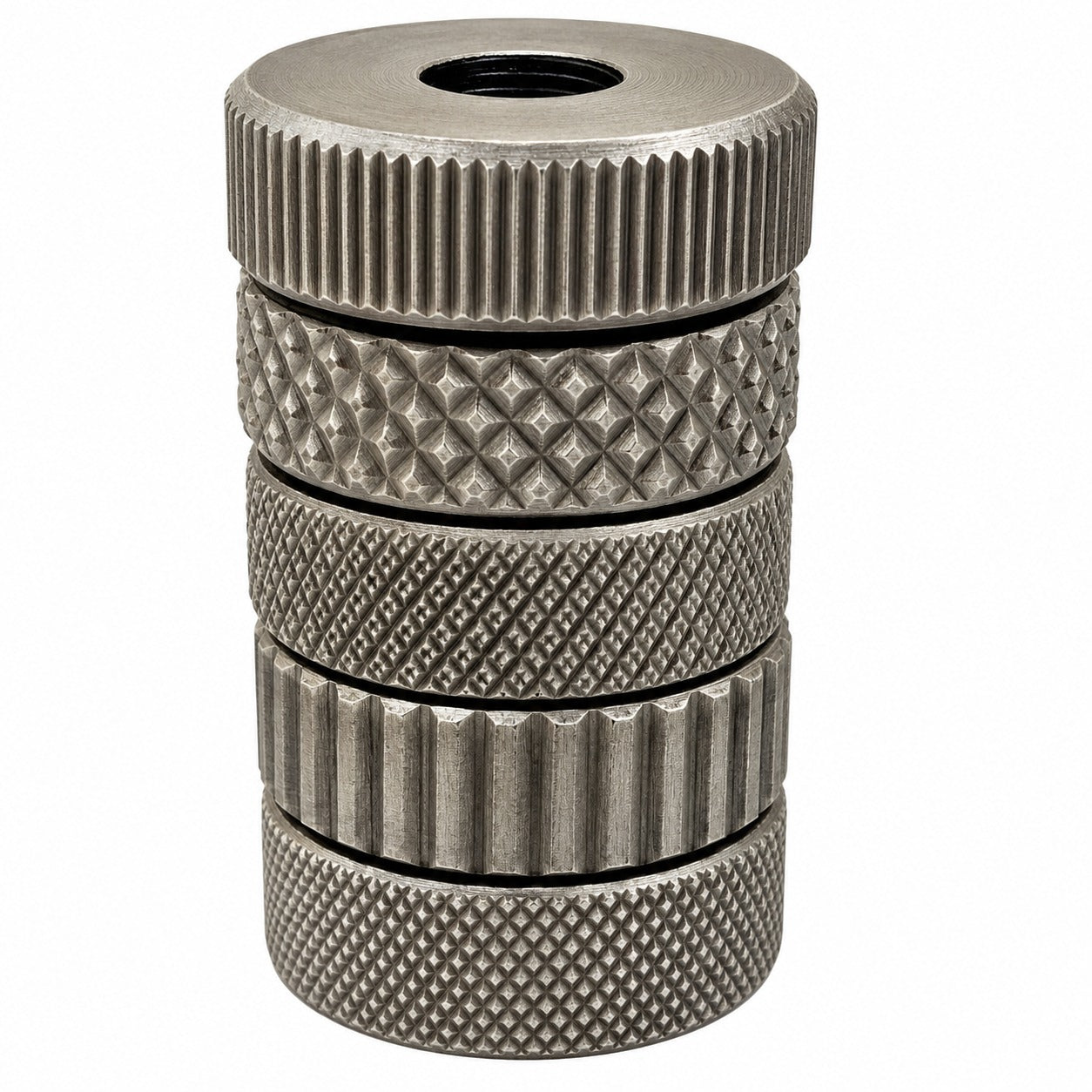

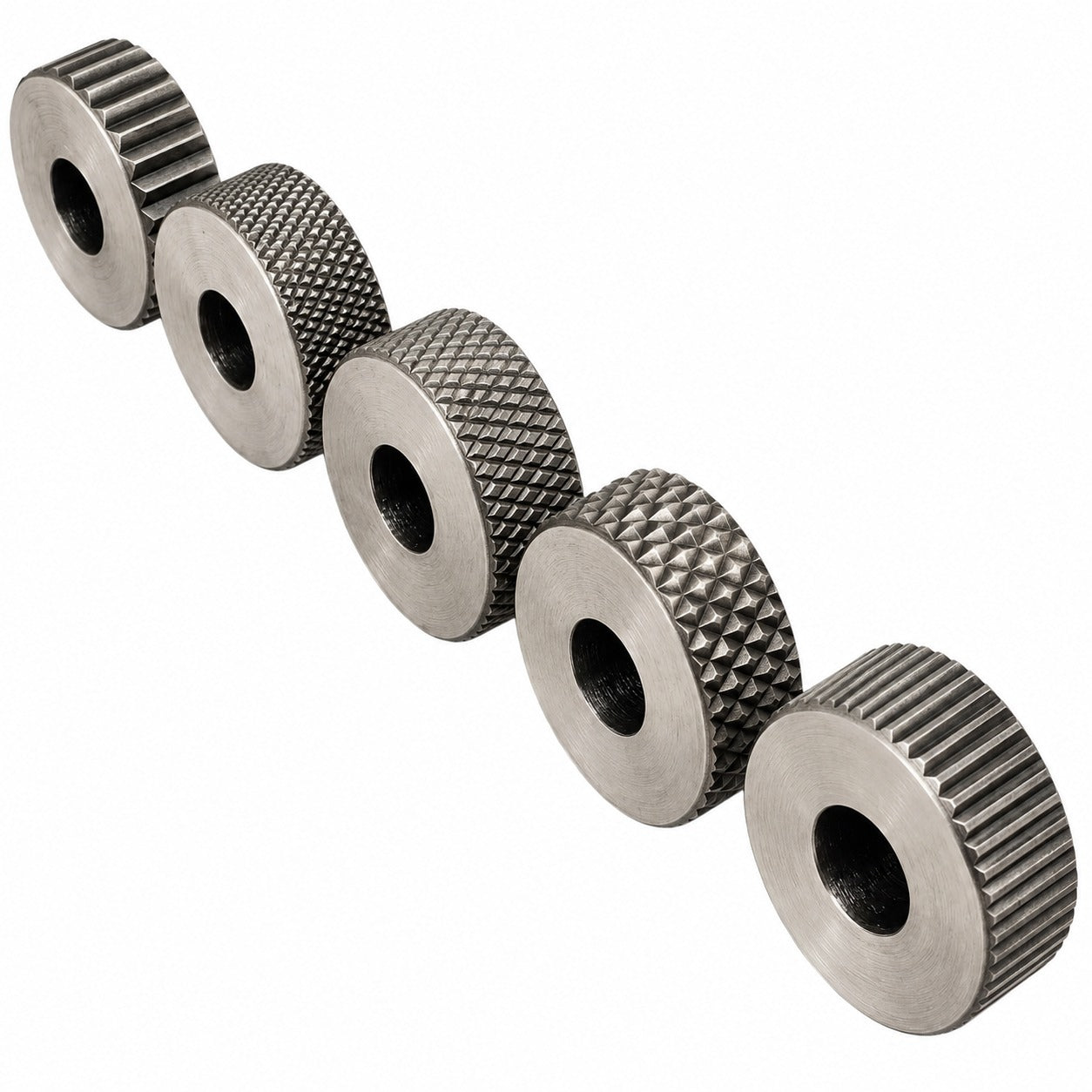

📐 KNURLING WHEEL OPTIONS
| 🔧 Wheel Type | 📏 Pitch | 🎯 Pattern |
|---|---|---|
| Fine Cross Knurl | 0.5mm | Cross / Diamond Pattern |
| Medium Cross Knurl | 1.0mm | Cross / Diamond Pattern |
| Coarse Cross Knurl | 1.5mm | Cross / Diamond Pattern |
| Fine Straight Knurl | 0.5mm | Axis-Parallel Grooves |
| Medium Straight Knurl | 1.0mm | Axis-Parallel Grooves |
| Coarse Straight Knurl | 1.5mm | Axis-Parallel Grooves |
⚙️ ITEM SPECIFICATIONS
| 🔩 Specification | 📋 Details |
|---|---|
| 📦 Product Type | Single Wheel Knurling Tool Holder |
| 📏 Shank Size | 12mm × 12mm / 1/2" × 1/2" |
| 📐 Overall Length | 100mm / 4" |
| 🛠️ Holder Material | Tool Steel |
| ⚙️ Knurl Material | HSS |
| 🔢 Knurl Quantity | 6 Pieces |
| ⭕ Knurl Diameter | 3/4" |
| 📏 Knurl Width | 1/4" |
| 🔘 Knurl Bore | 1/8" |
| 📐 Available Pitches | 0.5mm, 1.0mm & 1.5mm |
| 🔄 Knurl Patterns | Cross & Axis-Parallel |
| 🏭 Application | Lathe Knurling |
| 🎨 Holder Color | Black |
🏭 APPLICATIONS
- ⚙️ Lathe knurling operations
- ✚ Diamond/cross knurling
- ➖ Straight/linear knurling
- 🔧 Creating grip surfaces on handles and shafts
- 🛠️ Replacing damaged knurling wheels
- 🏭 General metalworking
- 🔩 Cylindrical workpiece finishing
- 👨🔧 Engineering and machine-shop applications
- 🧰 Repair and maintenance work
📦 PACKAGE INCLUDES
- 1 × Single Wheel Knurling Tool Holder – 12mm × 12mm × 100mm
- 6 × HSS Knurling Wheels
⚠️ IMPORTANT
Please verify the 12mm / 1/2" square shank size and knurling wheel dimensions before purchasing to ensure compatibility with your lathe tool post and application.
