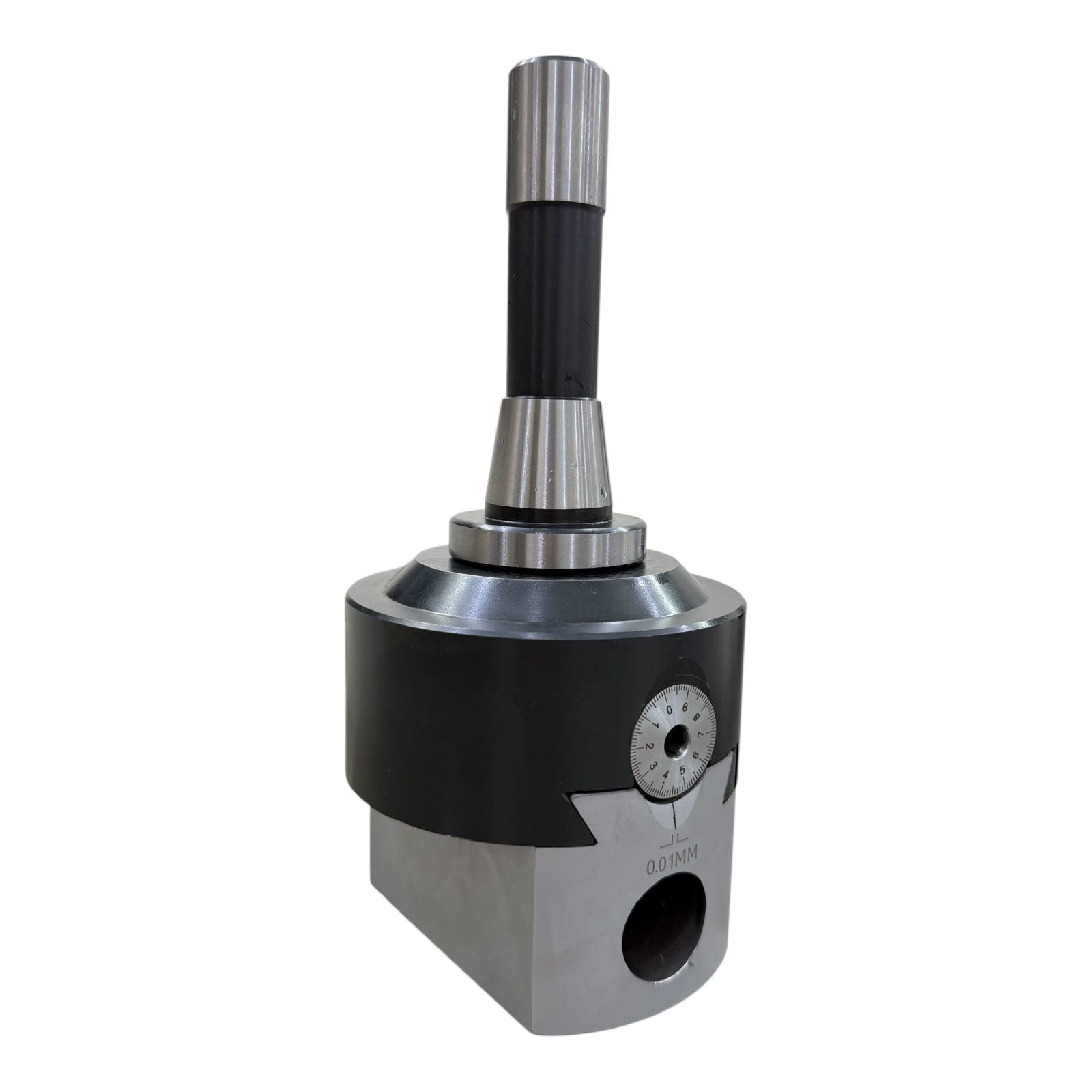

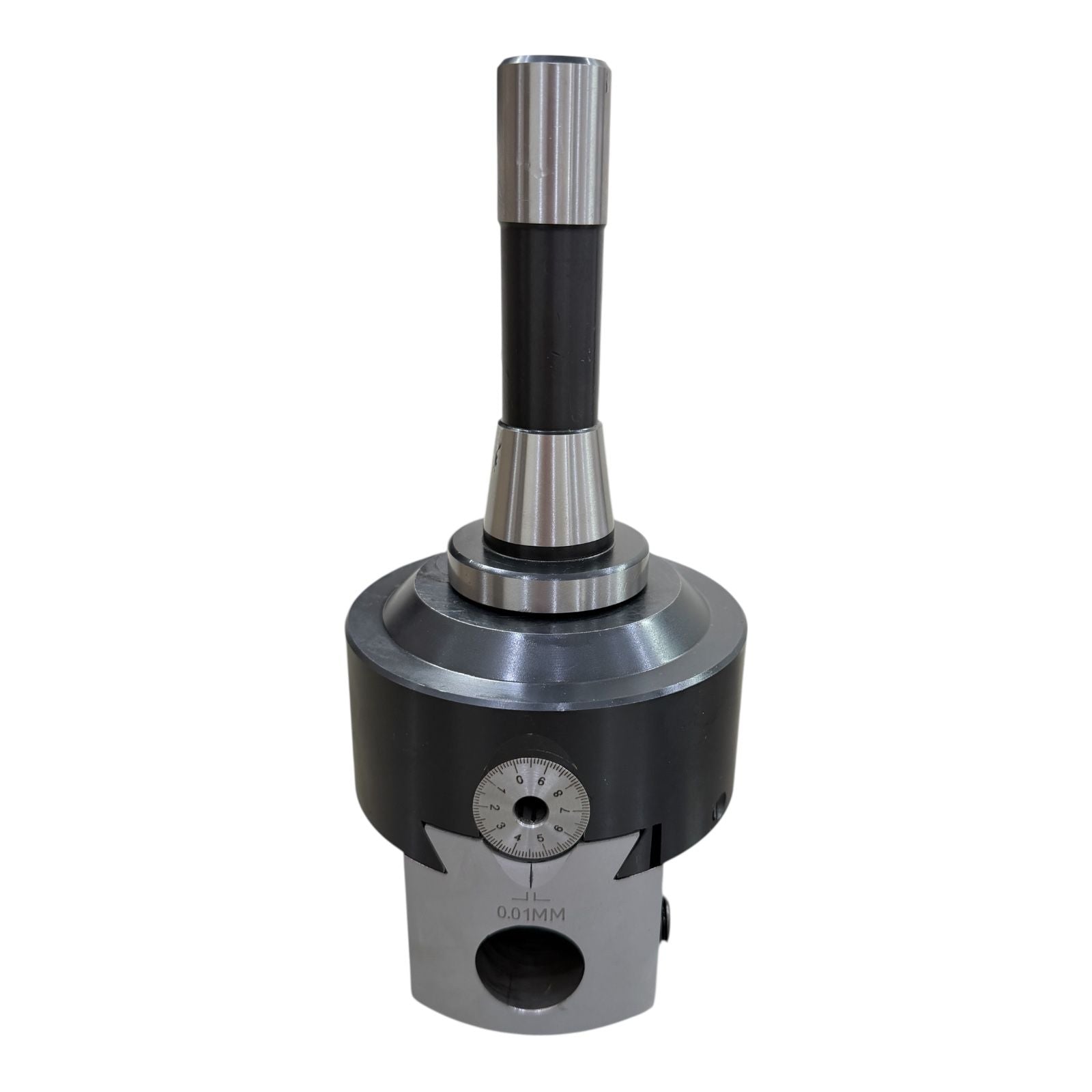

The 100 mm Adjustable Boring Head is a precision-engineered tool designed for accurate boring and internal machining operations on milling machines. Manufactured from high-quality solid steel, this boring head ensures durability, stability, and long service life even in demanding metalworking environments.
Featuring a 1-1/2" × 18 TPI mounting thread, the head allows the use of interchangeable clamping shanks, making it compatible with a wide range of milling machine tool holders. The integrated manual adjusting spindle enables smooth and precise slide movement, providing a fine feed accuracy of 0.01 mm for highly accurate hole enlargement and internal diameter machining.
The boring slide includes secure locating holes for clamping standard boring bars, ensuring reliable tool holding and consistent machining performance. This tool is ideal for precision boring, enlarging existing holes, and machining internal diameters in various metalworking applications.
Key Features
Robust solid steel construction for durability and rigidity

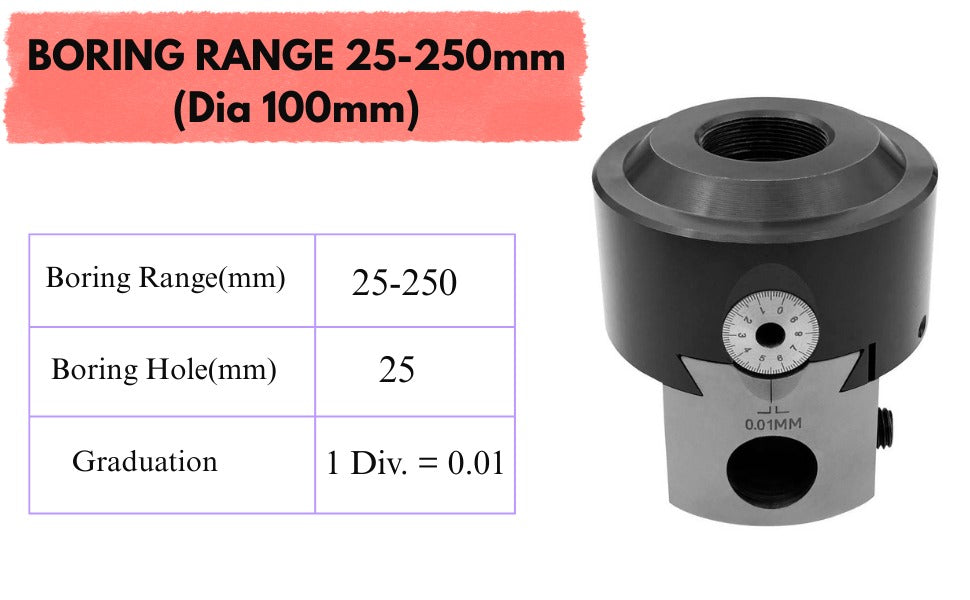

Head diameter: 100 mm
Mounting thread: 1-1/2" × 18 TPI
Manual precision adjustment spindle
Fine feed accuracy: 0.01 mm
Compatible with interchangeable shanks for multiple milling machines
Suitable for standard boring bars
Scope of Delivery
1 × Boring / Drilling Head – Ø 100 mm
1 × Allen Key – 3.0 mm
1 × R8 Arbor
Threaded for 7/16" UNF drawbar
Front thread: 1-1/2" × 18 TPI
