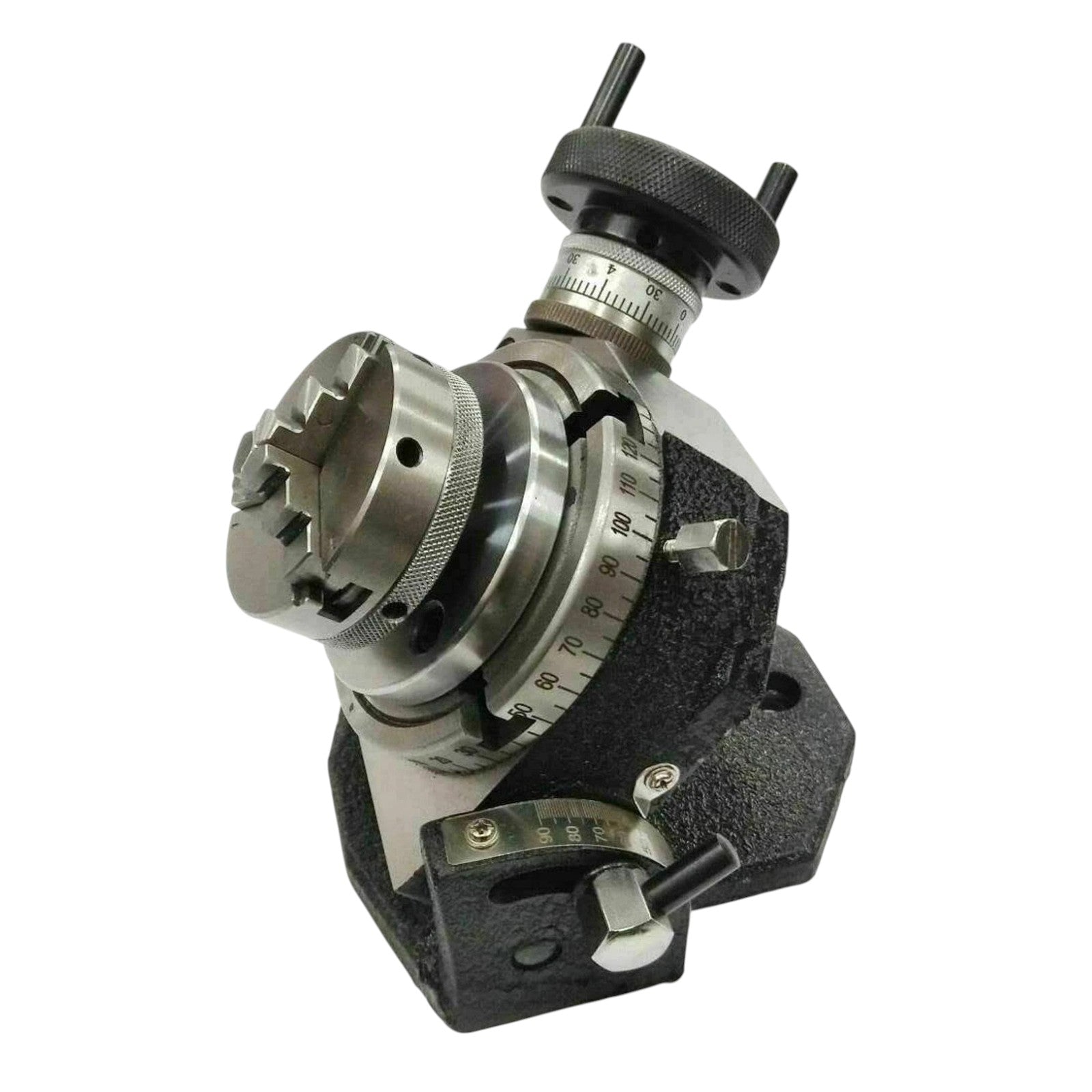

🔧 BlueFox Tools 4" Tilting Rotary Table with 65mm 3 Jaw Chuck

Enhance the versatility of your milling machine with the BlueFox Tools 4" (100mm) Tilting Rotary Table, supplied complete with a 65mm 3 Jaw Self-Centering Lathe Chuck. This precision machining setup is ideal for circular milling, drilling, indexing, slotting, gear cutting, engraving, and precision machining applications.

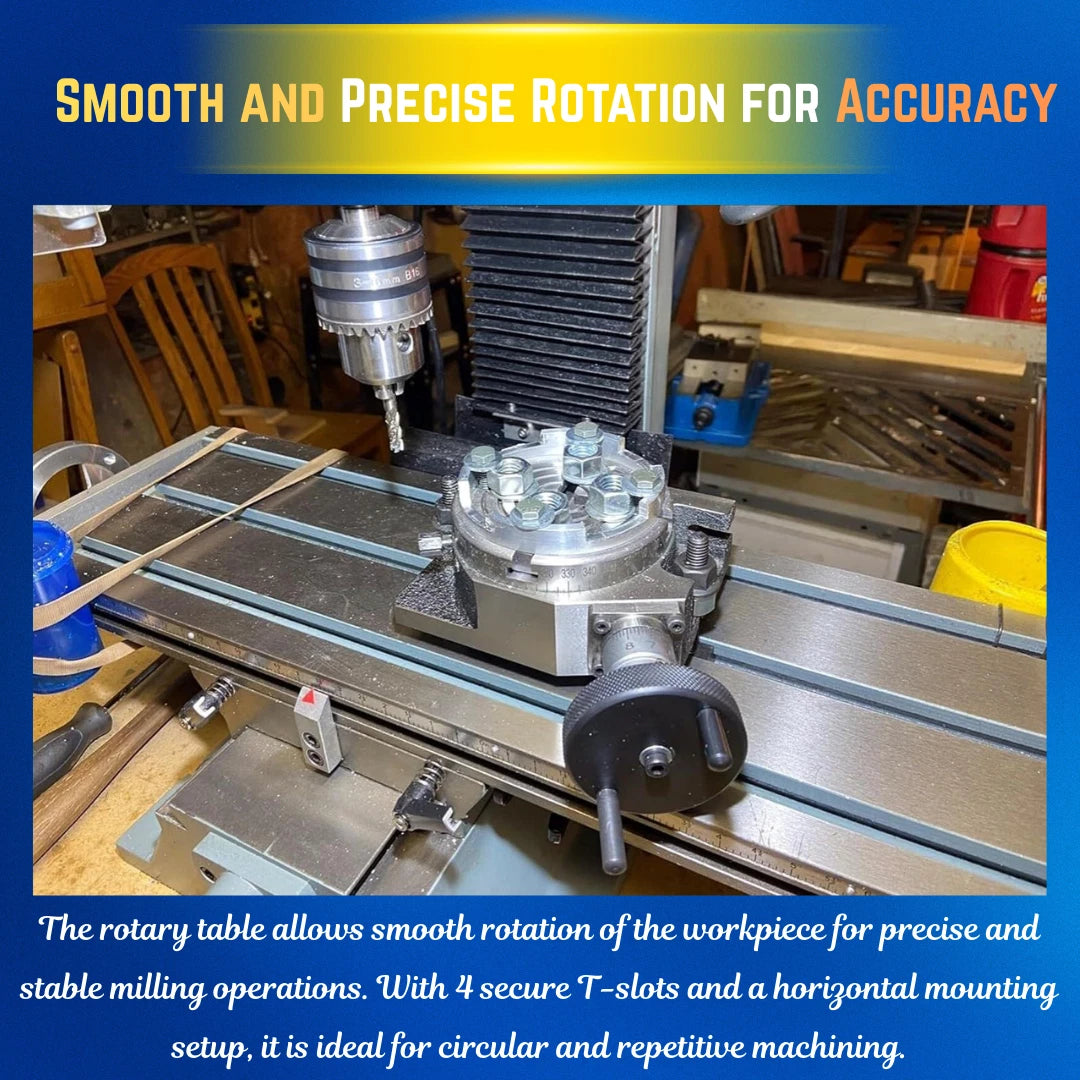

The rotary table features a 36:1 worm gear drive, allowing smooth and accurate rotation, while the table is graduated from 0° to 360° in 5-minute divisions for precise angular positioning. Its tilting design allows the table to be adjusted from 0° to 90° and securely locked at any desired angle, making it ideal for complex machining operations.

Included is a 65mm self-centering 3 jaw chuck with an M14×1 threaded mount, featuring hardened and ground reversible tool steel jaws and a graded cast iron body for strength, durability, and consistent clamping accuracy.

Perfect for milling machines, drilling machines, tool rooms, engineering workshops, and model engineering projects.

✨ Key Features

✅ Complete Rotary Table & Chuck Set – Includes 4" tilting rotary table and 65mm self-centering chuck.

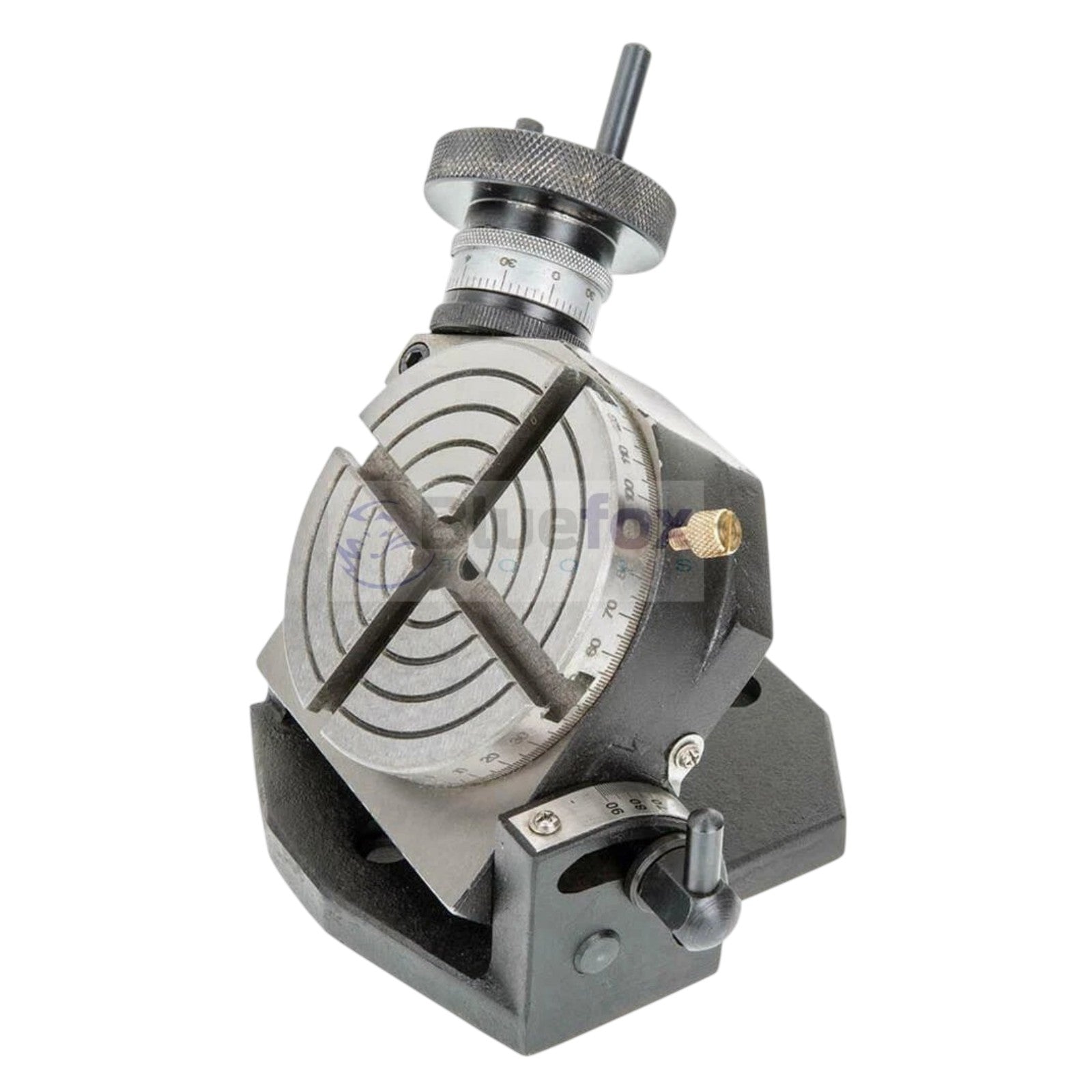

✅ Tilting Table Design – Tilts from 0° to 90° and locks securely at any angle.

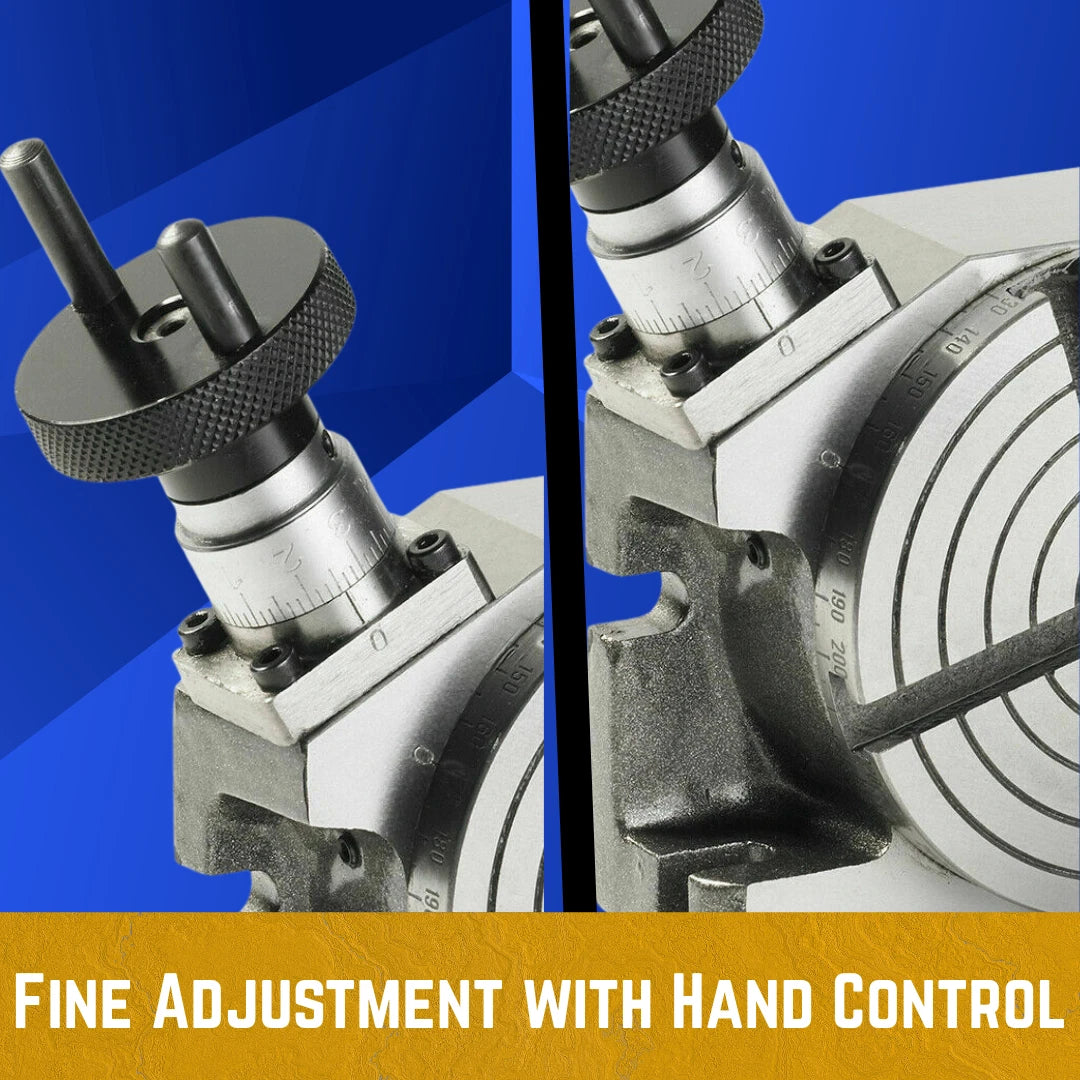

✅ 36:1 Precision Worm Gear – Smooth, controlled rotation for accurate indexing.

✅ 360° Graduated Table – Clearly marked in 5-minute divisions for precision positioning.

✅ 65mm Self-Centering 3 Jaw Chuck – Quickly and accurately grips round and hexagonal workpieces.

✅ M14×1 Threaded Mount – Secure chuck mounting for dependable performance.

✅ Hardened & Ground Reversible Jaws – Tool steel jaws provide excellent grip and long service life.

✅ Heavy-Duty Cast Iron Construction – Built for rigidity, durability, and vibration resistance.

✅ Professional Workshop Quality – Ideal for milling, drilling, indexing, and precision machining.

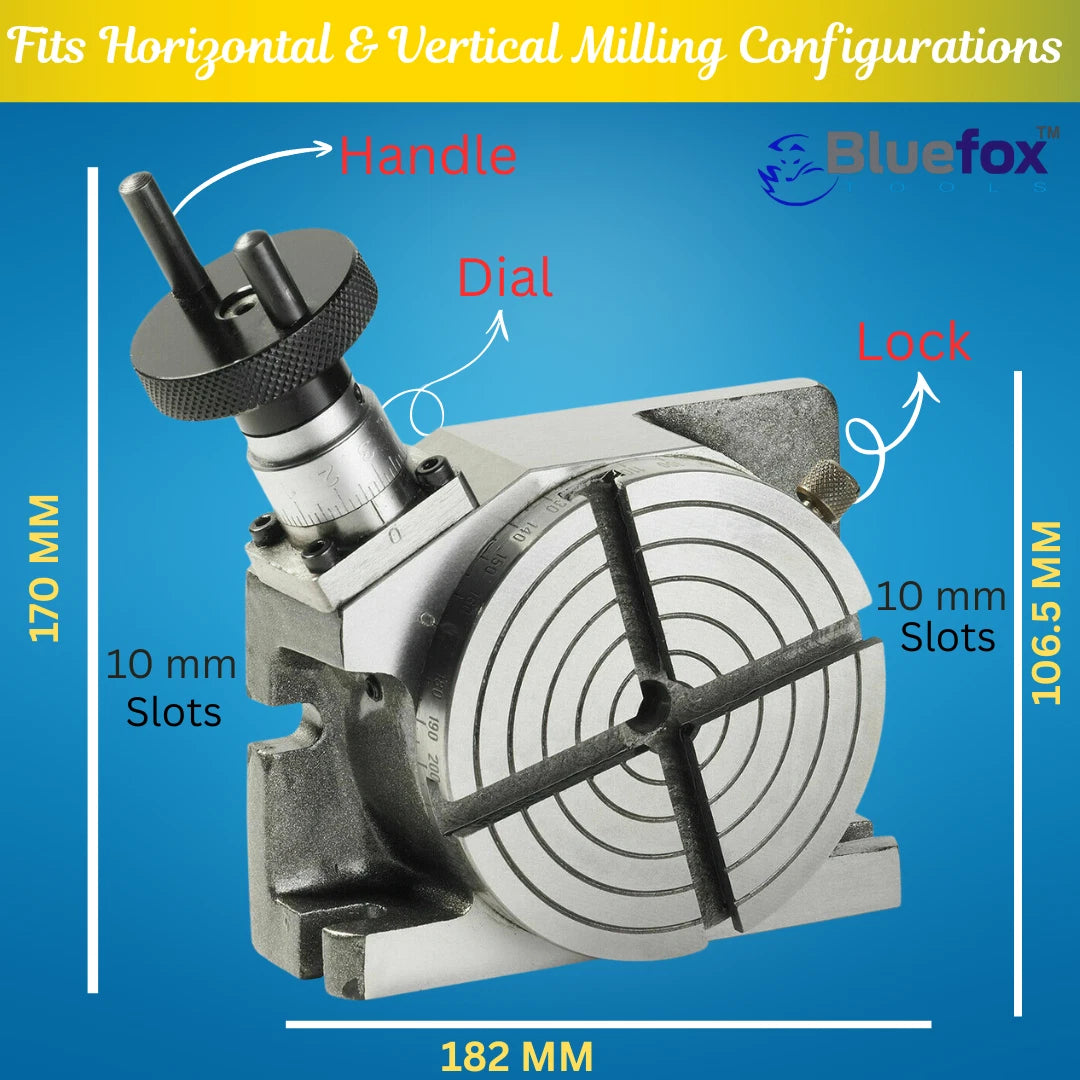

📏 Specifications

Rotary Table

• 🔹 Brand: BlueFox Tools
• 🔹 Product Type: Tilting Rotary Table
• 🔹 Table Diameter: 4" (100mm)
• 🔹 Overall Height: 66mm (2-5/8")
• 🔹 T-Slot Width: 13mm
• 🔹 Gear Ratio: 36:1
• 🔹 Graduation: 0°–360° in 5-minute divisions
• 🔹 Tilt Range: 0°–90°
• 🔹 Locking: Positive Angle Locking

3 Jaw Chuck

• 🔹 Chuck Diameter: 65mm
• 🔹 Chuck Type: Self-Centering 3 Jaw
• 🔹 Thread: M14 × 1
• 🔹 Jaws: Hardened & Ground Tool Steel
• 🔹 Jaw Type: Reversible
• 🔹 Body Material: Graded Cast Iron

🏭 Applications

⚙️ Precision milling

🕳️ Circular drilling

🦷 Gear cutting

📐 Angular machining

🔩 Round component machining

🛠️ Indexing operations

🏭 Tool room work

🔧 Engineering workshops

🧰 Model engineering

🚗 Automotive components

🏗️ General metalworking

⚙️ Prototype manufacturing

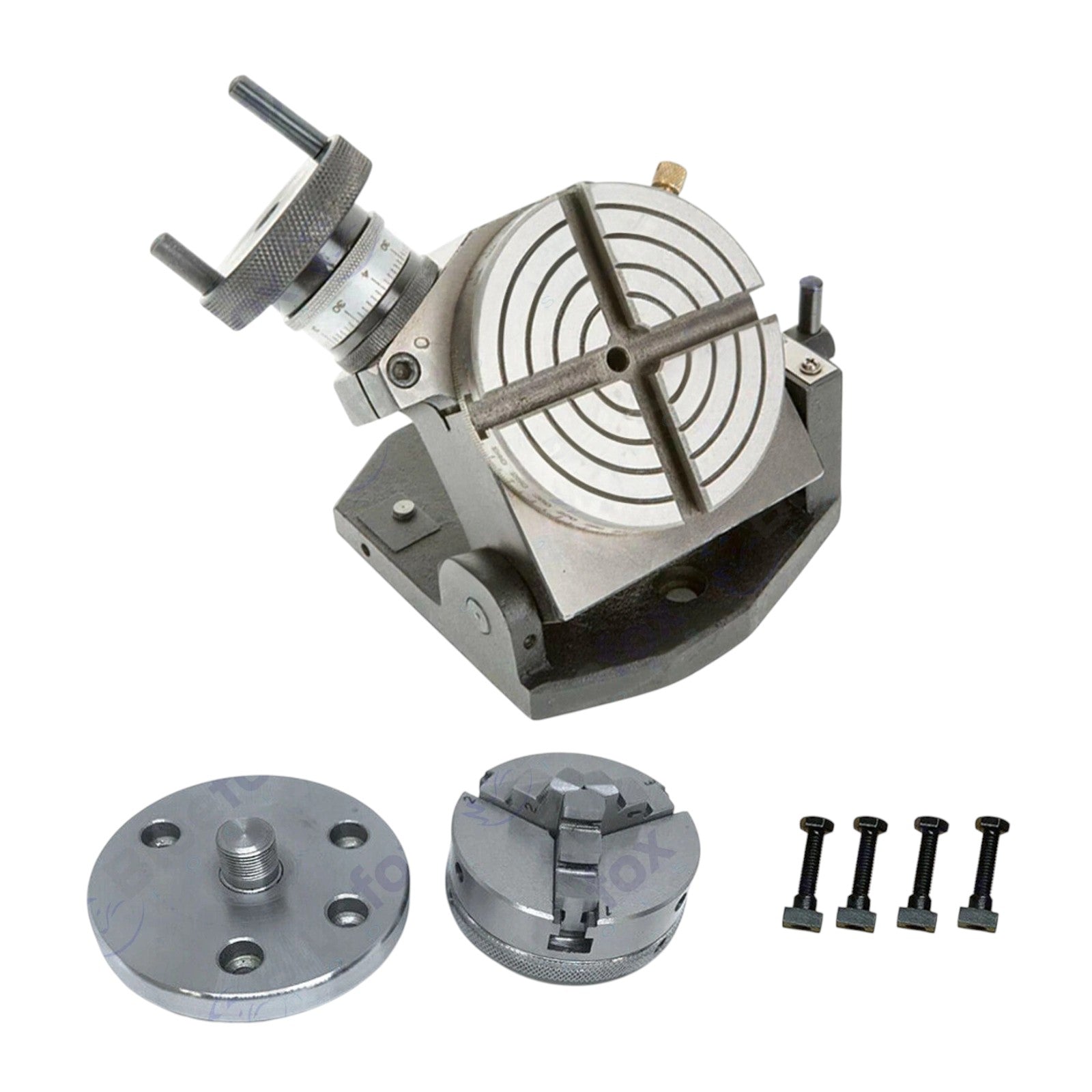

📦 Package Includes

• 📦 1 × 4" (100mm) Tilting Rotary Table
• 📦 1 × 65mm Self-Centering 3 Jaw Chuck (M14×1 Thread)
• 📦 Reversible Hardened Jaws

🌟 Why Choose BlueFox Tools?

✔ Tilting 0°–90° Design

✔ Smooth 36:1 Worm Gear Drive

✔ Precision 360° Graduations

✔ High-Quality 65mm Self-Centering Chuck

✔ Hardened & Ground Reversible Jaws

✔ Heavy-Duty Cast Iron Construction

✔ Professional Workshop Performance
