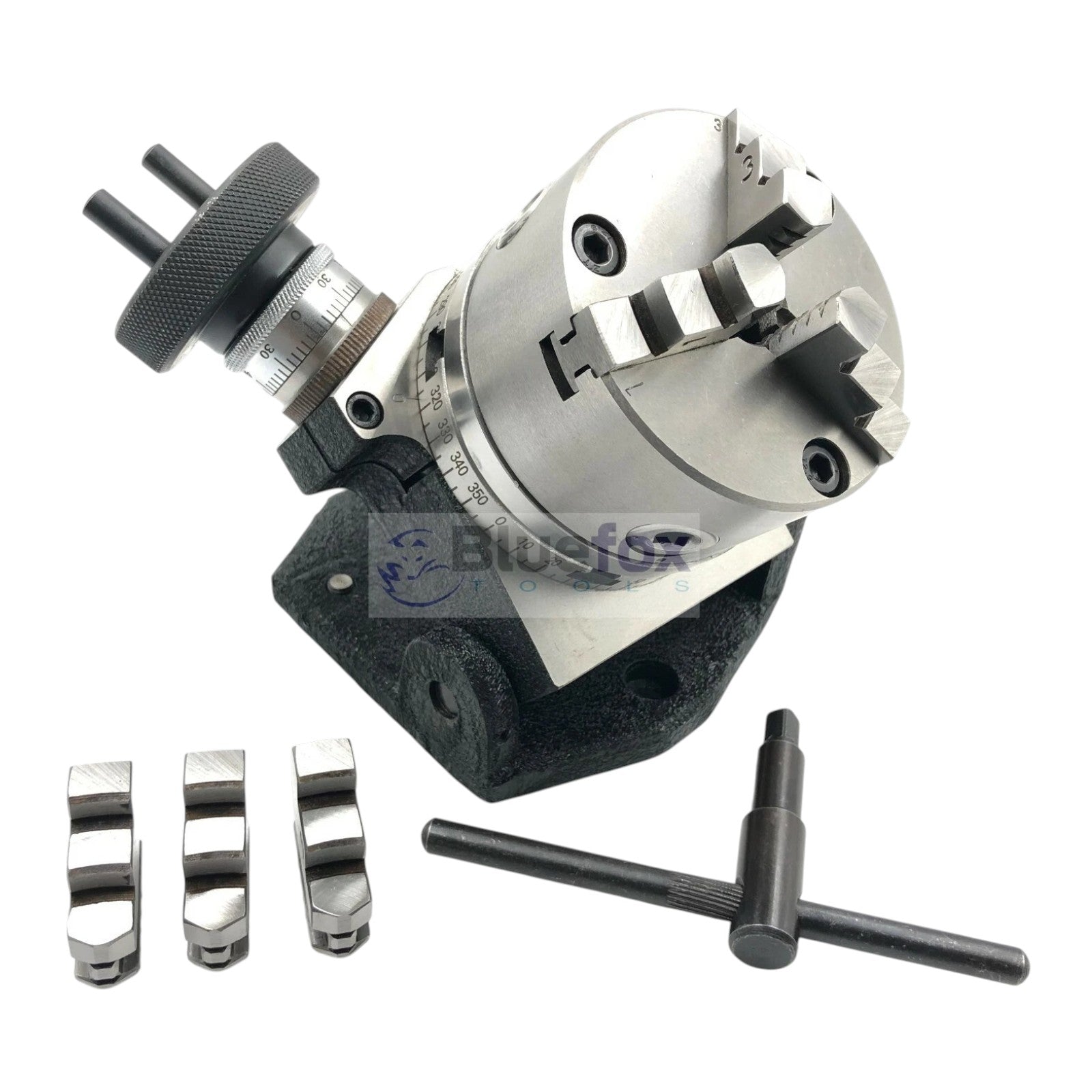

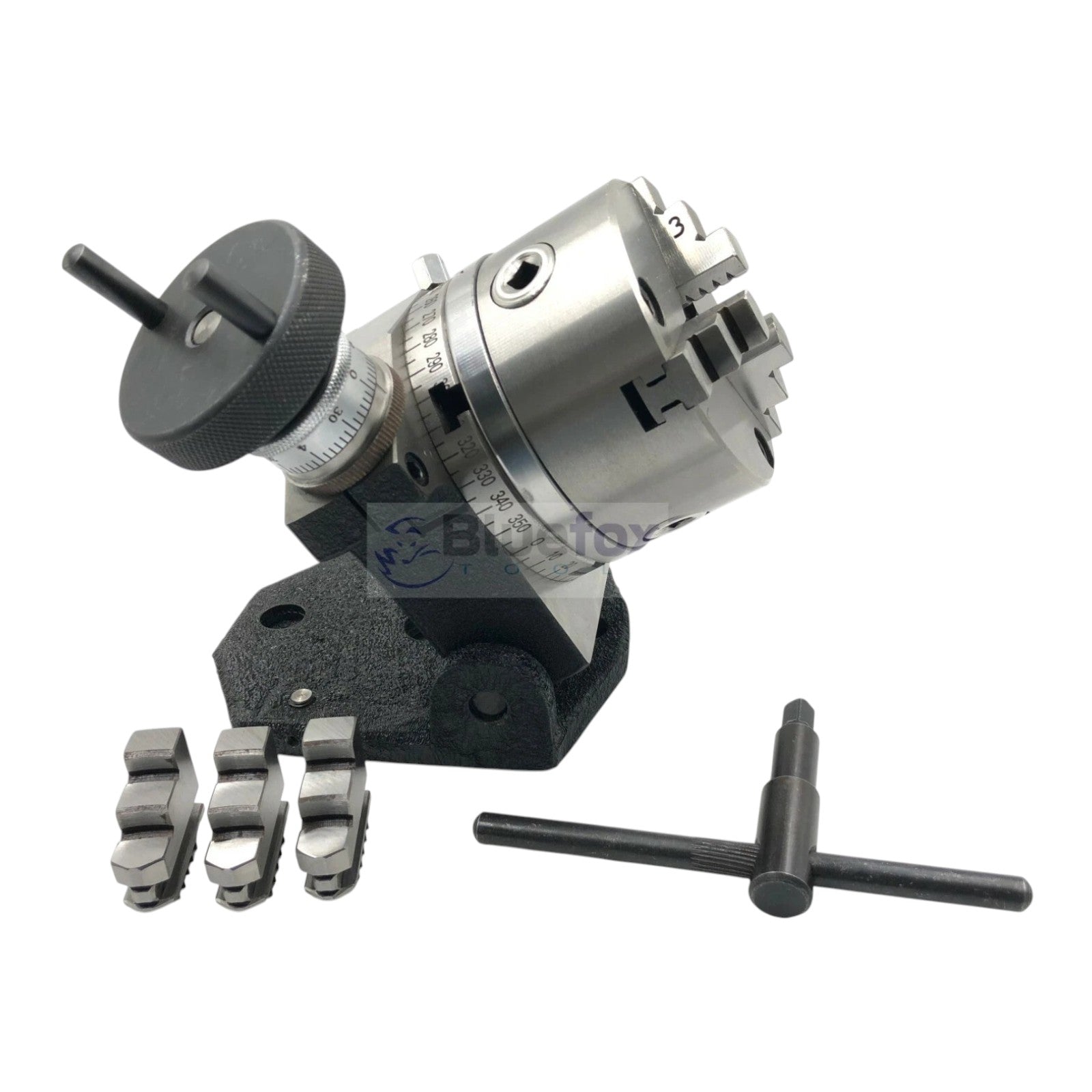

🔧 BlueFox Tools 4" Tilting Rotary Table with 100mm Self-Centering Chuck & Backplate

Take your milling and precision machining capabilities to the next level with the BlueFox Tools 4" (100mm) Tilting Rotary Table, complete with a 100mm 3 Jaw Self-Centering Chuck, precision-machined mounting backplate, and fixing T-nuts with screws. This professional setup is designed for accurate indexing, circular milling, drilling, slotting, engraving, gear cutting, and angular machining operations.

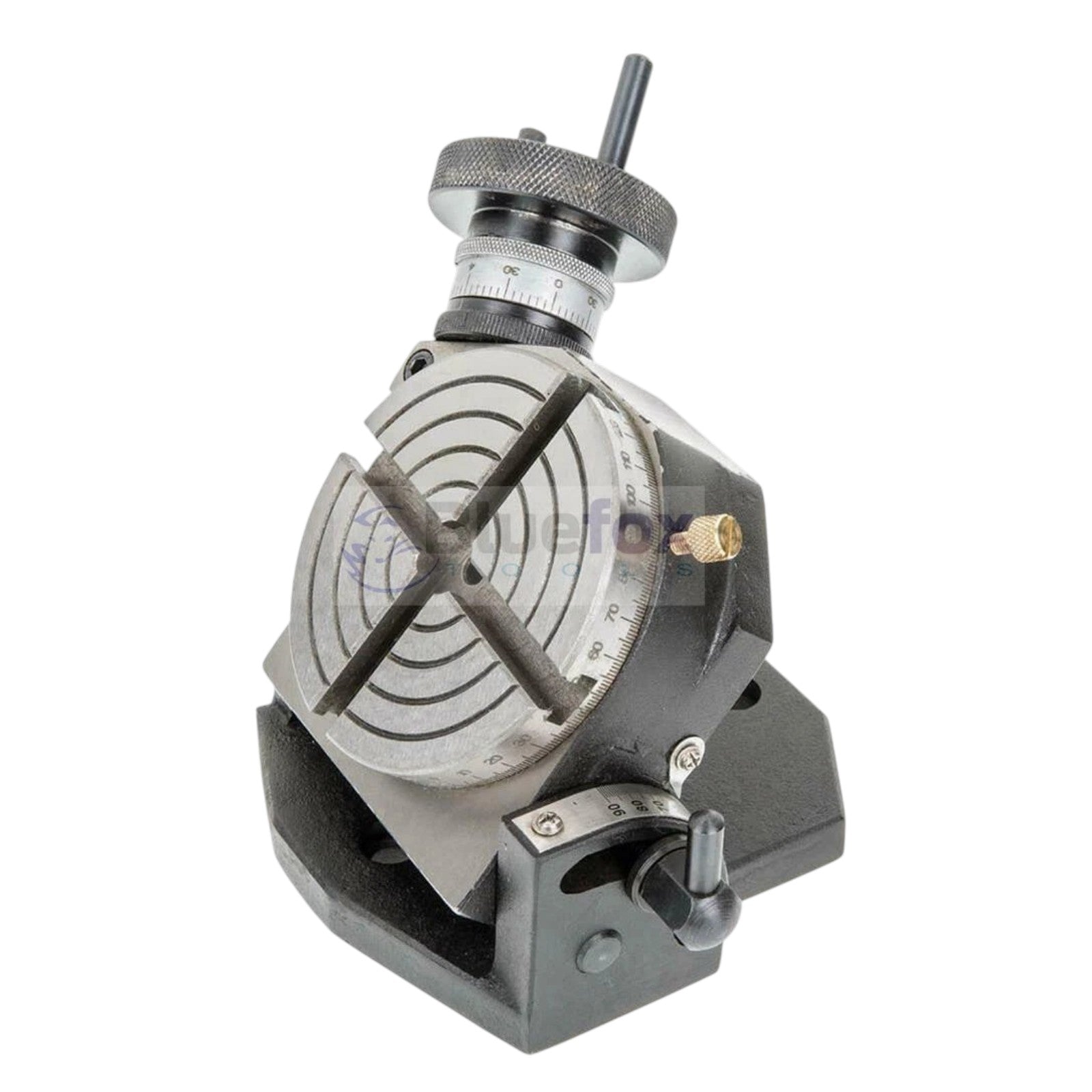

The rotary table features a 36:1 precision worm gear drive, providing smooth and controlled rotation. The table is graduated from 0° to 360° in 5-minute divisions, while the tilting body allows adjustment from 0° to 90°, securely locking at any desired angle for complex machining tasks.

The included 100mm (4") self-centering chuck features a high-strength SG iron body with hardened and ground tool steel jaws for exceptional gripping accuracy and durability. An additional set of reversible jaws is included for increased workholding flexibility.

The supplied precision-machined backplate is engineered to eliminate play between the chuck and rotary table. It is drilled to fit both 3-slot and 4-slot rotary tables, making it compatible with most 3" and 4" rotary tables.

Perfect for milling machines, tool rooms, engineering workshops, model engineering, and precision metalworking.

✨ Key Features

✅ Complete Rotary Table Package – Includes tilting rotary table, 100mm chuck, precision backplate, T-nuts, and mounting screws.

✅ 4" (100mm) Tilting Rotary Table – Suitable for precision milling, drilling, and indexing.

✅ Tilts from 0° to 90° – Locks securely at any angle for angular machining operations.

✅ 36:1 Precision Worm Gear Drive – Smooth, accurate rotation and precise indexing.

✅ 360° Graduated Table – Clearly engraved with 5-minute divisions for accurate positioning.

✅ 100mm Self-Centering 3 Jaw Chuck – Fast and accurate clamping of round and hexagonal workpieces.

✅ SG Iron Chuck Body – High-strength construction for durability and rigidity.

✅ Hardened & Ground Tool Steel Jaws – Precision-machined for reliable gripping performance.

✅ Additional Reversible Jaw Set Included – Expands workholding capability.

✅ Precision-Machined Backplate – Eliminates play and ensures accurate chuck alignment.

✅ Universal Backplate Design – Fits both 3-slot and 4-slot rotary tables.

📏 Specifications

Rotary Table

• 🔹 Brand: BlueFox Tools
• 🔹 Product Type: Tilting Rotary Table
• 🔹 Table Diameter: 4" (100mm)
• 🔹 Overall Height: 66mm (2-5/8")
• 🔹 Tilt Range: 0°–90°
• 🔹 Table Graduation: 0°–360° in 5-minute divisions
• 🔹 Gear Ratio: 36:1
• 🔹 T-Slot Width: 13mm

3 Jaw Chuck

• 🔹 Chuck Diameter: 100mm (4")
• 🔹 Chuck Type: Self-Centering 3 Jaw
• 🔹 Body Material: SG Iron
• 🔹 Jaw Material: Hardened & Ground Tool Steel
• 🔹 Jaw Type: Standard + Extra Reversible Jaw Set

Backplate

• 🔹 Precision-machined locating recess
• 🔹 Fits both 3-slot and 4-slot rotary tables
• 🔹 Compatible with 3" & 4" rotary tables
• 🔹 Includes fixing T-nuts and mounting screws

🏭 Applications

⚙️ Precision milling

🦷 Gear cutting

🕳️ Circular drilling

📐 Angular machining

🔩 Circular machining

🛠️ Indexing operations

🏭 Tool room work

🔧 Engineering workshops

🧰 Model engineering

🚗 Automotive component machining

🏗️ Metal fabrication

⚙️ Prototype manufacturing

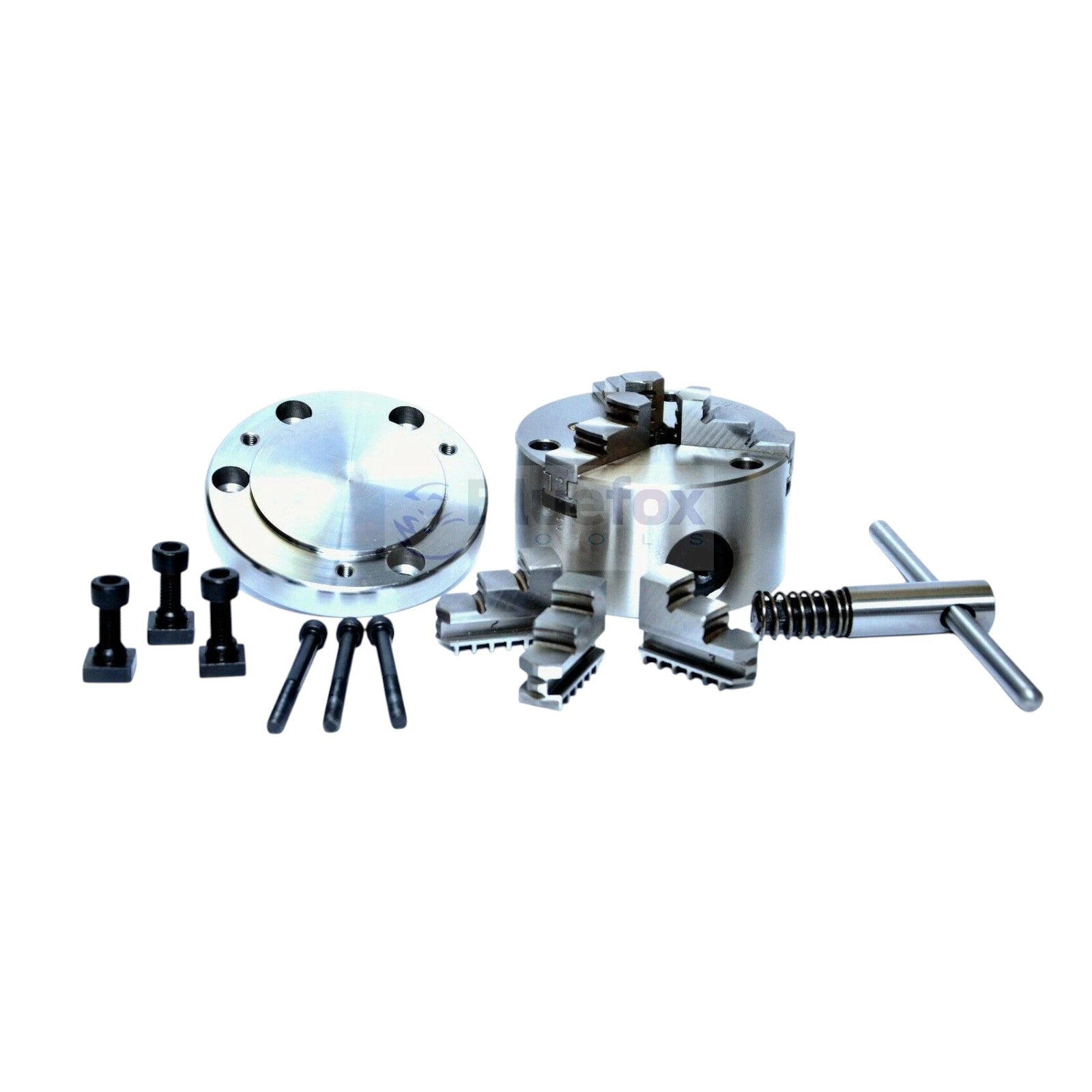

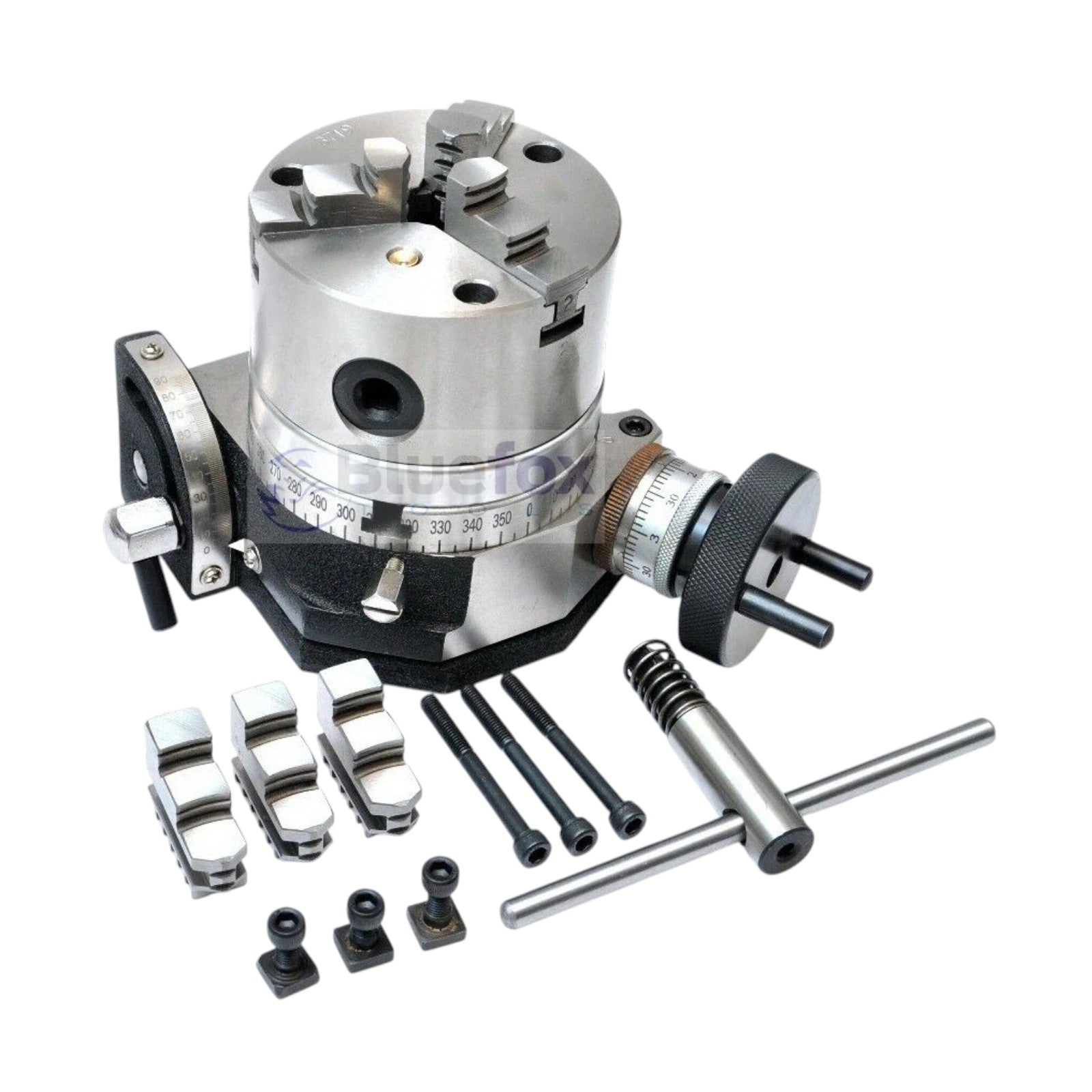

📦 Package Includes

• 📦 1 × 4" (100mm) Tilting Rotary Table
• 📦 1 × 100mm Self-Centering 3 Jaw Chuck
• 📦 1 × Precision Mounting Backplate
• 📦 1 × Extra Set of Reversible Jaws
• 📦 Mounting T-Nuts
• 📦 Fixing Screws

🌟 Why Choose BlueFox Tools?

✔ Precision 36:1 Worm Gear Drive

✔ Tilts from 0°–90°

✔ High-Strength SG Iron Chuck

✔ Hardened & Ground Tool Steel Jaws

✔ Precision Backplate with Zero Play Fit

✔ Fits Both 3 & 4 Slot Rotary Tables

✔ Professional Workshop Quality
