2-1/2" R8 Fly Cutter with TNMG16 Carbide Tool Bit | Bridgeport Milling Machine Fly Cutter | UK STOCK
- $68.90
- $68.90
- Unit price
- per
Tax included
Stock Availability
FBB221, 29 WYSOCKI PL, HACKENSACK, NJ 07601-6804 US
Phone: +1 646 224 0700
Phone: +1 646 224 0700
662/8-A, Gali No 1, First Floor,
Punjabi Basti, Anand Parbat
Phone: +91 8860055906
Punjabi Basti, Anand Parbat
Phone: +91 8860055906
Orange Connex Fulfilment Centre – UK04
Mill Road, Rugby, England
GB-CV21 1PR
Phone: +44 7747 770826
Mill Road, Rugby, England
GB-CV21 1PR
Phone: +44 7747 770826
Orange Connex Fulfillment Center – DE04
Bochumer Str. 119, Nordrhein-Westfalen
DE-44866 Bochum
Phone: +49 15563617045
Bochumer Str. 119, Nordrhein-Westfalen
DE-44866 Bochum
Phone: +49 15563617045
Orange Connex Fulfilment Centre – AU03
Warehouse L, Building 5, 161 Manchester Rd
Auburn, New South Wales
AU-2144
Phone: +61 416 989 802
Warehouse L, Building 5, 161 Manchester Rd
Auburn, New South Wales
AU-2144
Phone: +61 416 989 802
AVAILABLE IN INDIA •
AVAILABLE IN USA •
AVAILABLE IN UNITED KINGDOM •
AVAILABLE IN GERMANY •
AVAILABLE IN AUSTRALIA
Secured Payment
Description
xHeavy-Duty R8 Fly Cutter for Milling Machines

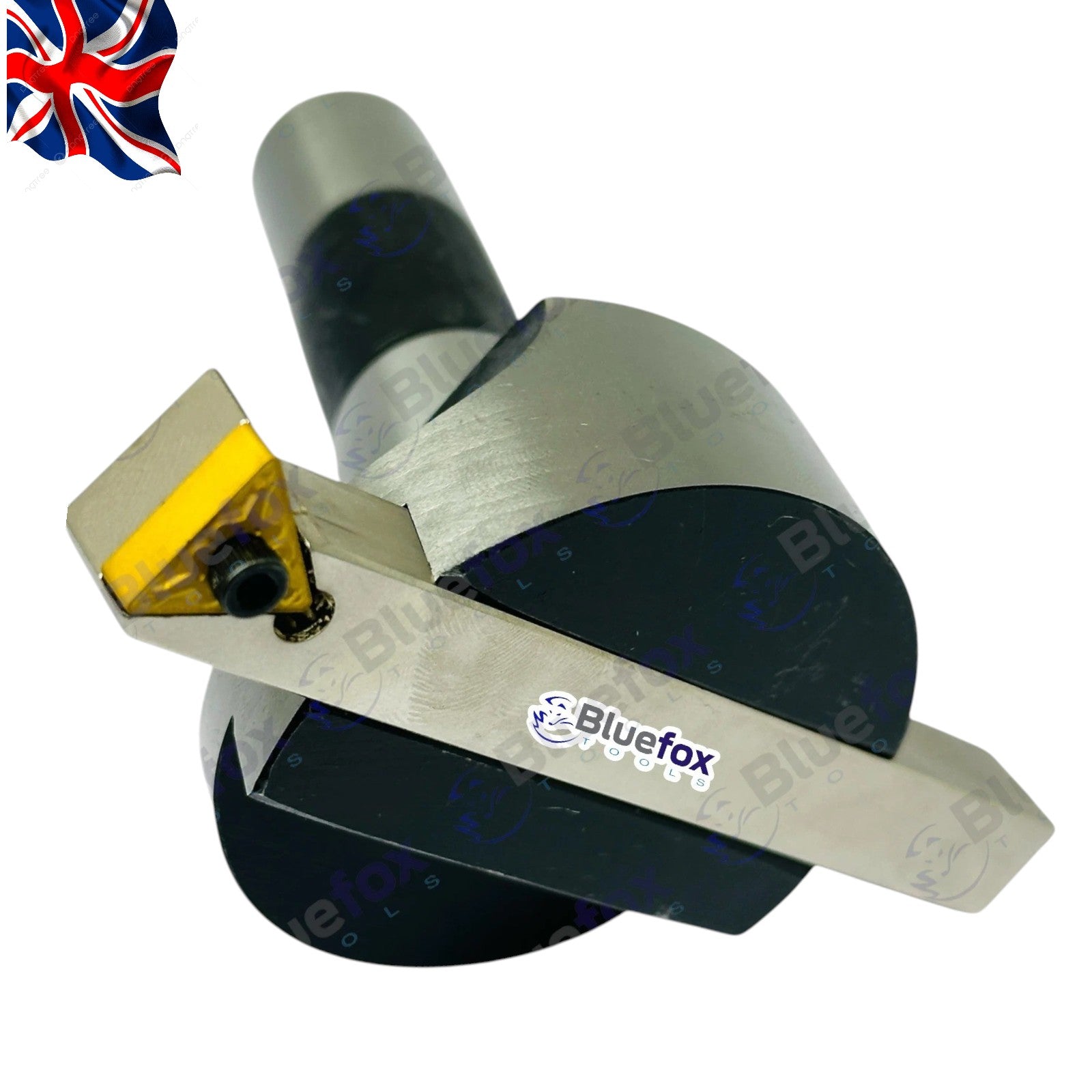

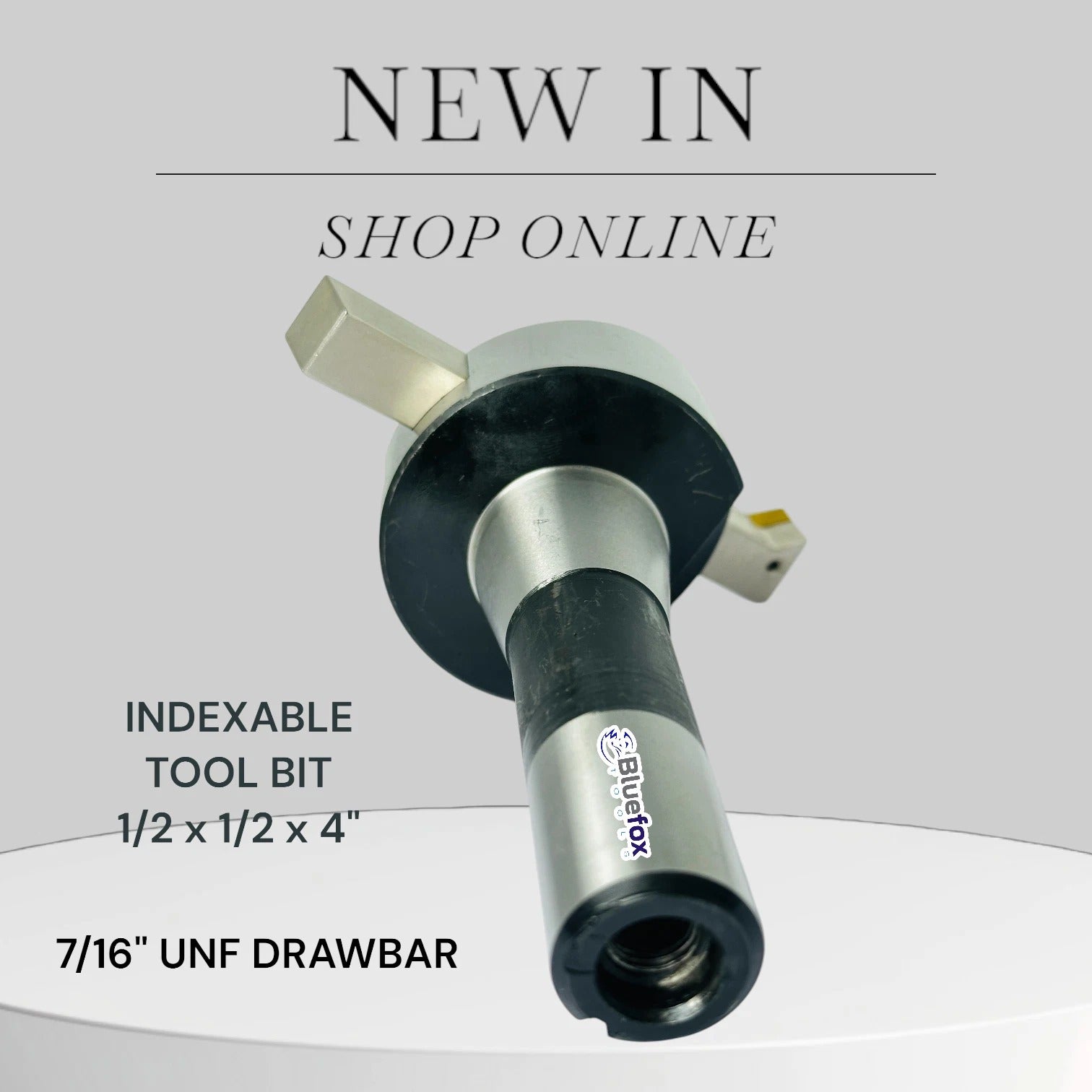

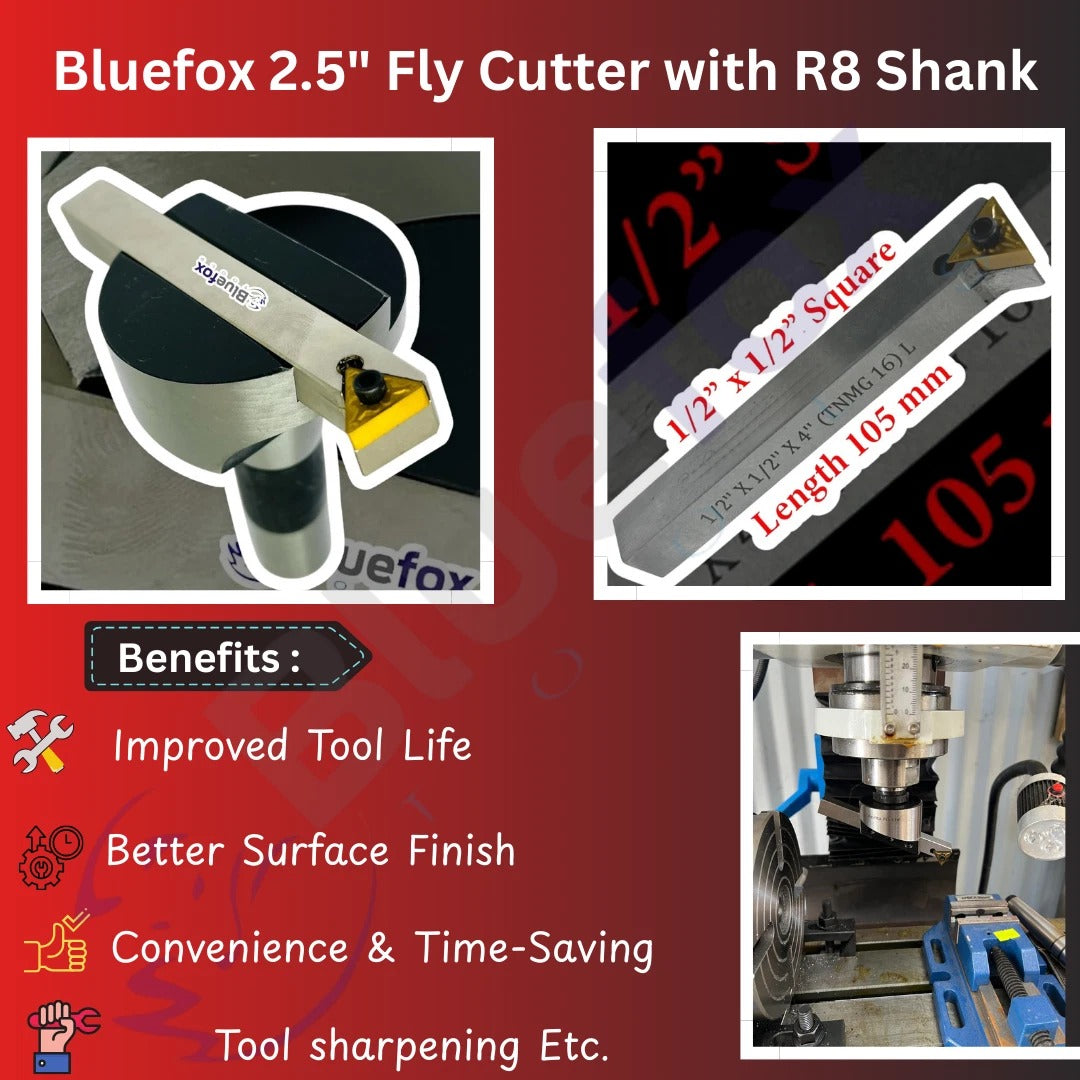

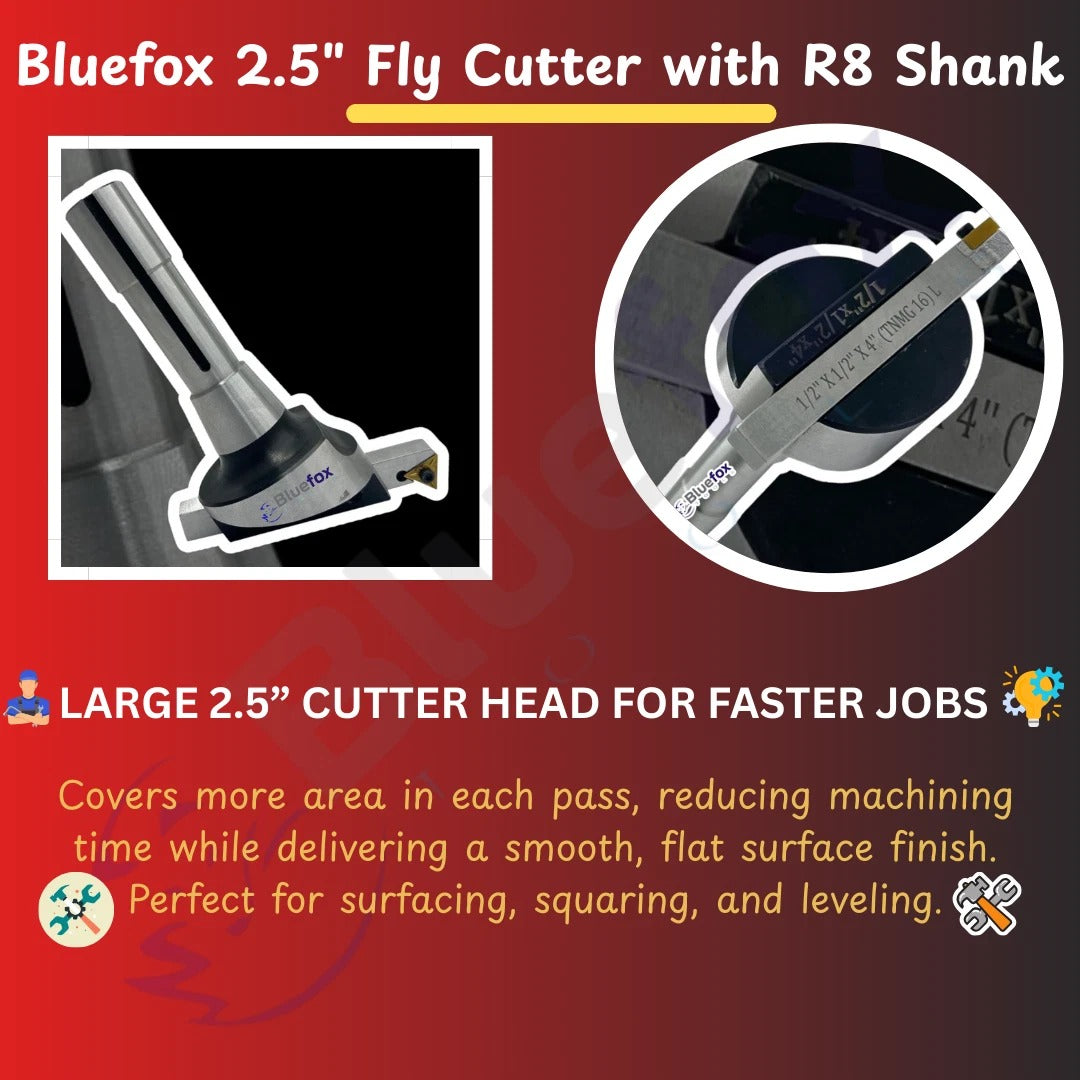

The BLUEFOX 2-1/2" R8 Fly Cutter is a precision-engineered milling cutter designed for facing, surfacing, and producing smooth flat finishes on a wide range of materials. Featuring a 2.5" diameter cutter body and a standard R8 shank with 7/16"-20 UNF drawbar thread, it is ideally suited for Bridgeport and other R8 spindle milling machines.

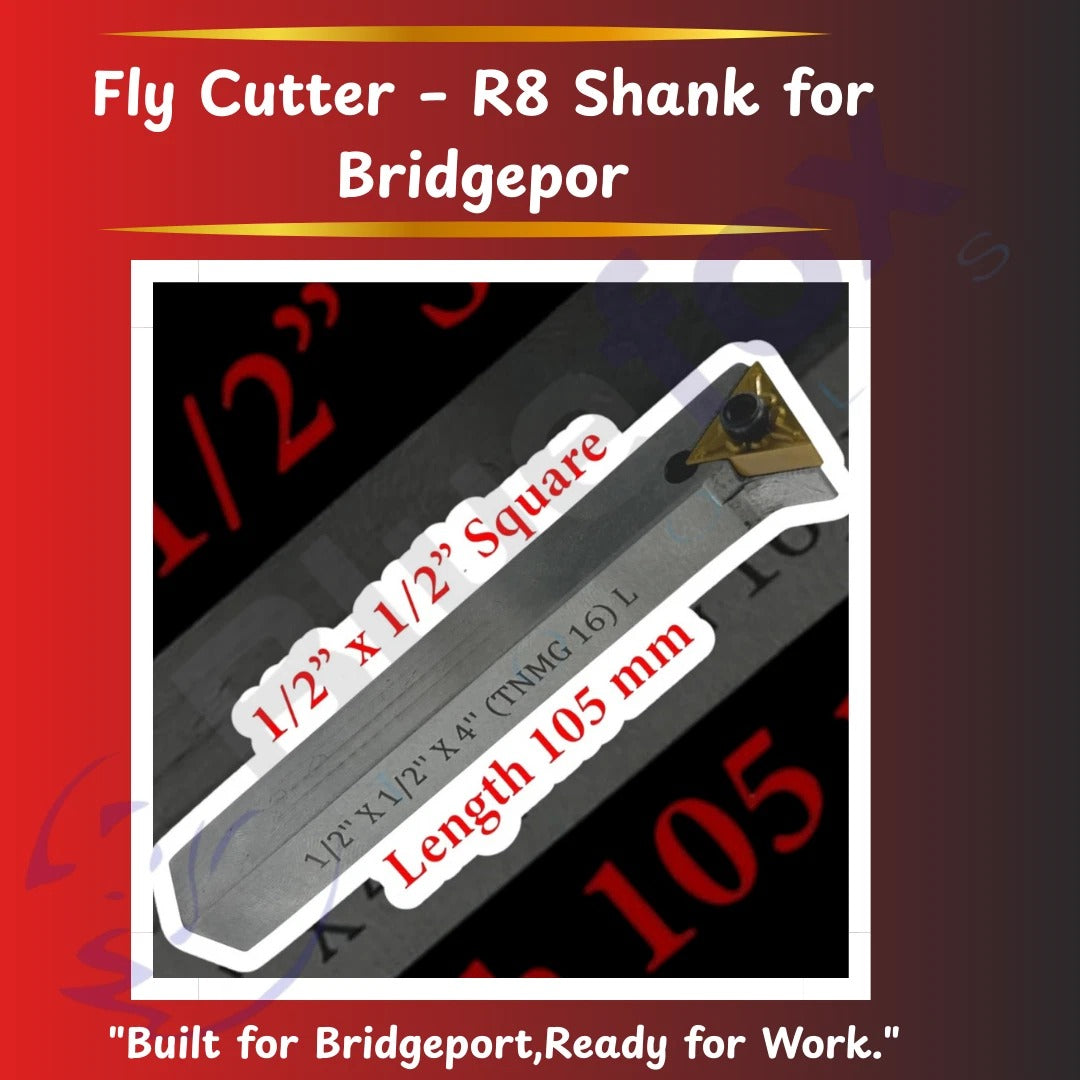

Supplied with a 1/2" x 1/2" x 4" indexable carbide tool bit fitted with a TNMG16 insert, this fly cutter delivers excellent cutting performance, superior surface finish, and economical operation thanks to the multiple cutting edges available on the insert.
Perfect for machining steel, aluminium, brass, cast iron, and other machinable materials in engineering workshops, toolrooms, and machine shops.
Key Features
- Precision fly cutter with R8 shank
- 2-1/2" (63.5mm) cutter body diameter
- Fits Bridgeport and R8 spindle milling machines
- Supplied with indexable carbide cutting tool
- Uses TNMG16 carbide inserts
- Produces smooth and accurate surface finishes
- Suitable for facing and surfacing operations
- Robust steel body construction
- Cost-effective replaceable insert system
- Professional workshop quality
Specifications
| Specification | Details |
|---|---|
| Shank Type | R8 |
| Drawbar Thread | 7/16"-20 UNF |

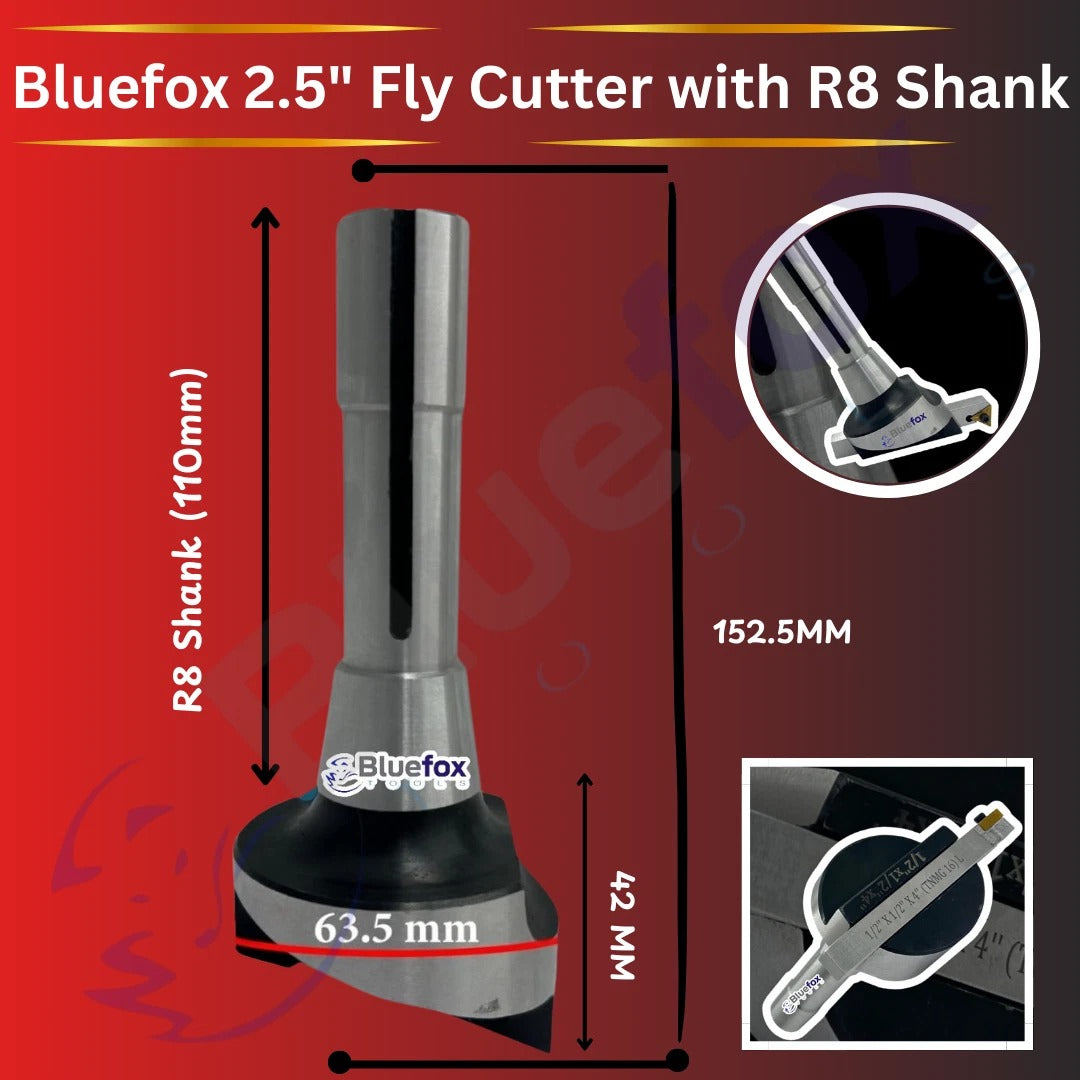

| Cutter Body Diameter | 2-1/2" (63.5mm) |
| Tool Bit Size | 1/2" × 1/2" × 4" |
| Insert Type | TNMG16 Carbide |
| Tool Orientation | Left Hand |
| Application | Facing & Surface Milling |
Applications
- Surface milling
- Facing operations
- Flat surface machining
- Toolmaking
- Precision engineering
- Fixture plate machining
- General workshop milling
- Aluminium machining
- Steel machining
- Machine shop operations
Benefits
Excellent Surface Finish
Produces smooth, flat surfaces with minimal machining marks.
Indexable Carbide System
TNMG16 inserts offer multiple cutting edges for longer tool life and lower operating costs.
Bridgeport Compatible
Designed specifically for R8 spindle milling machines.
Easy Setup
Standard R8 shank provides quick installation and secure holding.
Versatile Performance
Suitable for a wide variety of ferrous and non-ferrous materials.
Suitable Materials
- Mild Steel
- Alloy Steel
- Cast Iron
- Aluminium
- Brass
- Bronze
- Copper
- Engineering Plastics
Compatibility
Suitable for:
- Bridgeport Milling Machines
- R8 Spindle Mills
- Vertical Milling Machines
- Toolroom Mills
- Engineering Workshop Machines
Package Includes
- 1 × 2-1/2" Fly Cutter Body
- 1 × R8 Shank Arbor
- 1 × 1/2" × 1/2" × 4" Indexable Carbide Tool Bit
- 1 × TNMG16 Carbide Insert
Technical Specifications
