2" Ball Turning Attachment for Lathe | TNMG16 Indexable Insert | Convex Radius & Sphere Turning Tool | UK STOCK
- $59.00
- $59.00
- Unit price
- per
Tax included
Stock Availability
FBB221, 29 WYSOCKI PL, HACKENSACK, NJ 07601-6804 US
Phone: +1 646 224 0700
Phone: +1 646 224 0700
662/8-A, Gali No 1, First Floor,
Punjabi Basti, Anand Parbat
Phone: +91 8860055906
Punjabi Basti, Anand Parbat
Phone: +91 8860055906
Orange Connex Fulfilment Centre – UK04
Mill Road, Rugby, England
GB-CV21 1PR
Phone: +44 7747 770826
Mill Road, Rugby, England
GB-CV21 1PR
Phone: +44 7747 770826
Orange Connex Fulfillment Center – DE04
Bochumer Str. 119, Nordrhein-Westfalen
DE-44866 Bochum
Phone: +49 15563617045
Bochumer Str. 119, Nordrhein-Westfalen
DE-44866 Bochum
Phone: +49 15563617045
Orange Connex Fulfilment Centre – AU03
Warehouse L, Building 5, 161 Manchester Rd
Auburn, New South Wales
AU-2144
Phone: +61 416 989 802
Warehouse L, Building 5, 161 Manchester Rd
Auburn, New South Wales
AU-2144
Phone: +61 416 989 802
AVAILABLE IN INDIA •
AVAILABLE IN USA •
AVAILABLE IN UNITED KINGDOM •
AVAILABLE IN GERMANY •
AVAILABLE IN AUSTRALIA
Secured Payment
Description

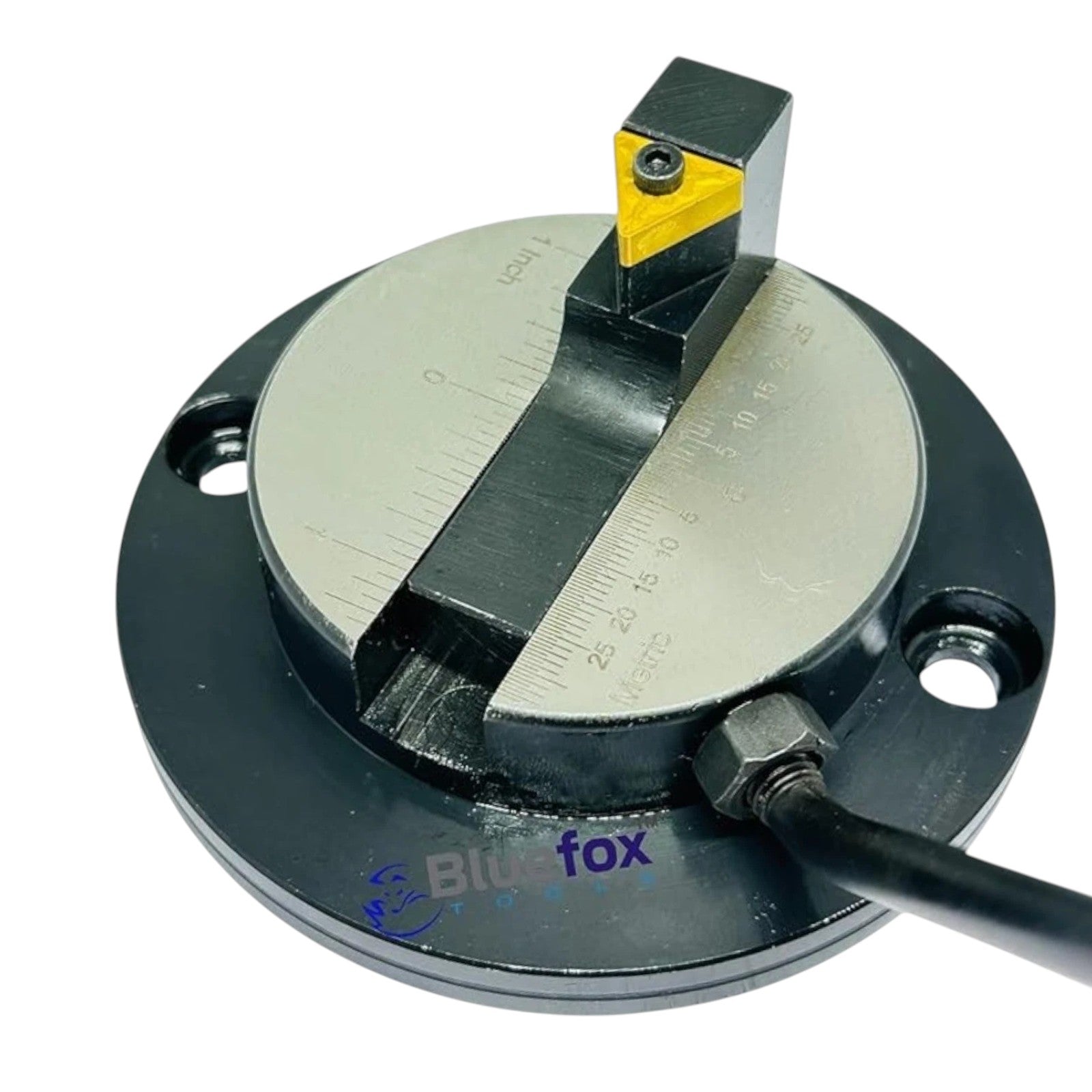

xPrecision Ball Turning Attachment for Myford & Similar Lathes
The BLUEFOX 2" Ball Turning Attachment is a precision-engineered lathe accessory designed to produce accurate spherical balls, convex radii, and curved profiles with ease. Designed to mount directly onto the cross slide of Myford and similar-sized lathes, this attachment provides smooth, controlled cutting action for professional-quality results.
Supplied with a TNMG16 indexable carbide insert, the tool delivers excellent surface finishes while offering up to 6 usable cutting edges per insert, reducing tooling costs and downtime. The attachment features a precision-calibrated radius scale in both metric and imperial measurements, allowing quick and accurate setup for a wide range of ball diameters.
A bearing-supported base ensures smooth rotation of the cutting arm, improving control and machining accuracy during operation.
Key Features
- Precision ball turning attachment for lathes
- Designed for Myford and similar-sized machines
- Produces spherical balls and convex radii
- Direct cross-slide mounting
- Supplied with TNMG16 carbide insert
- Up to 6 cutting edges per insert
- Smooth bearing-supported rotating arm
- Metric and imperial calibrated scale
- Accurate radius and ball size adjustment
- Suitable for steel, brass, aluminium, and other machinable materials
Specifications
| Specification | Details |
|---|---|
| Product Type | Ball Turning Attachment |
| Maximum Ball Capacity | 2" (50mm) Diameter |
| Insert Type | TNMG16 Indexable Carbide |
| Cutting Edges per Insert | 6 |
| Scale Type | Metric & Imperial |
| Mounting | Cross Slide Mounted |
| Bearing Support | Yes |
| Application | Ball & Radius Turning |
How the Scale Works
The attachment scale is calibrated in radius measurements.
Example:
- Scale Setting: 15mm Radius
- Finished Ball Diameter: 30mm
The resulting ball diameter is always twice the radius setting.
Applications
- Ball turning
- Sphere machining
- Convex radius generation
- Decorative turning
- Model engineering
- Toolmaking
- Precision engineering
- Prototype manufacturing
- Workshop machining
- Custom component production
Benefits
Accurate Spherical Machining
Produces consistent and precise ball shapes with minimal setup.
Superior Surface Finish
TNMG16 carbide insert provides clean cutting action and excellent finishes.
Cost-Effective Tooling
Each insert offers up to six usable cutting edges.
Smooth Operation
Bearing-supported pivot arm ensures controlled cutting movement.
Easy Setup
Direct mounting on compatible lathe cross slides for quick installation.
Suitable Materials
- Mild Steel
- Tool Steel
- Aluminium
- Brass
- Bronze
- Copper
- Engineering Plastics
- Various Non-Ferrous Metals
Package Includes
- 1 × 2" Ball Turning Attachment
- 1 × TNMG16 Indexable Carbide Insert
Technical Specifications
