The 4 Inch (100mm) Horizontal Vertical Rotary Table is a precision machining accessory designed for milling machines, drill presses, and tool room applications. Engineered for accurate angular positioning, indexing, circular cutting, drilling, and machining operations, this versatile rotary table can be mounted in both horizontal and vertical positions to maximize machining flexibility.

Featuring a 100mm table diameter, 4 T-slots, and a 36:1 worm gear ratio, this rotary table provides smooth rotation and precise angular control. The handwheel is graduated in 10-minute divisions and can be zeroed for accurate repeatable positioning, while the rim is calibrated in 5-minute increments for enhanced precision.

Ideal for machinists, engineers, toolmakers, model engineers, and workshop professionals requiring accurate indexing and circular machining capabilities.

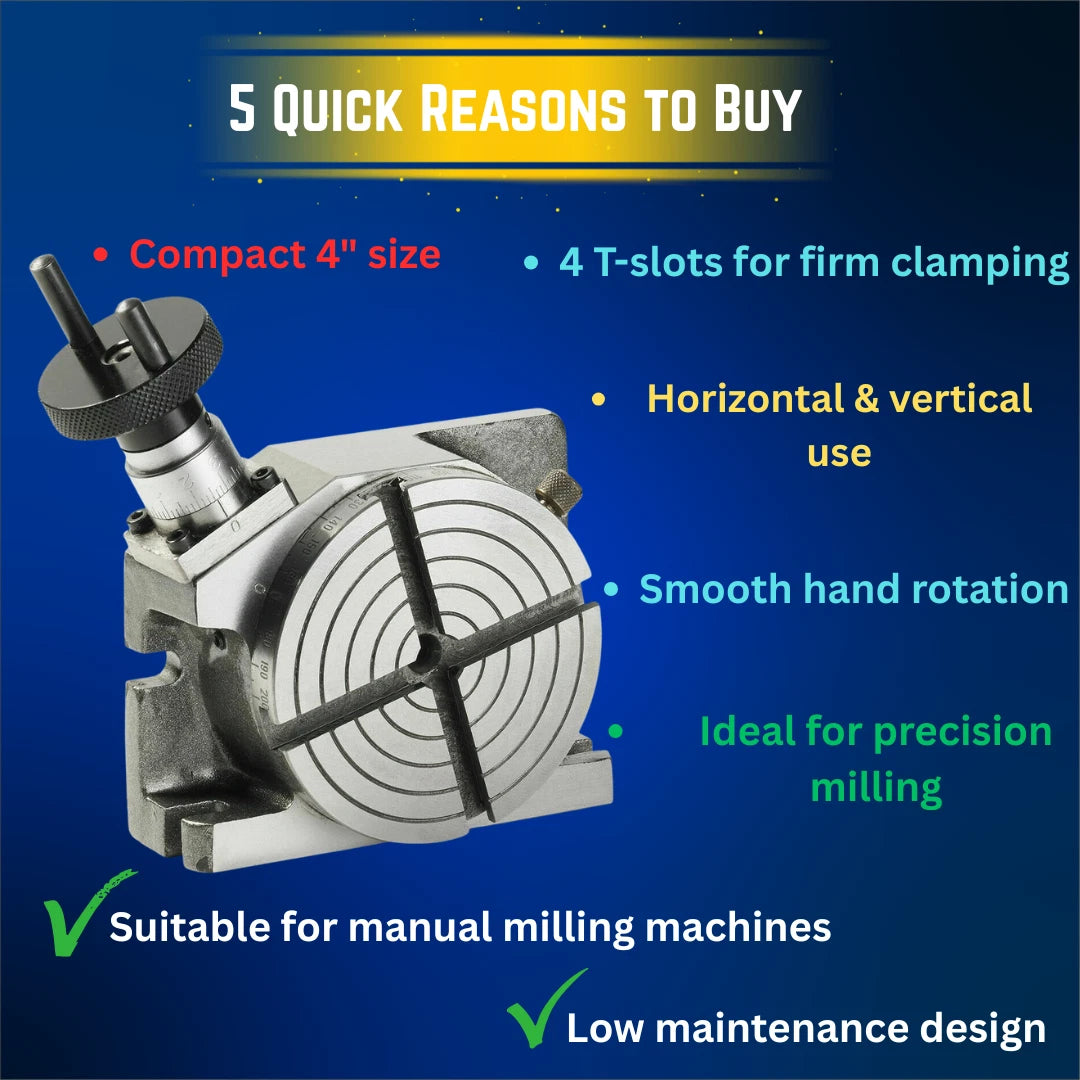

✨ Key Features

✅ 100mm (4") Rotary Table Diameter – Compact size ideal for precision machining.

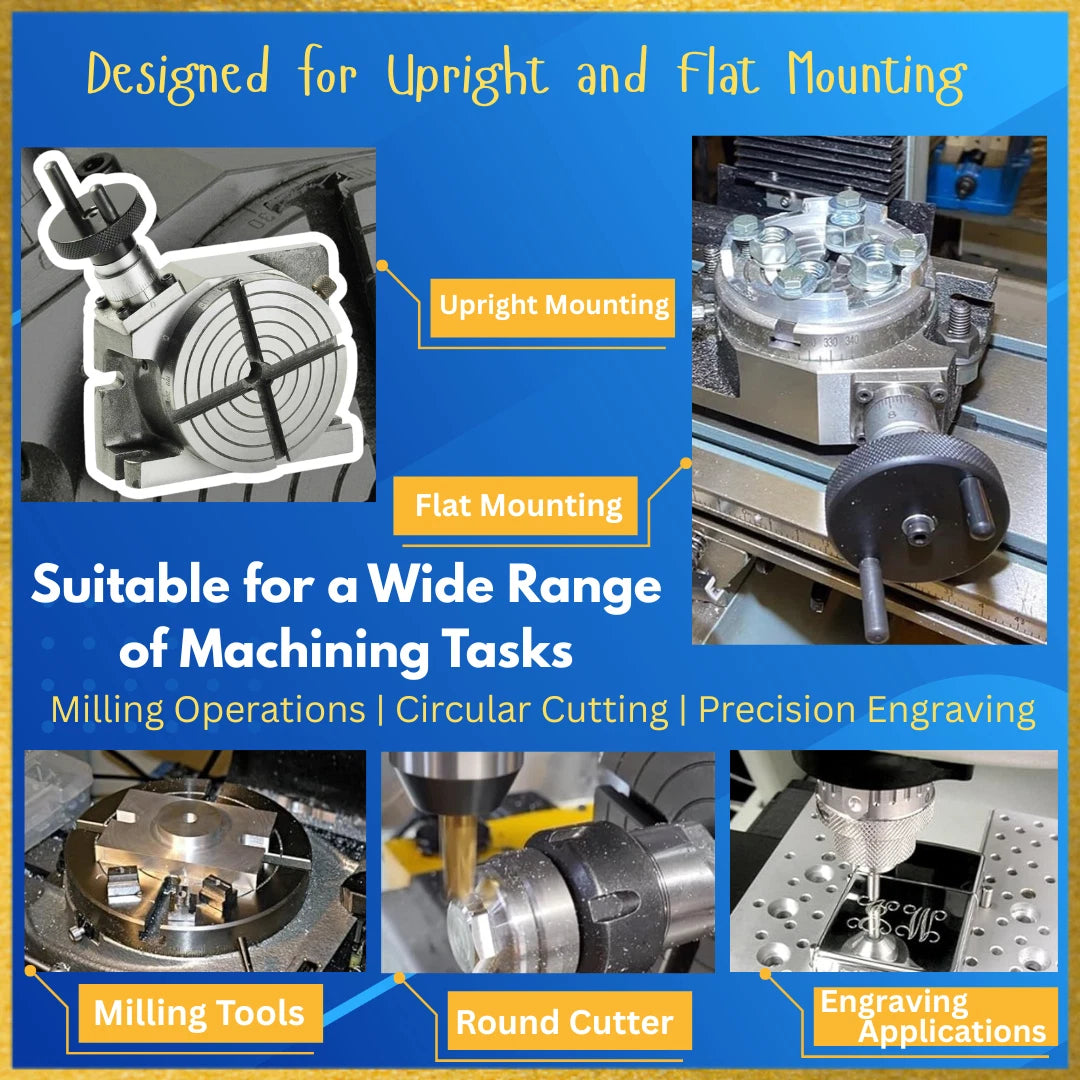

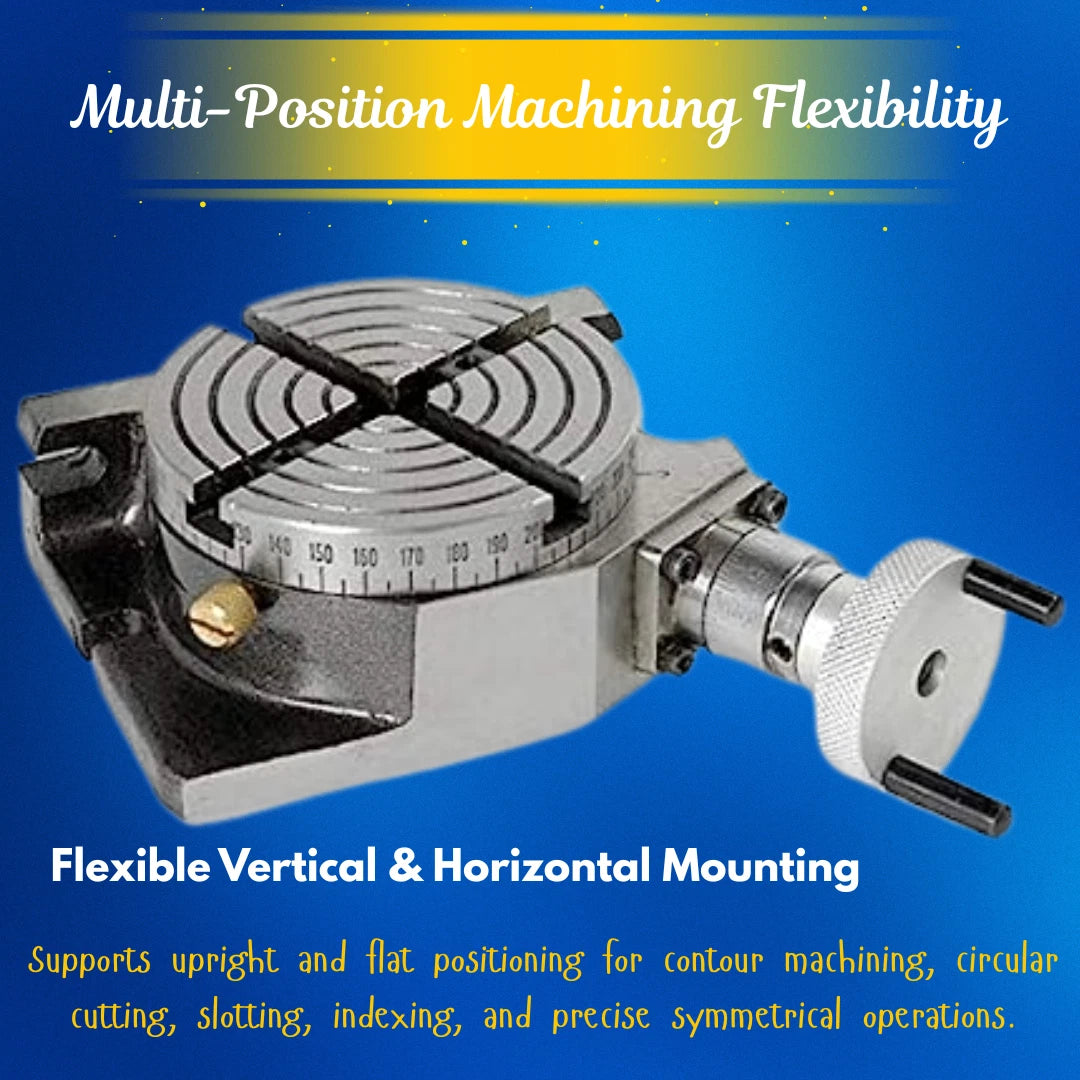

✅ Horizontal & Vertical Operation – Can be mounted in either position for maximum versatility.

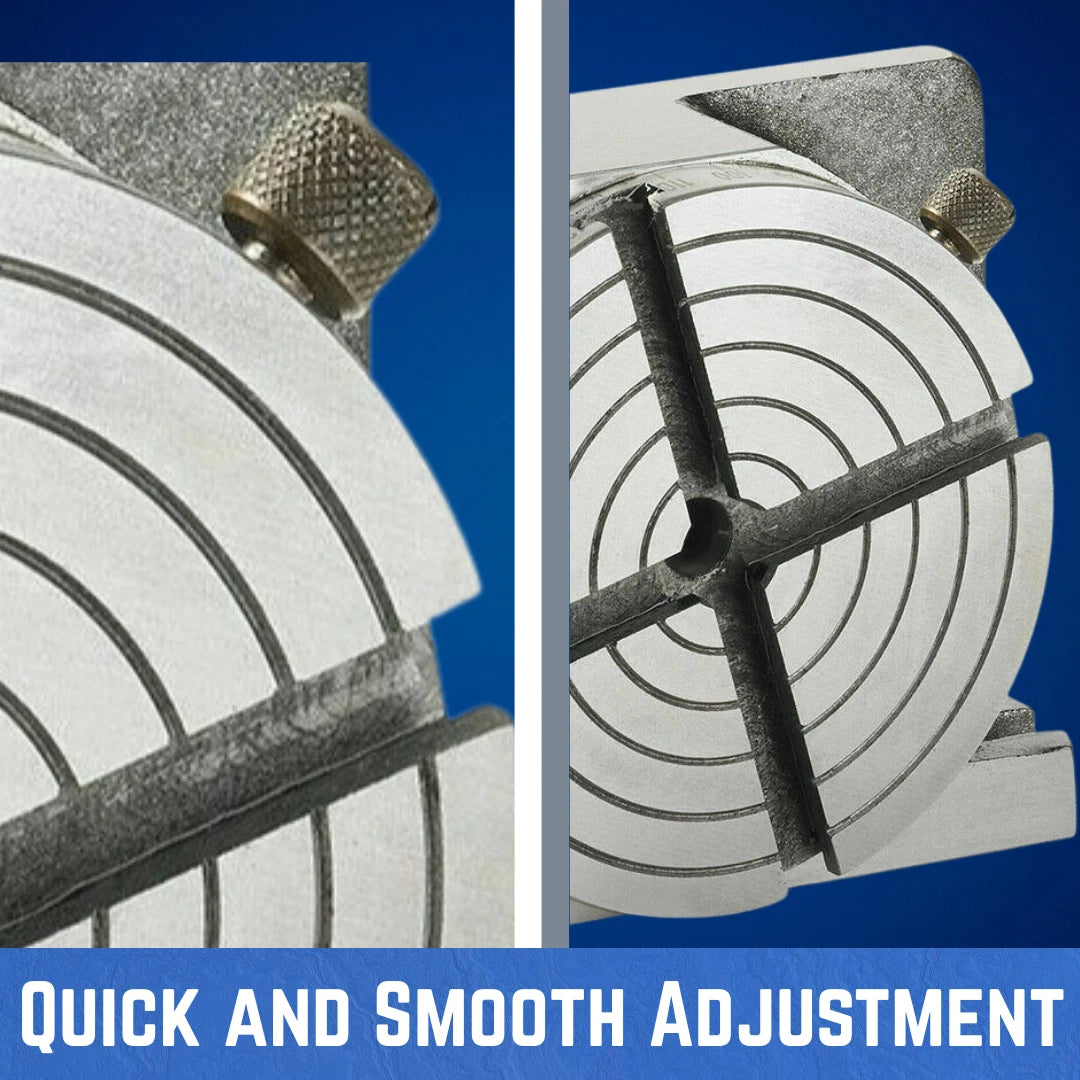

✅ 4 T-Slot Design – Securely holds workpieces, fixtures, and clamps.

✅ 36:1 Worm Gear Ratio – Smooth and precise rotary movement.

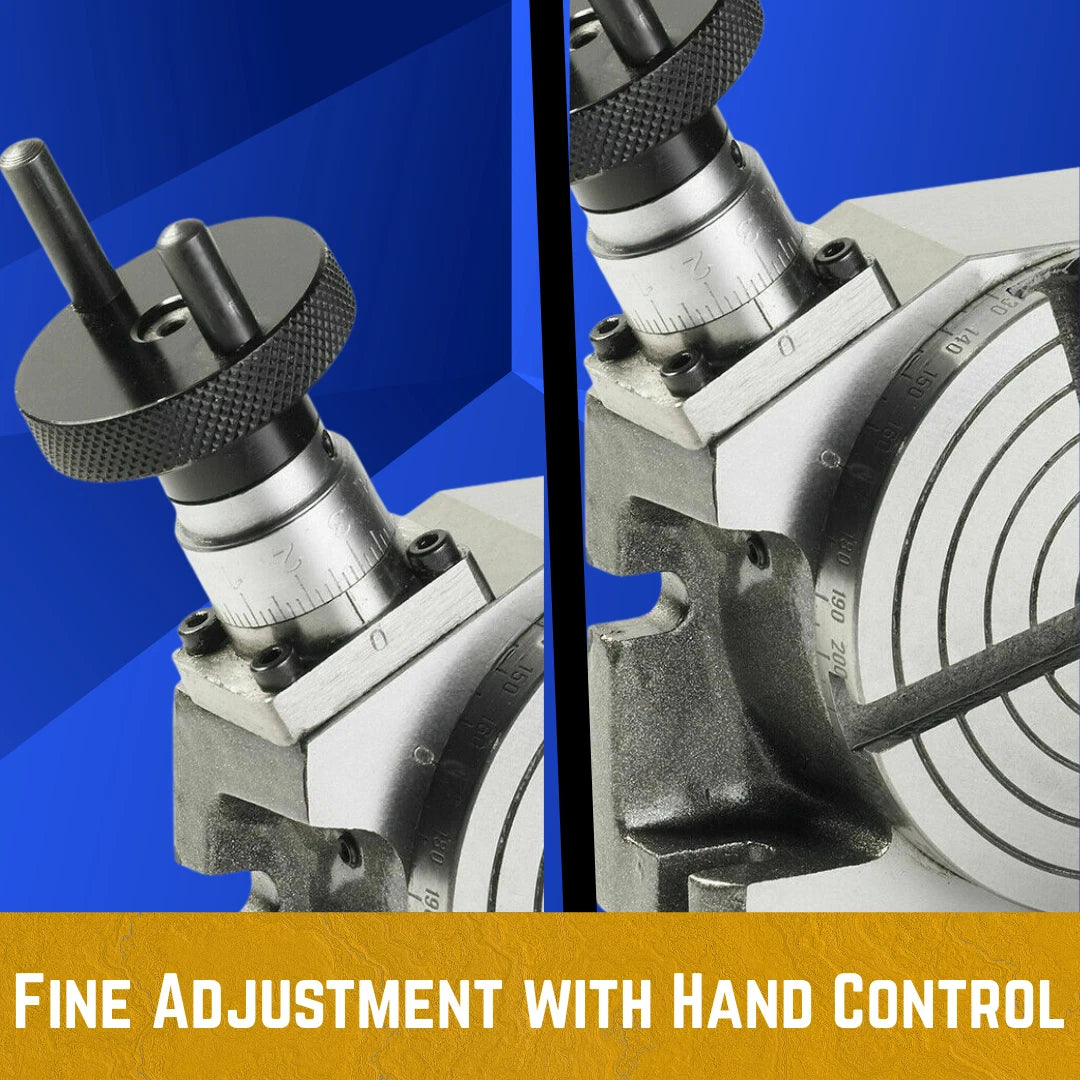

✅ Zero-Set Handwheel – Allows quick resetting for repeatable operations.

✅ 10-Minute Handwheel Graduations – Accurate angular positioning.

✅ 5-Minute Rim Calibration – Enhanced precision for detailed machining work.

✅ Robust Construction – Designed for workshop, tool room, and production use.

📏 Specifications

Product Type: Rotary Table
Table Diameter: 4" (100mm)
Number of Slots: 4 T-Slots
Center Height (Vertical): Approx. 51mm (2-1/16")
Gear Ratio: 36:1
Graduation: 10-Minute Divisions
Rim Calibration: 5-Minute Increments
Mounting Position: Horizontal & Vertical
Handwheel: Adjustable Zero Setting

🛠️ Applications

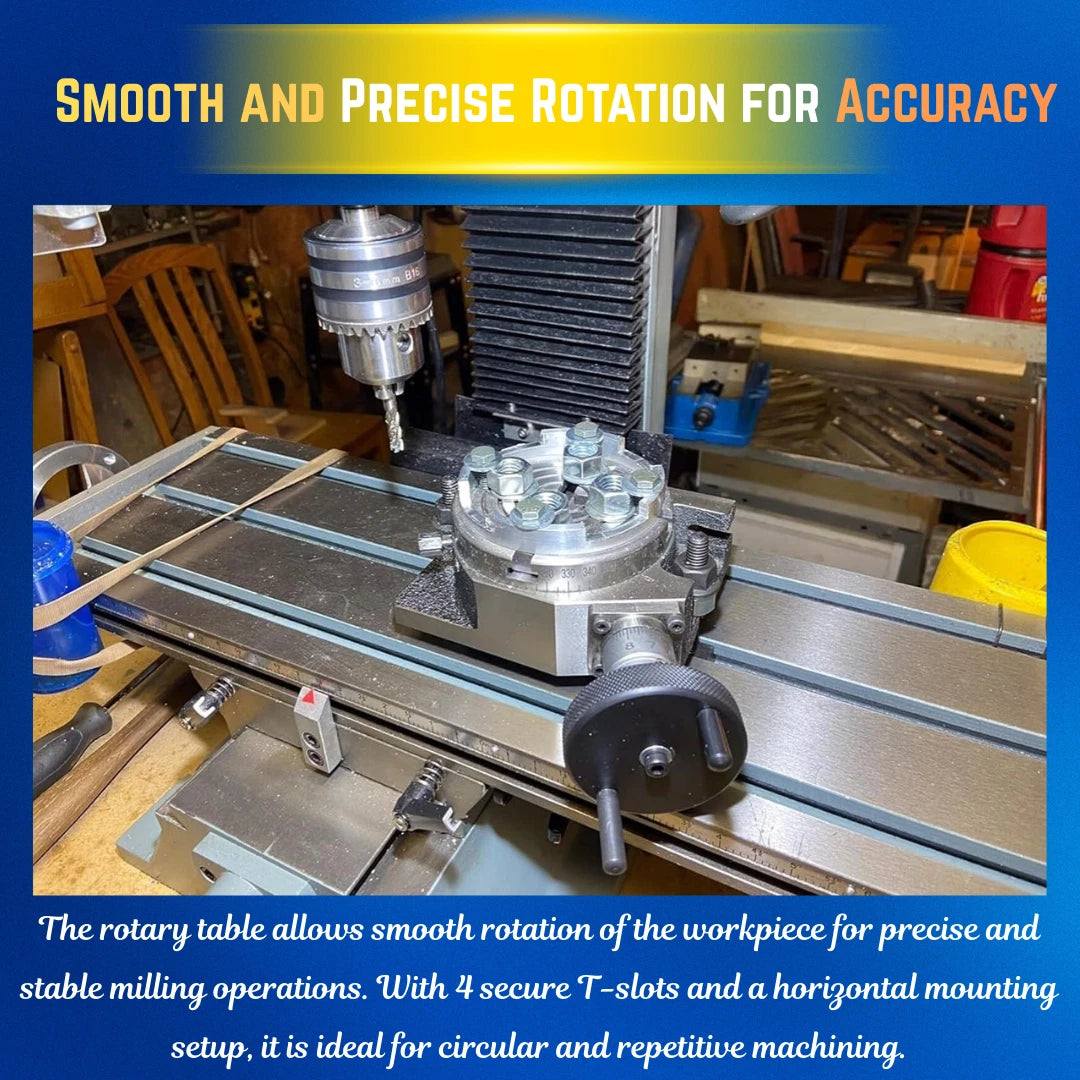

🔹 Milling Machine Operations

🔹 Circular Milling

🔹 Arc Cutting

🔹 Precision Indexing

🔹 Bolt Circle Drilling

🔹 Gear Cutting

🔹 Slotting Operations

🔹 Radius Machining

🔹 Tool Room Work

🔹 Engineering Workshops

🔹 Model Engineering

🔹 Precision Fabrication

📦 Package Contents

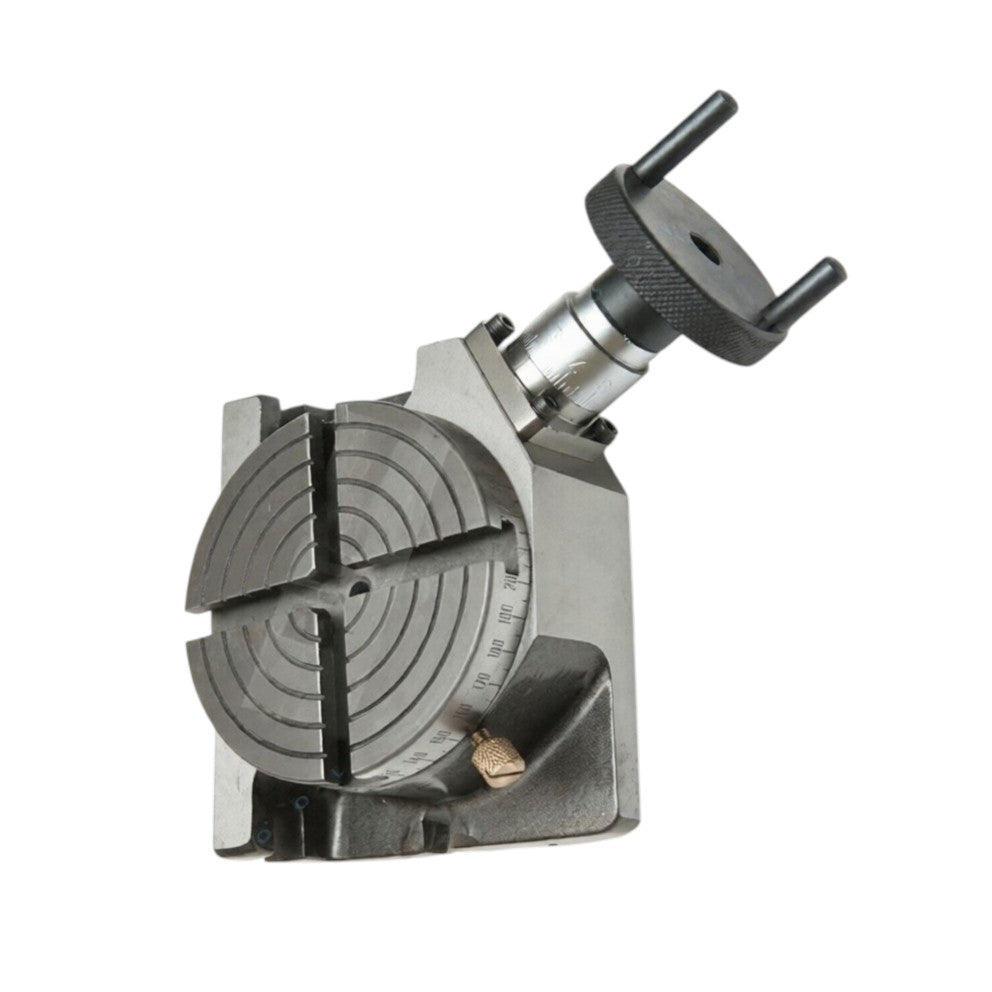

1 x 4" (100mm) Horizontal Vertical Rotary Table
