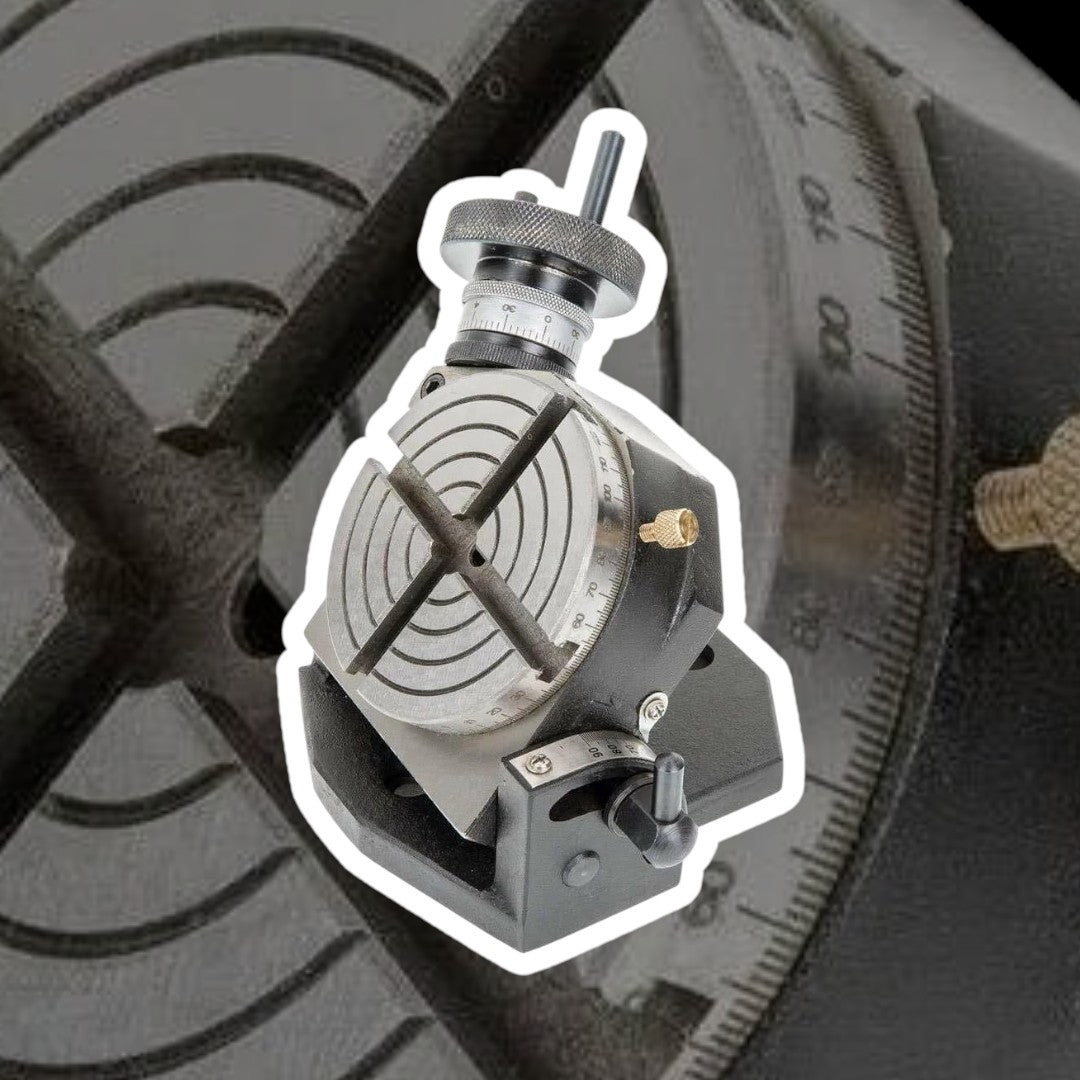

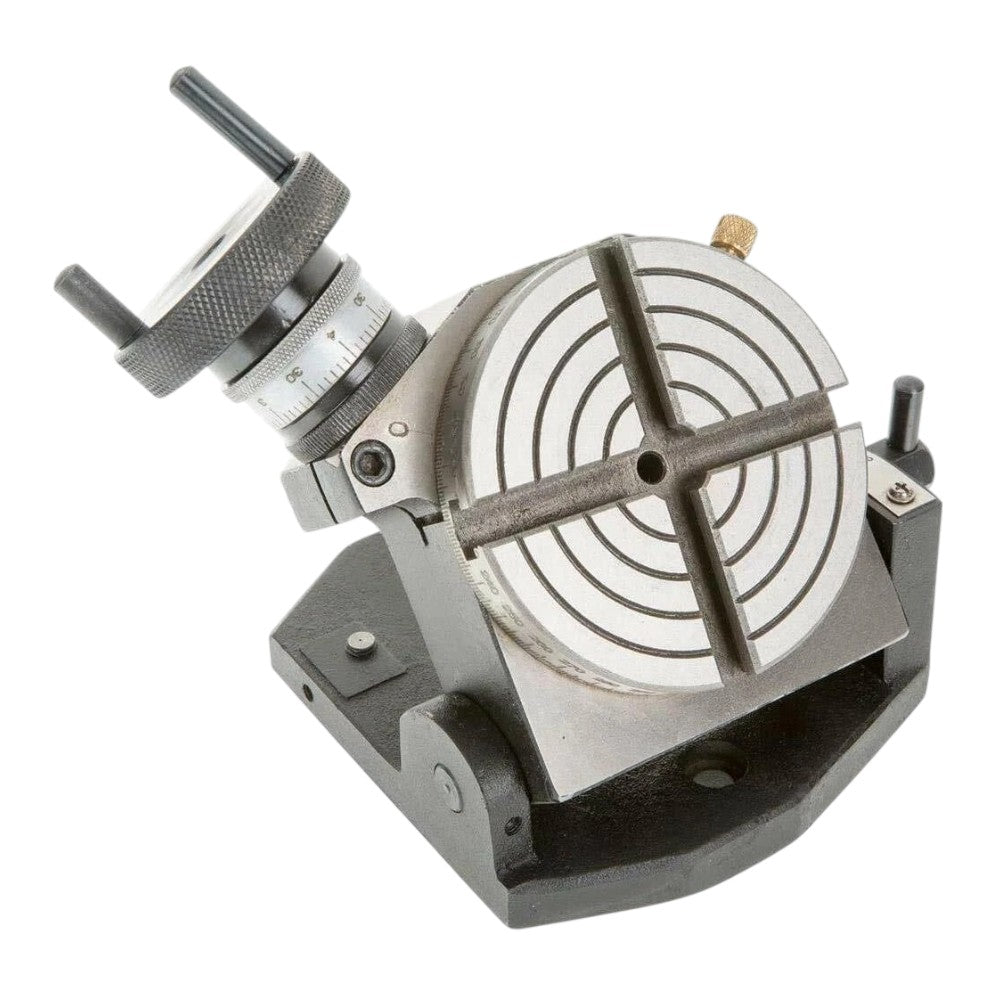

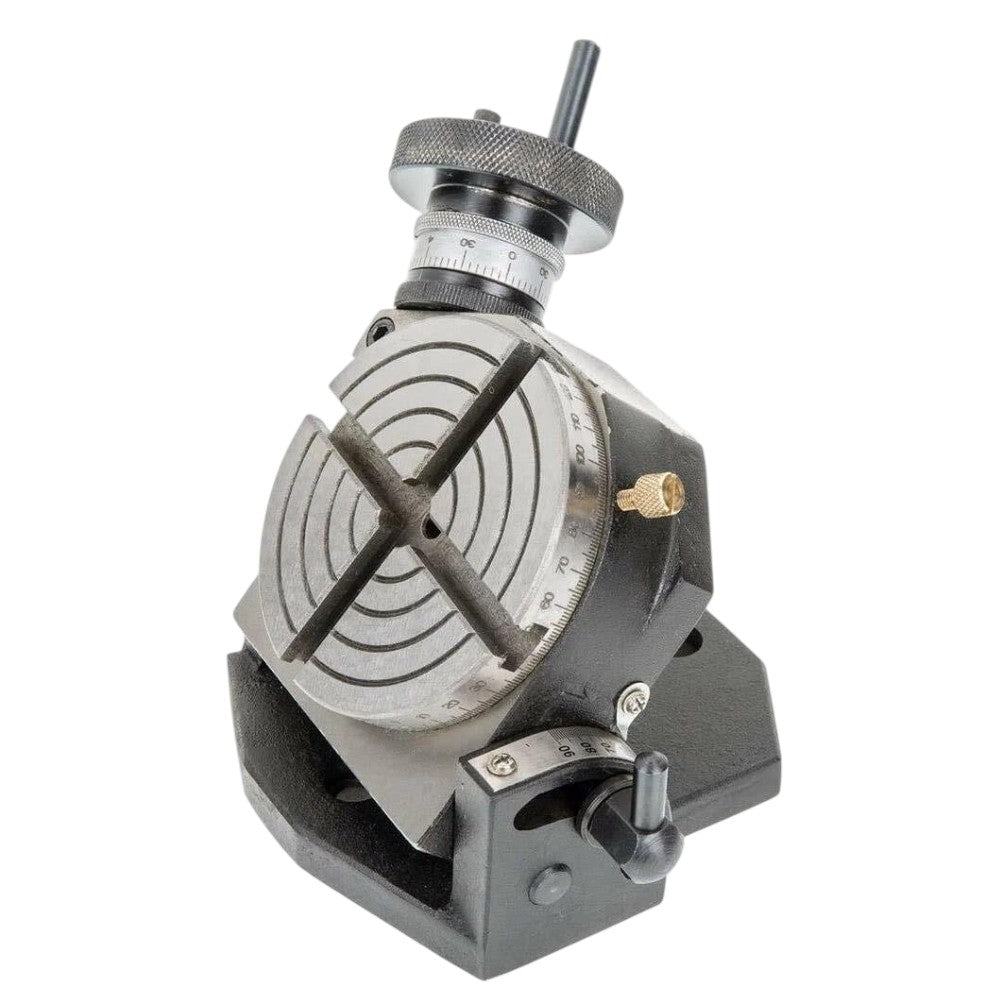

The 4 Inch (100mm) Tilting Rotary Table is a precision-engineered indexing and positioning accessory designed for milling machines, drill presses, CNC setups, and metalworking applications. Featuring a compact low-profile design and the ability to tilt up to 90°, this rotary table significantly expands machining capabilities by allowing angular cutting, indexing, drilling, slotting, and contour machining operations.

Manufactured for precision and durability, the table features four radial T-slots for secure workholding and accurate fixture mounting. The table is graduated from 0° to 360° in 5° increments, while the handwheel is calibrated in 5-minute divisions for precise angular positioning and repeatable machining operations.

Its low overall height of only 66mm in the flat position helps maximize machine working capacity, making it an excellent choice for both professional workshops and hobby machinists.

✨ Key Features

✅ Precision 4" (100mm) Tilting Rotary Table

✅ Tilts from 0° to 90° for Angular Machining Operations

✅ Low Profile Design Increases Available Working Height

✅ 4 Radial T-Slots for Secure Workholding

✅ Precision Graduated Table from 0°–360°

✅ Handwheel Graduated in 5-Minute Divisions

✅ Strong and Rigid Construction for Accurate Machining

✅ Ideal for Milling, Drilling, Slotting & Indexing Operations

📏 Specifications

Product Type: Tilting Rotary Table
Table Diameter: 4" (100mm)
Table Surface: 4 Radial T-Slots
T-Nut Size: 8mm
Overall Height (Flat Position): 66mm
Base Dimensions: 145mm x 126mm
Mounting Slots: 2 x 10mm Slots
Table Graduation: 0° – 360° in 5° Increments
Handwheel Graduation: 0 – 10 in 5-Minute Divisions

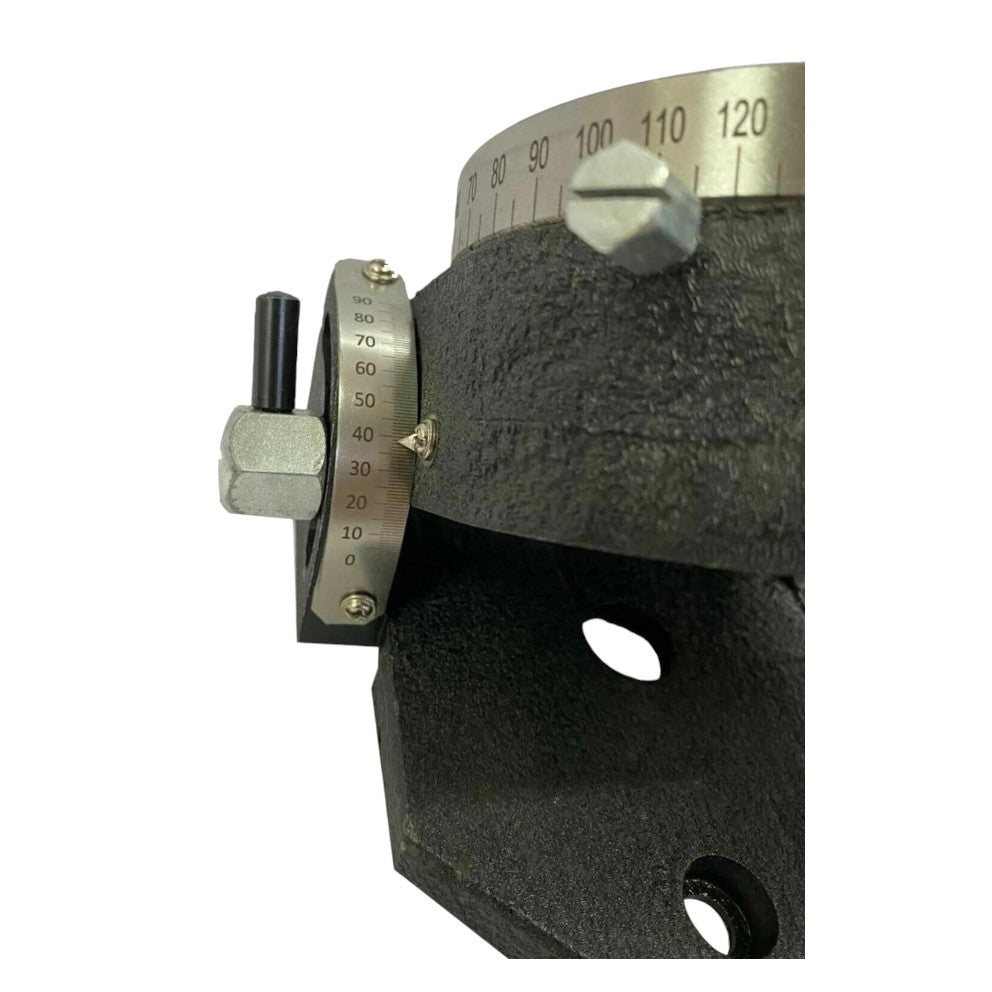

Tilting Range: 0° to 90°
Application: Milling, Indexing, Drilling & Machining

🛠️ Applications

🔹 Milling Machine Operations

🔹 Precision Indexing

🔹 Angular Machining

🔹 Circular Milling

🔹 Bolt Circle Drilling

🔹 Slotting Operations

🔹 Arc & Radius Cutting

🔹 Gear Cutting

🔹 Tool Room Applications

🔹 Model Engineering

🔹 Metal Fabrication

🔹 Precision Workshop Projects

📦 Package Contents

1 x 4" (100mm) Tilting Rotary Table
Ready for Workshop Installation
