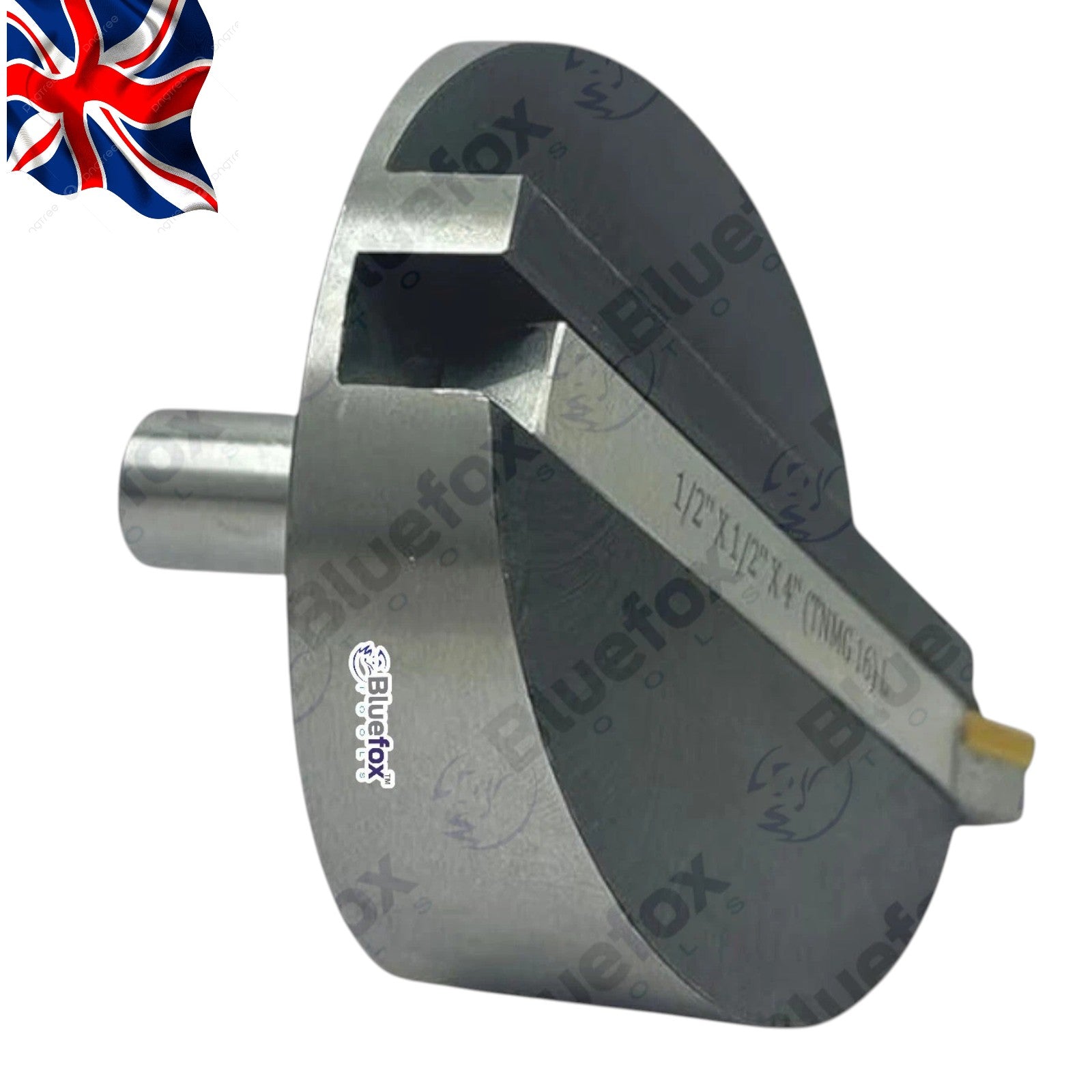

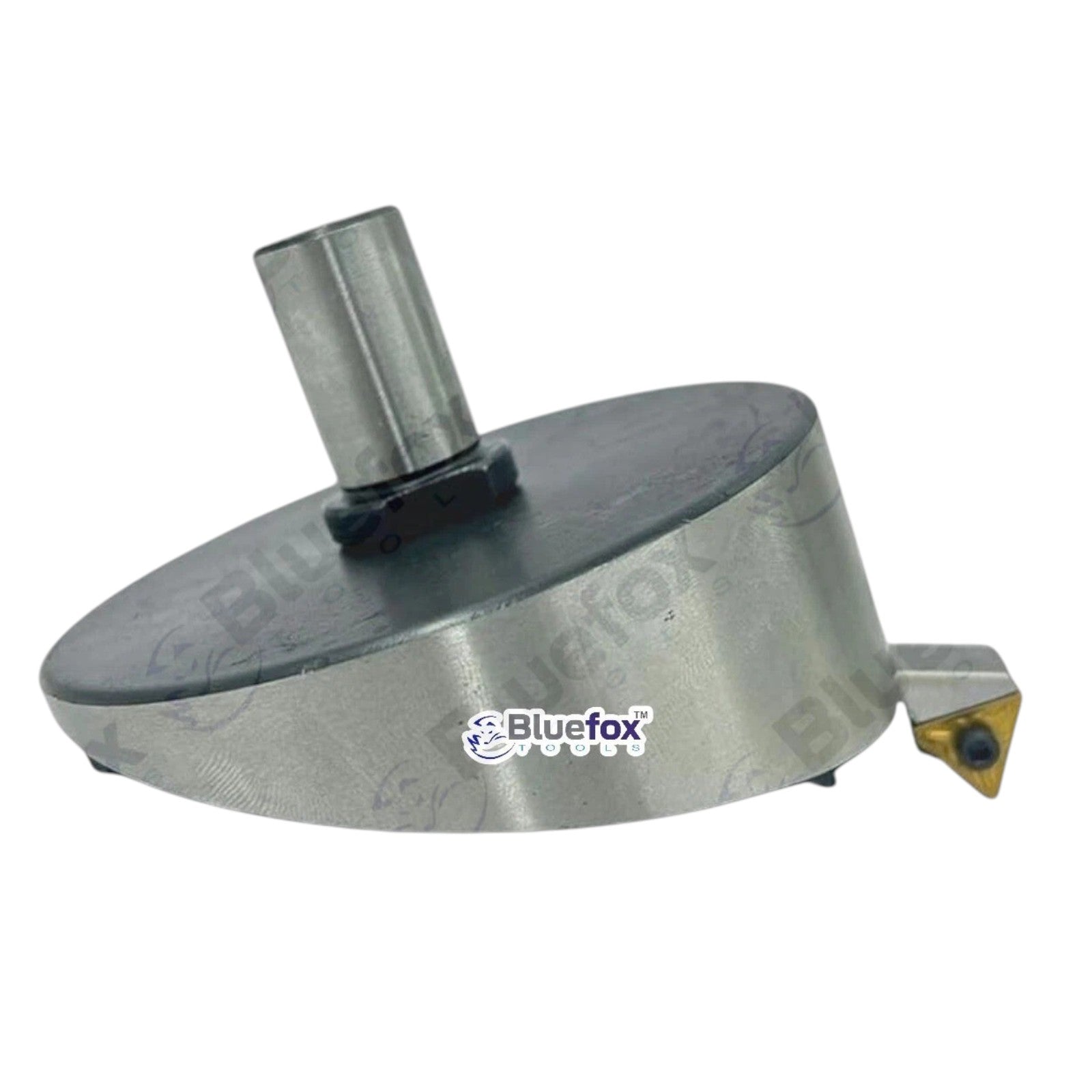

Heavy-Duty 4" Fly Cutter with Indexable Carbide Insert

The BLUEFOX 4" (100mm) Fly Cutter is a robust and versatile milling tool designed for facing, surfacing, and producing exceptionally flat finishes on a wide range of materials. Featuring a 100mm cutter head diameter and a 3/4" (19mm) straight shank arbor, this fly cutter is ideal for use on milling machines where large surface coverage and excellent finish quality are required.

Supplied complete with a 1/2" x 1/2" x 4" carbide-tipped tool fitted with a TNMG16 indexable insert, the cutter delivers excellent performance on steel, cast iron, aluminium, brass, and other machinable materials. The indexable insert design allows quick rotation or replacement of the cutting edge, reducing tooling costs and downtime.

Ideal for machining cylinder heads, machine components, tooling plates, fixture plates, and precision engineering work.

Key Features

Large 4" (100mm) fly cutter head
Heavy-duty 3/4" (19mm) straight shank arbor
Supplied with TNMG16 carbide indexable insert
Includes 1/2" x 1/2" x 4" carbide-tipped tool
Produces smooth and accurate surface finishes
Excellent for facing and surface milling
Covers large areas in a single pass
Suitable for steel, aluminium, brass, and cast iron
Cost-effective indexable insert system
Professional workshop and machine shop quality

Specifications

Specification	Details
Cutter Type	Fly Cutter
Head Diameter	4" (100mm)
Arbor Shank Diameter	3/4" (19mm)
Tool Bit Size	1/2" × 1/2" × 4"
Insert Type	TNMG16 Indexable Carbide
Cutting Edge	Single Point
Application	Facing & Surface Milling

Applications

Surface milling
Facing operations
Cylinder head machining
Fixture plate surfacing
Machine component finishing
Toolmaking
Precision engineering
Workshop machining
Aluminium machining
General milling operations

Benefits

Large Surface Coverage

The 100mm cutter diameter allows large areas to be machined quickly and efficiently.

Excellent Surface Finish

Produces smooth, flat finishes suitable for precision engineering applications.

Indexable Carbide Technology

TNMG16 inserts can be rotated to fresh cutting edges, extending tool life and reducing costs.

Versatile Material Capability

Suitable for aluminium, steel, brass, cast iron, and many other machinable materials.

Ideal for Milling Machines

Compatible with a wide range of vertical milling machines and milling setups.

Recommended Uses

Fly cutting aluminium plates
Surfacing cylinder heads
Machine bed finishing
Tooling plate preparation
Flatness correction work
General workshop milling

Package Includes

1 × 4" (100mm) Fly Cutter Body
1 × 3/4" Straight Shank Arbor
1 × 1/2" × 1/2" × 4" Carbide Tool Bit
1 × TNMG16 Indexable Carbide Insert
