4" Horizontal & Vertical Precision Rotary Table with 14pc Clamping Kit | Milling Machine Indexing Table | UK STOCK
- $95.25
- $95.25
- Unit price
- per
Tax included
Stock Availability
FBB221, 29 WYSOCKI PL, HACKENSACK, NJ 07601-6804 US
Phone: +1 646 224 0700
Phone: +1 646 224 0700
662/8-A, Gali No 1, First Floor,
Punjabi Basti, Anand Parbat
Phone: +91 8860055906
Punjabi Basti, Anand Parbat
Phone: +91 8860055906
Orange Connex Fulfilment Centre – UK04
Mill Road, Rugby, England
GB-CV21 1PR
Phone: +44 7747 770826
Mill Road, Rugby, England
GB-CV21 1PR
Phone: +44 7747 770826
Orange Connex Fulfillment Center – DE04
Bochumer Str. 119, Nordrhein-Westfalen
DE-44866 Bochum
Phone: +49 15563617045
Bochumer Str. 119, Nordrhein-Westfalen
DE-44866 Bochum
Phone: +49 15563617045
Orange Connex Fulfilment Centre – AU03
Warehouse L, Building 5, 161 Manchester Rd
Auburn, New South Wales
AU-2144
Phone: +61 416 989 802
Warehouse L, Building 5, 161 Manchester Rd
Auburn, New South Wales
AU-2144
Phone: +61 416 989 802
AVAILABLE IN INDIA •
AVAILABLE IN USA •
AVAILABLE IN UNITED KINGDOM •
AVAILABLE IN GERMANY •
AVAILABLE IN AUSTRALIA
Secured Payment
Description

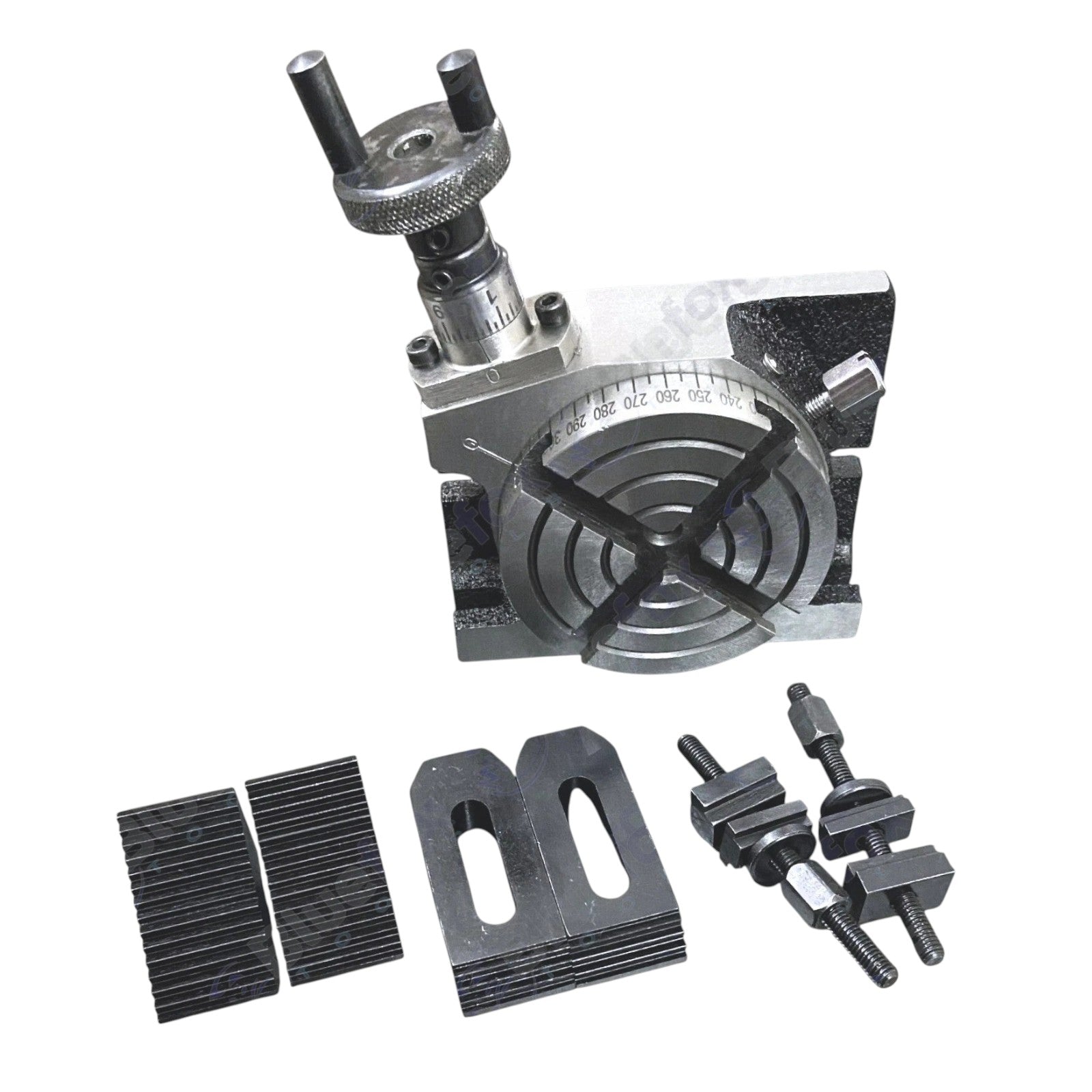

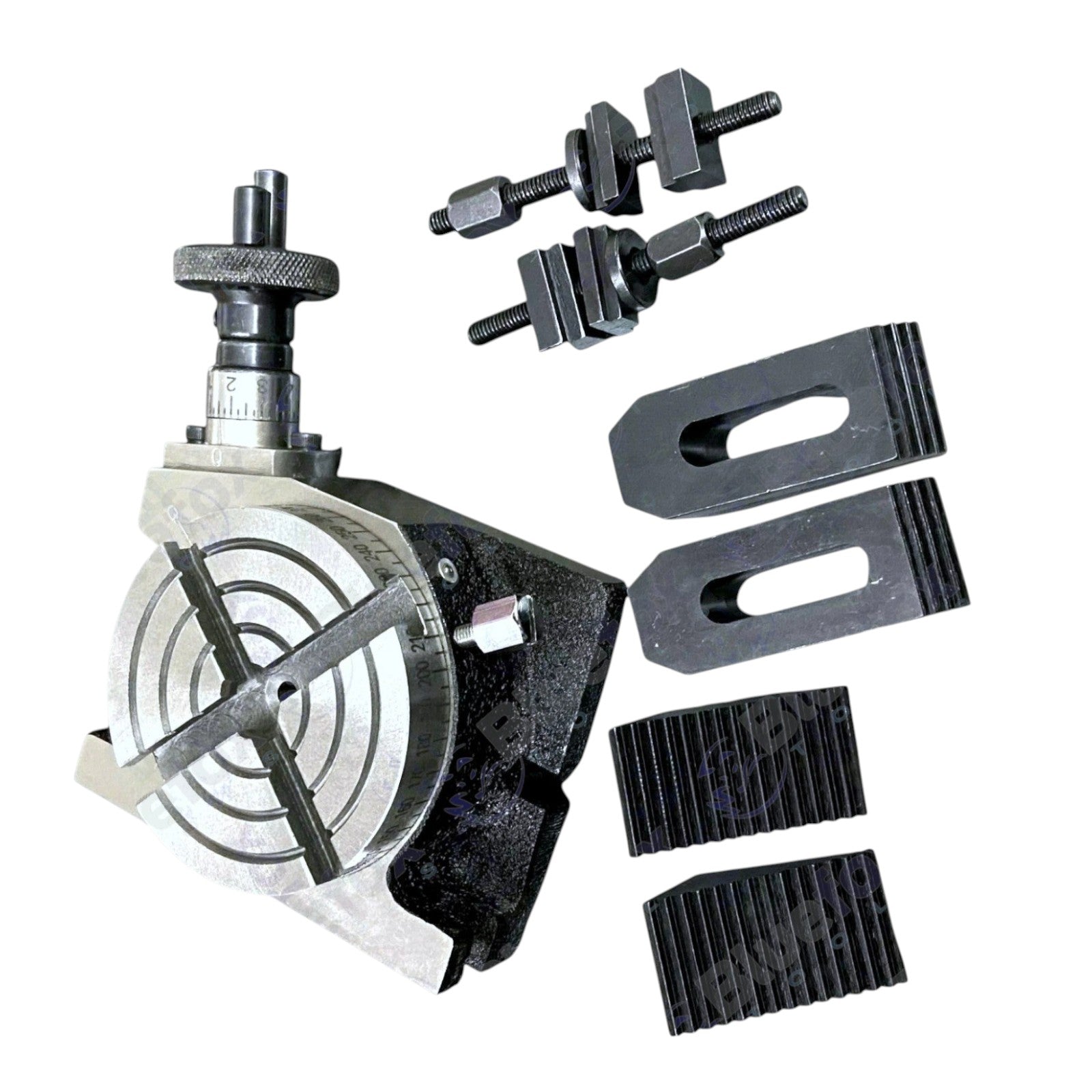

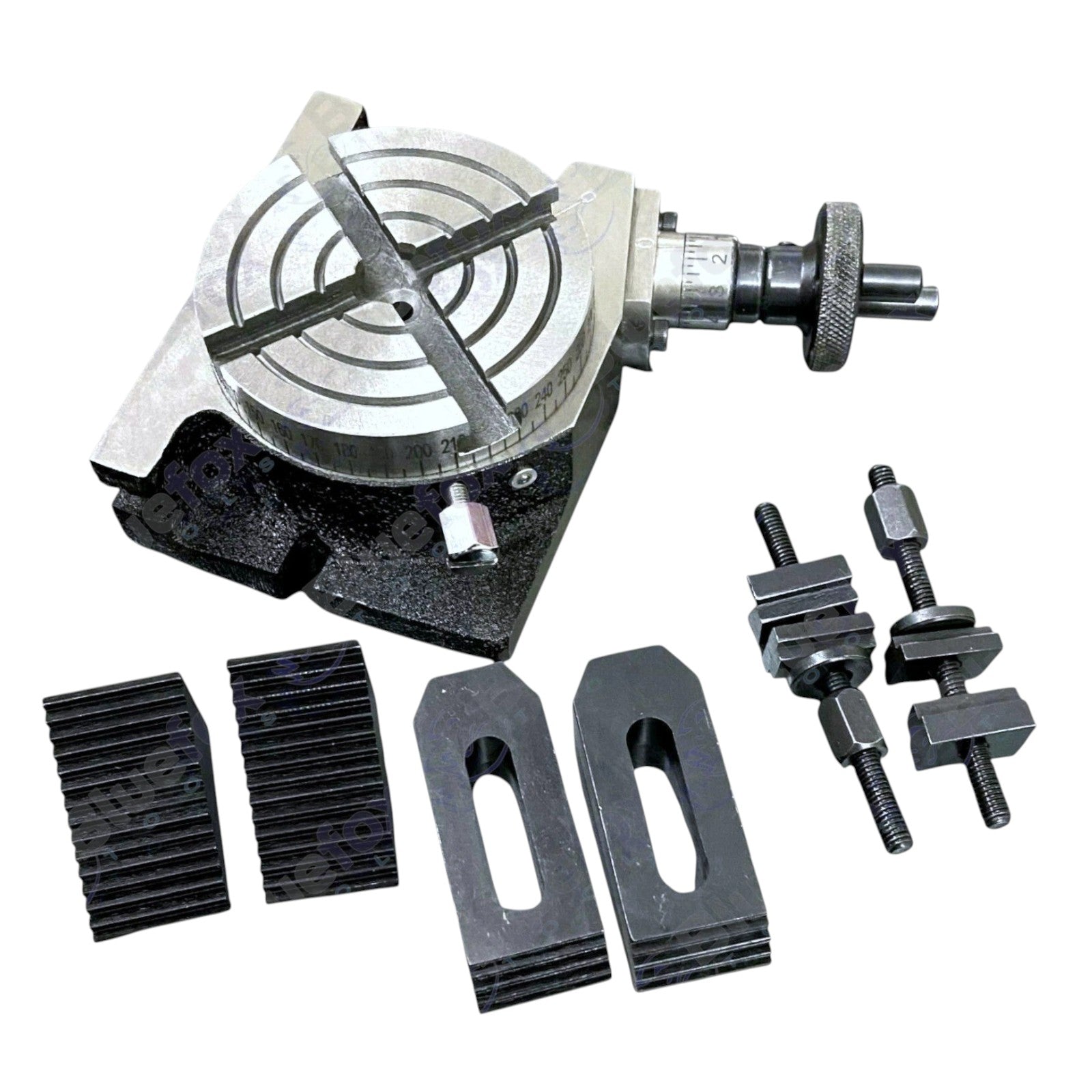

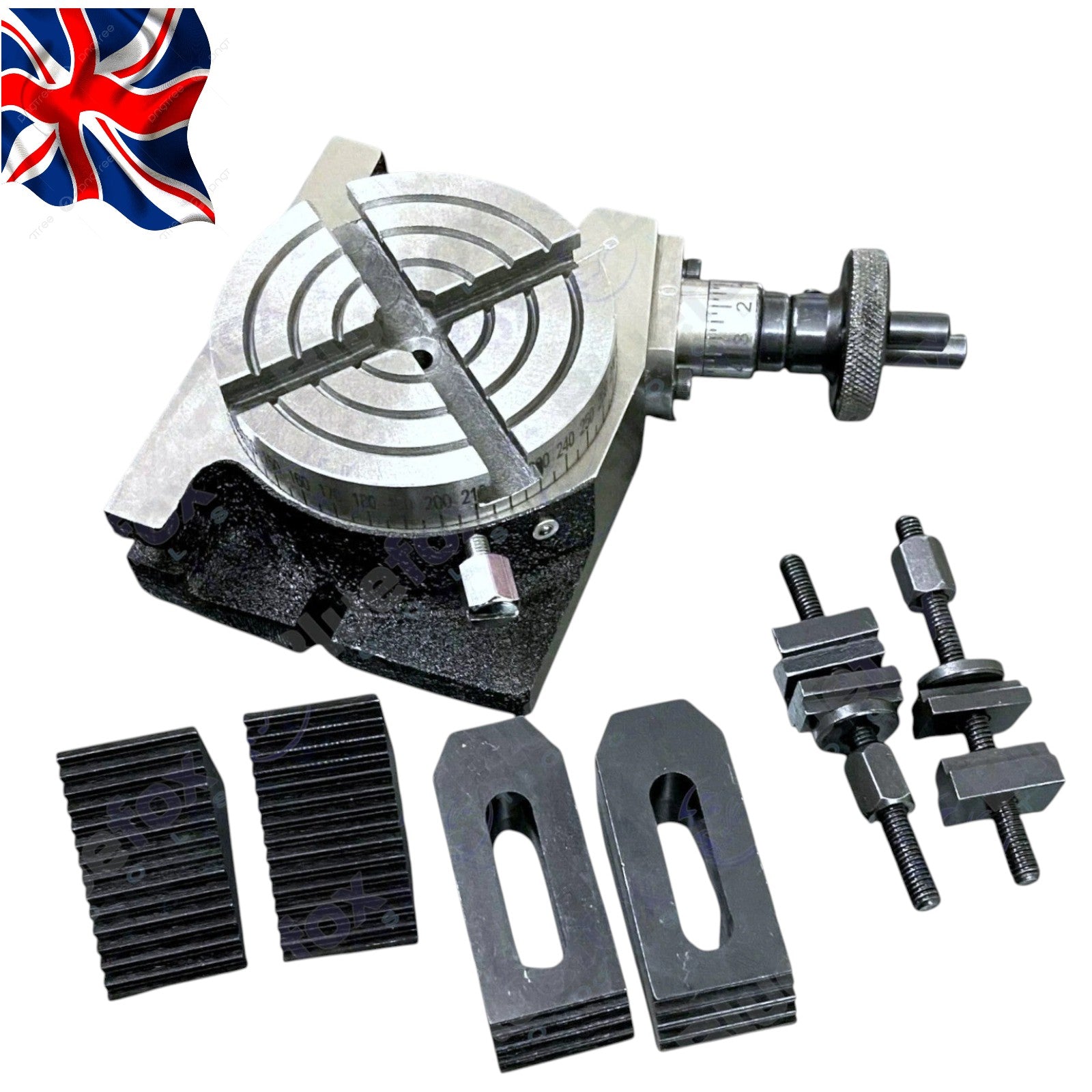

xPrecision 4" Horizontal & Vertical Rotary Table with Clamping Kit
The BLUEFOX 4" Precision Rotary Table is a versatile indexing table designed for accurate milling, drilling, machining, and inspection applications. Engineered for both horizontal and vertical mounting, this rotary table provides smooth, precise rotation for circular machining, indexing, slotting, and angular cutting operations.
The table is graduated through 360° and driven by a precision worm gear with a 36:1 reduction ratio, allowing accurate positioning and fine adjustment. Each full revolution of the handwheel rotates the table by 10 degrees, while the 10-second vernier scale enables precise angular settings for demanding machining work.
Supplied complete with a 14-piece clamping kit, this rotary table is ready for immediate installation on milling machines, drill presses, and other workshop equipment.
Key Features
- 4" (100mm) precision rotary table
- Horizontal and vertical mounting capability
- 360° graduated table
- Precision 36:1 worm gear reduction
- One handwheel revolution equals 10° table movement
- 10-second vernier scale for fine adjustment
- Dual positive-action locking system
- Satin chrome graduated dials
- Low-profile design
- Includes 14-piece clamping kit
Specifications
| Specification | Details |
|---|---|
| Product Type | Horizontal & Vertical Rotary Table |
| Table Diameter | 4" (100mm) |
| Mounting Positions | Horizontal & Vertical |
| Table Graduation | 360° |
| Gear Ratio | 36:1 |
| Handwheel Movement | 10° per Revolution |
| Vernier Reading | 10 Seconds |
| Dial Finish | Satin Chrome |
| Locking System | Dual Positive Action Locks |
Applications
- Precision milling
- Circular machining
- Drilling bolt circles
- Indexing operations
- Slot machining
- Angle cutting
- Toolroom work
- Engineering workshops
- CNC support operations
- General metalworking
Benefits
Accurate Indexing
The precision worm gear and 10-second vernier provide highly accurate positioning for complex machining operations.
Horizontal & Vertical Operation
Can be mounted in either position to suit a wide variety of machining applications.
Secure Workholding
The included 14-piece clamping kit allows quick and reliable workpiece setup.
Smooth Operation
Precision gearing provides consistent and backlash-controlled table movement.
Professional Workshop Quality
Built for durability and repeatable accuracy in demanding engineering environments.
Suitable For
- Milling Machines
- Drill Presses
- Toolrooms
- Engineering Workshops
- Machine Shops
- Model Engineering
- Metal Fabrication
- Precision Machining
Package Includes
- 1 × 4" Horizontal & Vertical Precision Rotary Table
- 1 × 14-Piece Clamping Kit
Technical Specifications
