4" Horizontal & Vertical Rotary Table with 100mm 4 Jaw Self Centering Chuck

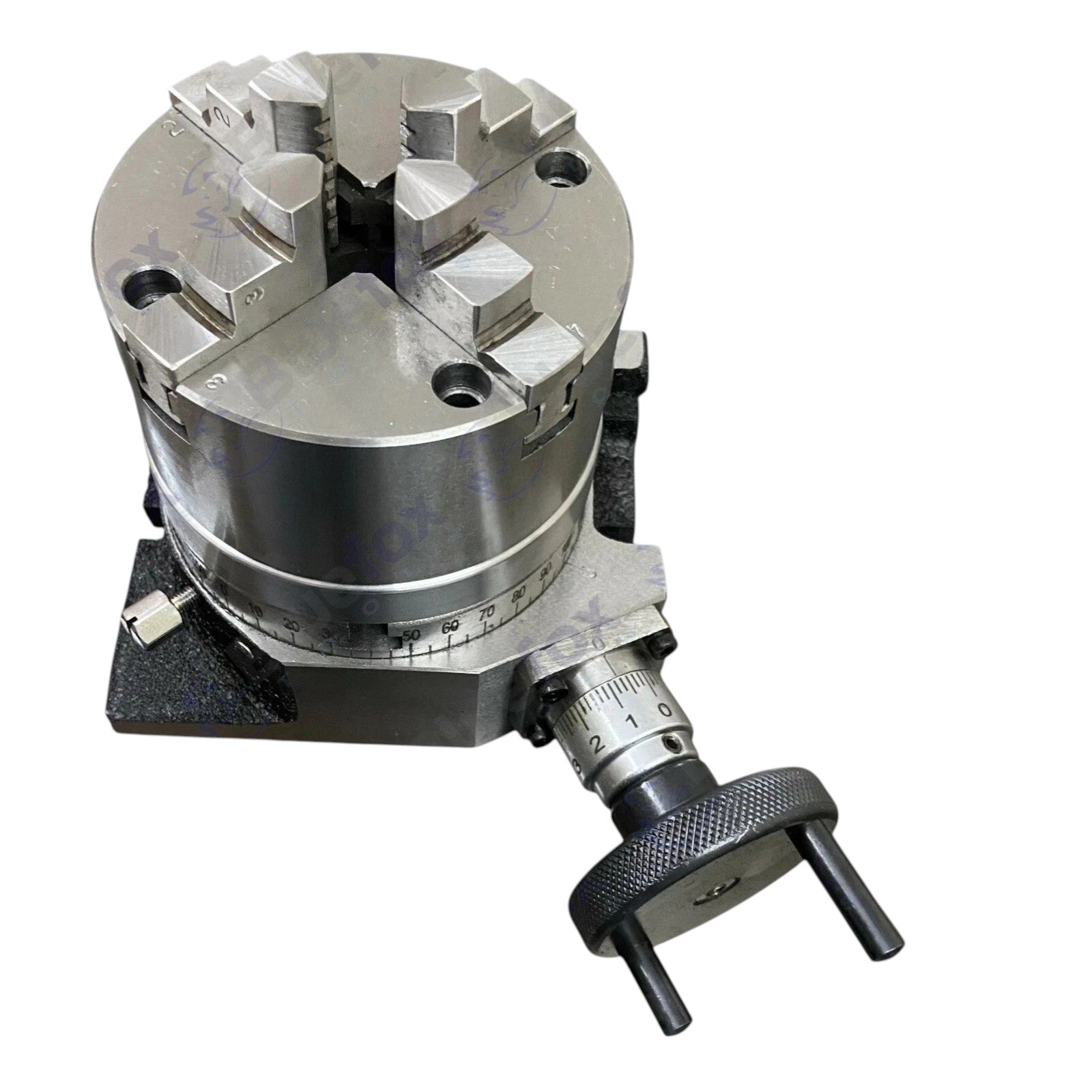

The Bluefox Tools 4" (100mm) Horizontal & Vertical Rotary Table with 100mm 4 Jaw Self Centering Chuck is a precision workholding solution designed for milling, drilling, indexing, circular machining, and angular operations. Manufactured from high-quality seasoned cast iron, this rotary table offers excellent rigidity, smooth rotation, and accurate positioning for professional machining applications.

The rotary table features 4 precision T-slots, allowing versatile workpiece clamping and fixture mounting. It can be mounted in both horizontal and vertical positions, making it suitable for a wide range of milling and machining tasks.

Included is a premium 100mm 4 Jaw Self Centering Chuck manufactured with an SG Iron body and hardened, precision-ground tool steel jaws. The chuck includes an additional set of reversible jaws for increased workholding flexibility.

The supplied precision-machined backplate is designed to fit both 3-slot and 4-slot rotary tables, with a perfectly machined locating recess to eliminate play and ensure accurate chuck alignment. Fixing T-nuts and mounting screws are also included for easy installation.

Ideal for milling machines, tool rooms, engineering workshops, fabrication shops, and precision machining applications.

Features

• Precision 4" (100mm) Horizontal & Vertical Rotary Table
• Heavy-duty seasoned cast iron construction
• Can be mounted horizontally or vertically
• Precision 4-slot table
• Handwheel adjustable to zero
• Handwheel graduated in 10-minute divisions
• Table rim graduated in 5-minute increments
• 36:1 worm gear ratio
• Includes 100mm 4 Jaw Self Centering Chuck
• SG Iron chuck body with hardened tool steel jaws
• Extra reversible jaw set included
• Precision-machined backplate eliminates chuck play
• Fits both 3-slot and 4-slot rotary tables
• Mounting T-nuts and screws included

Specifications

Rotary Table

• Brand: Bluefox Tools
• Table Diameter: 100mm (4")
• Configuration: Horizontal / Vertical
• T-Slots: 4
• Centre Height (Vertical): Approx. 51mm (2-1/16")
• Gear Ratio: 36:1
• Handwheel Graduation: 10 Minutes
• Table Rim Graduation: 5 Minutes
• Construction: Seasoned Cast Iron

4 Jaw Self Centering Chuck

• Diameter: 100mm (4")
• Body Material: SG Iron
• Jaw Material: Hardened & Ground Tool Steel
• Jaw Type: Self Centering
• Additional Jaws: Reversible Jaw Set Included

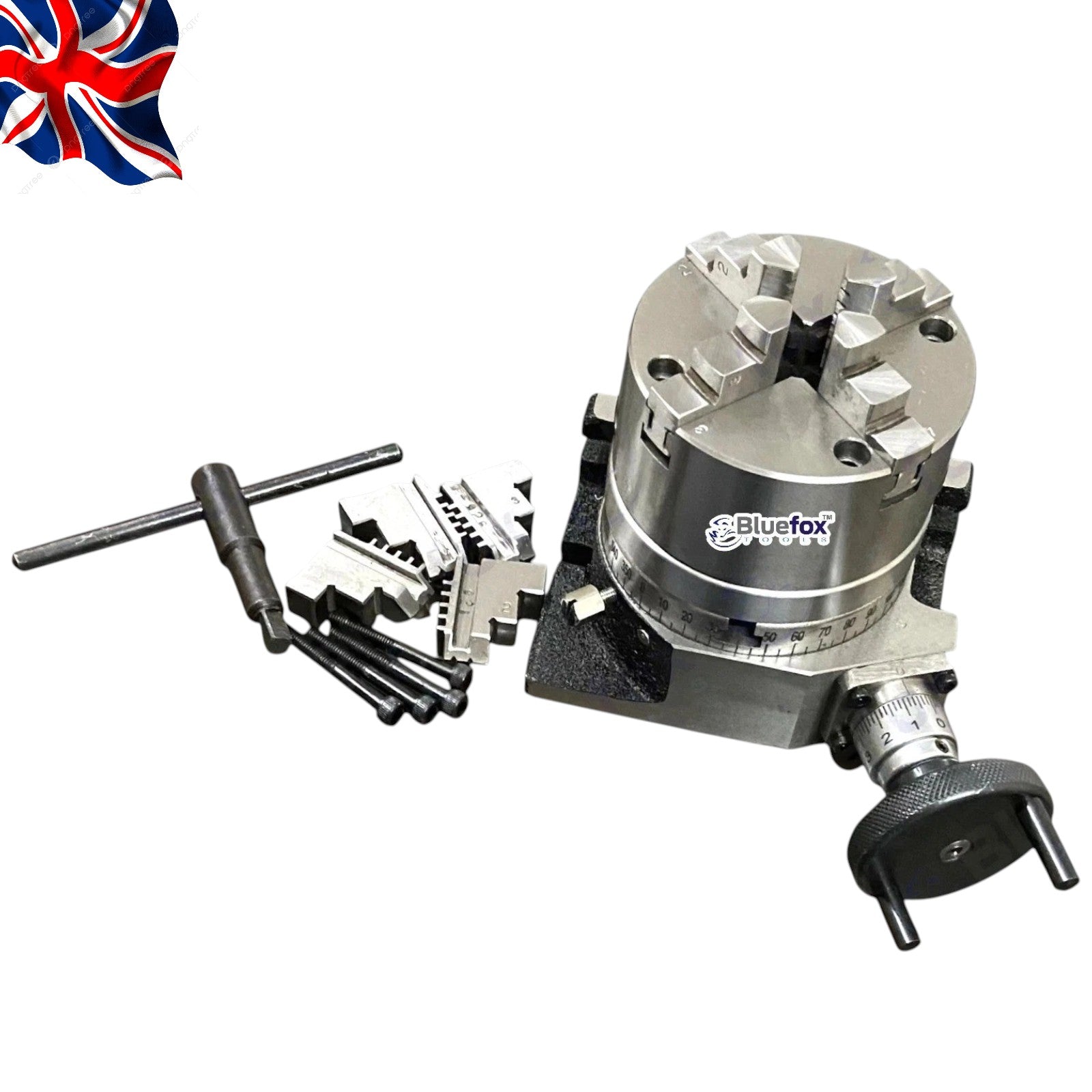

Package Includes

• 1 × 4" Horizontal & Vertical Rotary Table
• 1 × 100mm 4 Jaw Self Centering Chuck
• 1 × Precision Backplate
• 1 × Extra Set of Reversible Jaws
• Mounting T-Nuts
• Fixing Screws

Applications

• Milling operations
• Circular machining
• Indexing
• Drilling
• Arc cutting
• Gear cutting
• Slot machining
• Precision machining
• Tool room work
• Engineering workshops
