The 5 Piece Lathe Alignment Test Bar Set is a comprehensive precision inspection and calibration kit designed for accurately checking spindle alignment, tailstock alignment, and machine accuracy across a wide range of lathes. Manufactured from premium EN31 alloy steel, these hardened and precision-ground test mandrels provide exceptional dimensional stability and accuracy for professional engineering applications.

The set includes 1MT, 2MT, 3MT, 4MT, and 5MT Morse Taper Test Bars, making it suitable for virtually all common lathe spindle and tailstock configurations. These precision alignment bars are ideal for correcting taper turning errors, verifying machine geometry, and conducting between-centers alignment inspections.

Each test bar is manufactured to maintain a maximum run-out of only 0.0002", ensuring reliable and repeatable alignment results in machine shops, tool rooms, maintenance departments, manufacturing facilities, and precision engineering workshops.

Whether used for routine machine maintenance or high-accuracy calibration work, this complete Morse taper alignment set is an essential addition to any professional machining environment.

✨ Key Features

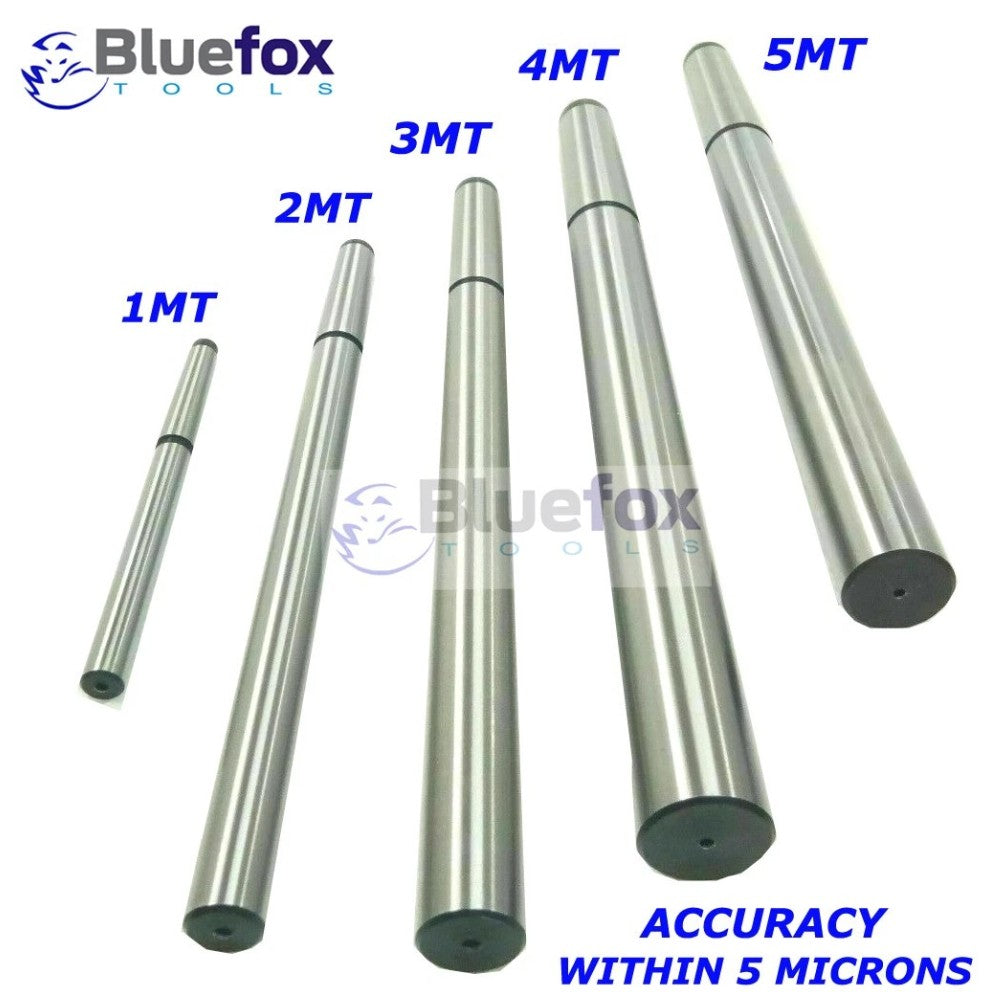

✅ Complete 5 Piece Morse Taper Alignment Test Bar Set

✅ Includes 1MT, 2MT, 3MT, 4MT & 5MT Sizes

✅ Manufactured from Premium EN31 Alloy Steel

✅ Hardened & Precision Ground Construction

✅ Maximum Run-Out: 0.0002"

✅ Ideal for Tailstock Realignment

✅ Suitable for Spindle Alignment Testing

✅ Used Between Centers or in Morse Taper Spindles

✅ Helps Eliminate Taper Turning Errors

✅ Professional Machine Calibration & Inspection Tool

📏 Specifications

Morse Taper Size	Overall Length	Maximum Run-Out
1MT	151 mm (5-15/16")	0.0002"

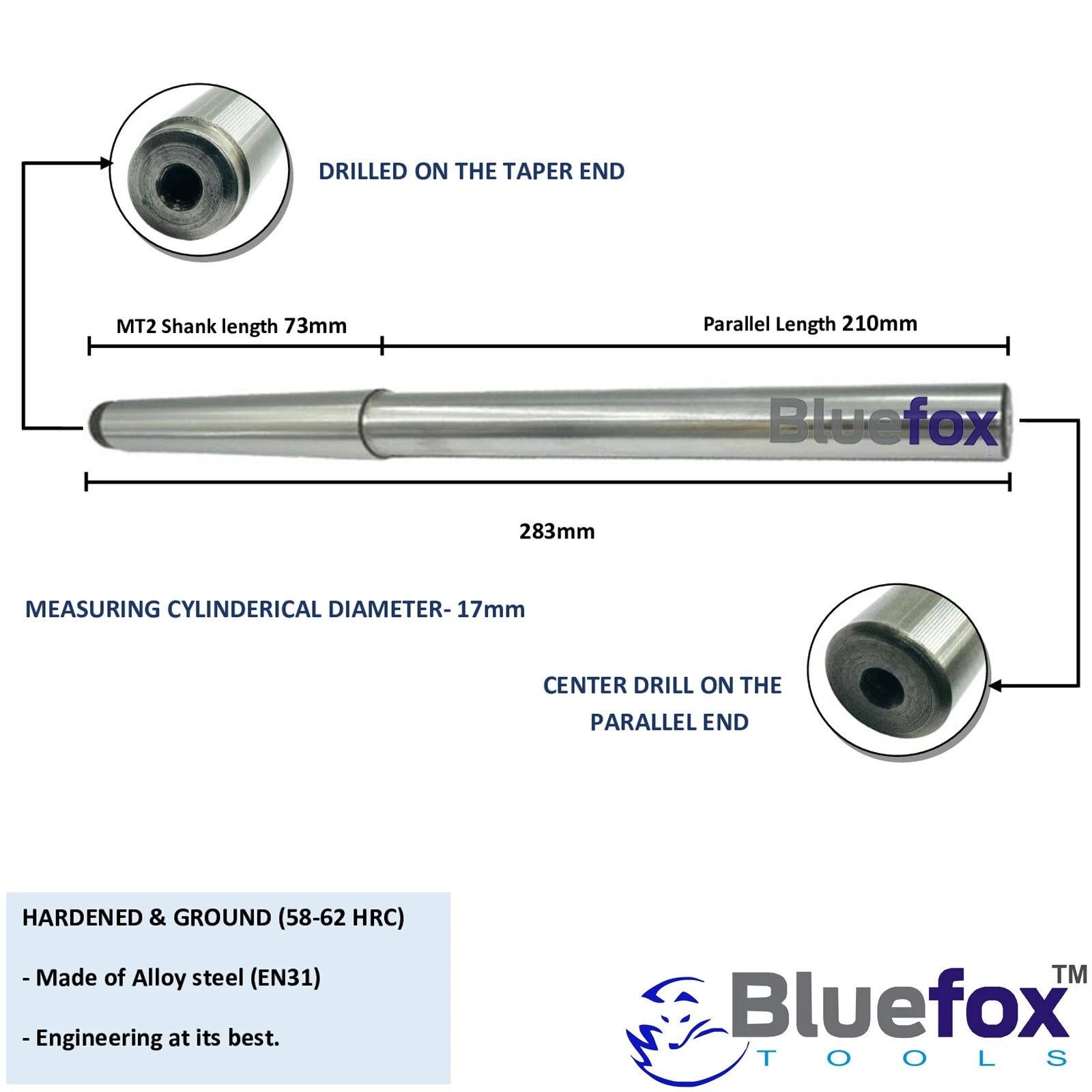

2MT	283 mm (11-1/8")	0.0002"

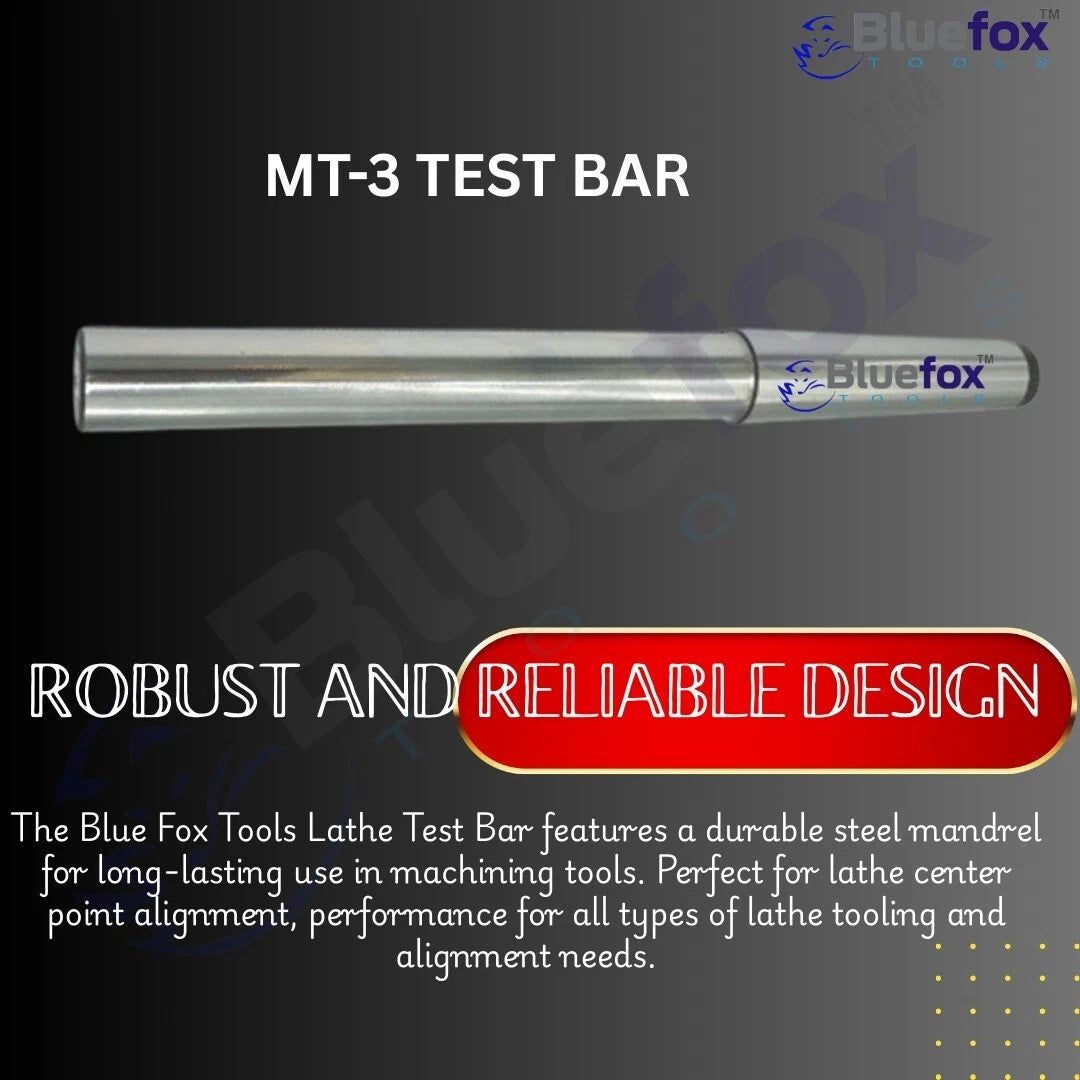

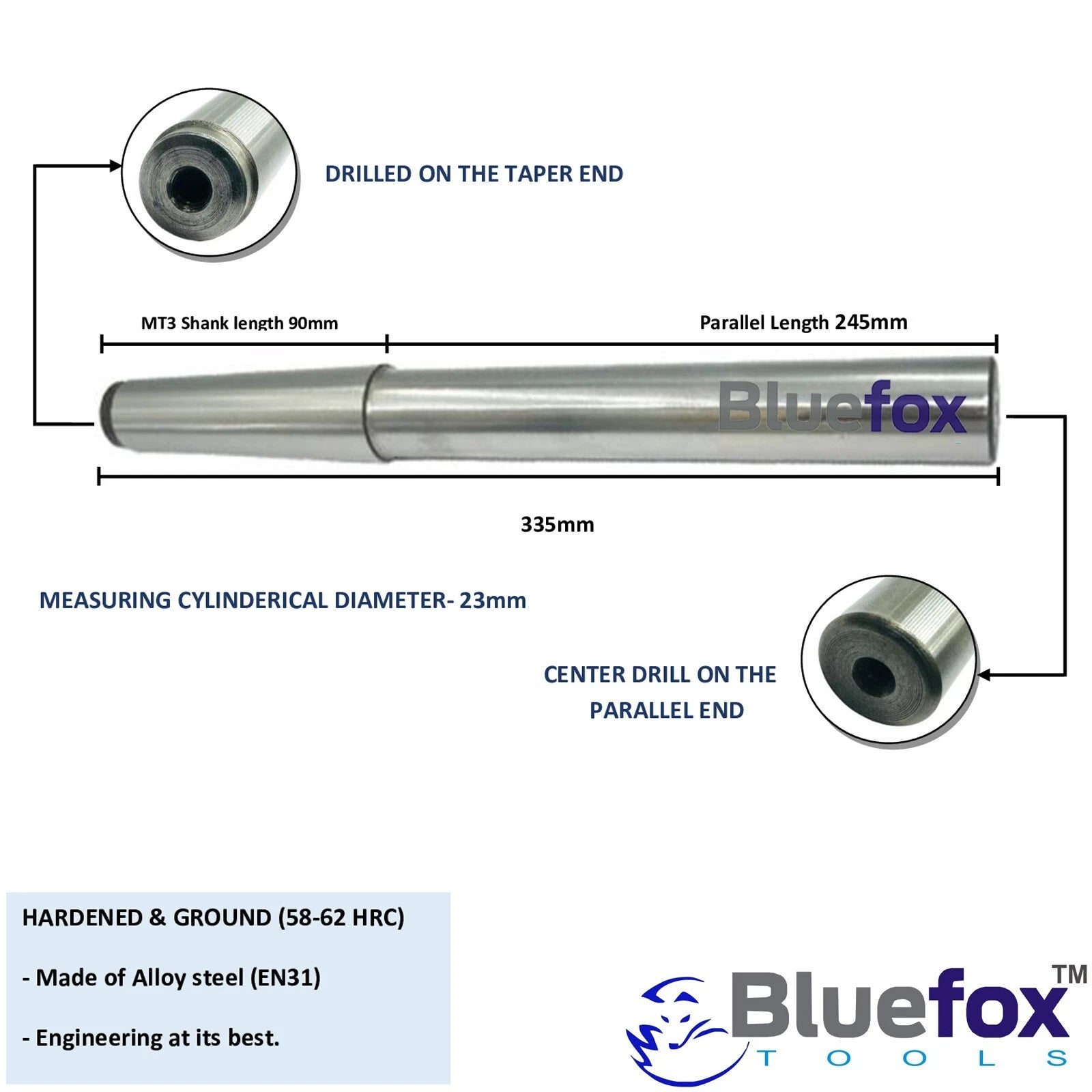

3MT	335 mm (13-3/16")	0.0002"
4MT	386 mm (15-1/4")	0.0002"
5MT	442 mm (17-1/2")	0.0002"

General Specifications

Product Type: Lathe Alignment Test Bar Set
Quantity: 5 Pieces
Taper Sizes: 1MT, 2MT, 3MT, 4MT & 5MT
Material: EN31 Alloy Steel
Construction: Hardened & Precision Ground
Application: Machine Alignment & Calibration

🛠️ Applications

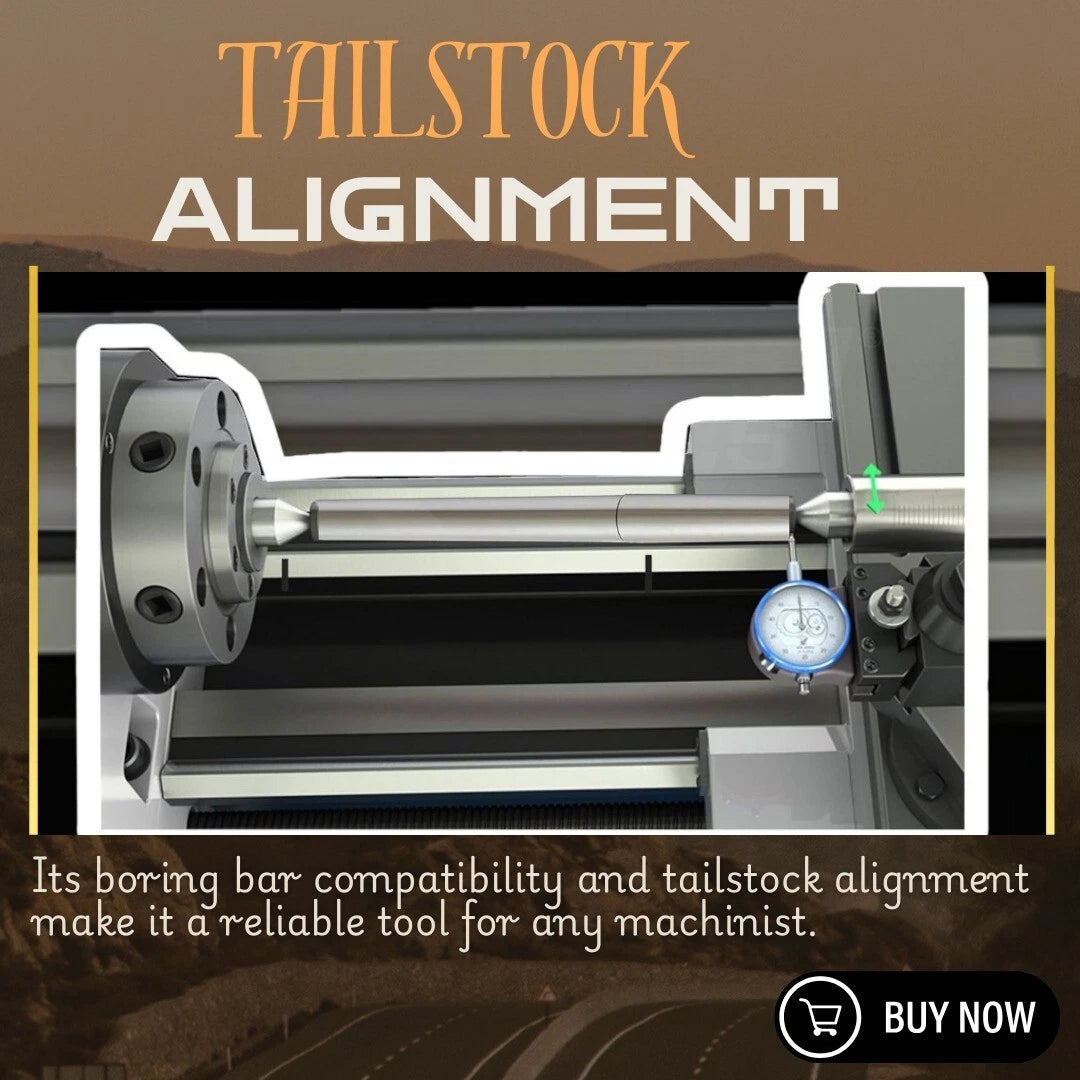

🔹 Tailstock Alignment

🔹 Spindle Alignment Testing

🔹 Between Centers Inspection

🔹 Lathe Calibration

🔹 Machine Geometry Verification

🔹 Precision Turning Setup

🔹 Tool Room Inspection

🔹 Engineering Workshops

🔹 Machine Shop Maintenance

🔹 Quality Control Inspection

🔹 Manufacturing Facilities

🔹 Precision Metalworking Operations

📦 Package Contents

1 x 1MT Alignment Test Bar (151mm)
1 x 2MT Alignment Test Bar (283mm)
1 x 3MT Alignment Test Bar (335mm)
1 x 4MT Alignment Test Bar (386mm)
1 x 5MT Alignment Test Bar (442mm)
