50mm Boring Head Set with MT3 Holder – 9pcs 12mm Boring Bars – Precision Milling & Boring Tool
50mm Boring Head Set with MT3 Holder – 9pcs 12mm Boring Bars – Precision Milling & Boring Tool
Tags: / / / / / /

50mm Boring Head Set with MT3 Holder – 9pcs 12mm Boring Bars – Precision Milling & Boring Tool

4.5 rating ( 2334 )
$90.35
$90.35

Tax included

Stock Availability

FBB221, 29 WYSOCKI PL, HACKENSACK, NJ 07601-6804 US
Phone: +1 646 224 0700
662/8-A, Gali No 1, First Floor,
Punjabi Basti, Anand Parbat
Phone: +91 8860055906
Orange Connex Fulfilment Centre – UK04
Mill Road, Rugby, England
GB-CV21 1PR
Phone: +44 7747 770826
Orange Connex Fulfillment Center – DE04
Bochumer Str. 119, Nordrhein-Westfalen
DE-44866 Bochum
Phone: +49 15563617045
Orange Connex Fulfilment Centre – AU03
Warehouse L, Building 5, 161 Manchester Rd
Auburn, New South Wales
AU-2144
Phone: +61 416 989 802
AVAILABLE IN INDIA   β€’   AVAILABLE IN USA   β€’   AVAILABLE IN UNITED KINGDOM   β€’   AVAILABLE IN GERMANY   β€’   AVAILABLE IN AUSTRALIA
Secured Payment
Description
Description
x

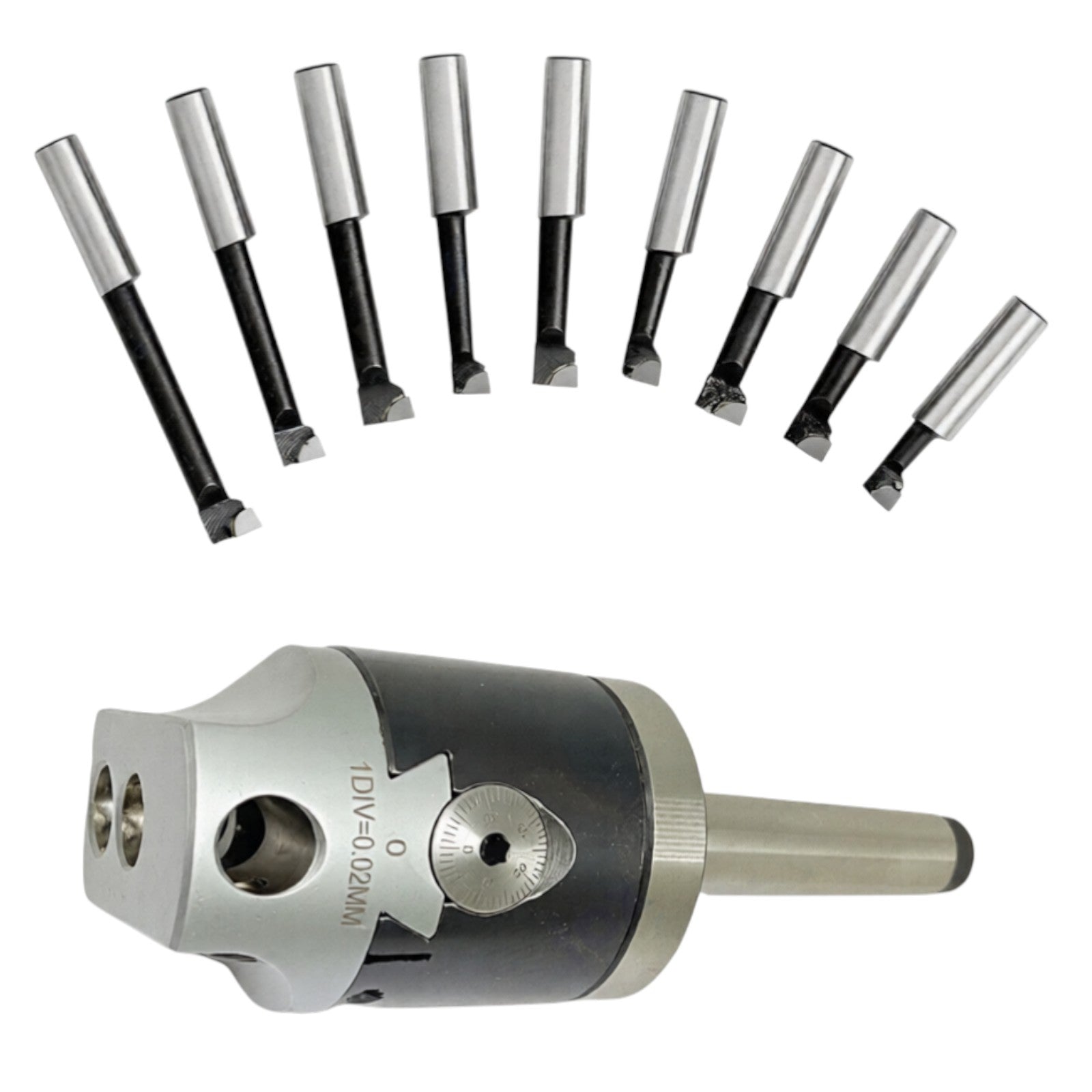

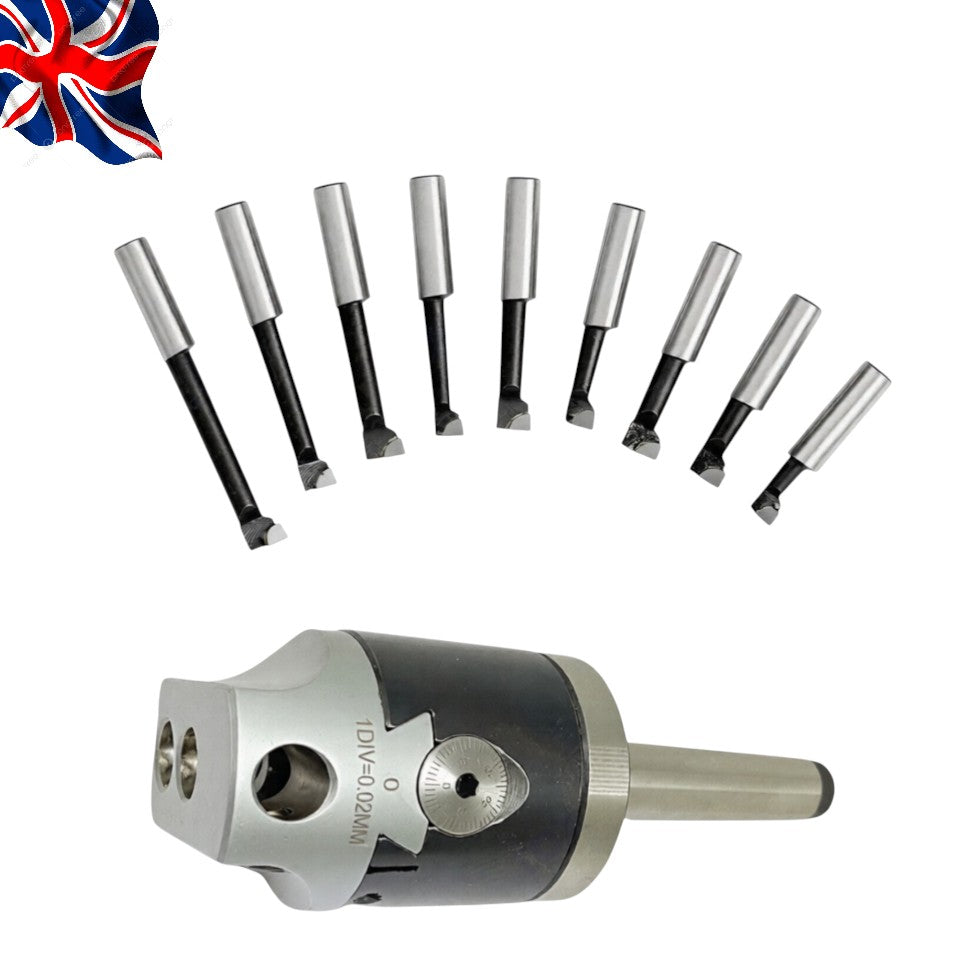

The 50mm Boring Head Set with MT3 Holder is a precision machining solution designed for accurate boring, facing, and internal machining operations on milling machines and machining centers. Supplied as a complete 9-piece 12mm boring bar set, this kit offers excellent versatility, fine adjustment, and stable performance for both workshop and industrial applications.

πŸ”§ Key Features

  • High-Precision 50mm Boring Head
    Precision-machined 50mm boring head with fine feed control ensures accurate hole sizing and smooth internal finishes.

  • MT3 Morse Taper Holder for Rigid Mounting
    Supplied with MT3 holder and 1-1/2"-18 mounting thread, providing secure, concentric mounting in milling machine spindles.

  • Wide Boring Diameter Range
    Capable of boring from a minimum diameter of 10mm up to a maximum of 150mm, making it suitable for a wide range of machining tasks.

  • Controlled Boring Depth
    Supports a maximum boring depth of 50mm, ideal for precision internal operations.

  • Includes 9pcs 12mm Boring Bars

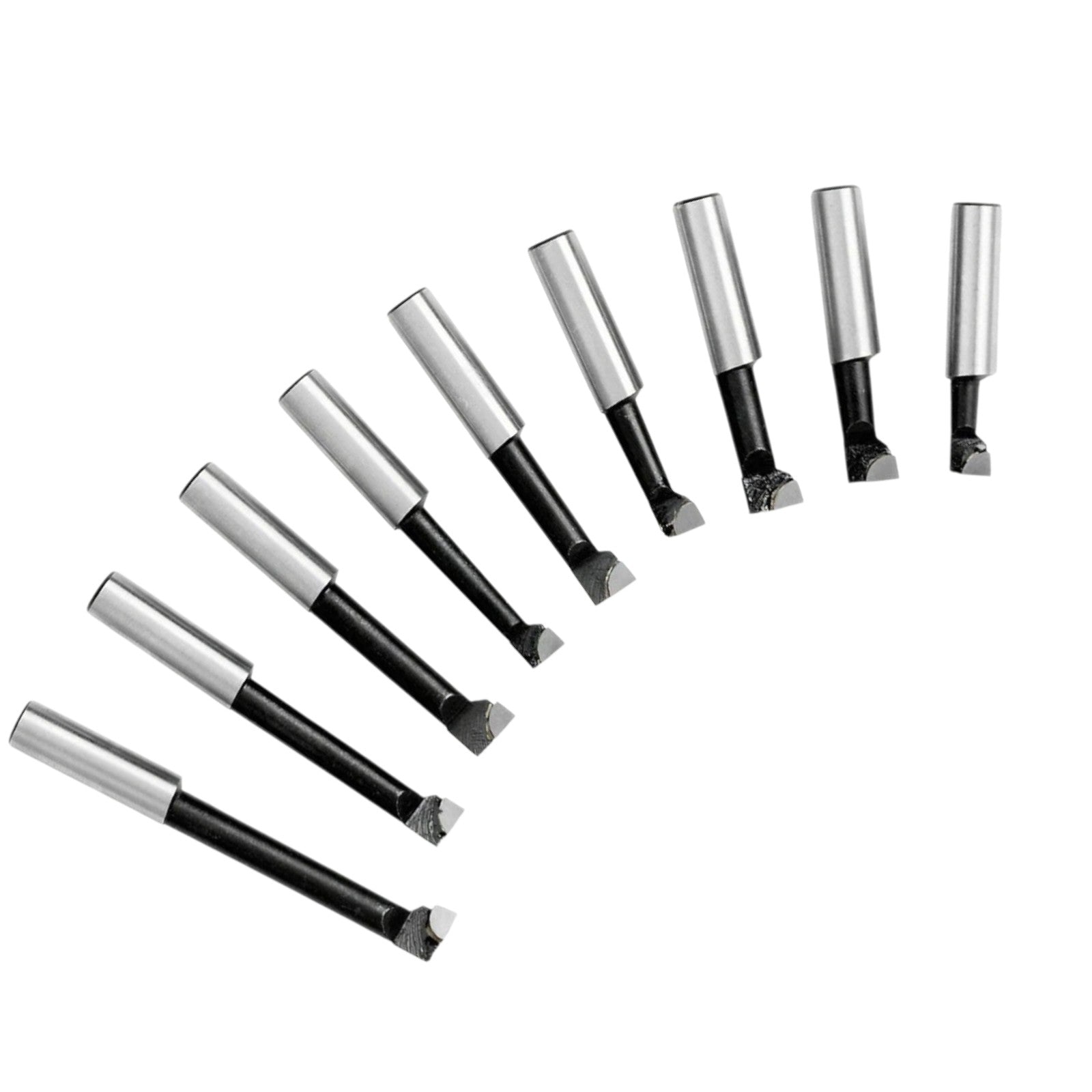

    Comes complete with 9 high-quality boring bars, all 12mm diameter, with lengths ranging from 55mm to 115mm, offering flexibility for different reach and cutting requirements.

  • Multiple Tool Mounting Positions
    Features 2 vertical and 1 horizontal mounting positions for 12mm diameter boring bars, allowing versatile tool setup and machining angles.

  • Fine Adjustment for Accuracy
    Minimum graduation of 0.02mm enables precise diameter adjustments for high-tolerance boring applications.

  • Drawbar Thread for Secure Holding
    Equipped with M12 drawbar thread for safe and stable retention during machining.

  • Durable & Workshop-Ready Construction
    Designed for long service life with consistent accuracy in professional workshops, toolrooms, and home machining environments.

πŸ“Β Technical Specifications

  • Boring Head Diameter: 50mm

  • Holder: MT3 Morse Taper

  • Mounting Thread: 1-1/2"-18

  • Drawbar Thread: M12

  • Boring Diameter Range: 10mm – 150mm

  • Maximum Boring Depth: 50mm

  • Minimum Graduation: 0.02mm

  • Boring Bars Included: 9 pcs

  • Boring Bar Diameter: 12mm

  • Boring Bar Lengths: 55mm – 115mm

  • Tool Mounting: 2 Vertical + 1 Horizontal (12mm)

🎯 Ideal For

  • Milling and boring operations

  • Precision hole enlargement and internal finishing

  • Toolrooms, workshops, and machining centers

  • Professional machinists and hobby engineers
