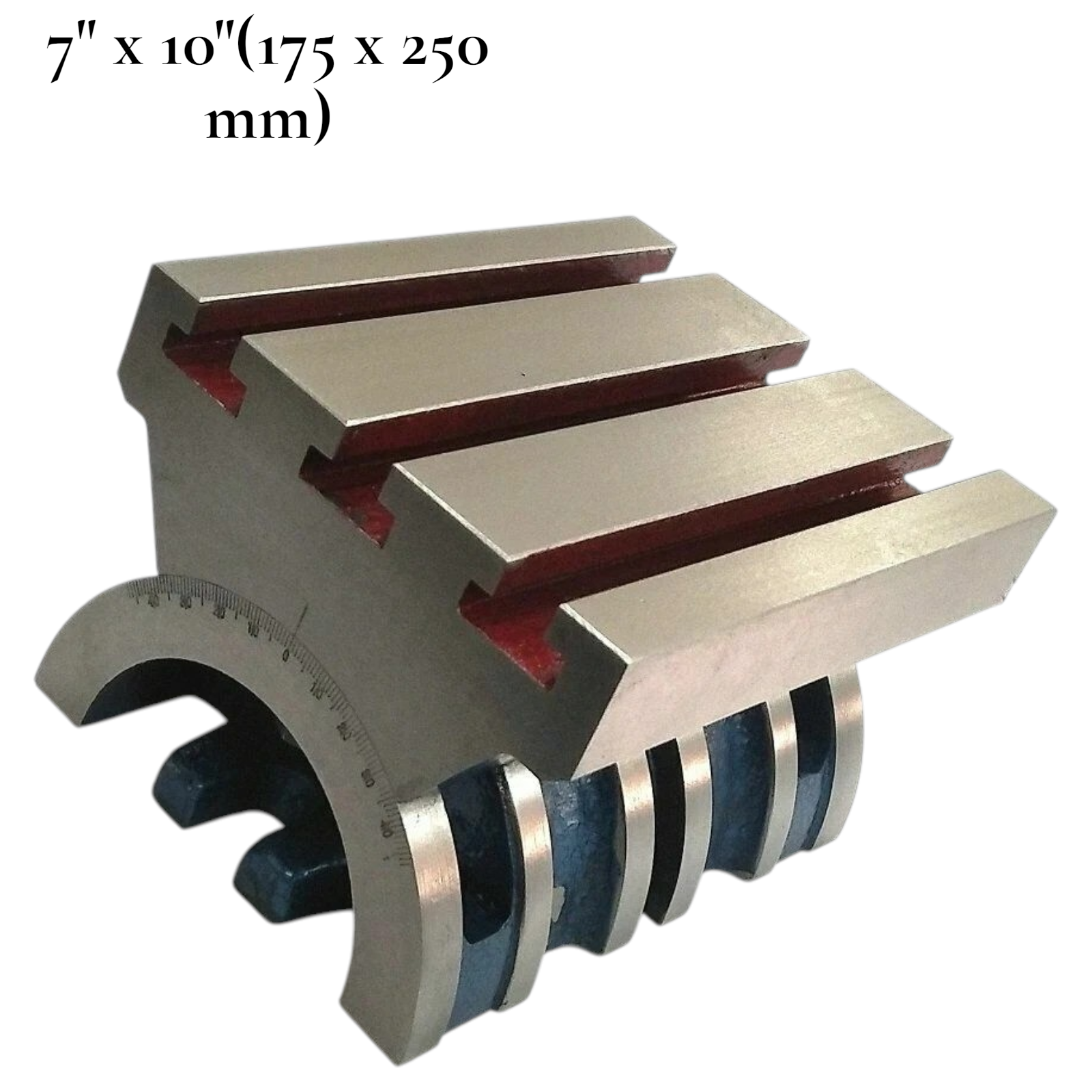

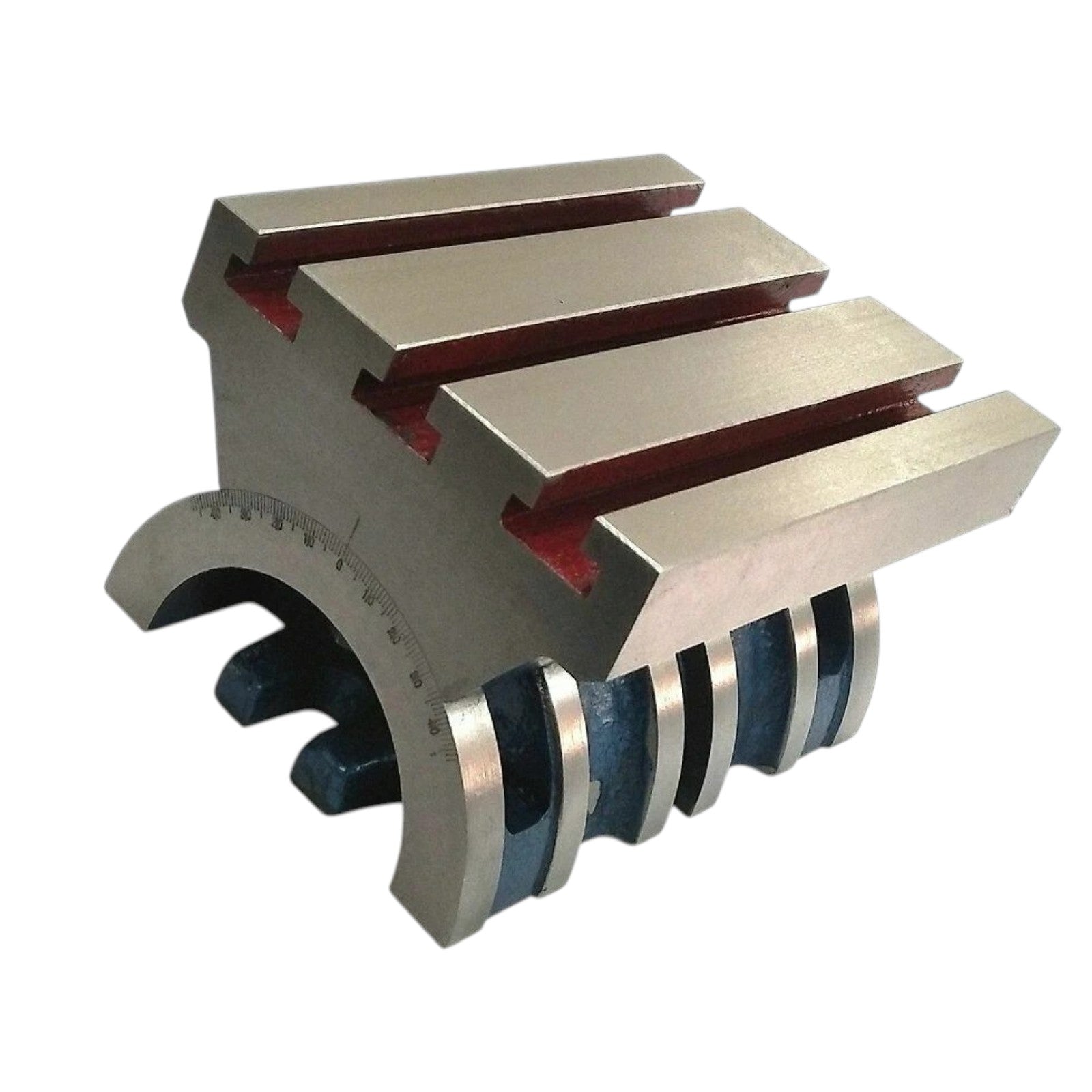

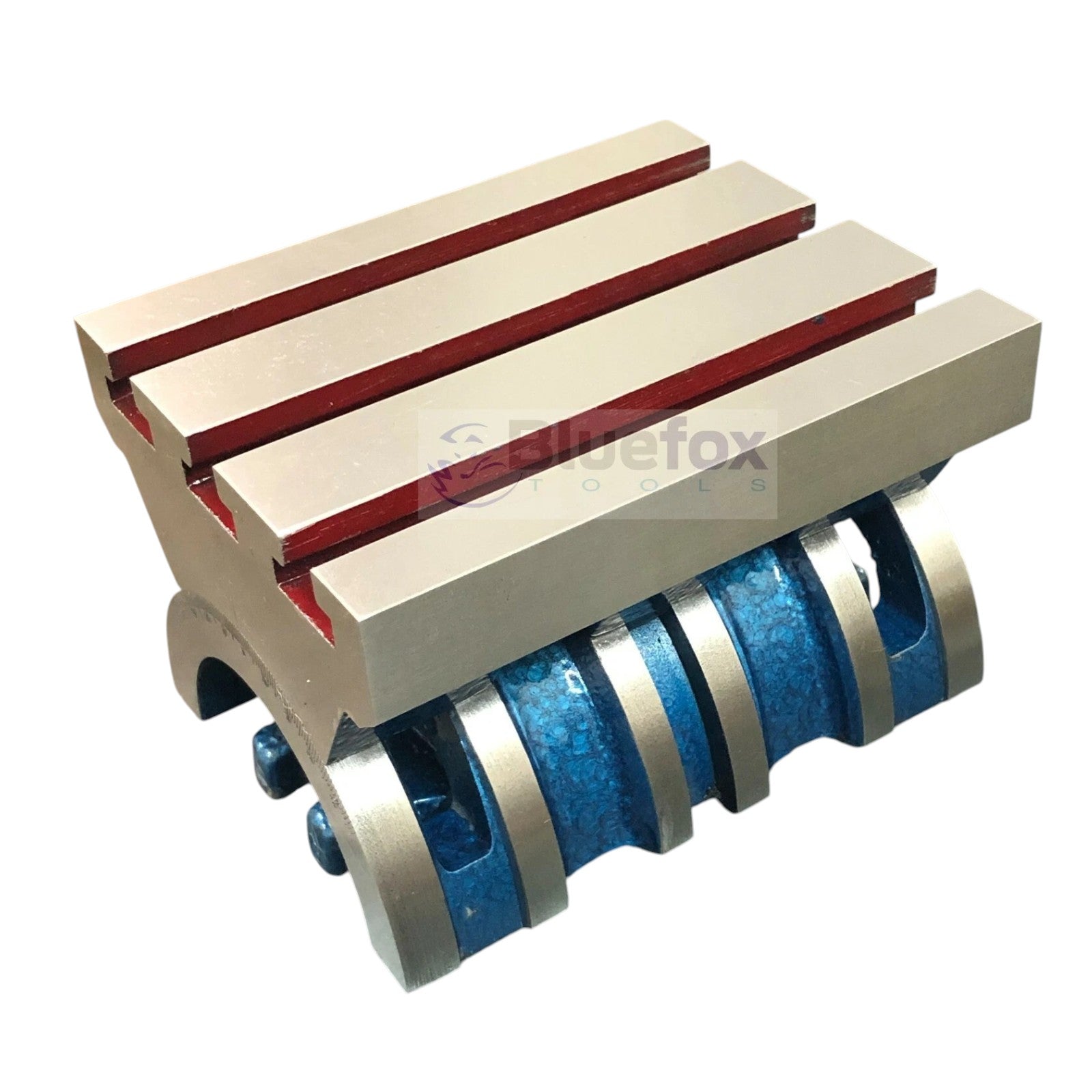

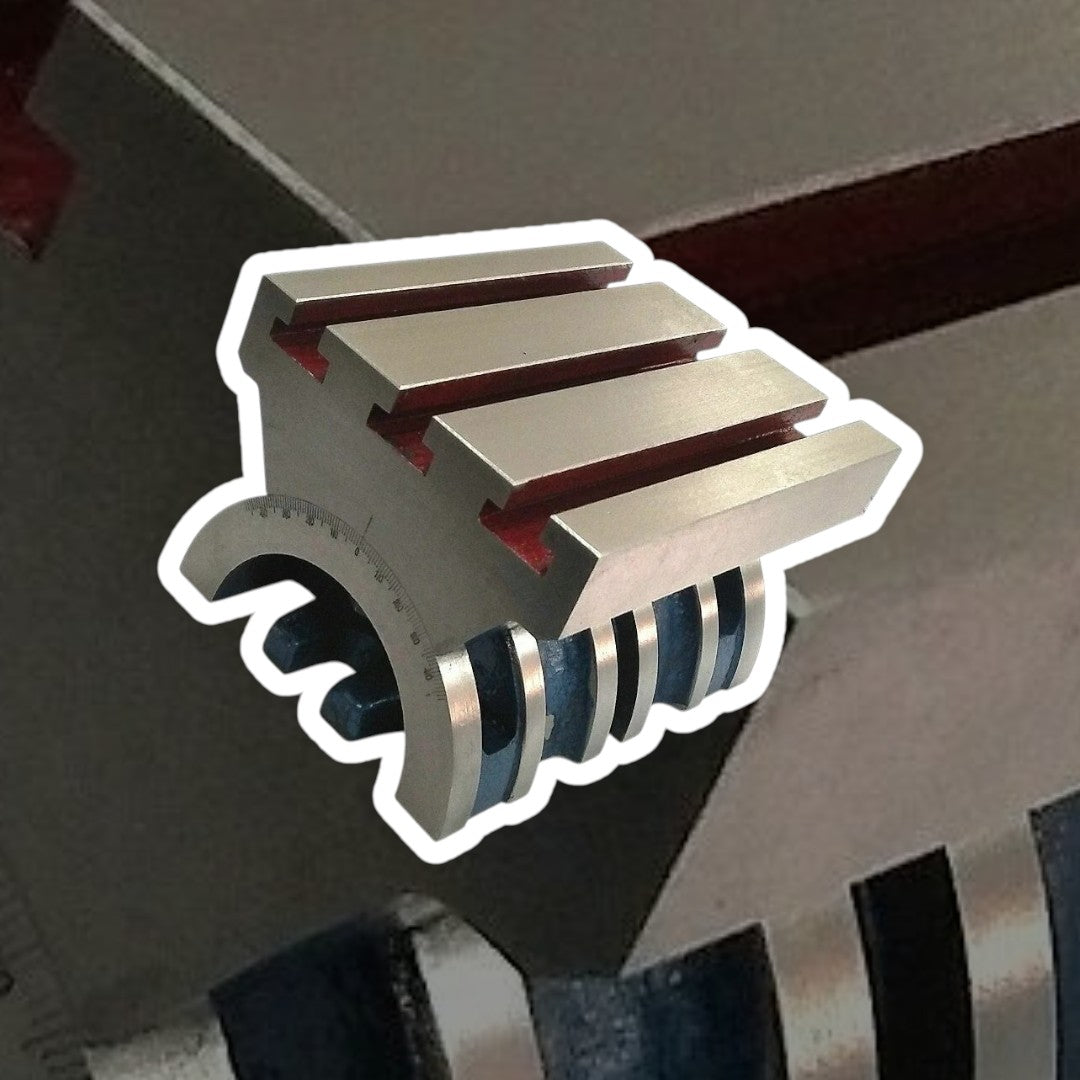

7" x 10" Swivel Angle Plate Tilting Table | 175 x 250mm Heavy Duty Adjustable Angle Plate for Milling, Drilling & Inspection

🔹 Precision Swivel Angle Plate for Machining & Toolroom Applications

The 7" x 10" (175 x 250mm) Swivel Angle Plate Tilting Table is a heavy-duty workholding fixture designed for accurate angular positioning during milling, drilling, grinding, inspection, and layout operations. Manufactured from high-grade cast iron, this robust angle plate offers exceptional rigidity, dimensional stability, and long-term accuracy.

The table features a 0°–45°–0° tilting range on both sides, allowing quick and precise angle adjustments for complex machining setups. Graduated degree markings provide easy angle setting, while locking screws at both ends securely hold the table at any desired position.

All working surfaces are precision ground for maximum flatness and accuracy, and the accurately machined T-slots ensure reliable workpiece clamping for demanding workshop and production environments.

✨ Key Features

✅ Heavy-Duty High-Grade Cast Iron Construction

✅ Adjustable Tilting Range: 0°–45°–0° (Both Directions)

✅ Graduated Degree Scale for Accurate Angle Adjustment

✅ Precision Ground Working Faces

✅ Secure Locking System at Any Angle

✅ Accurately Machined T-Slots for Strong Work Holding

✅ Ideal for Milling, Drilling, Grinding & Inspection

✅ Excellent Stability and Vibration Resistance

📏 Specifications

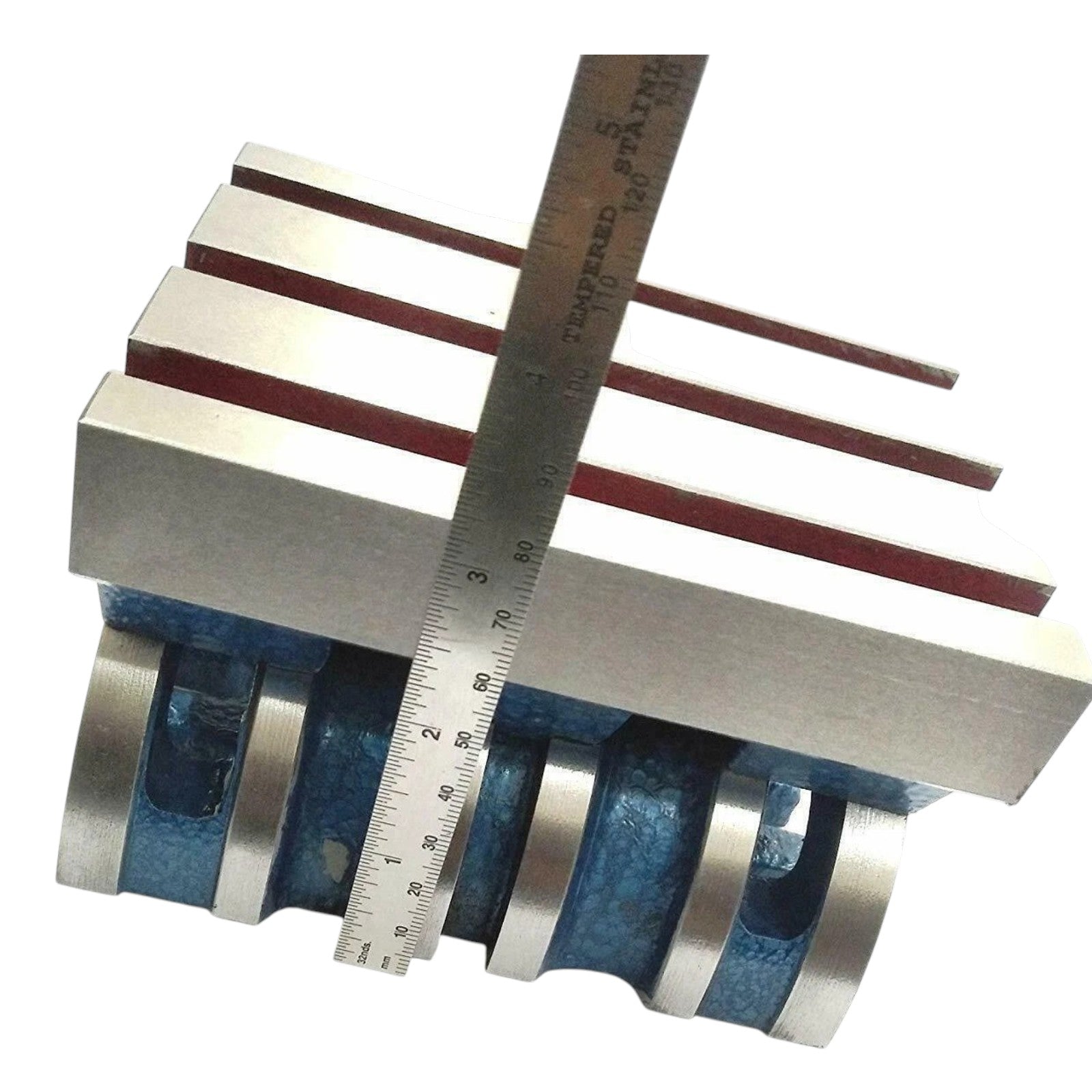

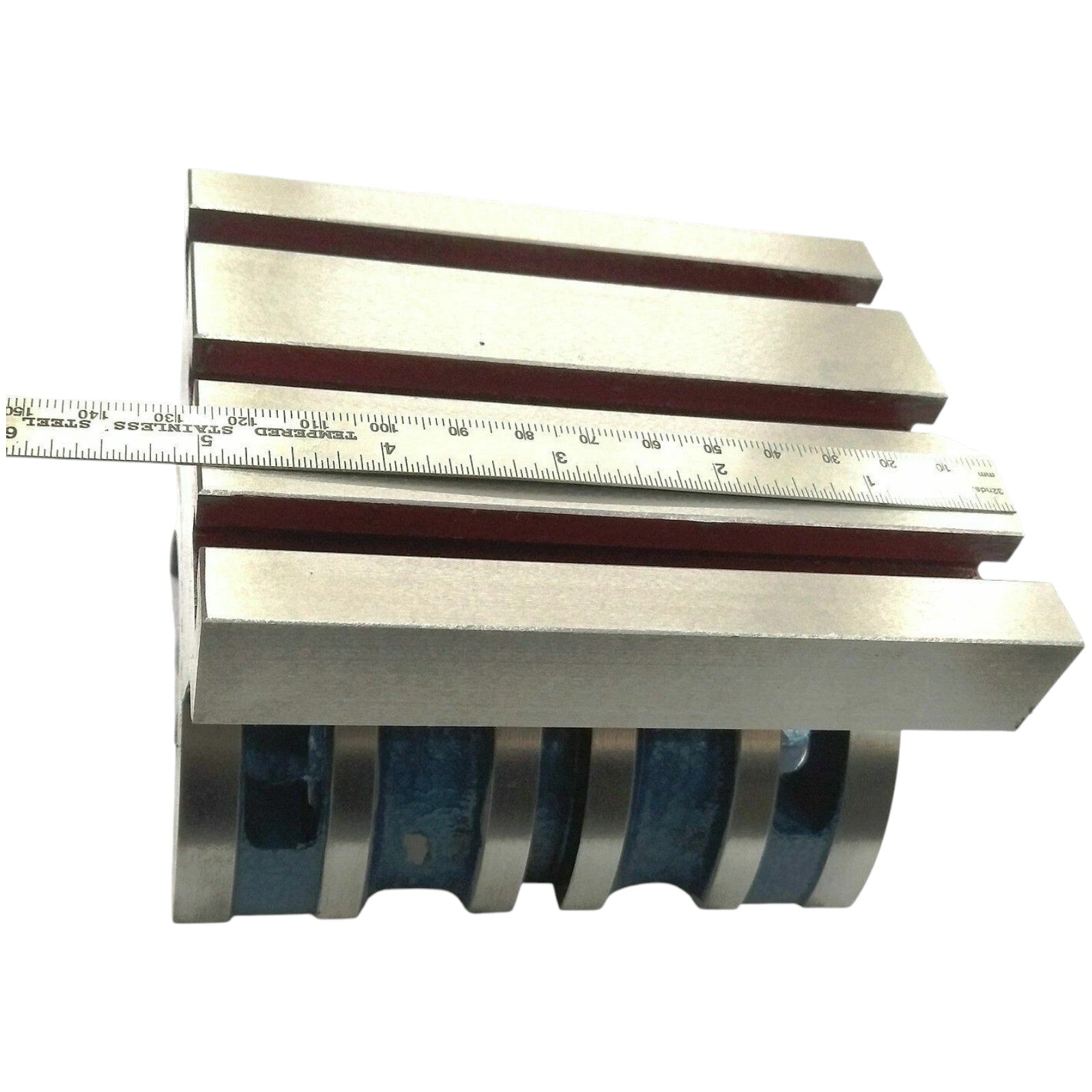

🔹 Table Size: 7" x 10" (175mm x 250mm)

🔹 Material: High-Grade Cast Iron

🔹 Tilting Range: 0°–45°–0° (Both Sides)

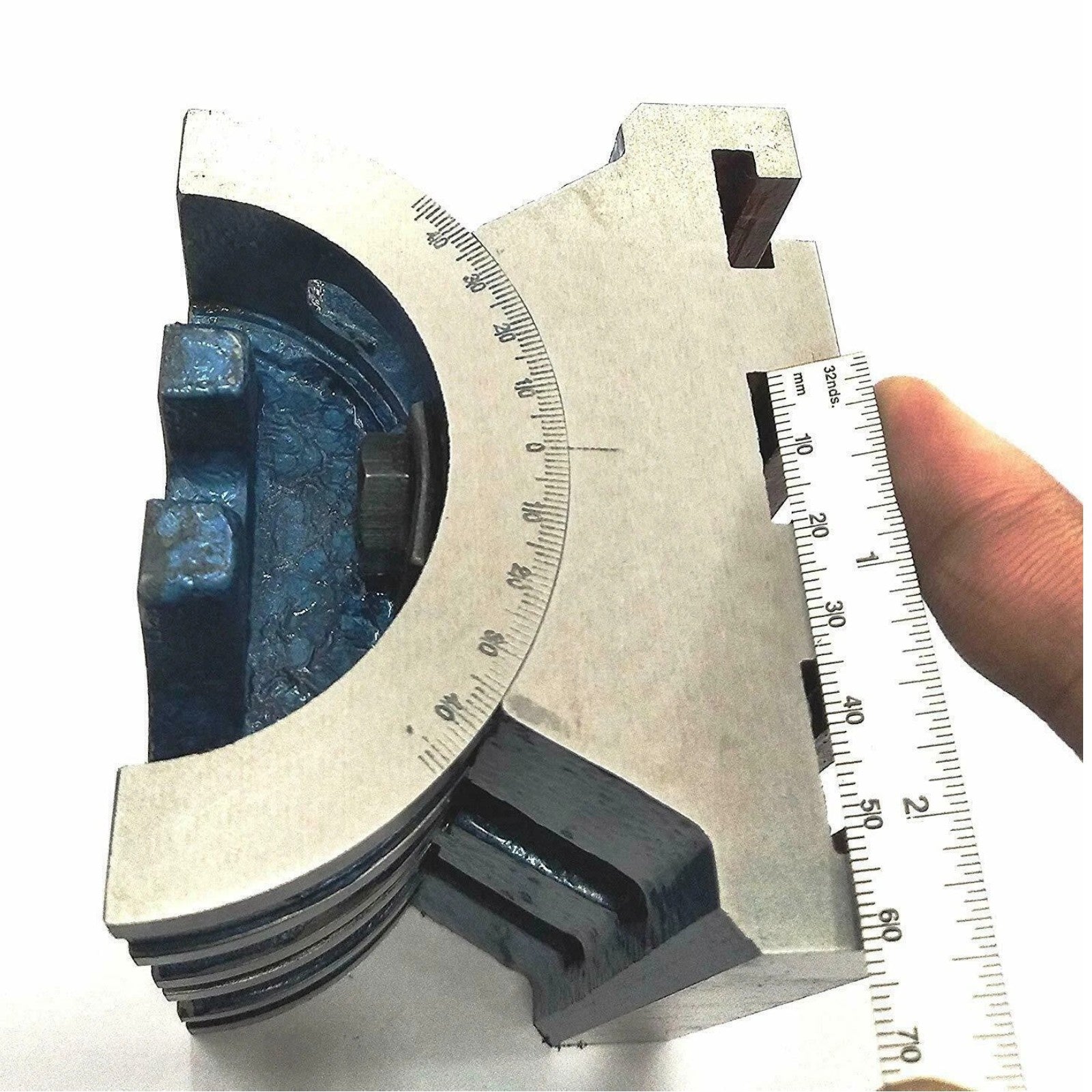

🔹 Angle Setting: Graduated Degree Scale

🔹 Locking Mechanism: End Locking Screws

🔹 Surface Finish: Precision Ground on All Working Faces

🔹 T-Slots: Precision Machined for Secure Clamping

🔹 Application: Milling, Drilling, Grinding, Inspection & Toolroom Work

🎯 Ideal For

🔧 Milling Machines

🔧 Drill Presses

🔧 Surface Grinders

🔧 Tool Rooms

🔧 Engineering Workshops

🔧 Precision Inspection

🔧 Fabrication Shops

🔧 Metalworking Applications
