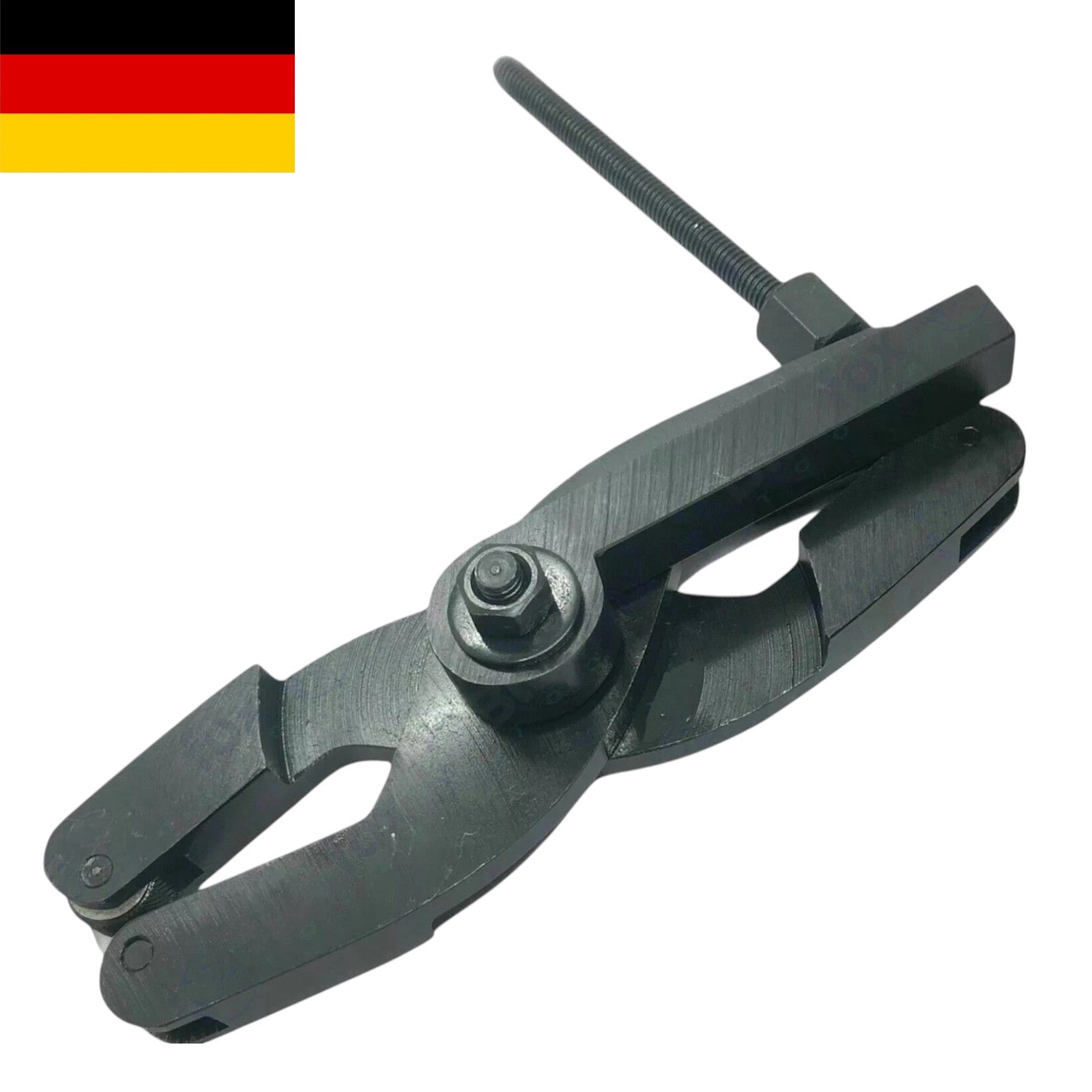

8-1/4" Scissor Type Knurling Tool Holder for Lathe & CNC Machines

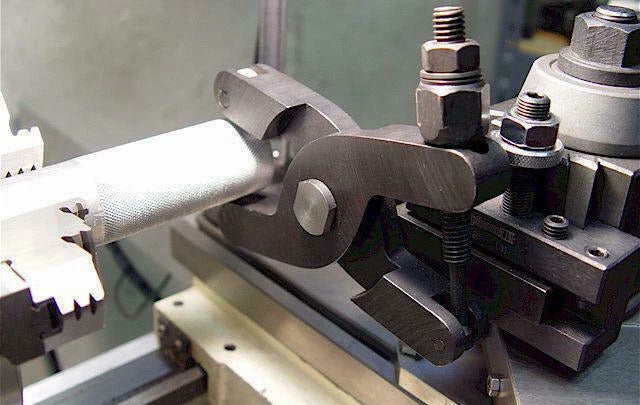

Create clean, sharp, and consistent knurl patterns with this Scissor Type Knurling Tool Holder. Designed for use on conventional lathes, CNC lathes, and chuckers, this clamp-style knurling tool delivers superior performance by applying equal pressure between the two knurl wheels instead of transferring force to the lathe spindle, cross slide, or lead screw.

The scissor action minimizes machine stress, improves surface finish, and extends machine life. It features an adjustable clamping mechanism that allows the knurling depth to be preset, making it ideal for repetitive production work.

Supplied with a pair of medium diamond pattern knurls, the holder also accepts other standard knurl wheels with the same dimensions, offering excellent versatility for a wide range of metalworking applications.

Built from high-quality steel for strength and durability, this tool is an excellent choice for professional machine shops, maintenance workshops, and precision engineering applications.

Features

  • Heavy-duty scissor type knurling tool holder
  • Clamp-type design minimizes pressure on the lathe
  • Produces clean and sharp knurl patterns
  • Suitable for manual and CNC lathes
  • Adjustable depth setting for production work

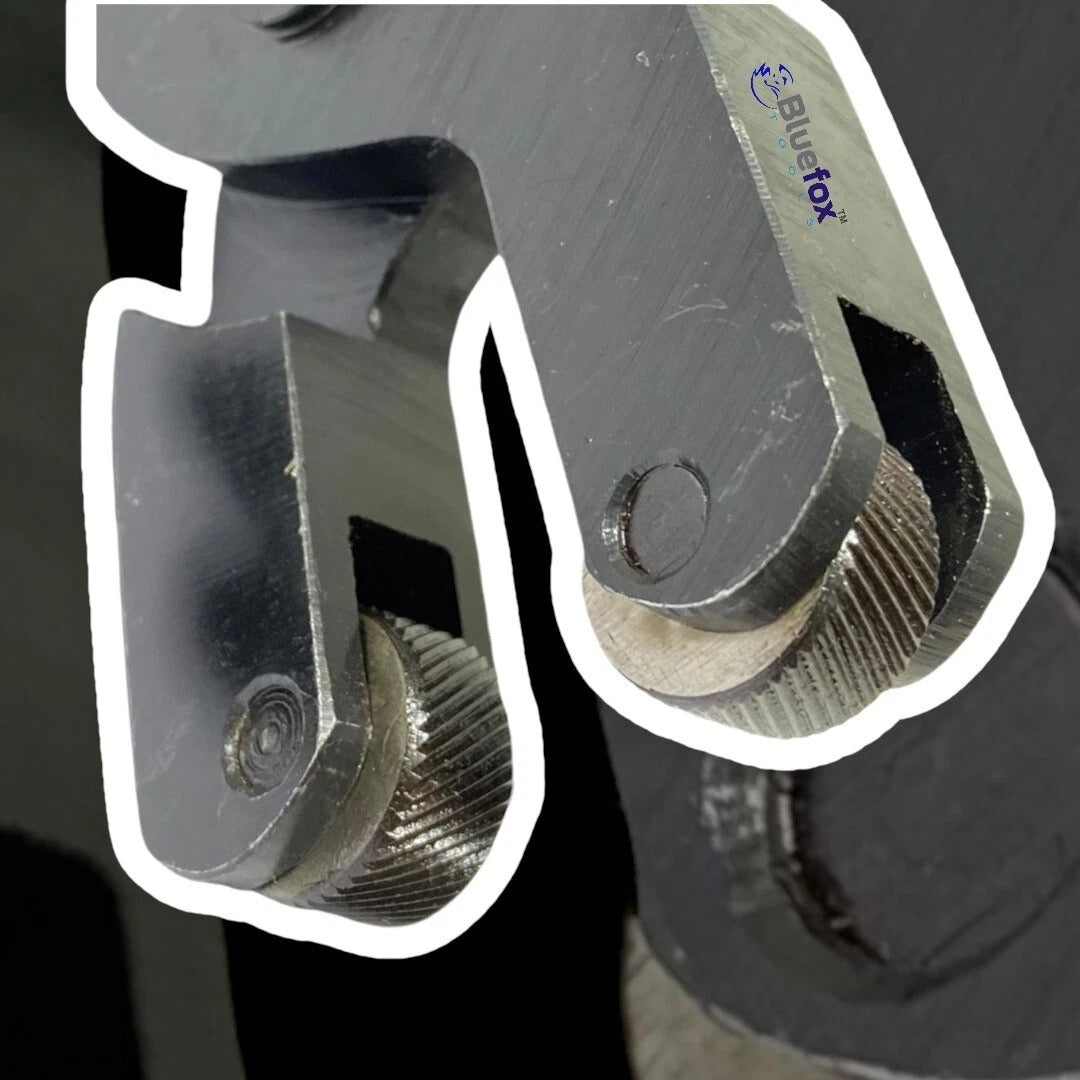

  • Quick-change removable pins for easy knurl replacement
  • Supplied with medium diamond pattern knurls
  • Compatible with standard replacement knurl wheels
  • Strong and durable steel construction
  • Ideal for industrial and workshop applications

Specifications

  • Tool Type: Scissor Type Knurling Tool Holder
  • Overall Length: 8-1/4" (210mm approx.)
  • Work Diameter Capacity: 1-1/2" to 4-1/2"
  • Shank Size: 5/8" × 5/8"
  • Knurl Size: 3/4" Diameter × 3/8" Width × 1/4" Bore
  • Knurl Pattern Included: Medium Diamond
  • Machine Compatibility: Manual Lathes, CNC Lathes, Chuckers

Applications

  • External knurling
  • Diamond pattern knurling
  • Grip pattern machining
  • Shaft manufacturing
  • Handle production
  • Precision metalworking
  • CNC machining
  • Production machining
  • Tool room operations
  • General engineering workshops
