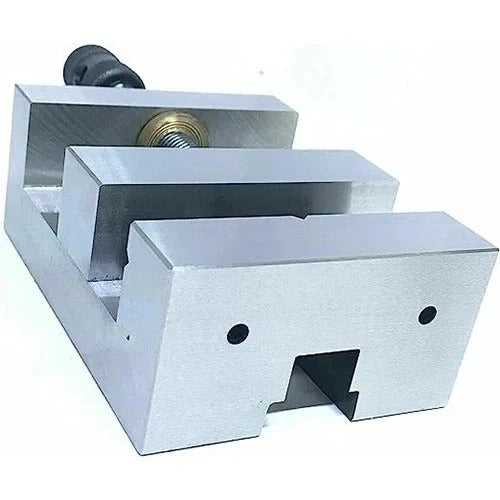

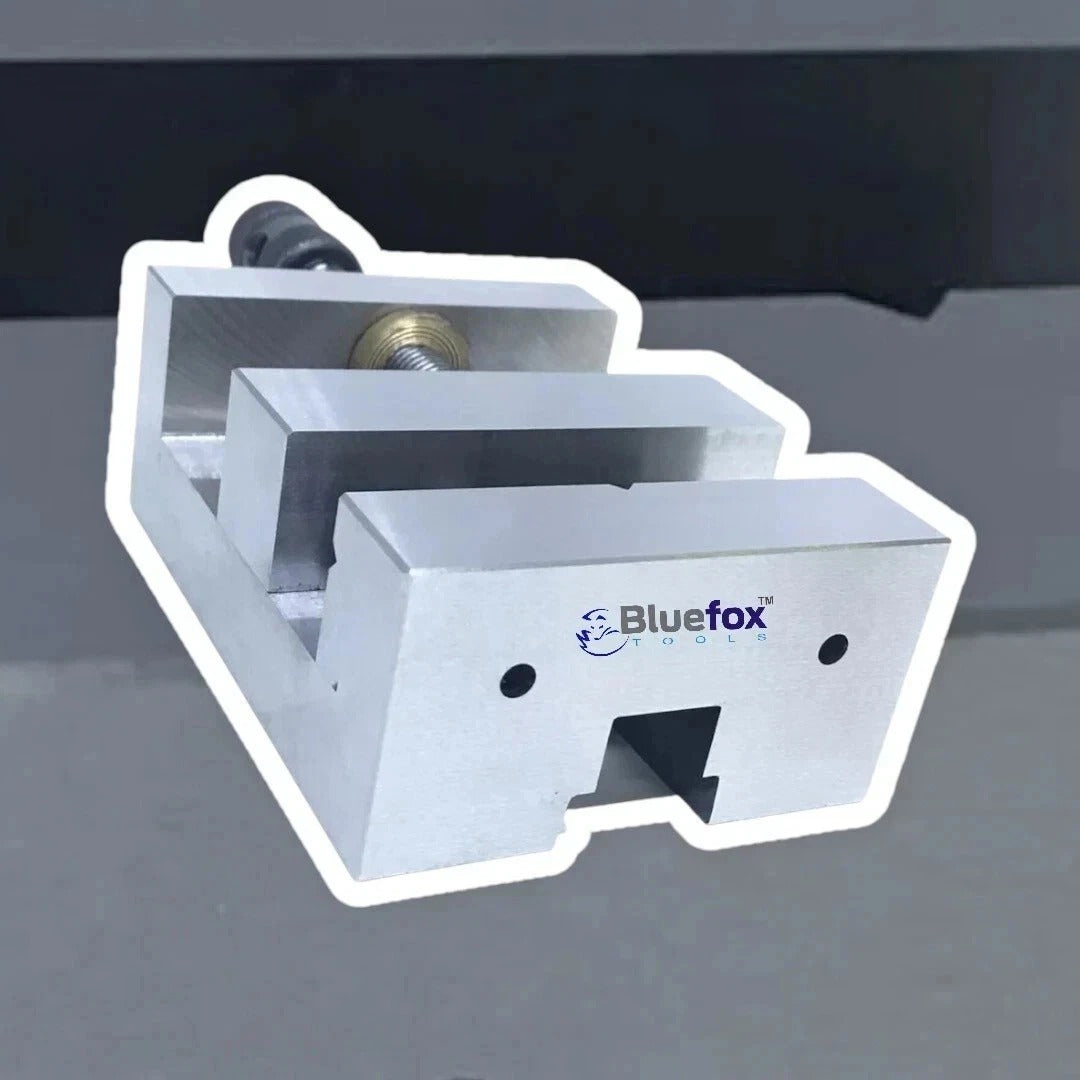

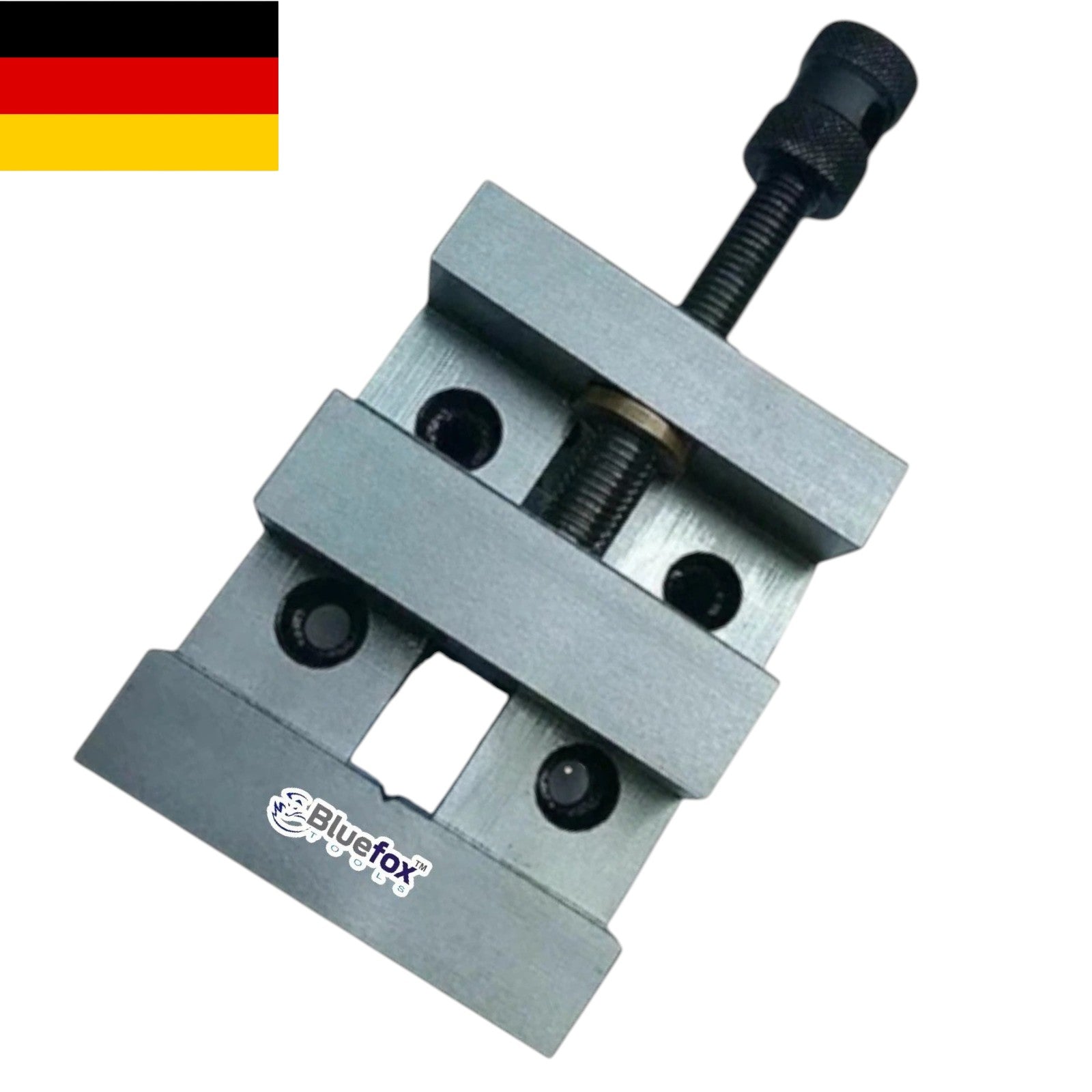

Heavy-Duty 85mm Drill Press & Vertical Slide Vice for Precision Workholding

This 85mm Drill Press Vice is a robust and versatile workholding solution designed for use with vertical milling slides, drill presses, milling machines, and lathe milling attachments. Featuring 86mm wide jaws, precision-machined V-grooves, and a durable bronze bush leadscrew system, it provides secure and accurate clamping for round, square, and irregular workpieces.

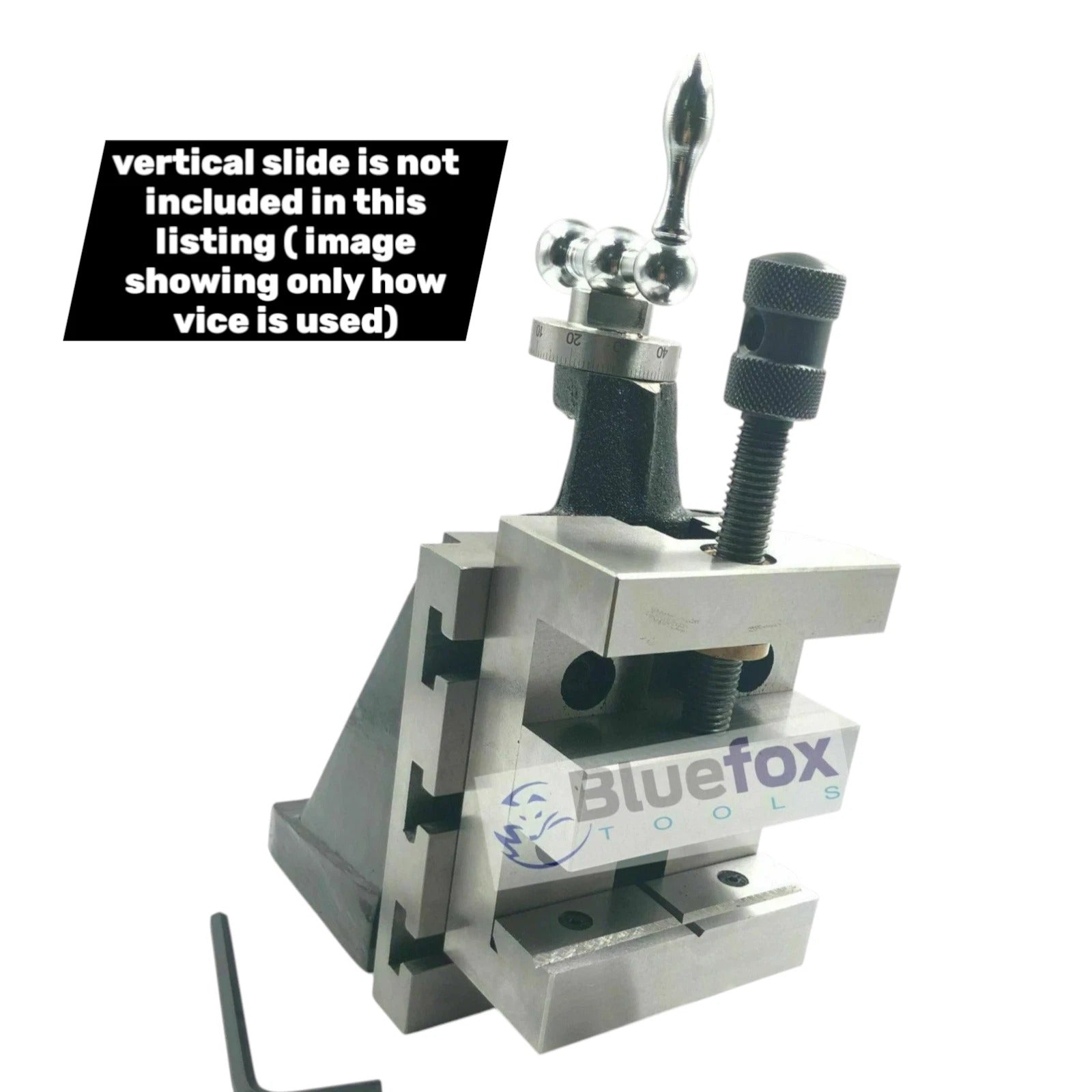

Suitable for both horizontal and vertical mounting, this vice is an ideal accessory for Myford vertical slides and other similar milling slide systems. The fixed jaw incorporates both vertical and horizontal V-grooves for maximum holding flexibility when machining round stock, shafts, tubes, and precision components.

Manufactured for workshop, engineering, and model engineering applications, this vice delivers reliable performance and long service life.

Key Features

  • Heavy-duty 86mm jaw width vice

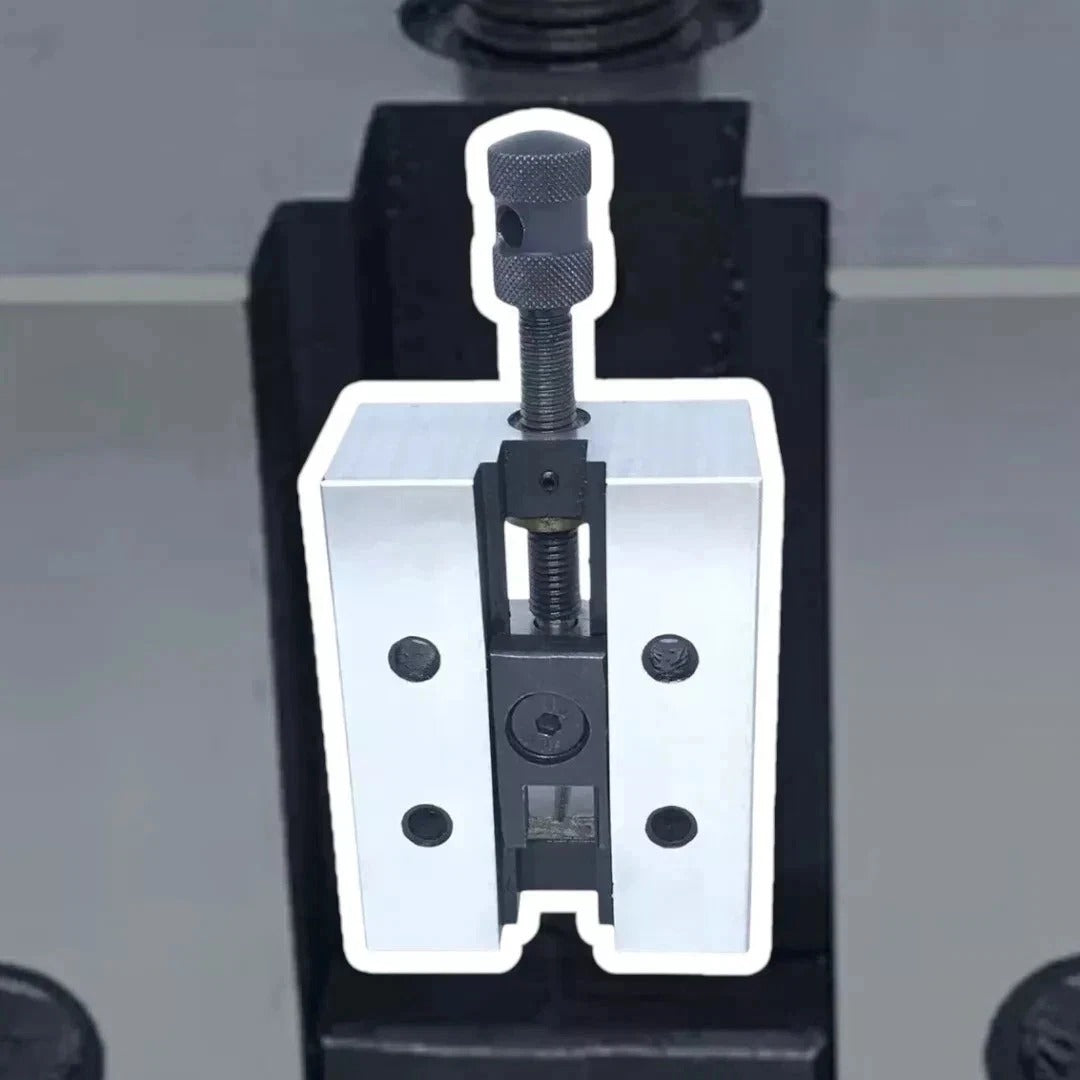

  • Suitable for vertical and horizontal use
  • Precision-machined V-grooves in fixed jaw
  • Vertical and horizontal vee design for round workpieces
  • Bronze bush bearing leadscrew for smooth operation
  • Ideal for vertical milling slides
  • Suitable for Myford milling slide setups
  • Strong and rigid construction
  • Compact workshop-friendly design
  • Supplied with fixing screws

Specifications

Specification Details
Jaw Width 86mm
Maximum Jaw Opening 43mm
Mounting Hole Distance 52mm
Height (Horizontal Position) 46mm
Overall Size 112mm × 86mm
Weight 2.3kg
Leadscrew Bearing Bronze Bush
Mounting Orientation Horizontal & Vertical

Applications

  • Vertical milling slides
  • Drill press operations
  • Milling machine workholding
  • Lathe milling attachments
  • Precision drilling
  • Slotting operations
  • Small machining jobs
  • Model engineering
  • Tool room applications
  • Workshop machining

Benefits

Dual-Position Mounting

Can be mounted horizontally or vertically to suit different machining requirements.

Enhanced Workpiece Grip

Precision-machined vertical and horizontal V-grooves securely hold round and irregular components.

Smooth Operation

Bronze bush-supported leadscrew provides reliable and accurate clamping action.

Compact Yet Strong

Offers excellent holding power while remaining suitable for smaller workshop machines.

Ideal for Vertical Slides

Designed specifically for use with fixed-base and swivel-base vertical milling slides.

Compatible With

  • Myford Vertical Slides
  • Fixed Base Vertical Slides
  • Swivel Base Vertical Slides
  • Drill Press Tables
  • Bench Milling Machines
  • Lathe Milling Attachments
  • Workshop Fixtures

Package Includes

  • 1 × 85mm Drill Press Vice
  • Fixing Screws
