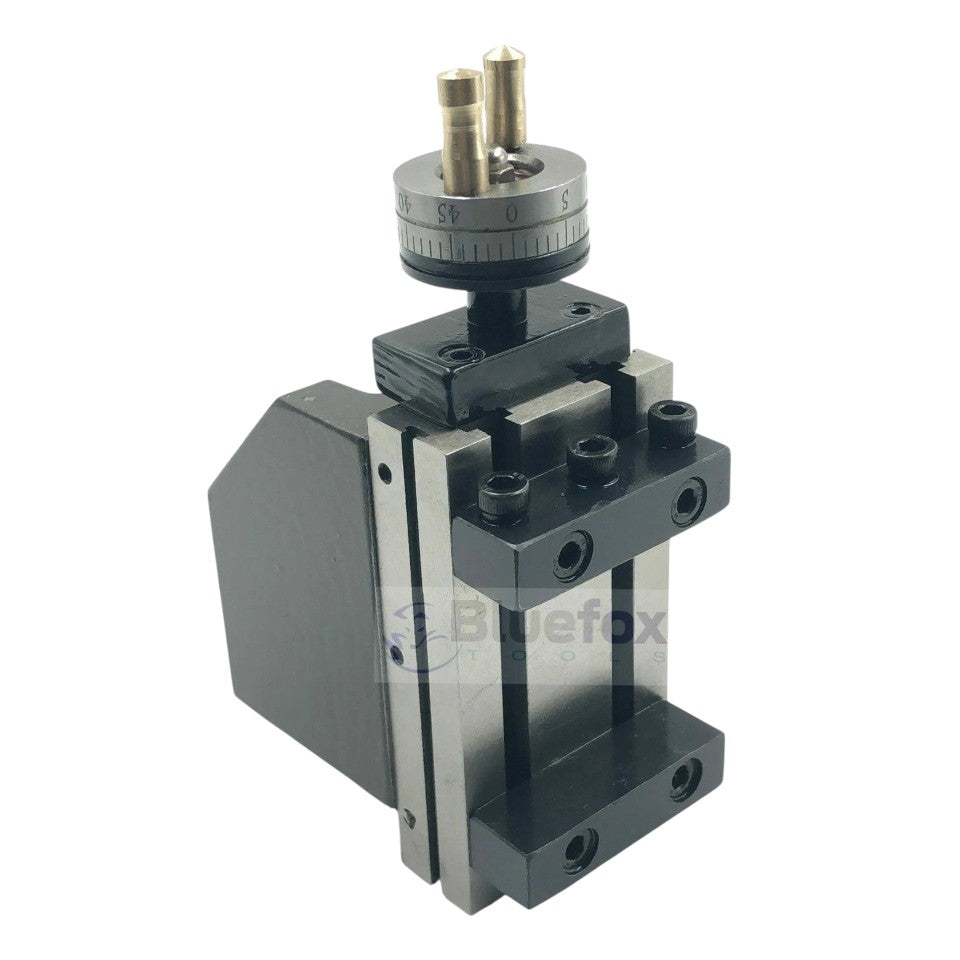

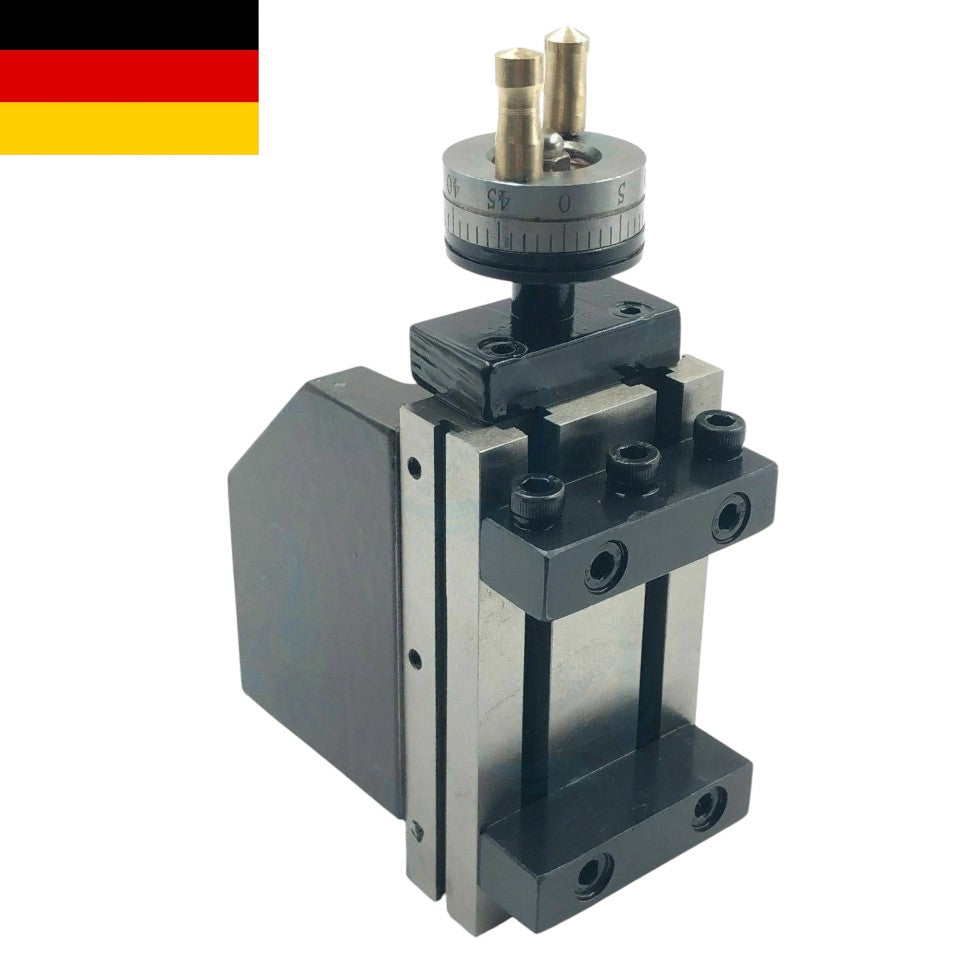

Convert Your Lathe into a Compact Milling Machine

The Mini Vertical Slide 90 x 50mm is a practical and versatile milling attachment designed to expand the capabilities of small bench lathes. Ideal for milling, slotting, drilling, shaping, and precision machining operations, this compact vertical slide allows users to perform light milling tasks directly on their lathe without the need for a separate milling machine.

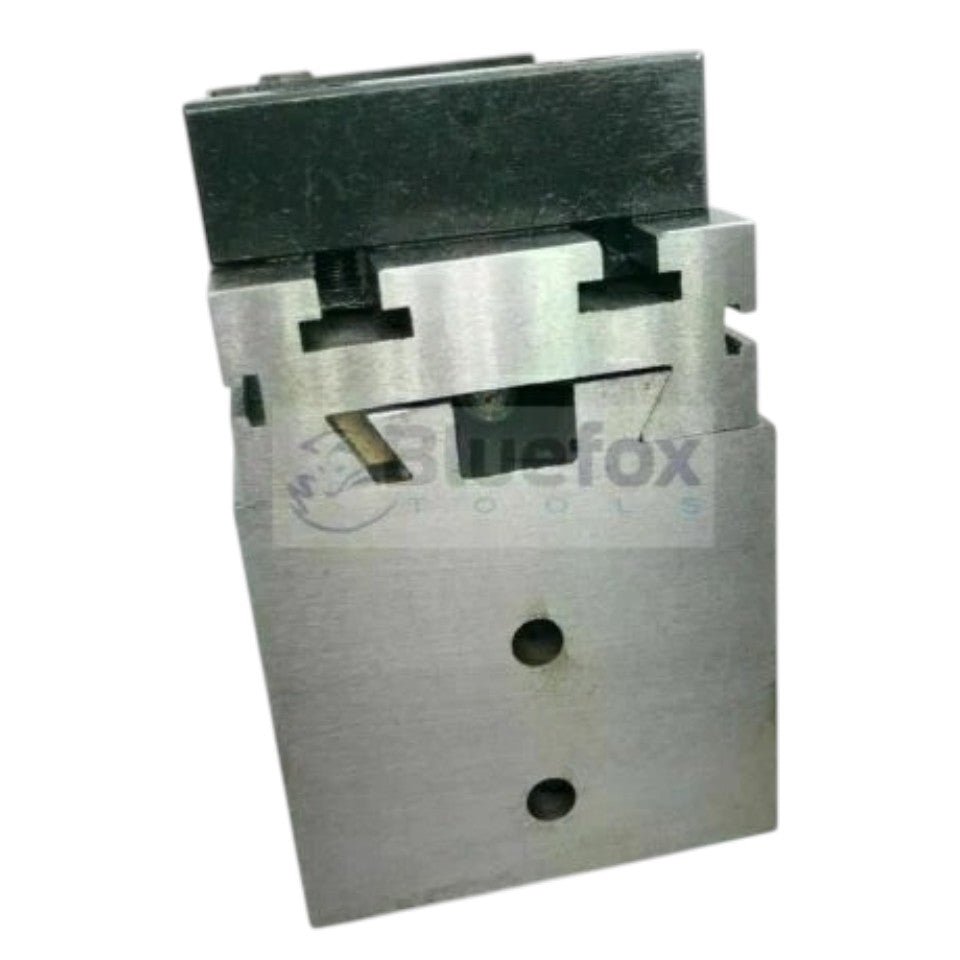

Manufactured from high-quality seasoned cast iron, the slide provides excellent rigidity, stability, and durability. The innovative design includes a small gib extension, allowing it to be mounted directly into many quick-change tool posts without removing the tool post from the cross slide, saving setup time and improving convenience.

Suitable for bench lathes up to 150mm swing, this attachment can be adapted to popular machines such as Emco, Myford, Warco, Sieg C3, and similar small lathes.

Key Features

  • Compact vertical milling slide attachment
  • Converts a lathe into a milling workstation
  • High-quality seasoned cast iron construction
  • Smooth precision-machined finish
  • Suitable for bench lathes up to 150mm swing
  • Direct mounting via quick-change tool post
  • No need to remove the lathe tool post
  • Adjustable jaws for secure workholding
  • Precision graduated feed dial
  • Ideal for hobby and workshop machining

Specifications

Specification Details
Product Type Mini Vertical Slide
Sliding Table Size 90 x 50mm
Vertical Travel 40mm
Base Dimensions 50 x 55mm
Maximum Jaw Opening 70mm
Dial Graduation 0 – 50
Construction Material High-Quality Seasoned Casting
Suitable Lathe Swing Up to 150mm

Applications

  • Milling operations
  • Slot cutting
  • Drilling
  • Keyway machining
  • Precision shaping
  • Small component fabrication
  • Model engineering
  • Workshop machining
  • Prototype manufacturing
  • General metalworking

Compatible Machines

Can be fitted (with minor modifications where required) to:

  • Emco Lathes
  • Myford Lathes
  • Warco Lathes
  • Sieg C3 Lathes
  • Small Bench Lathes
  • Similar Mini Lathe Machines

Benefits

Expand Lathe Functionality

Perform milling and machining operations without purchasing a separate milling machine.

Quick Installation

Special gib extension allows mounting in quick-change tool posts for faster setup.

Precise Control

Graduated feed dial and smooth slide movement provide accurate positioning.

Durable Construction

Manufactured from high-grade seasoned cast iron for long-lasting performance.

Space Saving

Ideal for workshops where space is limited.

Suitable For

  • Bench Lathes
  • Mini Lathes
  • Model Engineering
  • Home Workshops
  • Tool Rooms
  • Educational Workshops
  • Hobby Machinists
  • Precision Engineering Applications

Package Includes

  • 1 × Mini Vertical Slide 90 x 50mm
  • Adjustable Jaw Assembly
  • Mounting Components
