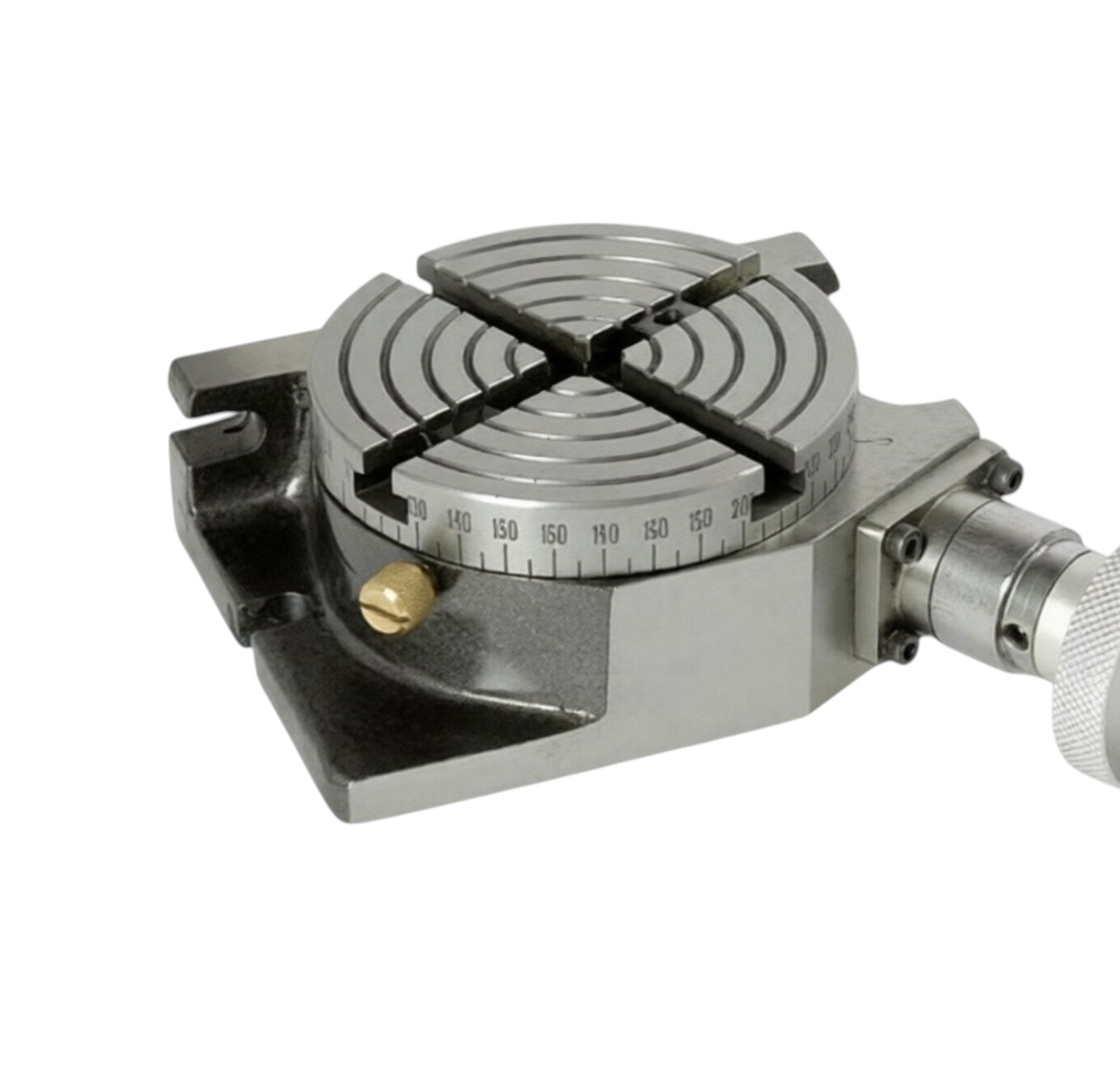

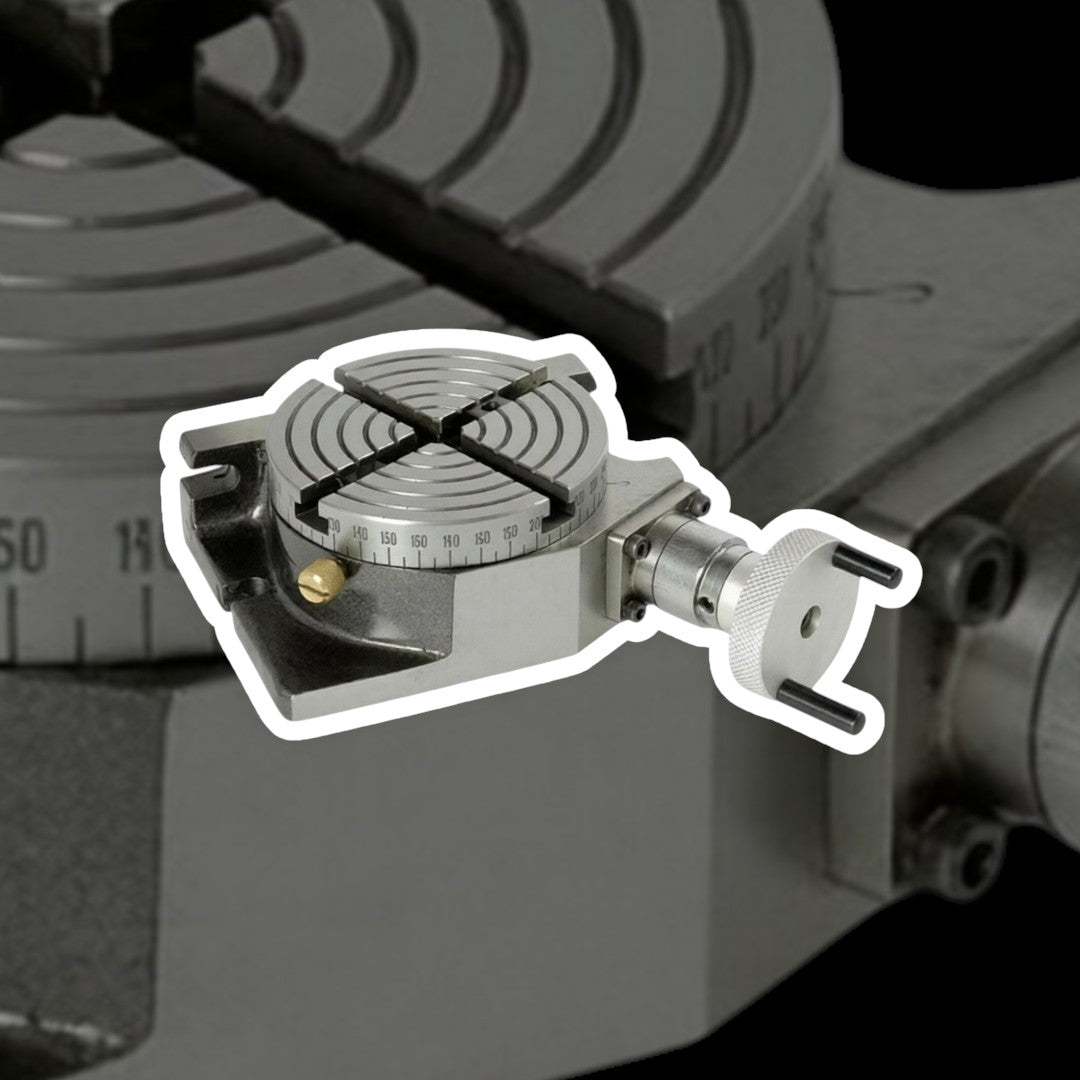

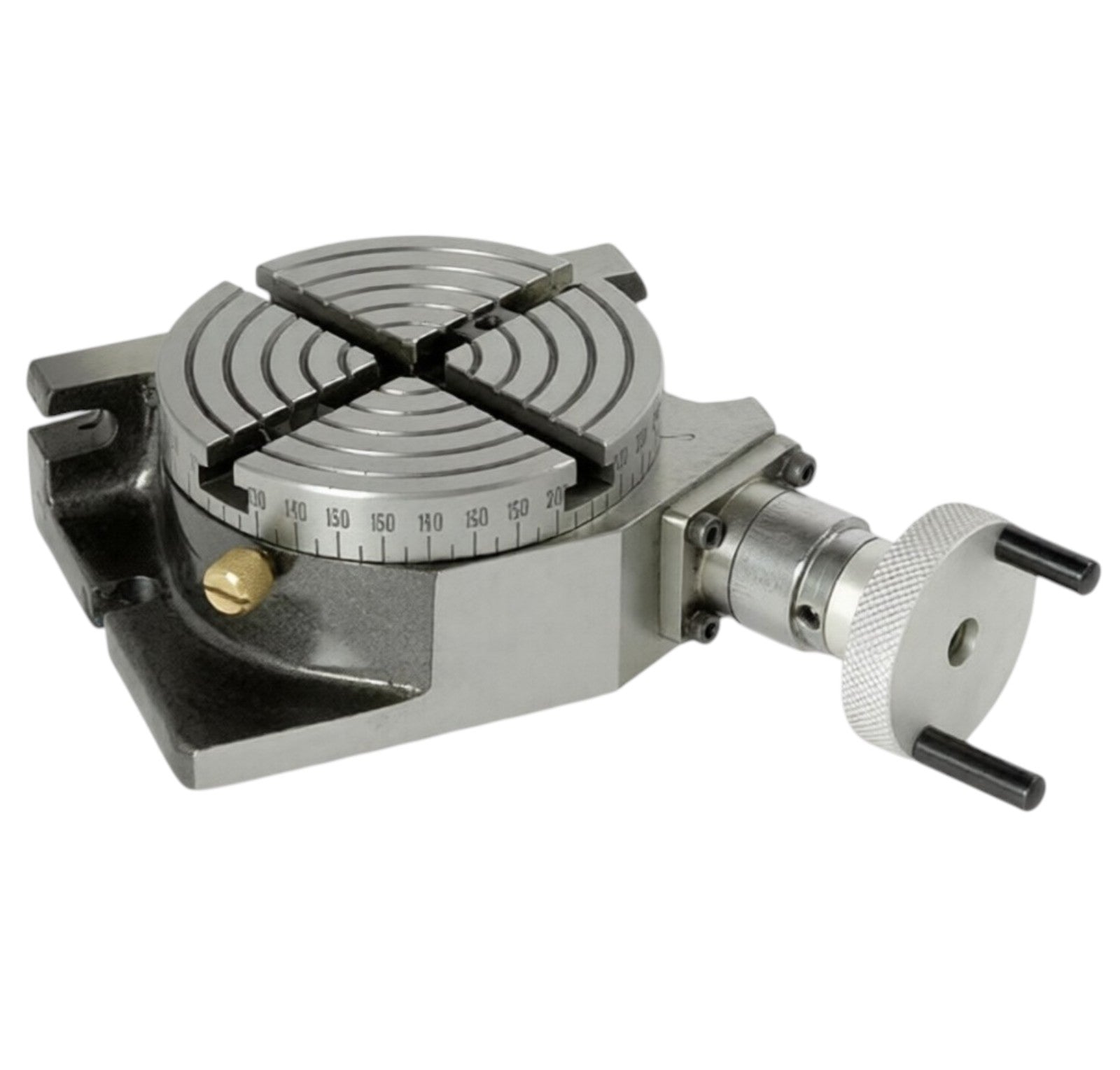

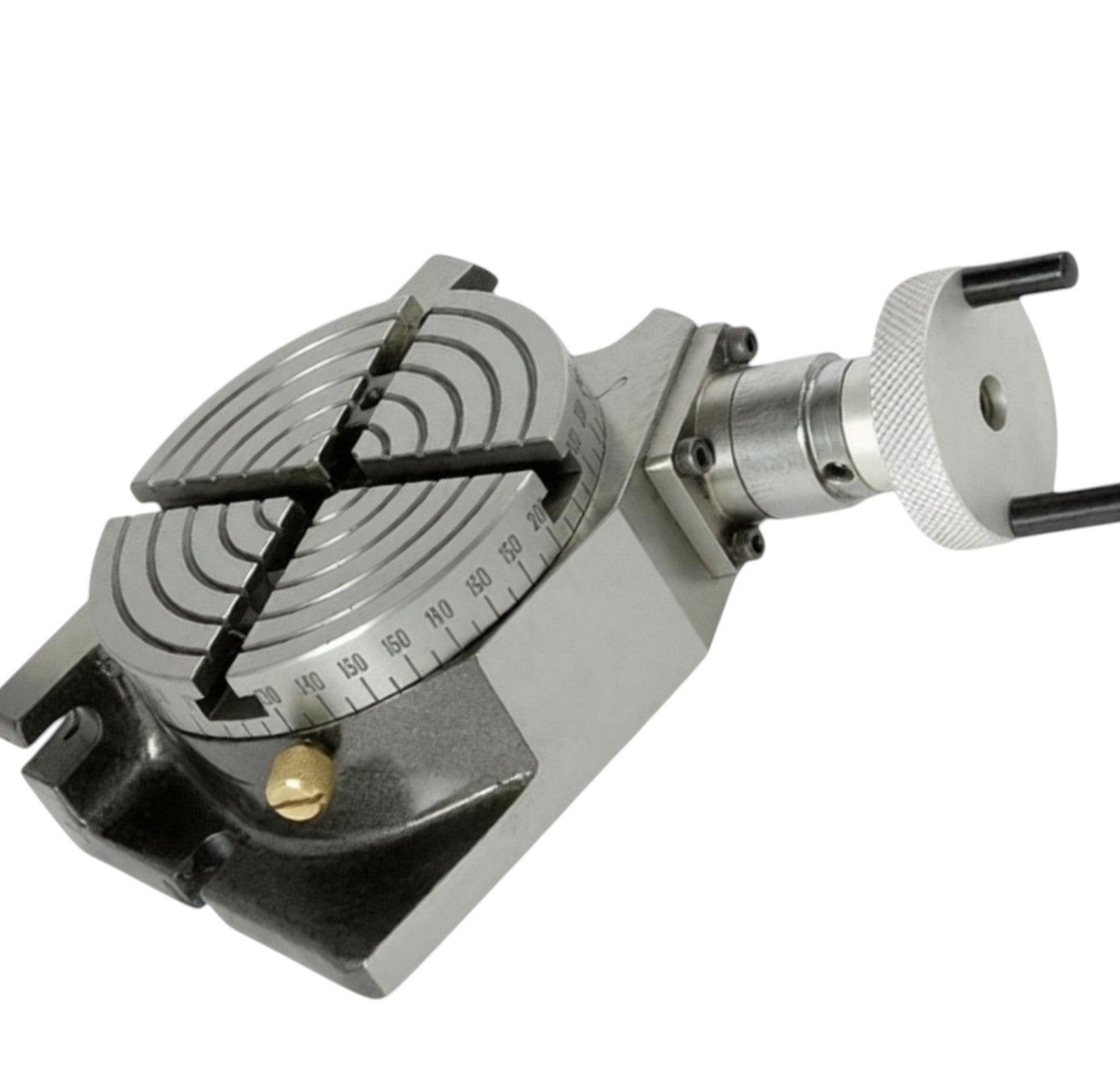

🔧 BlueFox Tools 3" (80mm) Horizontal & Vertical Rotary Table

Enhance the precision and versatility of your milling operations with the BlueFox Tools 3" (80mm) Horizontal & Vertical Rotary Table. Designed for accurate angular positioning, indexing, circular machining, and drilling, this compact rotary table is ideal for milling machines, drill presses, CNC applications, and precision engineering workshops.

Featuring a 36:1 worm gear ratio, the rotary table offers smooth, controlled rotation for precise indexing and machining. The graduated handwheel can be reset to zero and is calibrated in 10-minute divisions, with 5-minute increments around the rim, enabling accurate angular adjustments for demanding machining tasks.

Its 4-slot table design provides secure workpiece clamping, while the ability to operate in both horizontal and vertical positions makes it a highly versatile accessory for machinists, toolmakers, model engineers, and metalworking professionals.

Whether you're machining gears, bolt circles, arcs, radii, or complex curved profiles, the BlueFox Tools Rotary Table delivers reliable precision and smooth operation.

✨ Key Features

✅ 3" (80mm) Precision Rotary Table – Ideal for milling, drilling, indexing, engraving, and machining circular features.

✅ Horizontal & Vertical Operation – Can be mounted in both positions for maximum workshop flexibility.

✅ 36:1 Worm Gear Ratio – Provides smooth, accurate, and controlled table rotation.

✅ 4 T-Slot Design – Allows secure clamping of workpieces, fixtures, and accessories.

✅ Zero-Set Handwheel – Handwheel can be reset to zero for convenient repetitive machining operations.

✅ Precision Graduations – Handwheel graduated in 10-minute divisions with 5-minute calibration marks around the rim.

✅ Rigid Cast Construction – Built for durability, vibration resistance, and long service life.

✅ Professional Workshop Quality – Suitable for milling machines, drill presses, CNC machines, and precision engineering.

📏 Specifications

• 🔹 Brand: BlueFox Tools
• 🔹 Product Type: Horizontal & Vertical Rotary Table
• 🔹 Table Diameter: 3" (80 mm)
• 🔹 Table Slots: 4 T-Slots
• 🔹 Vertical Center Height: 44 mm
• 🔹 Gear Ratio: 36:1
• 🔹 Handwheel: Zero Adjustable
• 🔹 Graduation: 10-minute divisions
• 🔹 Rim Calibration: 5-minute increments
• 🔹 Mounting Position: Horizontal & Vertical

🏭 Applications

⚙️ Precision milling

🔧 Circular machining

🛠️ Indexing operations

🕳️ Bolt circle drilling

⚙️ Gear cutting

🔩 Arc and radius machining

📏 Angular machining

🏭 Tool room applications

🧰 Model engineering

🔧 CNC machining

🏗️ Metal fabrication

🚗 Automotive component manufacturing

📦 Package Includes

• 📦 1 × BlueFox Tools 3" (80mm) Horizontal & Vertical Rotary Table

🌟 Why Choose BlueFox Tools?

✔ Precision 36:1 Worm Gear Drive

✔ Horizontal & Vertical Mounting

✔ Accurate Angular Positioning

✔ Durable Heavy-Duty Construction

✔ Smooth Rotation

✔ Ideal for Professional Workshops

✔ Trusted by Machinists & Engineers
