🔧 BlueFox Tools 3" Horizontal & Vertical Rotary Table with 65mm 3 Jaw Self Centering Chuck

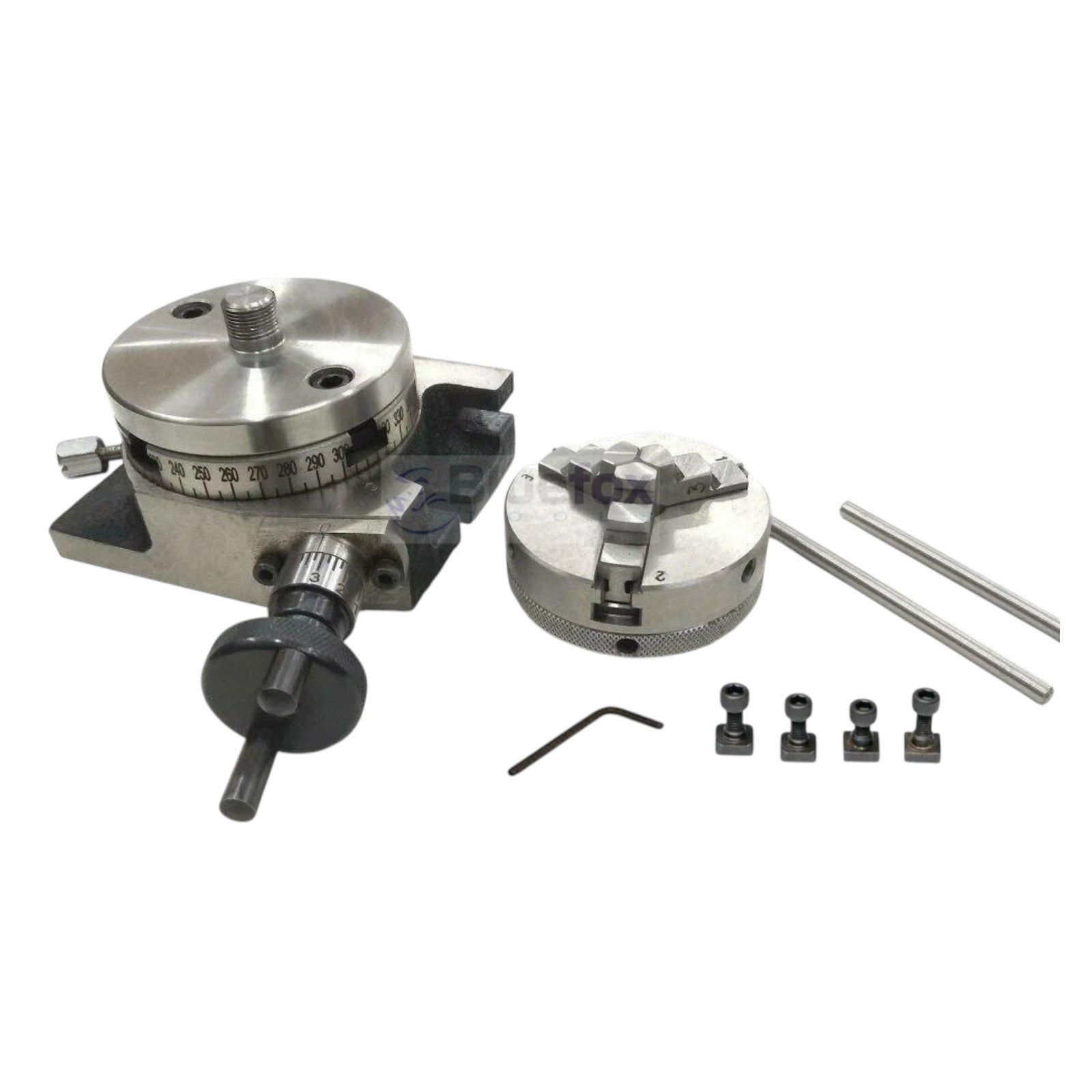

The BlueFox Tools 3" (75mm) Horizontal & Vertical Rotary Table Set is a precision workholding solution designed for milling, drilling, indexing, engraving, and machining applications. This complete package includes a 75mm rotary table, a 65mm 3-jaw self-centering chuck, a precision-machined backplate, and a complete mounting kit for fast installation.

The rotary table can be mounted in both horizontal and vertical positions, making it ideal for machining circular features, indexing operations, gear cutting, slotting, drilling bolt circles, and model engineering projects. The precision handwheel features 10° per revolution calibration with 1/4° graduations, while the table rim is graduated in 5° increments for accurate positioning.

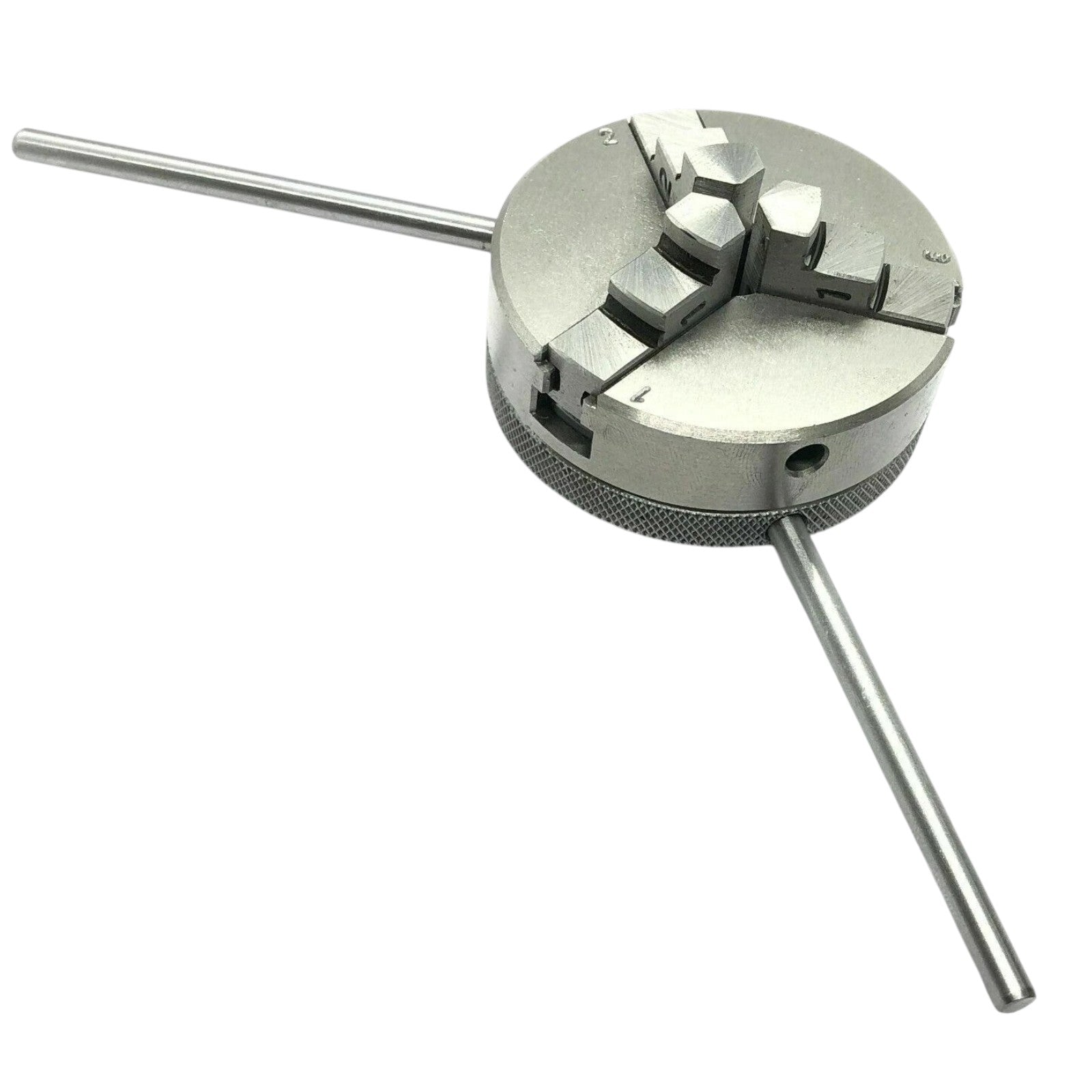

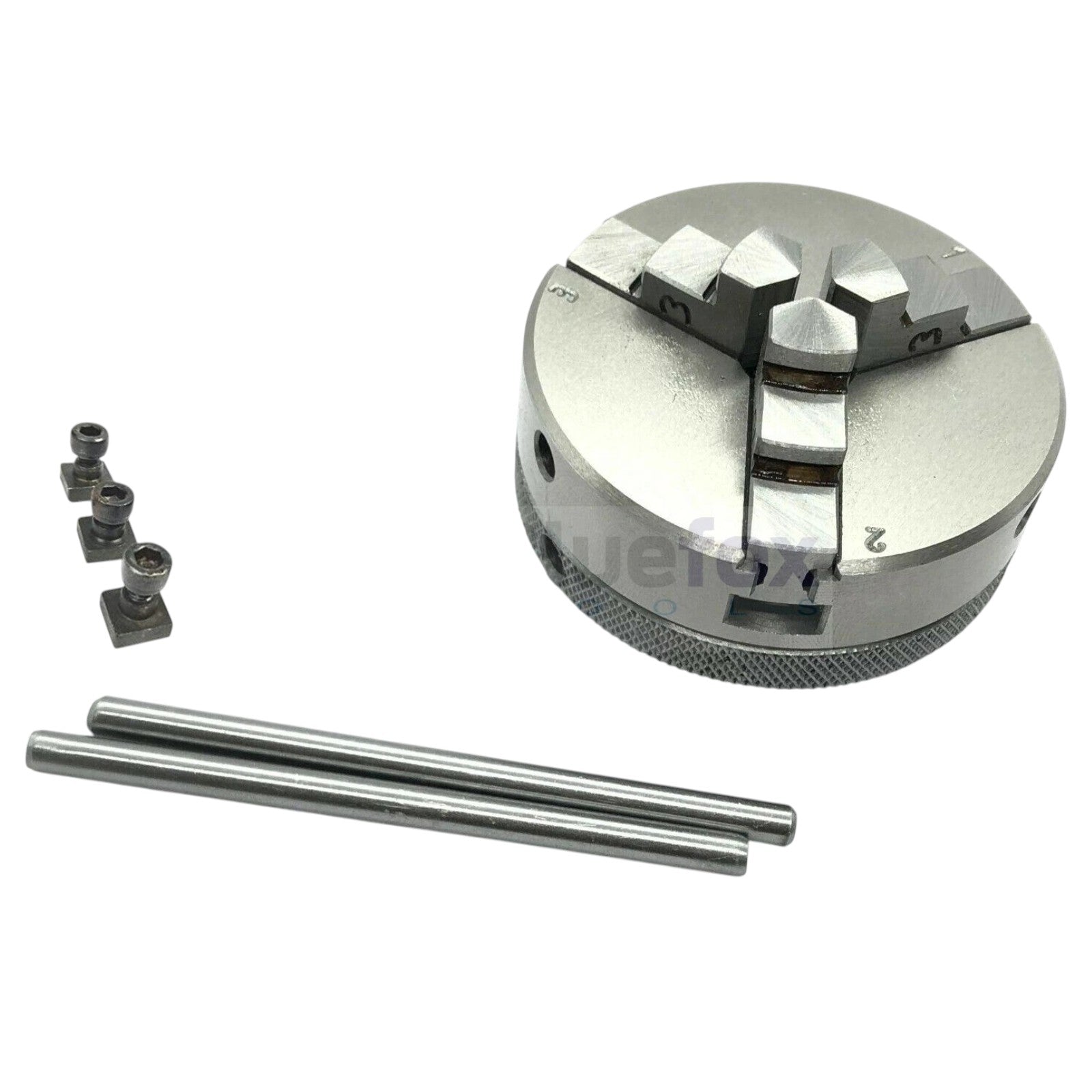

The included 65mm self-centering chuck features a 14 × 1mm threaded mount, hardened steel reversible jaws, and a contra-rotating rapid jaw adjustment mechanism for quick and secure workholding.

Manufactured to professional workshop standards, this set is perfect for milling machines, drill mills, CNC conversions, tool rooms, and precision engineering workshops.

✨ Key Features

✅ Complete Rotary Table Set – Includes rotary table, chuck, backplate, T-nuts, studs, handles, and chuck key.

✅ Horizontal & Vertical Operation – Easily mounts in either position for maximum versatility.

✅ 75mm (3") Precision Rotary Table – Ideal for milling, drilling, engraving, and indexing operations.

✅ 65mm 3 Jaw Self-Centering Chuck – Fast, accurate workholding with self-centering jaws.

✅ Precision Backplate Included – Drilled and counterbored to fit most 3" and 4" rotary tables with 4 slots.

✅ Fine Positioning Control – Handwheel calibrated to 10° per revolution with 1/4° graduations.

✅ Table Graduated in 5° Increments – Quick and accurate indexing.

✅ Heavy-Duty Construction – Built for durability, rigidity, and long service life.

📏 Specifications

Rotary Table

• 🔹 Brand: BlueFox Tools
• 🔹 Table Diameter: 3" (75mm)

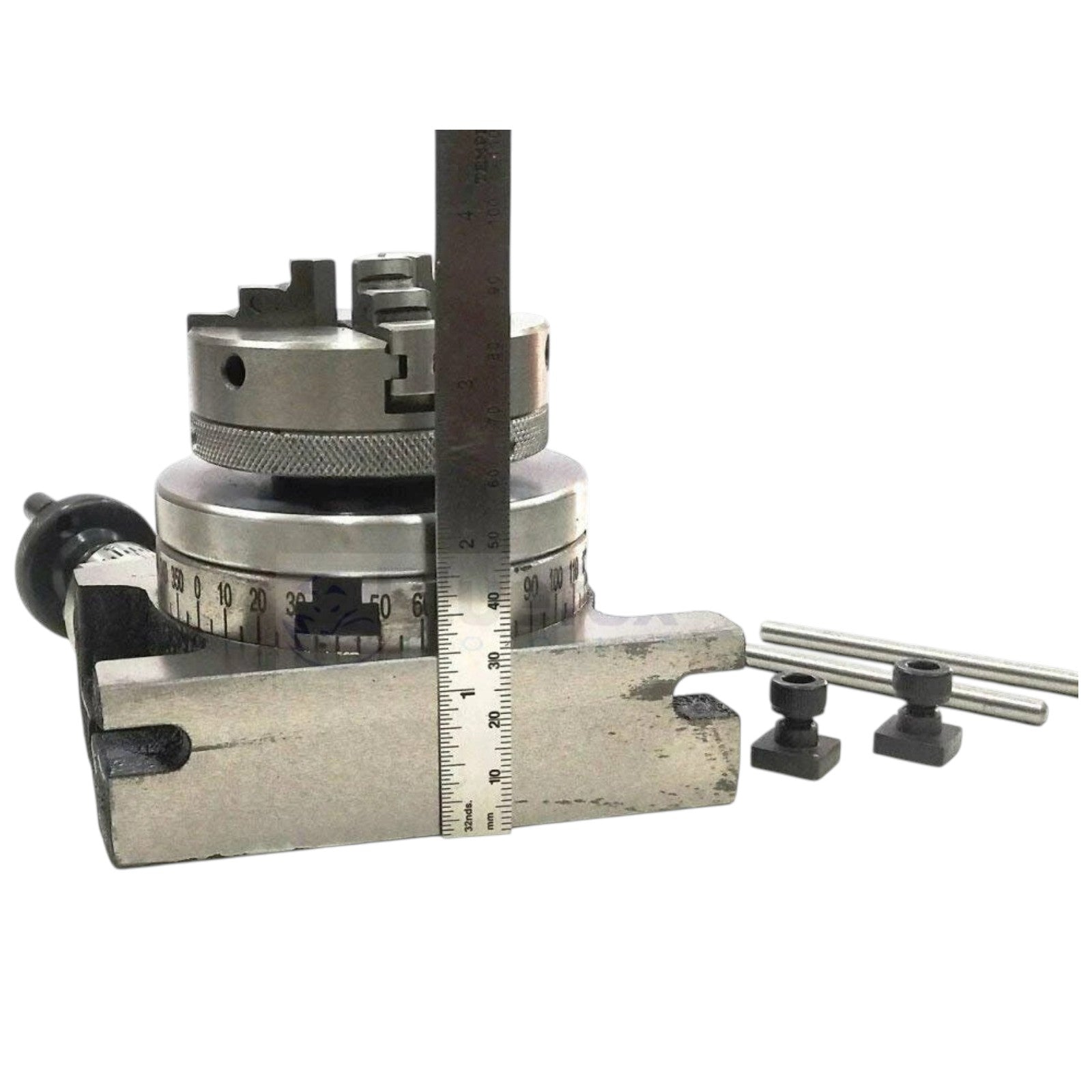

• 🔹 Table Height: 1-5/8" (Approx. 41mm)
• 🔹 Base Dimensions: 4-1/8" × 3-1/4"
• 🔹 Center Height (Vertical): 1-11/16"
• 🔹 T-Slot Width: 5/16"
• 🔹 Mounting Positions: Horizontal & Vertical
• 🔹 Table Graduation: 5° Increments
• 🔹 Handwheel Graduation: 10° Per Revolution with 1/4° Increments

Chuck

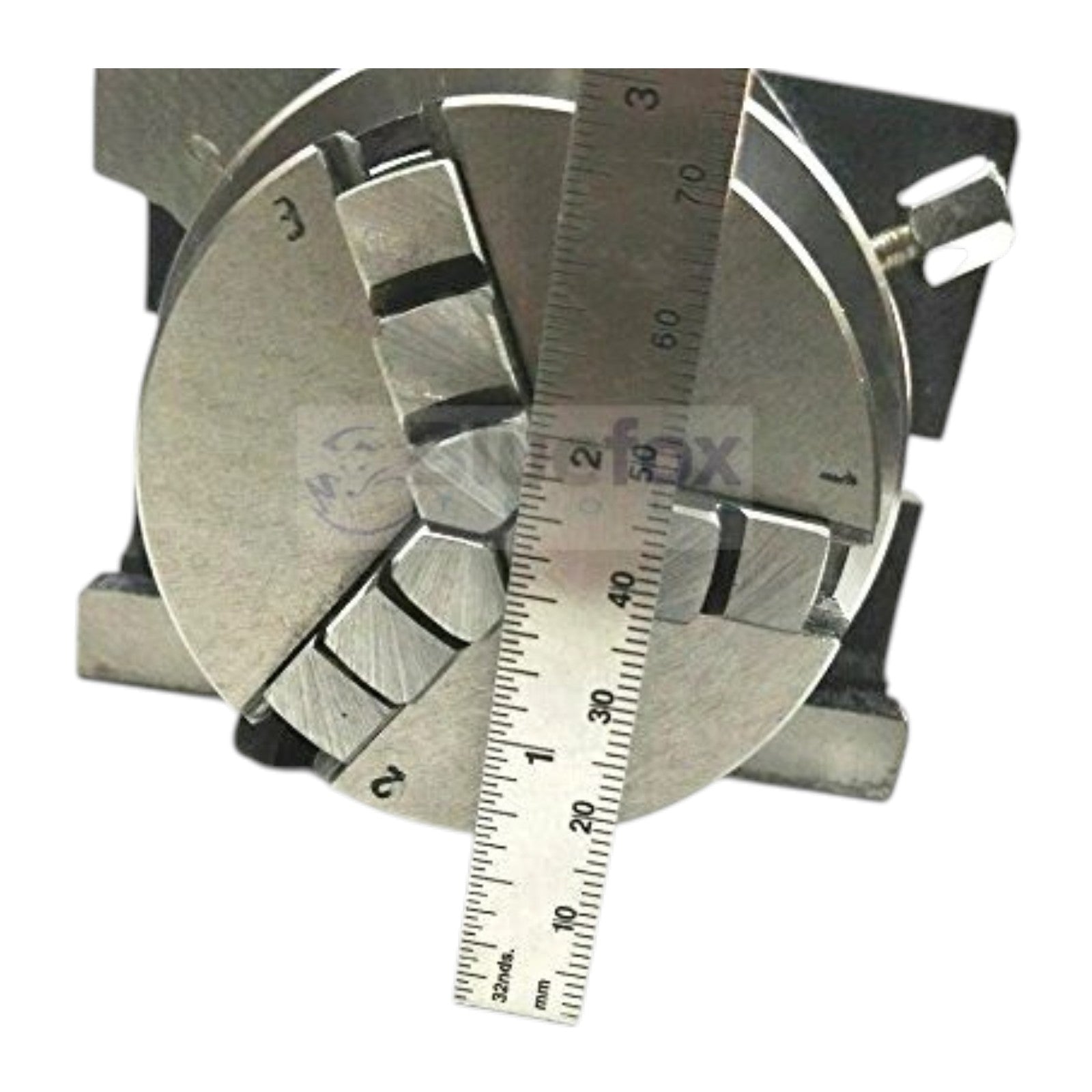

• 🔹 Chuck Diameter: 65mm
• 🔹 Type: 3 Jaw Self Centering
• 🔹 Thread: M14 × 1mm
• 🔹 Jaw Type: Hardened Reversible Jaws
• 🔹 Adjustment: Contra Rotating Rapid Jaw Mechanism

🏭 Applications

⚙️ Precision milling

🕳️ Circular machining

⚙️ Gear cutting

🔩 Bolt circle drilling

🛠️ Indexing operations

📐 Engraving work

🔧 Model engineering

🏭 Tool room machining

🚗 Automotive component machining

🏗️ Metal fabrication

🔬 General engineering

🧰 CNC milling projects

📦 Package Includes

• 📦 1 × 3" (75mm) Horizontal & Vertical Rotary Table
• 📦 1 × 65mm 3 Jaw Self Centering Chuck
• 📦 1 × Precision Backplate
• 📦 1 × Chuck Key
• 📦 Mounting T-Nuts & Stud Set
• 📦 2 × Operating Handles

🌟 Why Choose BlueFox Tools?

✔ High Precision Rotary Table

✔ Horizontal & Vertical Mounting

✔ Premium 65mm Self-Centering Chuck

✔ Precision Machined Backplate Included

✔ Smooth & Accurate Indexing

✔ Heavy-Duty Construction

✔ Professional Workshop Quality
