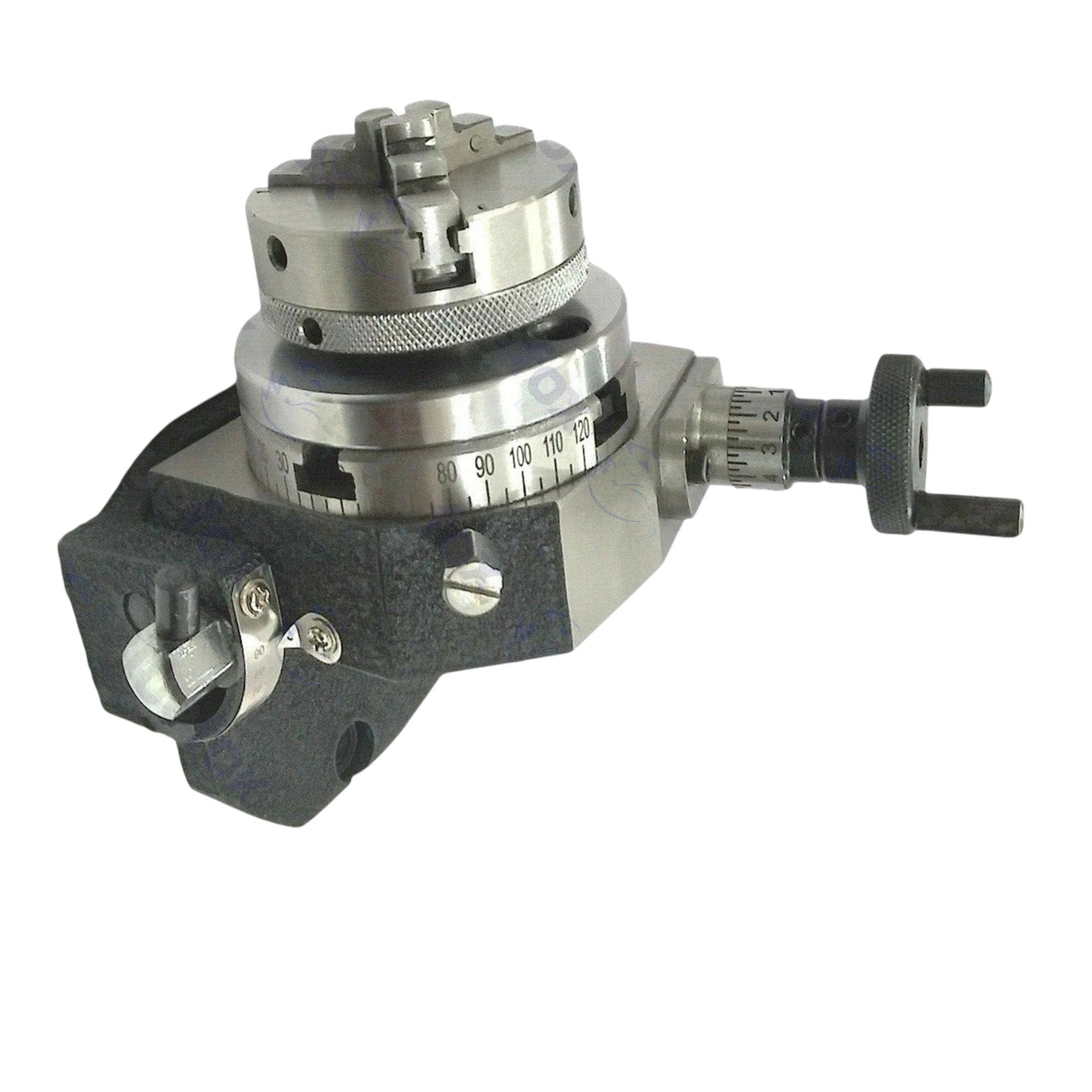

🔧 BlueFox Tools 3" Tilting Rotary Table with 65mm 3 Jaw Self Centering Chuck

The BlueFox Tools 3" (75mm) Tilting Rotary Table with 65mm 3 Jaw Self Centering Chuck is a compact, precision-engineered workholding solution designed for milling, drilling, indexing, engraving, and angular machining applications. Combining a 0–90° tilting rotary table with a 65mm slim-body self-centering chuck, this complete set provides outstanding flexibility and accuracy for professional machinists, model engineers, and workshop users.

The rotary table features a 36:1 worm gear ratio, 360° table graduation in 5° increments, and a positive locking mechanism that securely holds the table at any angle between 0° and 90°. The included 65mm 3-jaw chuck comes pre-mounted on a precision-machined backplate and fits most 3" and 4" rotary tables with 4 T-slots.

Manufactured for durability and smooth operation, this rotary table set is ideal for machining circular components, drilling bolt circles, gear cutting, slotting, and precision angular milling.

✨ Key Features

✅ Complete Rotary Table Set – Includes tilting rotary table, 65mm self-centering chuck, and precision backplate.

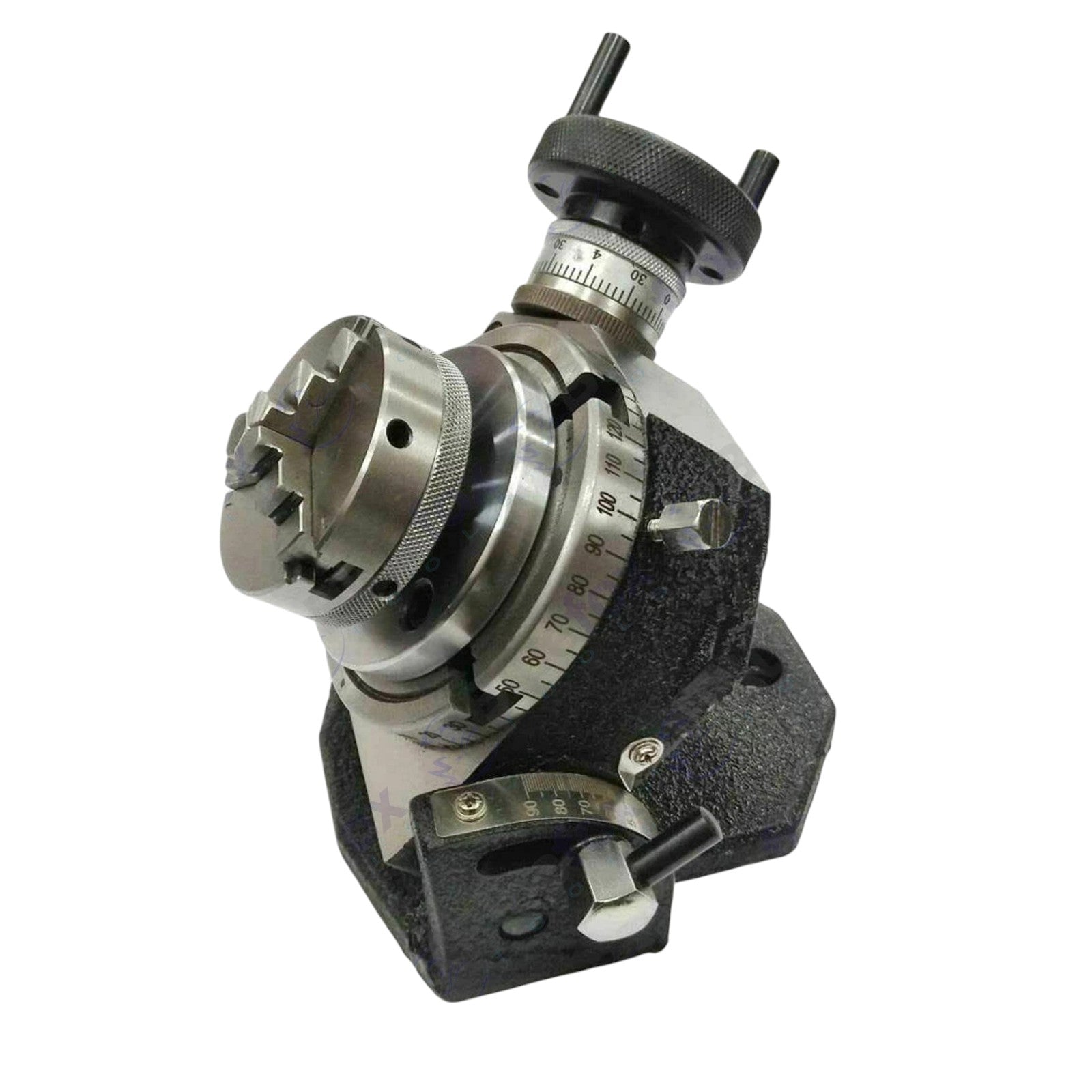

✅ Tilts from 0° to 90° – Lock securely at any angle for complex machining operations.

✅ 75mm (3") Precision Rotary Table – Compact design for milling, drilling, engraving, and indexing.

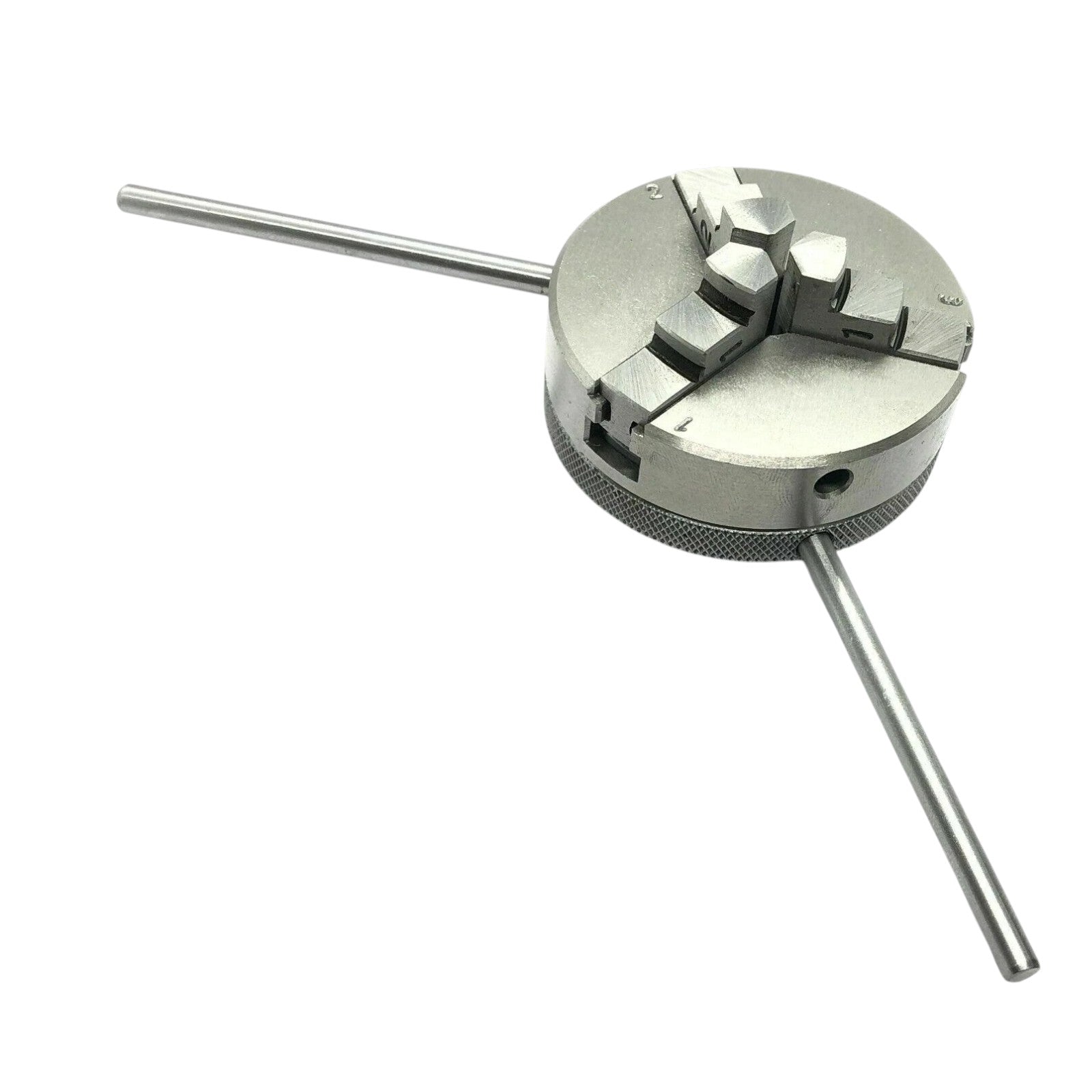

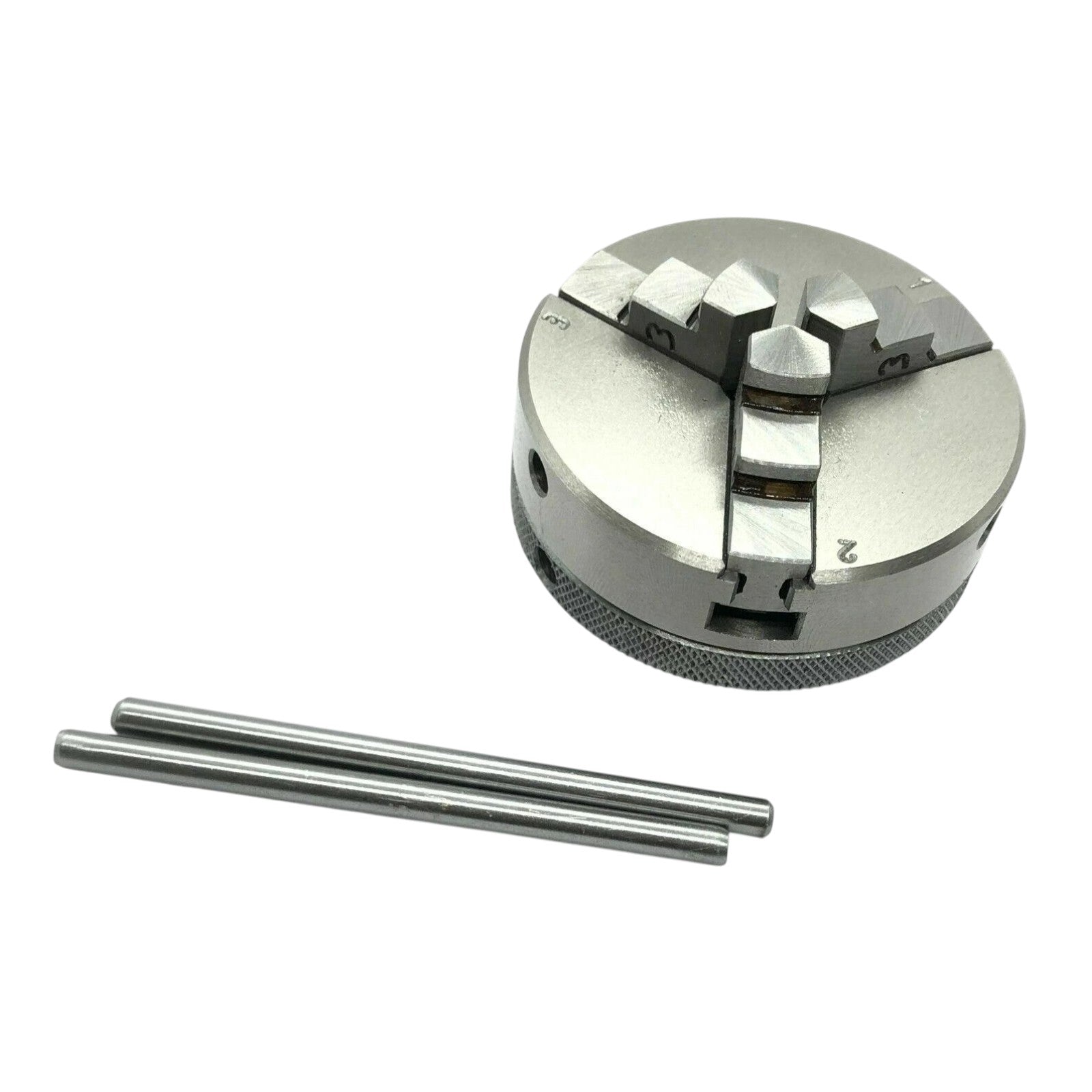

✅ 65mm Slim Body 3 Jaw Chuck – Self-centering design with hardened reversible jaws.

✅ 36:1 Worm Gear Drive – Smooth, accurate, and controlled table rotation.

✅ 360° Graduated Table – Marked in 5° divisions for precise positioning.

✅ Universal Backplate – Fits most 3" and 4" rotary tables with 4 T-slots.

✅ Heavy-Duty Construction – Built for long-lasting workshop performance.

📏 Specifications

Rotary Table

• 🔹 Brand: BlueFox Tools
• 🔹 Type: Tilting Rotary Table
• 🔹 Table Diameter: 3" (75mm)
• 🔹 Overall Height: 2-3/8" (60mm)
• 🔹 Tilt Range: 0°–90°
• 🔹 Gear Ratio: 36:1
• 🔹 Table Graduation: 0–360° in 5° divisions
• 🔹 T-Slot Width: 13mm

Chuck

• 🔹 Chuck Diameter: 65mm
• 🔹 Type: 3 Jaw Self Centering
• 🔹 Body Style: Slim Body
• 🔹 Thread: M14 × 1 (Unimat Standard)
• 🔹 Jaws: Hardened & Reversible
• 🔹 Overall Height (Base to Jaw Top): 50mm
• 🔹 Backplate: Slotted, fits most 3" & 4" rotary tables with 4 slots

🏭 Applications

⚙️ Angular milling

🕳️ Circular machining

🔩 Bolt circle drilling

⚙️ Gear cutting

🛠️ Indexing operations

📐 Precision machining

🔧 Model engineering

🏭 Tool room work

🚗 Automotive component machining

🏗️ Metal fabrication

🔬 General engineering

🧰 Milling machine projects

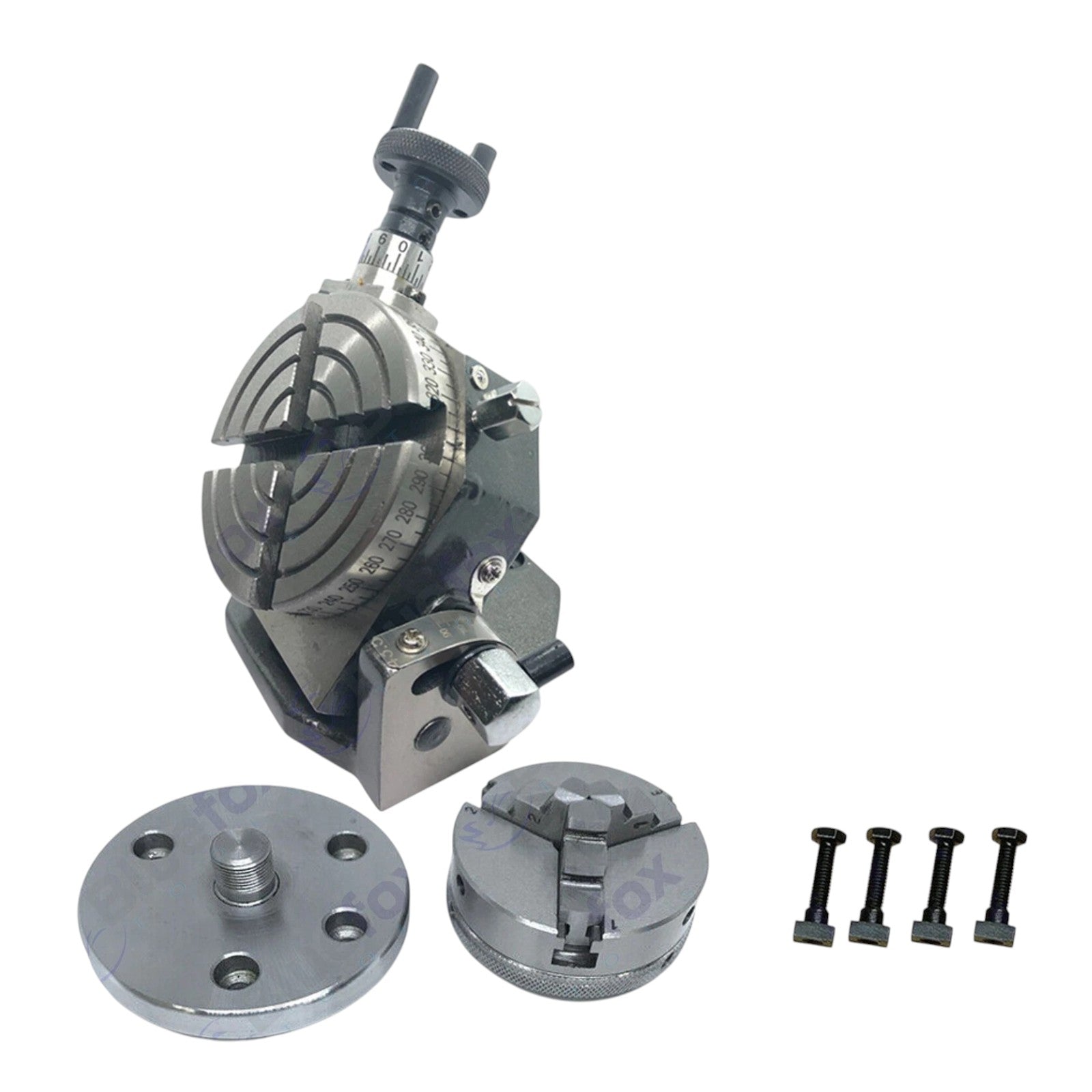

📦 Package Includes

• 📦 1 × 3" (75mm) Tilting Rotary Table
• 📦 1 × 65mm 3 Jaw Self Centering Chuck
• 📦 1 × Precision Slotted Backplate
• 📦 Adjusting Bars

🌟 Why Choose BlueFox Tools?

✔ Precision 0°–90° Tilting Design

✔ Smooth 36:1 Worm Gear Drive

✔ Premium 65mm Self-Centering Chuck

✔ Hardened Reversible Jaws

✔ Universal Precision Backplate

✔ Heavy-Duty Workshop Construction

✔ Trusted BlueFox Tools Quality
