🔧 BlueFox Tools 4" Tilting Rotary Table with 100mm 4 Jaw Independent Chuck & Backplate

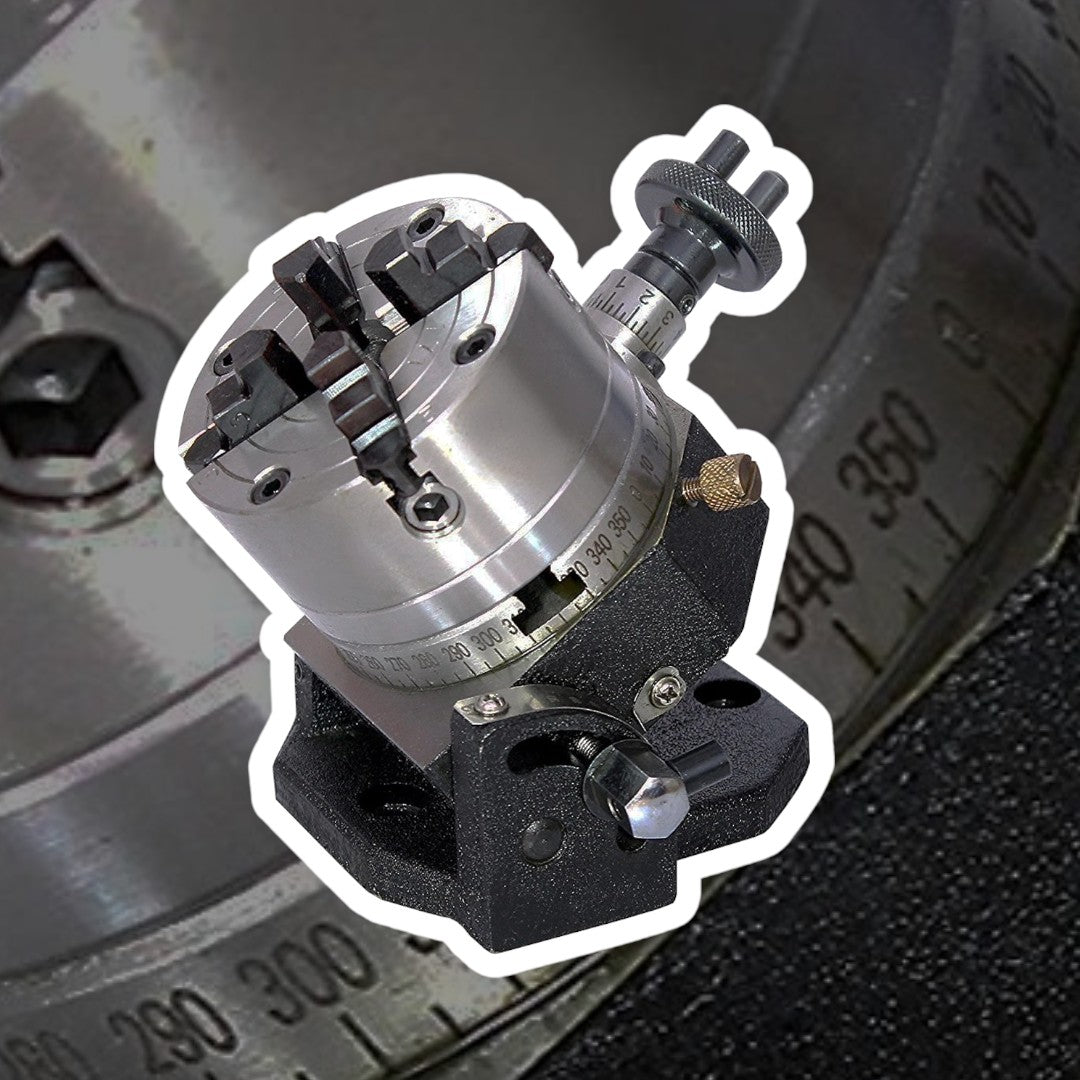

The BlueFox Tools 4" (100mm) Tilting Rotary Table with 100mm 4 Jaw Independent Chuck is a professional workholding solution designed for precision milling, drilling, indexing, slotting, gear cutting, and angular machining. This complete package includes a precision-machined mounting backplate, fixing T-nuts, and mounting screws, making it ready for installation on most milling machines.

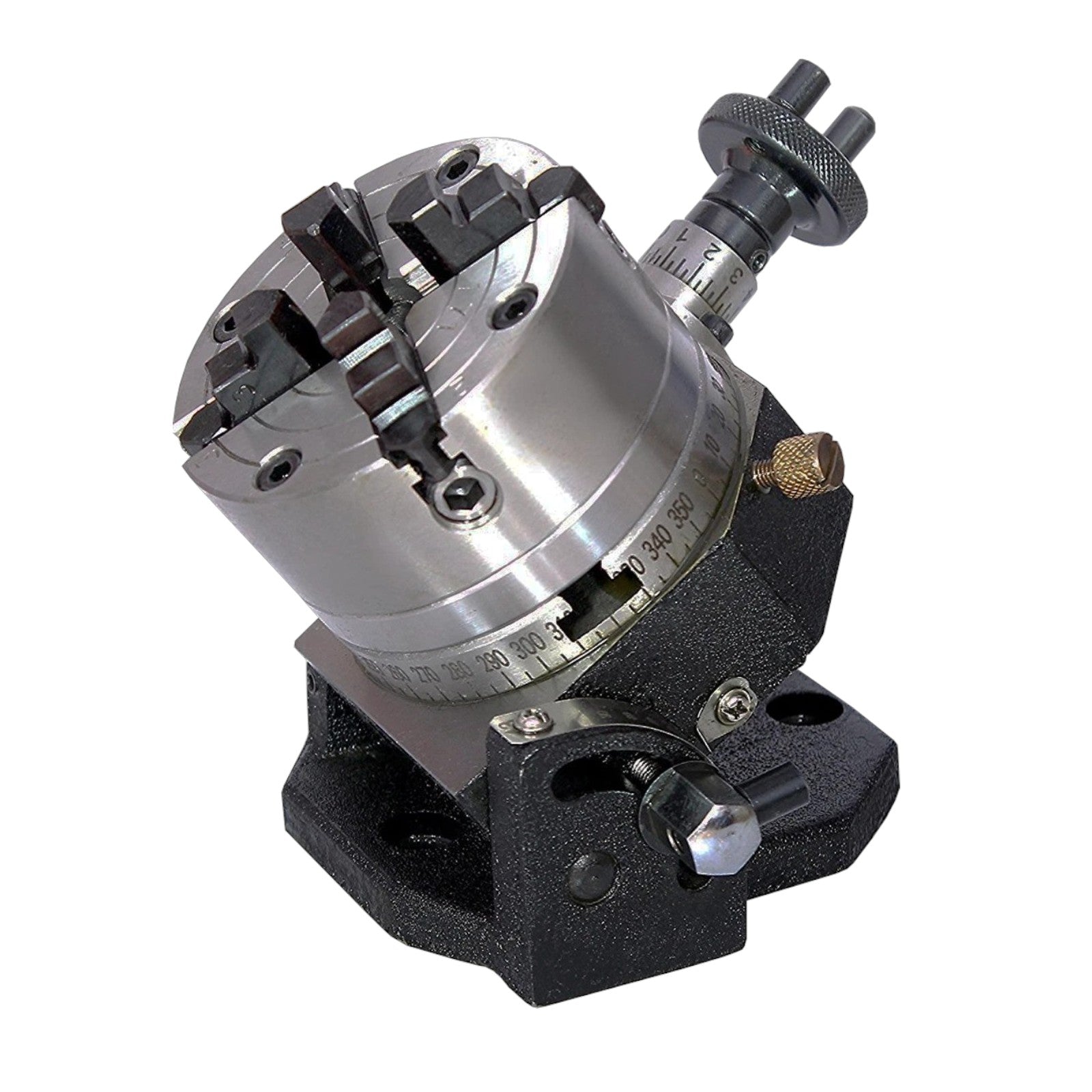

The rotary table features a tilting design that adjusts from 0° to 90°, allowing accurate machining at virtually any angle. The 36:1 precision worm gear drive provides smooth table rotation, while the 360° graduated table enables accurate angular positioning for demanding machining applications.

The supplied 100mm (4") 4 Jaw Independent Chuck is manufactured with a high-strength SG iron body and hardened, ground tool steel reversible jaws, allowing each jaw to be adjusted independently for securely holding round, square, rectangular, and irregular-shaped workpieces.

The precision-machined backplate is drilled to fit both 3-slot and 4-slot rotary tables, making it highly versatile and ensuring accurate alignment with minimal runout.

Ideal for engineering workshops, machine shops, tool rooms, model engineering, and precision metalworking.

✨ Key Features

✅ Complete Rotary Table Set – Includes rotary table, 4 jaw independent chuck, precision backplate, T-nuts, and mounting screws.

✅ Tilting Rotary Table – Tilts from 0° to 90° and locks securely at any angle.

✅ 100mm (4") Rotary Table – Compact and precise for milling, drilling, and indexing operations.

✅ 36:1 Precision Worm Gear Drive – Smooth rotation with excellent positioning accuracy.

✅ 360° Graduated Table – Precision engraved graduations for accurate indexing.

✅ 100mm 4 Jaw Independent Chuck – Each jaw adjusts independently for maximum versatility.

✅ SG Iron Chuck Body – Heavy-duty construction for strength and vibration resistance.

✅ Hardened & Ground Reversible Jaws – Long-lasting precision grip on a variety of workpiece shapes.

✅ Precision Backplate Included – Machined locating recess ensures accurate chuck mounting with minimal play.

✅ Universal Compatibility – Backplate fits both 3-slot and 4-slot rotary tables.

📏 Specifications

Rotary Table

• 🔹 Brand: BlueFox Tools
• 🔹 Product Type: Tilting Rotary Table
• 🔹 Table Diameter: 4" (100mm)
• 🔹 Table Height (Flat Position): 66mm
• 🔹 Tilt Range: 0°–90°
• 🔹 Table Graduation: 360°
• 🔹 Gear Ratio: 36:1
• 🔹 Number of T-Slots: 4
• 🔹 Base Size: 145 × 126mm
• 🔹 Mounting Hole Diameter: 10mm
• 🔹 Mounting Hole Spacing: 110mm

4 Jaw Independent Chuck

• 🔹 Chuck Diameter: 100mm (4")
• 🔹 Chuck Type: 4 Jaw Independent
• 🔹 Mounting Thread: M14 × 1
• 🔹 Body Material: SG Iron
• 🔹 Jaw Material: Hardened & Ground Tool Steel
• 🔹 Jaws: Fully Reversible

Backplate

• 🔹 Precision-machined locating recess
• 🔹 Fits both 3-slot and 4-slot rotary tables
• 🔹 Includes T-nuts and mounting screws

🏭 Applications

⚙️ Precision milling

🕳️ Circular drilling

🦷 Gear cutting

📐 Angular machining

🔩 Machining irregular workpieces

🛠️ Indexing operations

🏭 Tool room machining

🔧 Engineering workshops

🧰 Model engineering

🚗 Automotive component machining

🏗️ General fabrication

⚙️ Prototype manufacturing

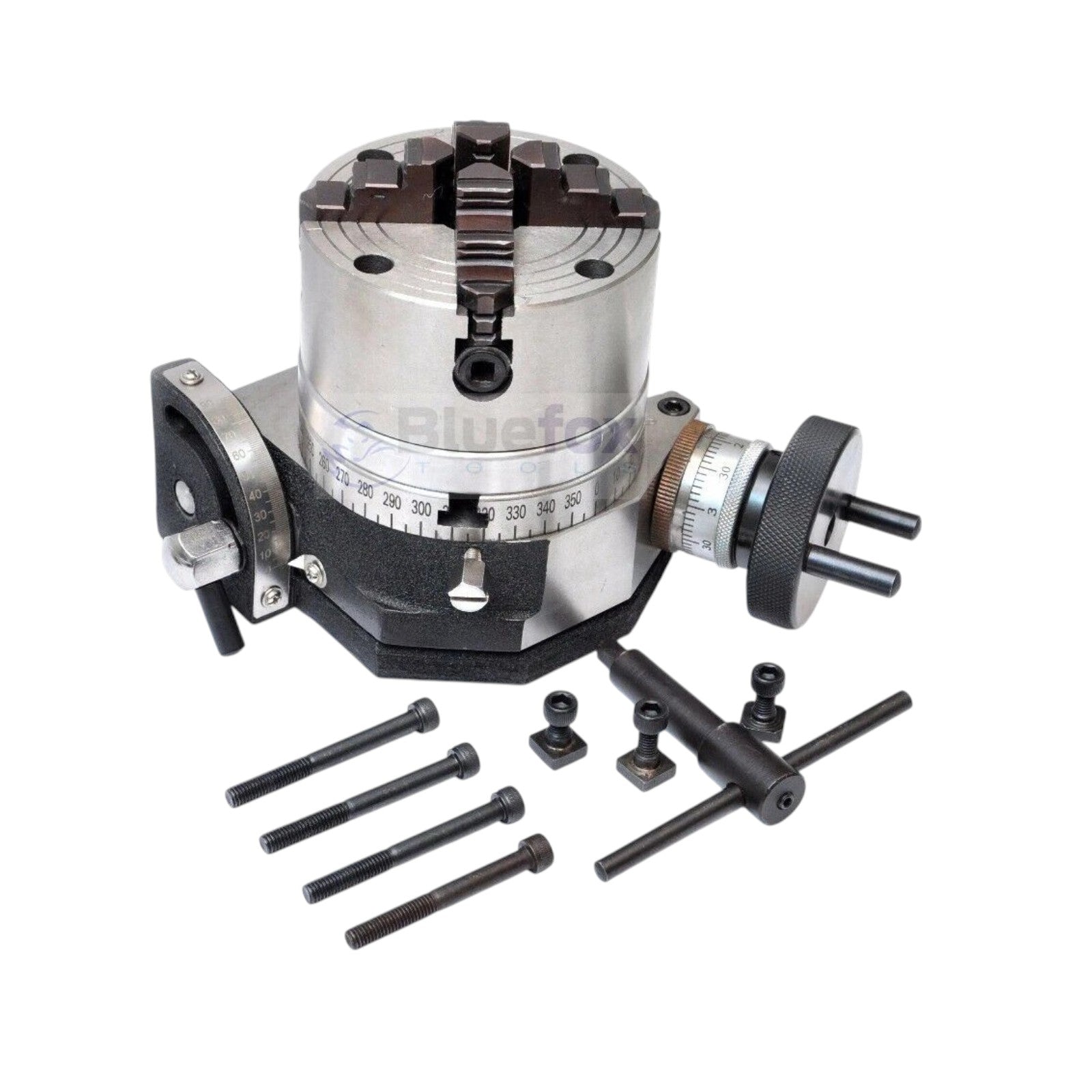

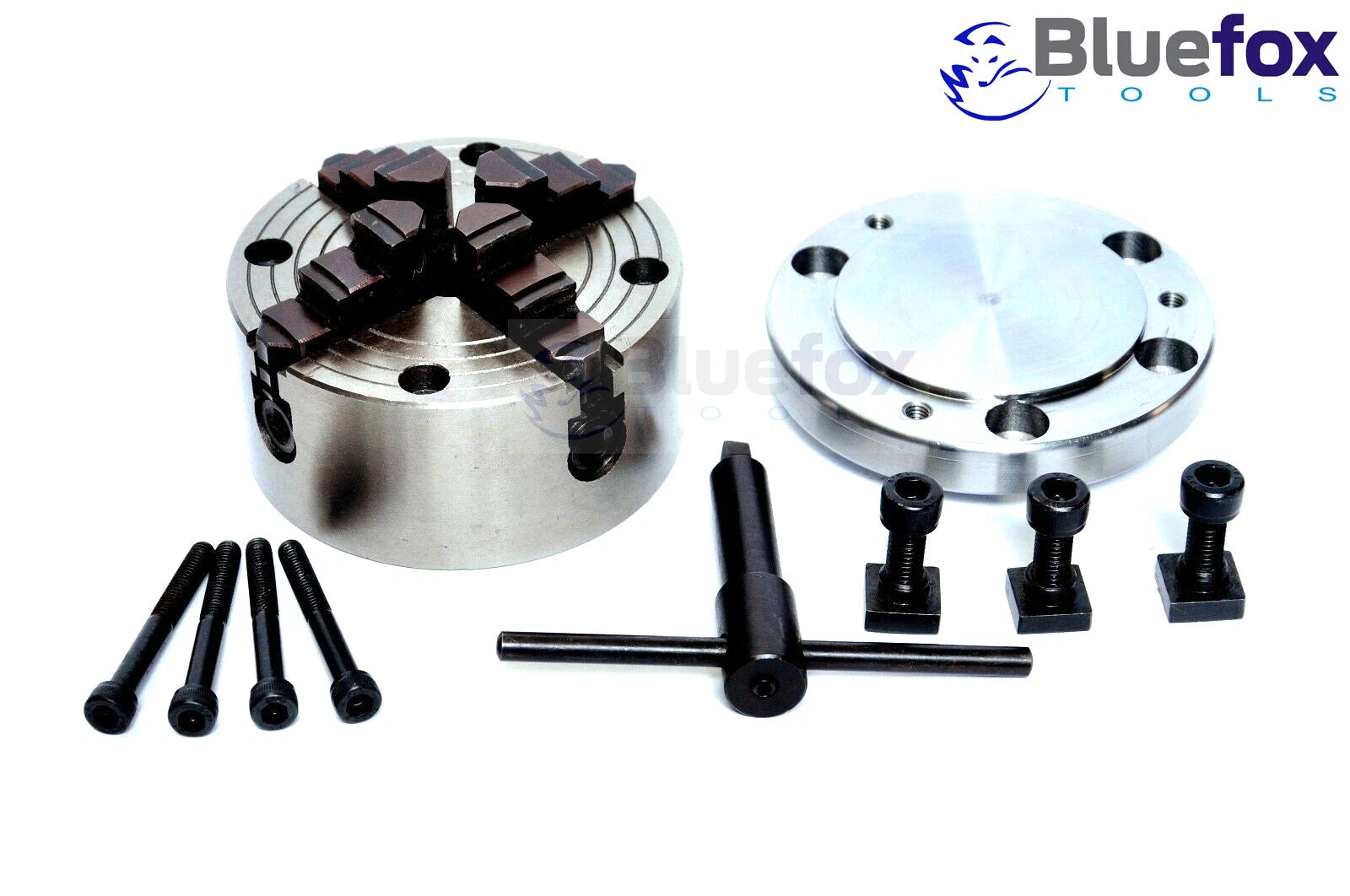

📦 Package Includes

• 📦 1 × 4" (100mm) Tilting Rotary Table
• 📦 1 × 100mm 4 Jaw Independent Chuck
• 📦 1 × Precision Mounting Backplate
• 📦 Mounting T-Nuts
• 📦 Fixing Screws

🌟 Why Choose BlueFox Tools?

✔ Tilting 0°–90° Design

✔ Precision 36:1 Worm Gear Drive

✔ Heavy-Duty SG Iron Chuck

✔ Independent Reversible Jaws

✔ Precision-Machined Backplate

✔ Fits 3 & 4 Slot Rotary Tables

✔ Professional Workshop Quality
