🔧 BlueFox Tools 6" Precision Horizontal & Vertical Rotary Table with Dividing Plate Set

Take your milling and indexing operations to the next level with the BlueFox Tools 6" (150mm) Precision Horizontal & Vertical Rotary Table, supplied complete with a 3-piece dividing/indexing plate set. Designed for precision machining, gear cutting, drilling, circular milling, and bolt circle operations, this rotary table delivers exceptional accuracy, rigidity, and smooth operation for professional workshops and serious hobbyists.

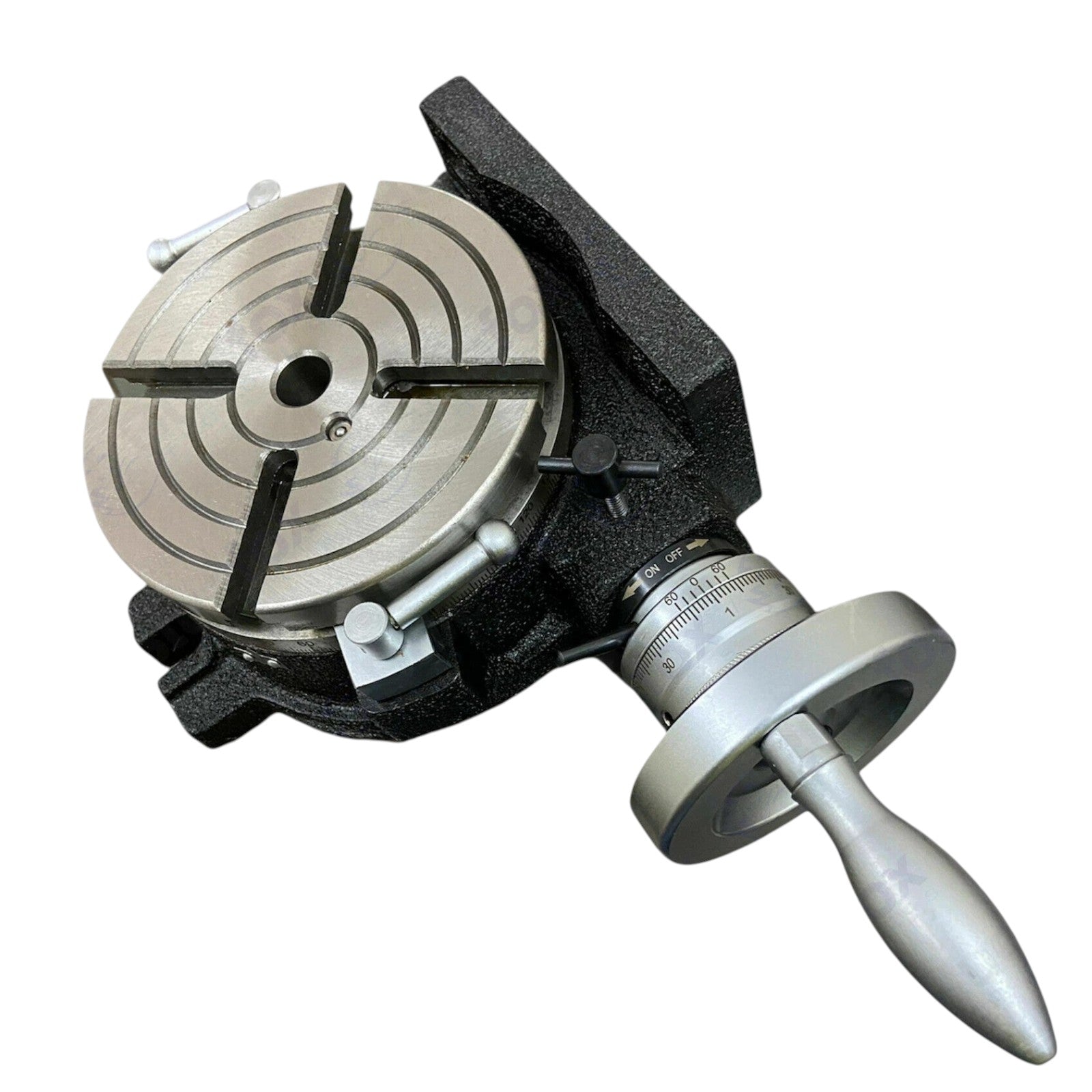

The rotary table features a 90:1 precision worm gear drive, allowing one complete revolution of the handwheel to rotate the table by 4°. The gear drive runs in an oil bath for smoother movement, reduced wear, and extended service life. A 10-second vernier scale, satin chrome graduated dials, and dual positive action locks ensure highly accurate positioning and repeatable machining.

Manufactured from high-grade seasoned cast iron with a durable powder-coated wrinkle finish, this low-profile rotary table includes a 2 Morse Taper (MT2) centre bore, 4 precision T-slots, and can be mounted horizontally or vertically for maximum versatility.

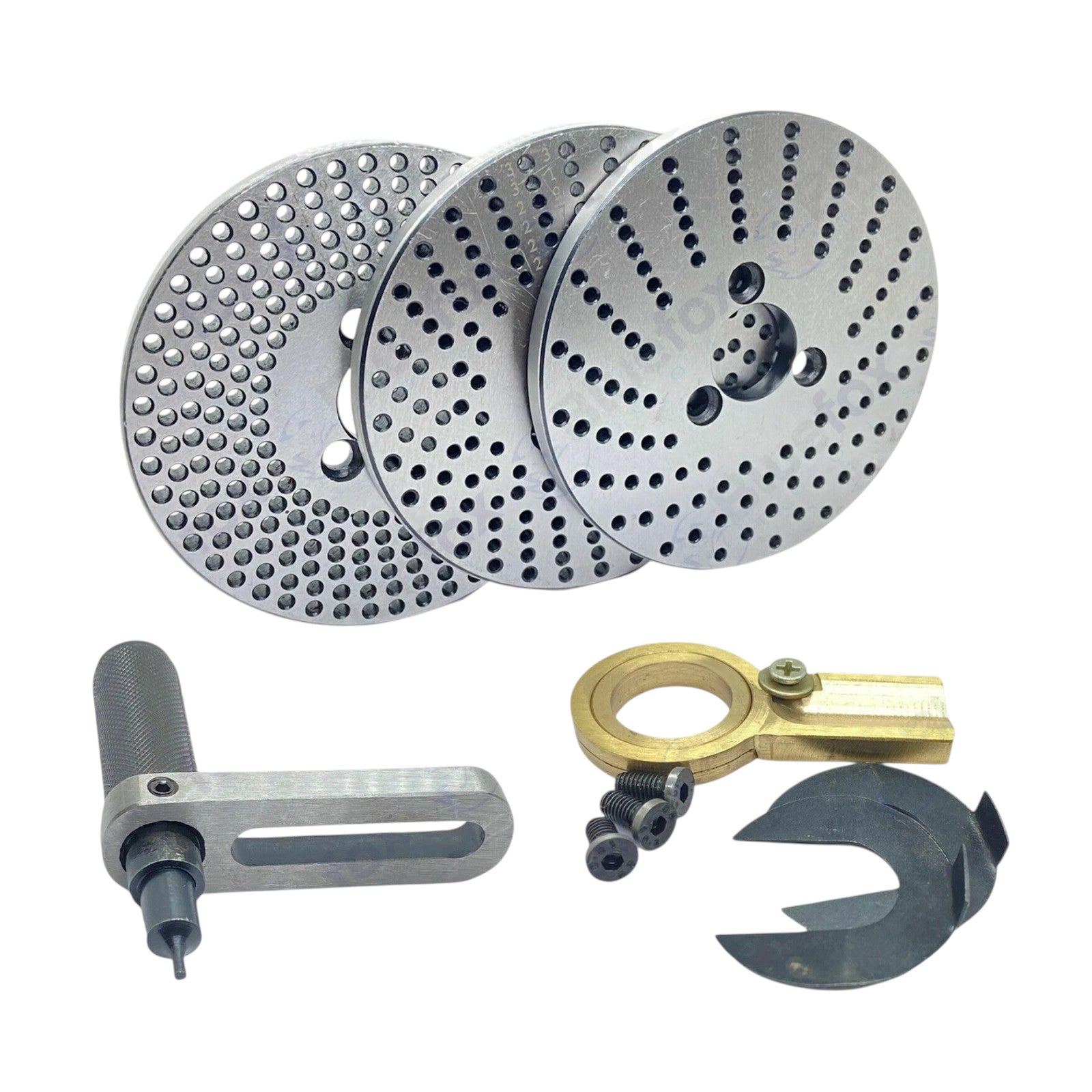

The included 3-piece dividing plate set provides multiple hole circles for accurate indexing during gear cutting, bolt-circle drilling, and precision machining applications.

✨ Key Features

✅ Complete Rotary Table & Dividing Plate Set – Includes 6" rotary table and 3 precision indexing plates.

✅ Horizontal & Vertical Operation – Mounts in either position for versatile machining.

✅ 90:1 Precision Worm Gear Drive – One handwheel revolution rotates the table by 4° for precise indexing.

✅ Oil-Bath Gear Drive – Gear mechanism runs immersed in oil for smooth operation and long service life.

✅ 10-Second Vernier Reading – High-precision angular positioning for demanding machining tasks.

✅ Low Profile Design – Provides greater rigidity and improved machine clearance.

✅ MT2 Centre Bore – Compatible with Morse Taper No.2 tooling and accessories.

✅ 4 Precision T-Slots – Secure workpieces, chucks, fixtures, and clamping kits with confidence.

✅ Satin Chrome Dials – Easy-to-read graduated scales for precise adjustments.

✅ Dual Positive Action Locks – Securely lock the table during machining operations.

📏 Specifications

Rotary Table

• 🔹 Brand: BlueFox Tools
• 🔹 Table Diameter: 6" (150mm)
• 🔹 Operation: Horizontal & Vertical
• 🔹 Gear Ratio: 90:1
• 🔹 Table Movement: 4° per Handwheel Revolution
• 🔹 Centre Bore: Morse Taper No.2 (MT2)
• 🔹 T-Slot Width: 16mm
• 🔹 Number of T-Slots: 4
• 🔹 Vernier Reading: 10 Seconds
• 🔹 Dial Finish: Satin Chrome
• 🔹 Gear Lubrication: Oil Bath
• 🔹 Construction: High-Grade Seasoned Cast Iron
• 🔹 Finish: Powder-Coated Wrinkle Finish

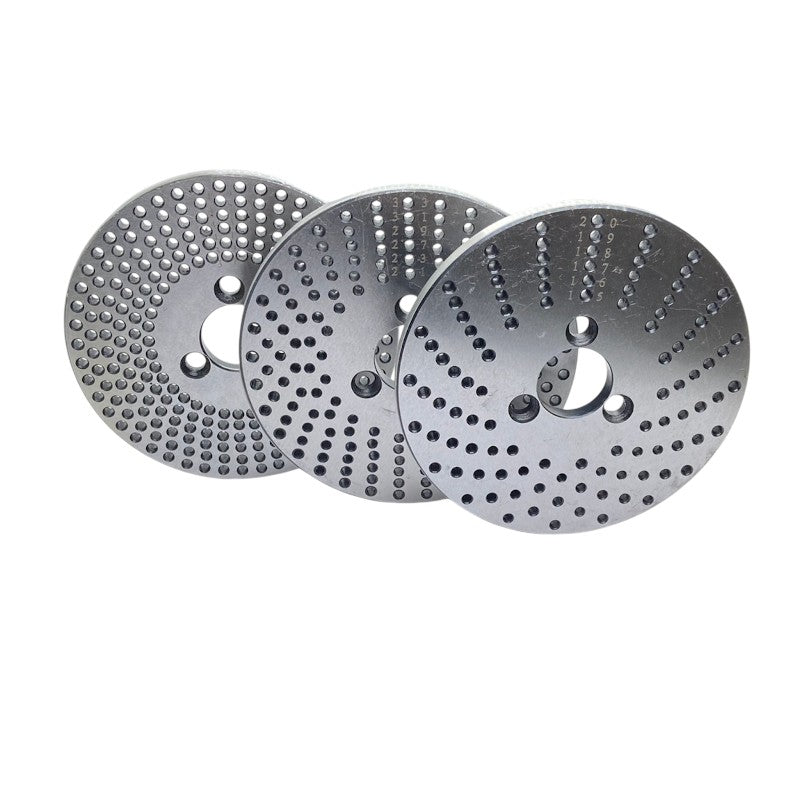

Dividing Plate Set

• 🔹 Quantity: 3 Plates

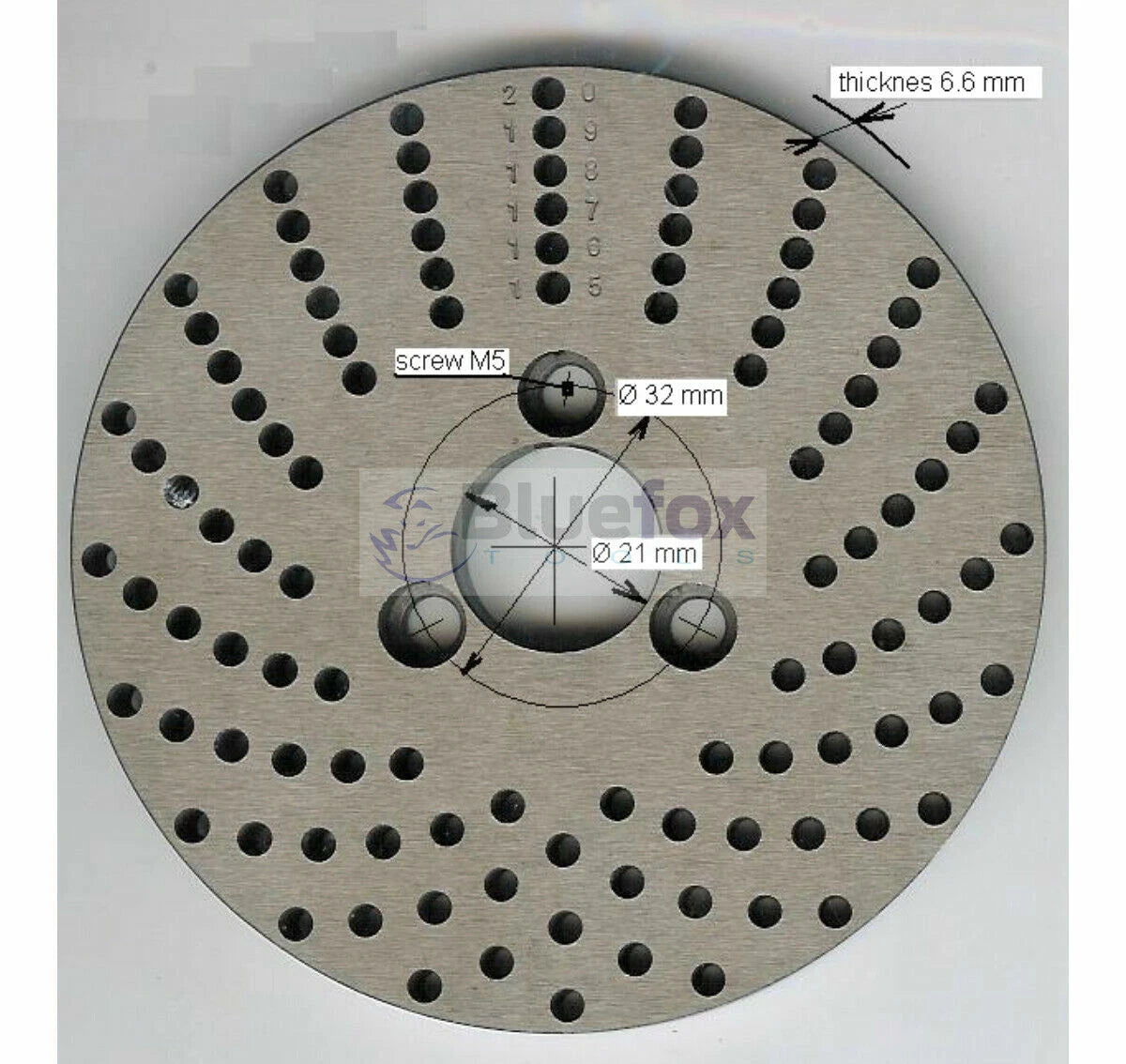

Plate A

• 15, 16, 17, 18, 19, 20 Holes

Plate B

• 21, 23, 27, 29, 31, 33 Holes

Plate C

• 37, 39, 41, 43, 47, 49 Holes

🏭 Applications

⚙️ Precision milling

🦷 Gear cutting

🕳️ Bolt circle drilling

📐 Precision indexing

🔩 Circular machining

🏭 Tool room operations

🛠️ Engineering workshops

🧰 Model engineering

🚗 Automotive component machining

🏗️ Fixture manufacturing

🔧 Prototype machining

⚙️ General milling operations

📦 Package Includes

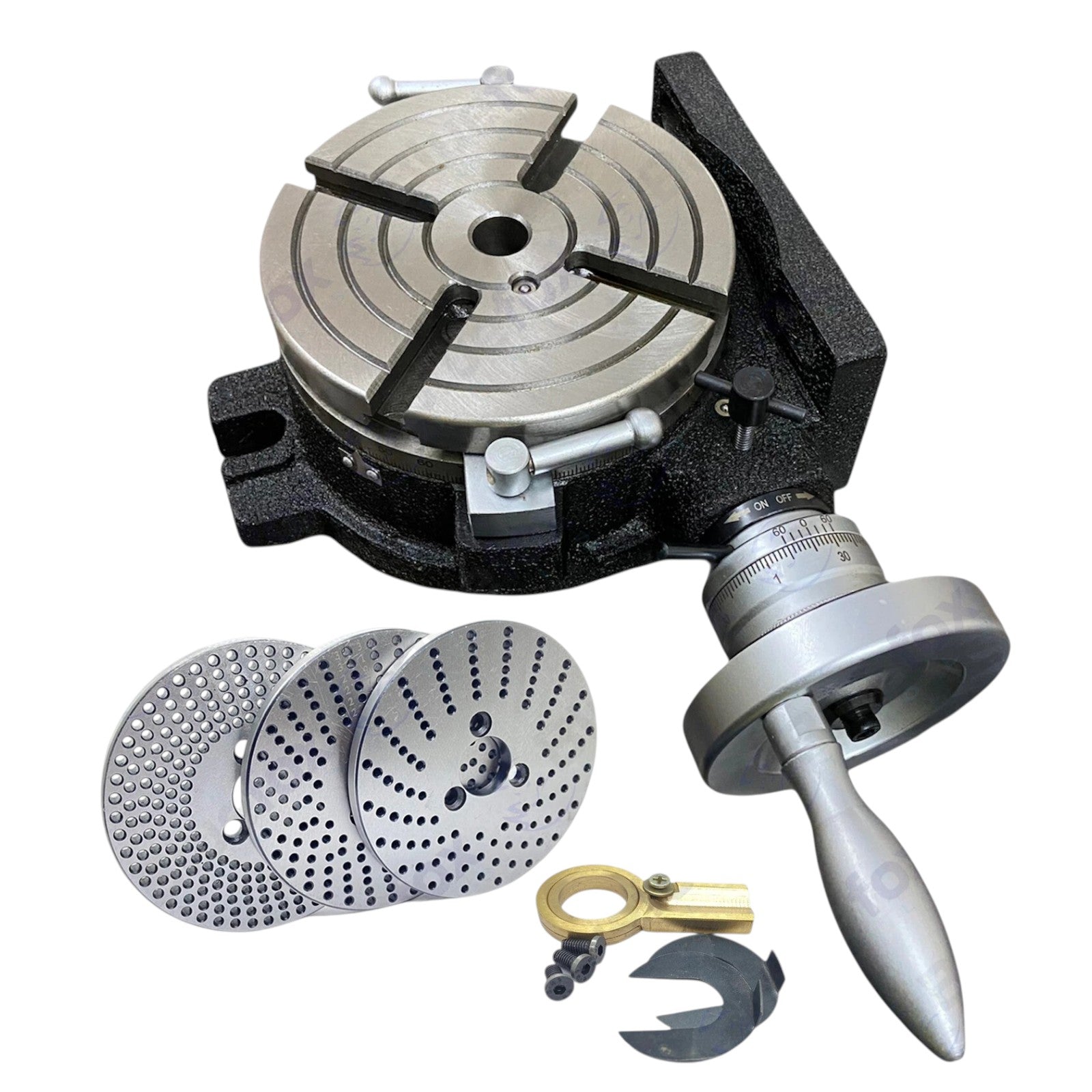

• 📦 1 × 6" (150mm) Horizontal & Vertical Rotary Table
• 📦 3 × Precision Dividing Plates
• 📦 Mounting Screws
• 📦 Washers
• 📦 Handles

🌟 Why Choose BlueFox Tools?

✔ Precision 90:1 Worm Gear Drive

✔ Oil-Bath Lubricated Gear System

✔ High Accuracy 10-Second Vernier

✔ MT2 Centre Bore

✔ Horizontal & Vertical Mounting

✔ Complete Dividing Plate Set Included

✔ Professional Workshop Performance
