🔧 BlueFox Tools HV4 Horizontal & Vertical Rotary Table with Dividing Plate Set

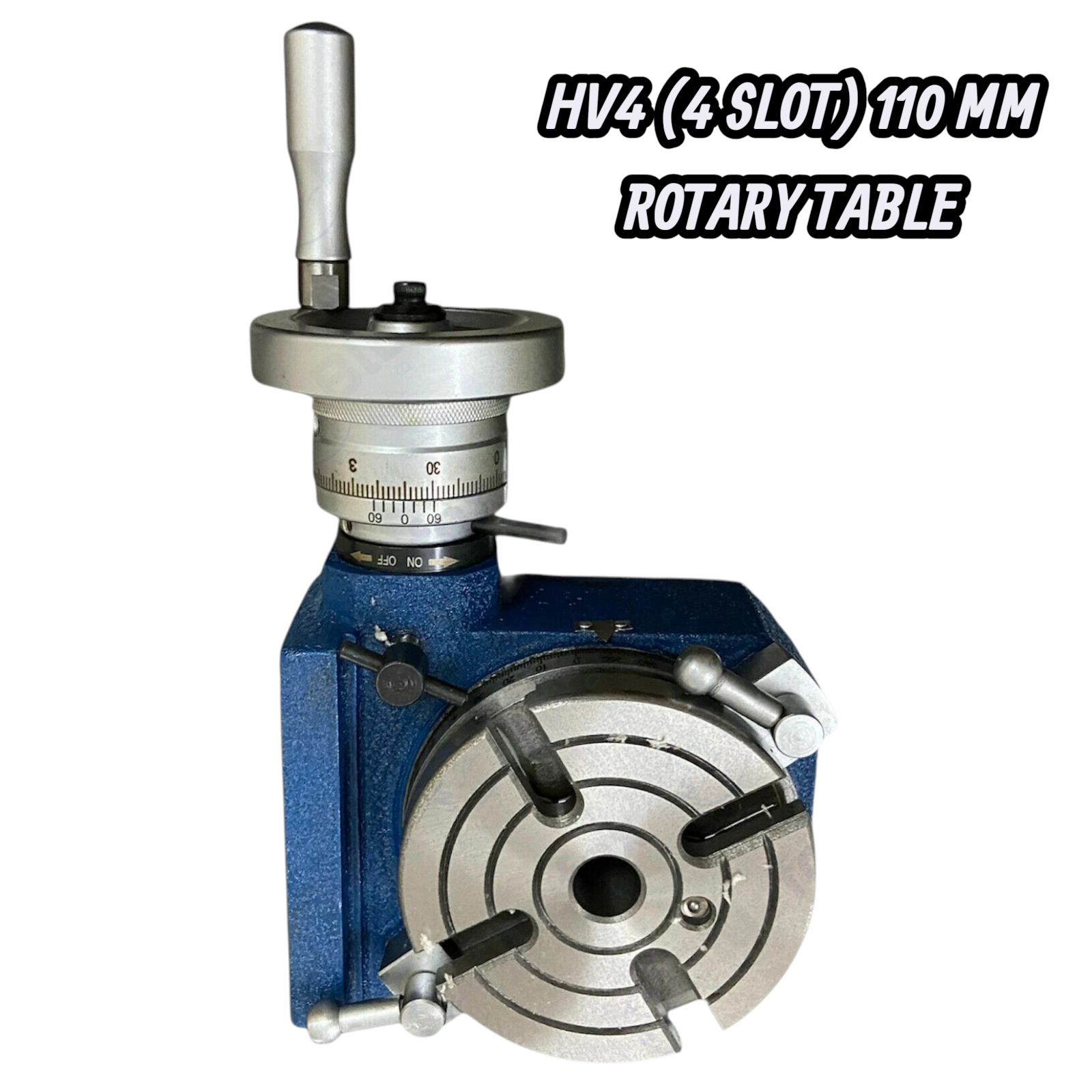

Upgrade your milling machine with the BlueFox Tools HV4 Horizontal & Vertical Rotary Table, a precision-engineered 110mm (4") rotary table supplied complete with a 3-piece indexing/dividing plate set. Designed for accurate angular positioning, indexing, gear cutting, drilling, milling, and machining operations, this rotary table is ideal for professional machine shops, tool rooms, and model engineering.

Manufactured for smooth and accurate performance, the HV4 features a precision 90:1 worm gear drive, 2 Morse Taper (MT2) centre bore, 4 T-slots, and a quick-release indexing mechanism for efficient operation. The handwheel rotates smoothly and is equipped with a precision vernier scale calibrated to 10-second increments, allowing highly accurate positioning.

The included 3-piece dividing plate set provides multiple indexing hole circles for precise gear cutting, bolt-circle drilling, and equally spaced machining operations. Complete with mounting screws, washers, and handles, this set transforms the HV4 rotary table into a versatile indexing solution.

Whether you're machining gears, flanges, circular components, or precision engineering parts, the BlueFox Tools HV4 Rotary Table delivers exceptional accuracy, rigidity, and reliability.

✨ Key Features

✅ Complete Rotary Table & Dividing Plate Set – Includes HV4 rotary table and 3 precision indexing plates.

✅ 110mm (4") Rotary Table – Compact yet robust design for precision milling operations.

✅ Horizontal & Vertical Operation – Can be mounted in either position for maximum versatility.

✅ Precision 90:1 Worm Gear Drive – Provides smooth, controlled, and accurate table rotation.

✅ MT2 Centre Bore – Morse Taper No.2 centre for versatile tooling compatibility.

✅ 4 Precision T-Slots – Securely clamps workpieces and fixtures.

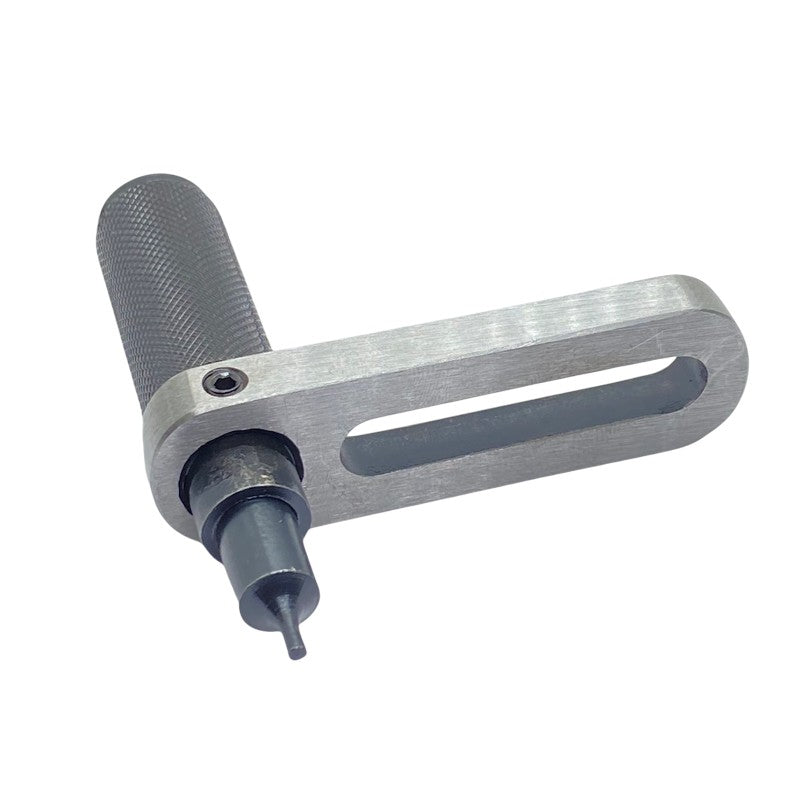

✅ Quick-Release Indexing System – Allows fast manual indexing during machining.

✅ Vernier Scale Graduated to 10 Seconds – Enables precise angular positioning.

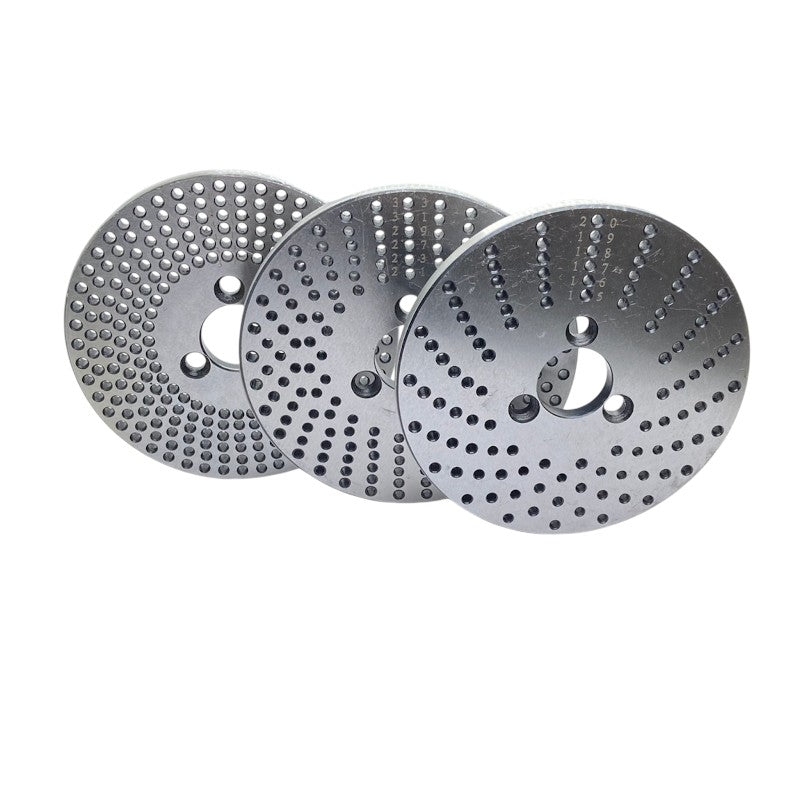

✅ Three Precision Dividing Plates Included – Multiple indexing hole circles for accurate dividing operations.

✅ Professional Workshop Quality – Ideal for milling, drilling, gear cutting, indexing, and precision engineering.

📏 Specifications

Rotary Table

• 🔹 Brand: BlueFox Tools
• 🔹 Model: HV4
• 🔹 Table Diameter: 110mm (4")
• 🔹 Table Height: 80mm
• 🔹 Centre Height: 80mm
• 🔹 Centre Bore: Morse Taper No.2 (MT2)
• 🔹 Worm Gear Ratio: 90:1
• 🔹 T-Slots: 4
• 🔹 Vernier Scale: Calibrated to 10 Seconds
• 🔹 Operation: Horizontal & Vertical
• 🔹 Indexing: Quick Release Manual Indexing

Dividing Plate Set

• 🔹 Number of Plates: 3

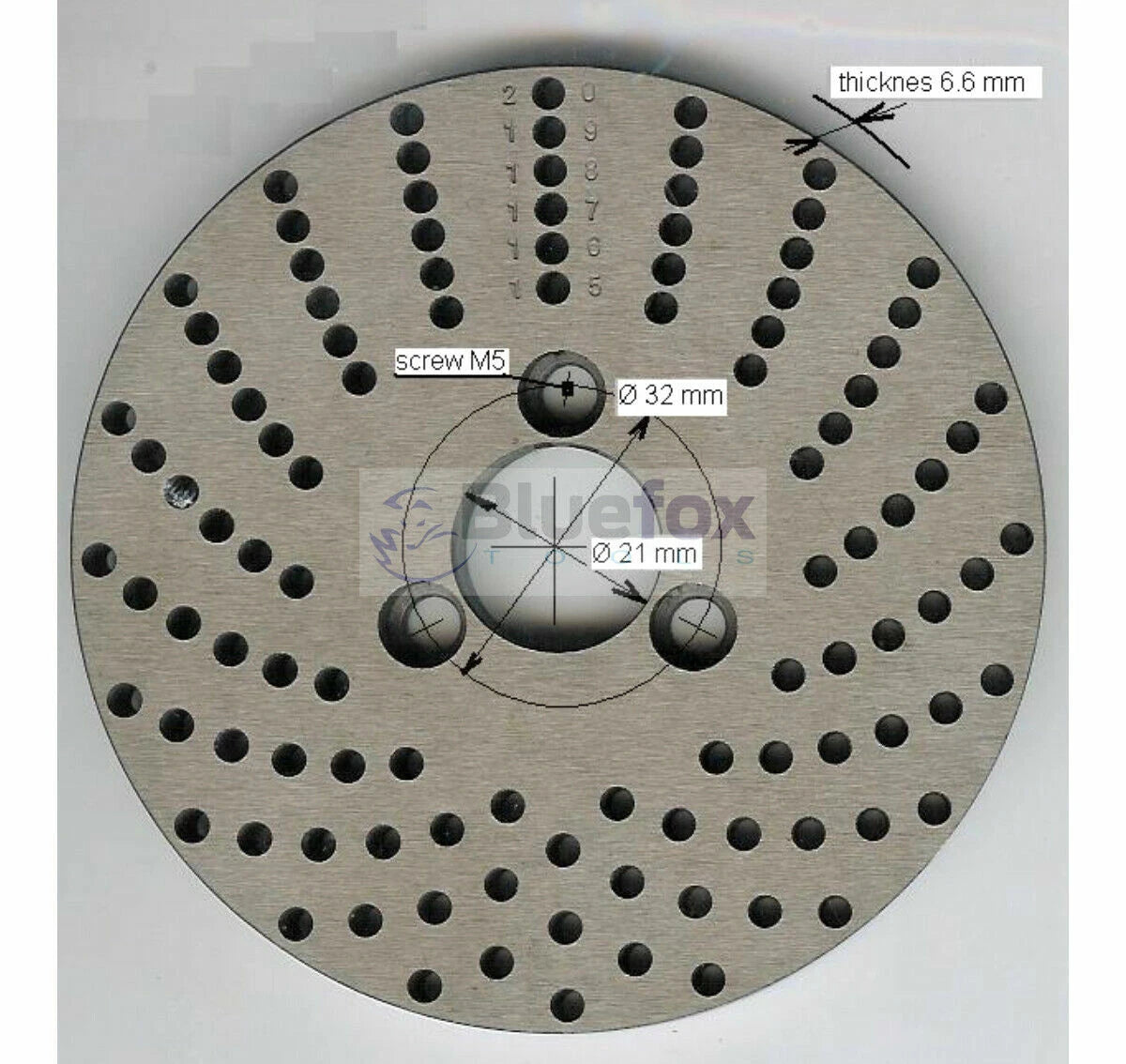

• 🔹 Plate Diameter: 100mm
• 🔹 Inside Diameter: 21mm
• 🔹 Plate Thickness: 7.5mm

Hole Circles

Plate 1

• 15, 16, 17, 18, 19, 20

Plate 2

• 21, 23, 27, 29, 31, 33

Plate 3

• 37, 39, 41, 43, 47, 49

🏭 Applications

⚙️ Precision milling

🦷 Gear cutting

🕳️ Bolt circle drilling

📐 Precision indexing

🔩 Circular machining

🏭 Tool room work

🛠️ Engineering workshops

🧰 Model engineering

🚗 Automotive component manufacturing

🏗️ General machining

⚙️ Fixture making

🔧 Precision fabrication

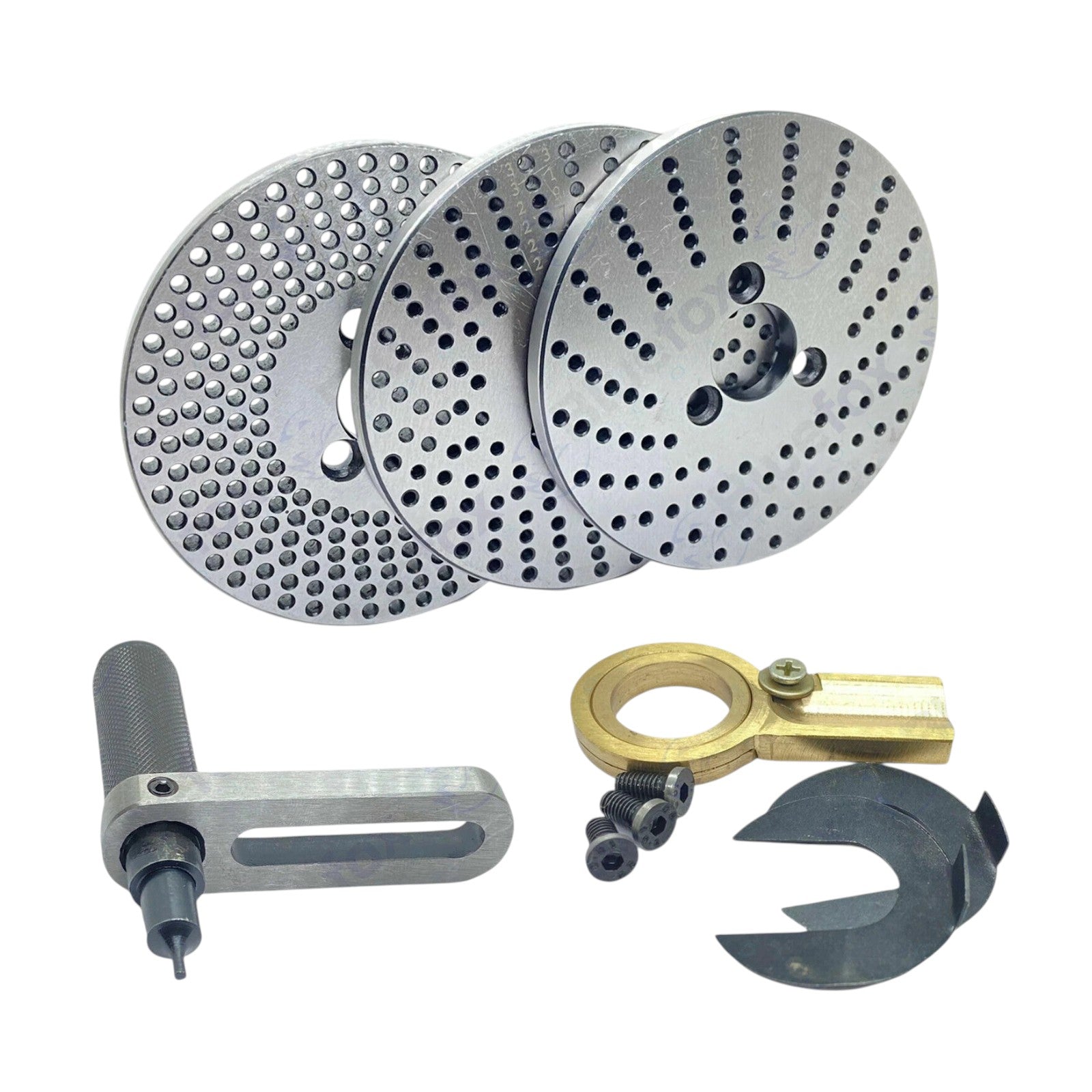

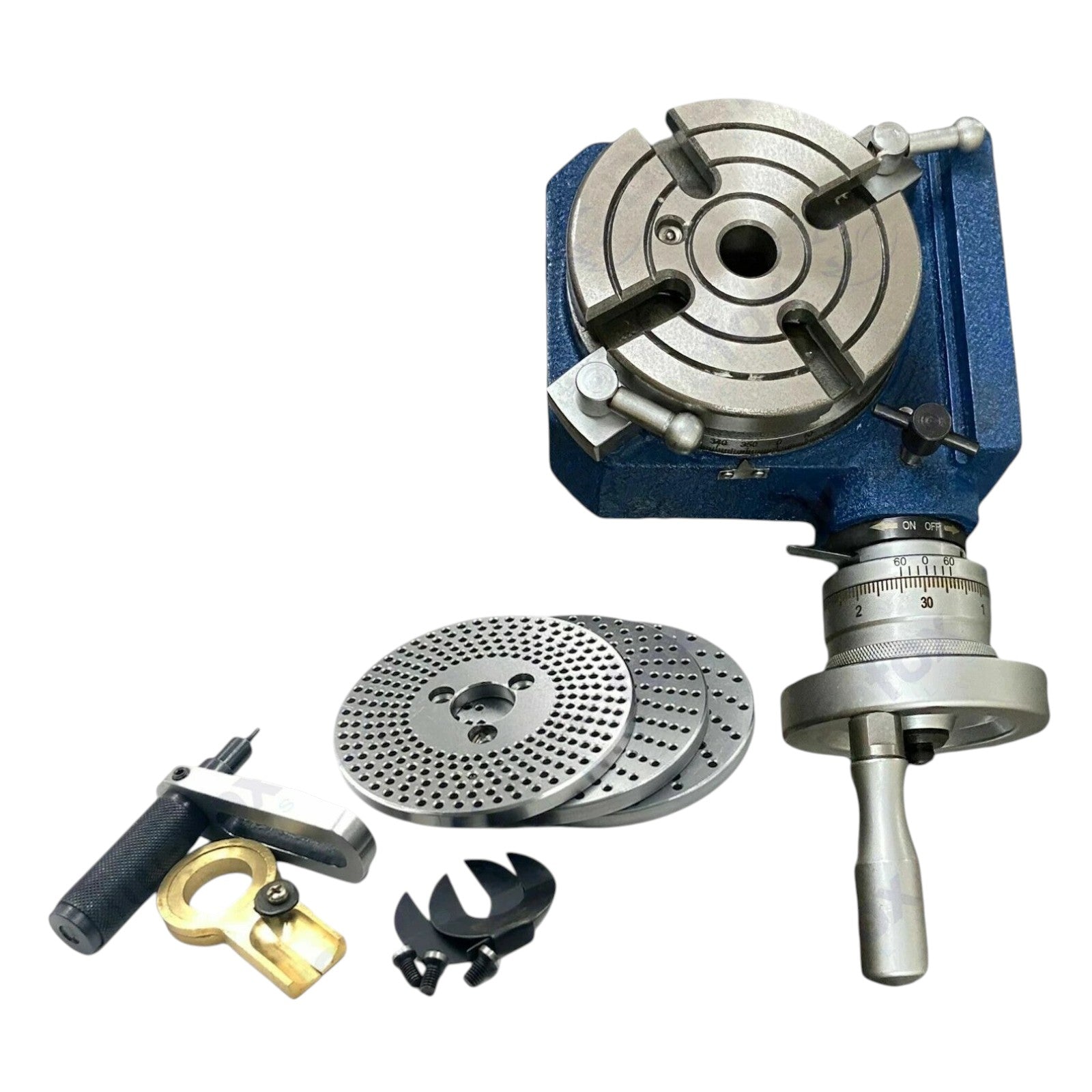

📦 Package Includes

• 📦 1 × HV4 110mm Horizontal & Vertical Rotary Table
• 📦 3 × Precision Dividing Plates
• 📦 Mounting Screws
• 📦 Washers
• 📦 Handles

🌟 Why Choose BlueFox Tools?

✔ High Precision 90:1 Worm Gear Drive

✔ Smooth & Accurate Rotation

✔ MT2 Centre Bore

✔ Horizontal & Vertical Mounting

✔ 4 Precision T-Slots

✔ Complete Dividing Plate Set Included

✔ Professional Workshop Quality
