BLUEFOX HV6 6" (150mm) Precision Rotary Table | Horizontal & Vertical Milling Table | MT2 | 90:1 Gear Ratio
- $194.00
- $194.00
- Unit price
- per
Tax included
Stock Availability
FBB221, 29 WYSOCKI PL, HACKENSACK, NJ 07601-6804 US
Phone: +1 646 224 0700
Phone: +1 646 224 0700
662/8-A, Gali No 1, First Floor,
Punjabi Basti, Anand Parbat
Phone: +91 8860055906
Punjabi Basti, Anand Parbat
Phone: +91 8860055906
Orange Connex Fulfilment Centre – UK04
Mill Road, Rugby, England
GB-CV21 1PR
Phone: +44 7747 770826
Mill Road, Rugby, England
GB-CV21 1PR
Phone: +44 7747 770826
Orange Connex Fulfillment Center – DE04
Bochumer Str. 119, Nordrhein-Westfalen
DE-44866 Bochum
Phone: +49 15563617045
Bochumer Str. 119, Nordrhein-Westfalen
DE-44866 Bochum
Phone: +49 15563617045
Orange Connex Fulfilment Centre – AU03
Warehouse L, Building 5, 161 Manchester Rd
Auburn, New South Wales
AU-2144
Phone: +61 416 989 802
Warehouse L, Building 5, 161 Manchester Rd
Auburn, New South Wales
AU-2144
Phone: +61 416 989 802
AVAILABLE IN INDIA •
AVAILABLE IN USA •
AVAILABLE IN UNITED KINGDOM •
AVAILABLE IN GERMANY •
AVAILABLE IN AUSTRALIA
Secured Payment
Description

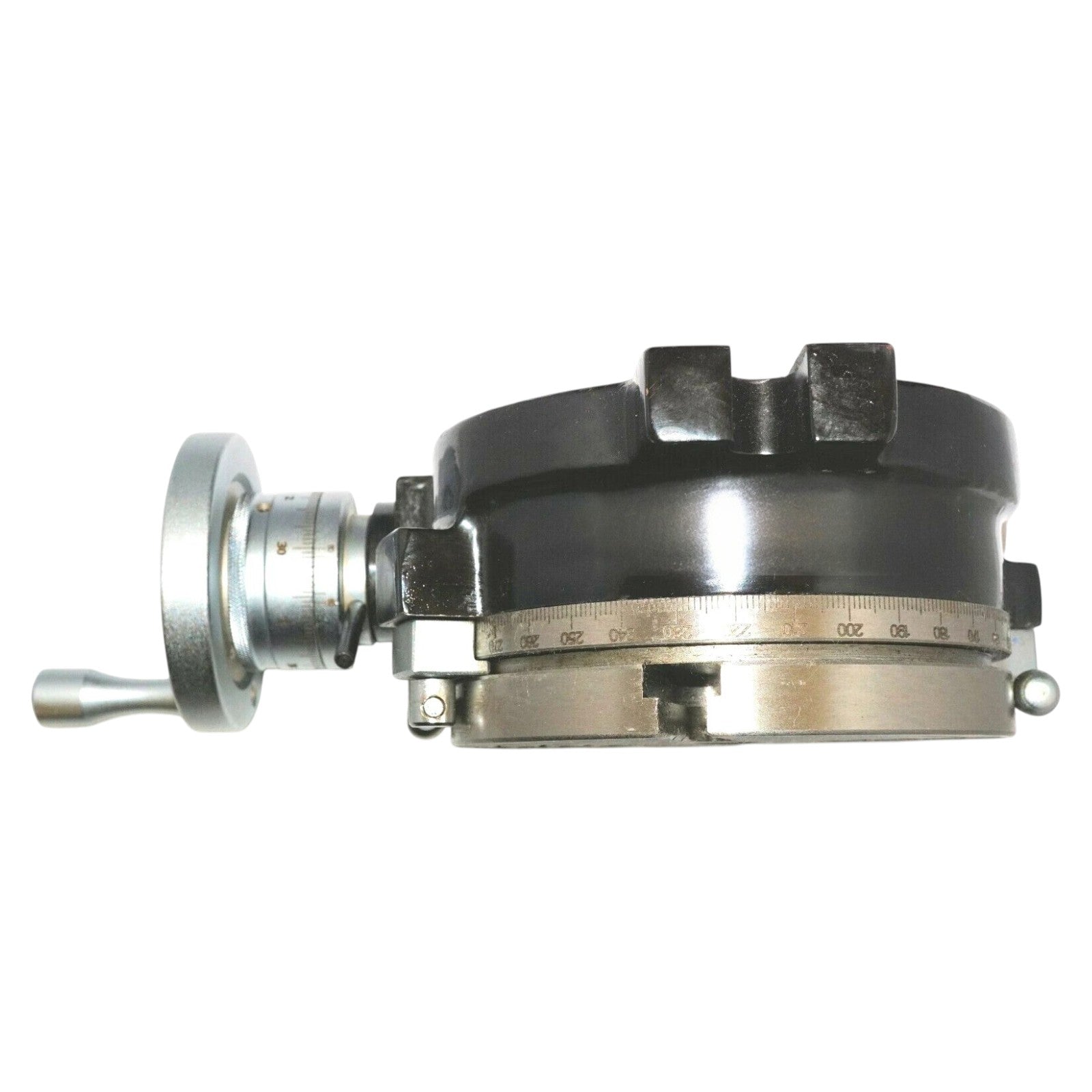

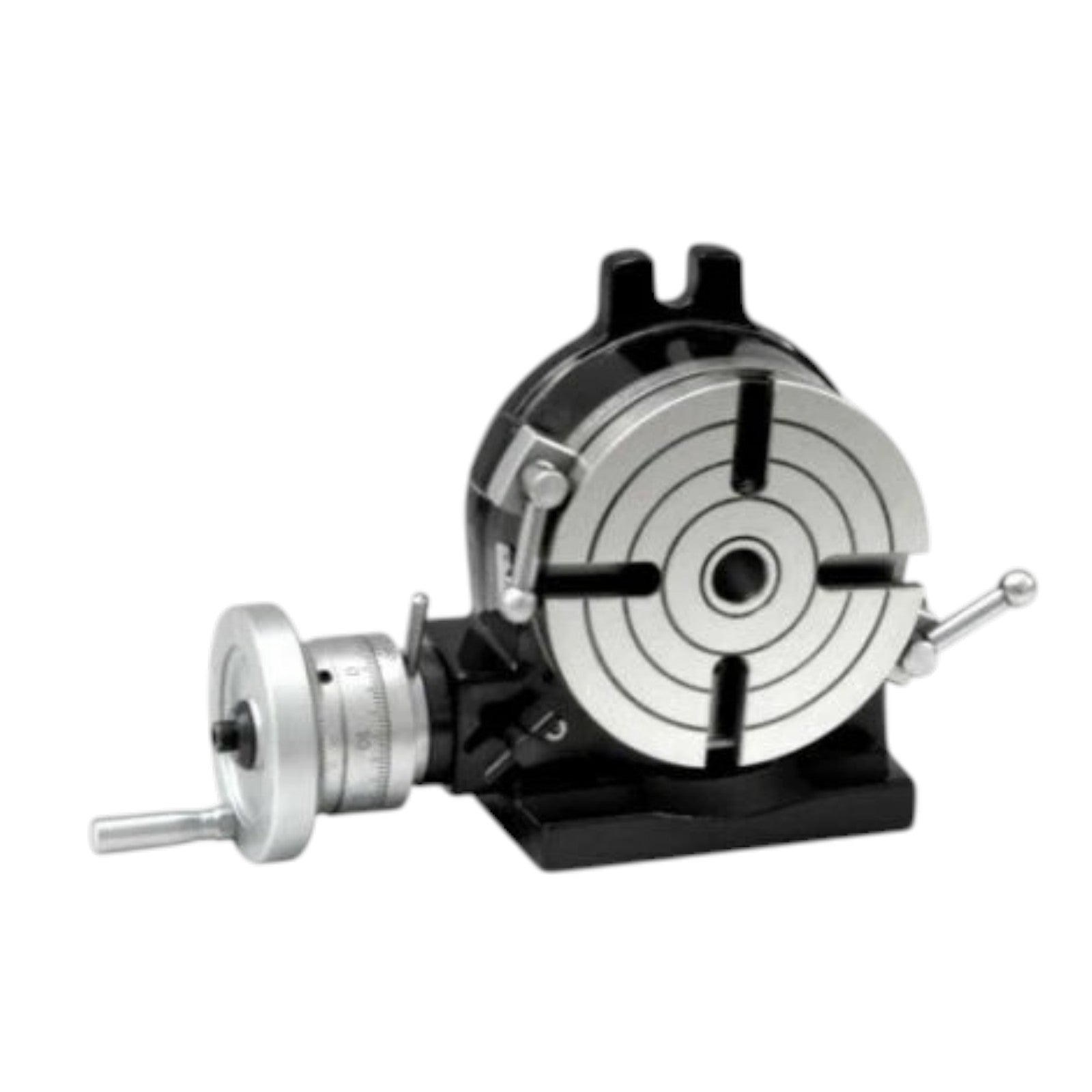

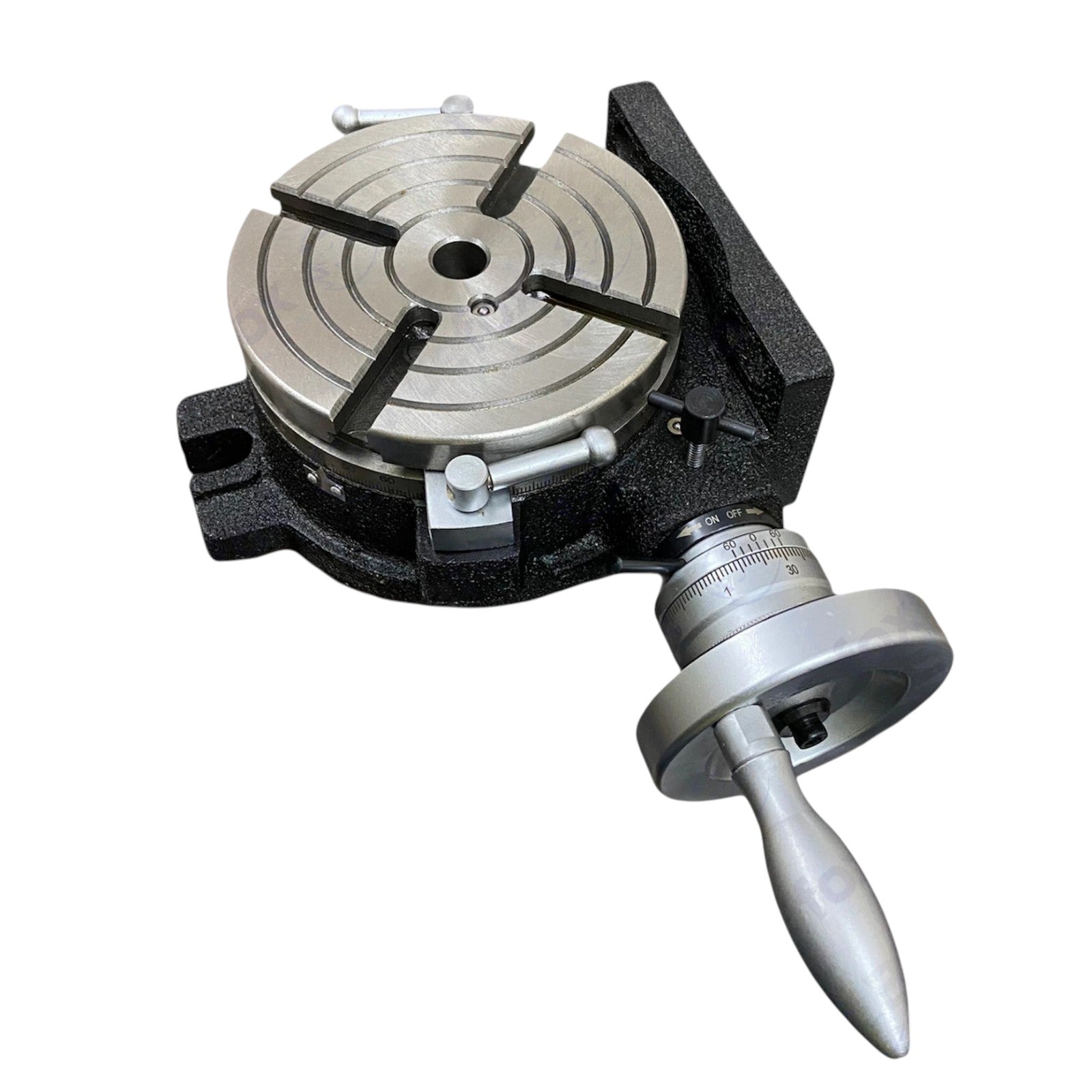

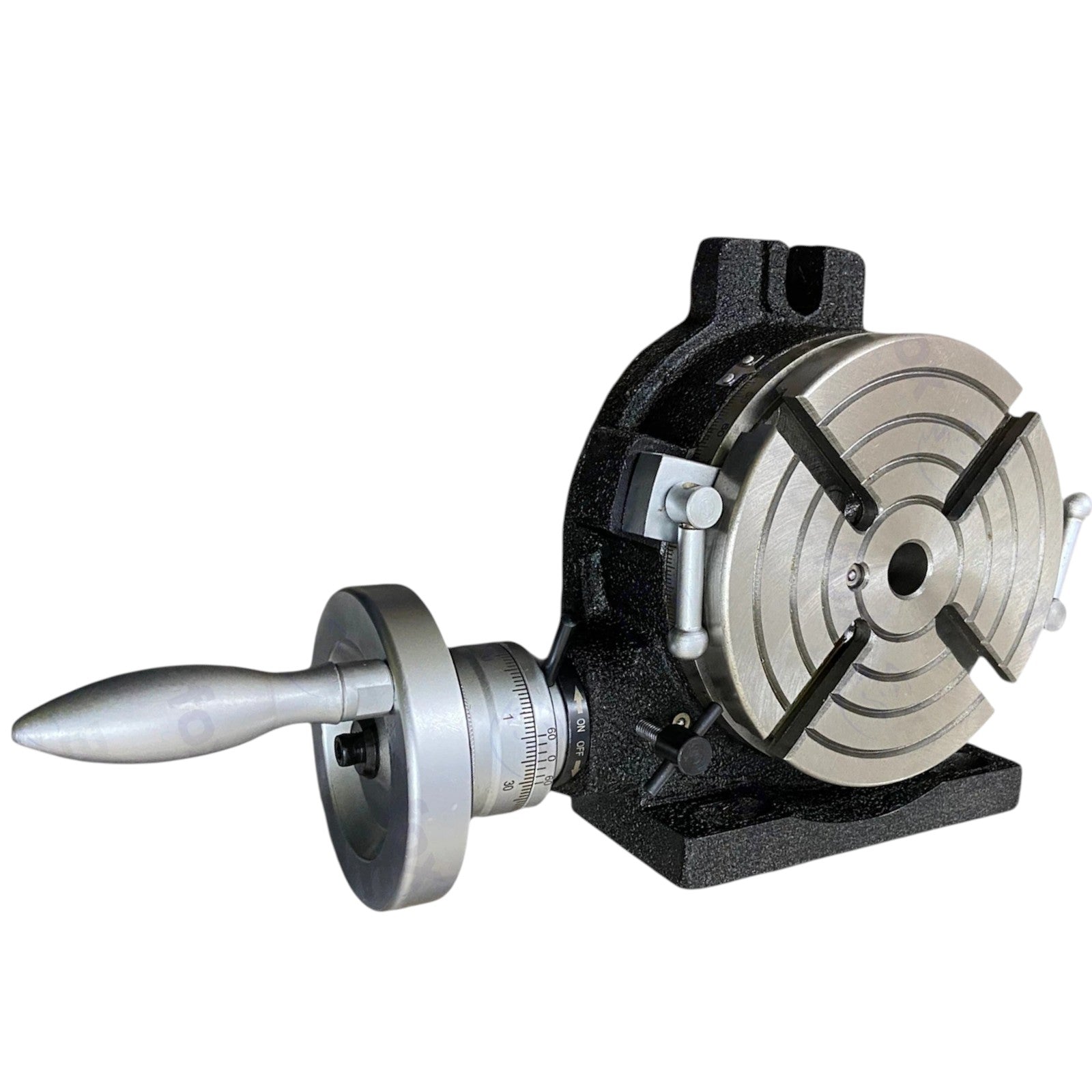

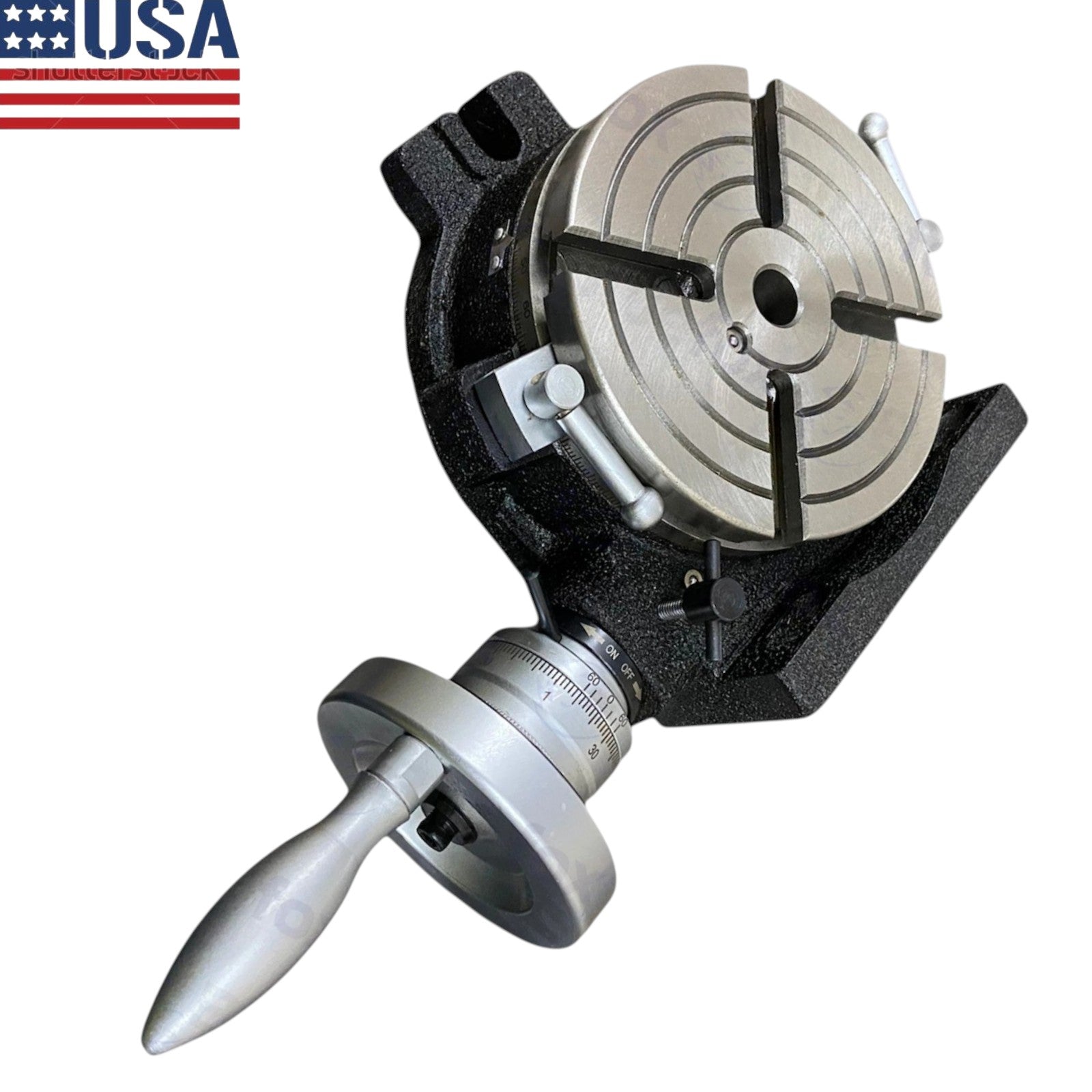

x🔄 BLUEFOX HV6 6" (150mm) Precision Rotary Table – Horizontal & Vertical
Enhance your milling and machining accuracy with the BLUEFOX HV6 6" (150mm) Precision Rotary Table. Designed for professional machinists, toolmakers, and engineering workshops, this precision rotary table can be mounted in both horizontal and vertical positions, making it ideal for indexing, drilling, milling, slotting, and circular machining operations.
Manufactured from high-grade seasoned cast iron with a durable wrinkle powder-coated finish, the rotary table features a precision-ground surface, 90:1 worm gear ratio, MT2 center bore, and 360° graduated satin chrome dial for smooth, accurate indexing and positioning.
✨ Features
✅ Precision 6" (150mm) rotary table
✅ Can be mounted horizontally or vertically
✅ Manufactured from high-grade seasoned cast iron
✅ Precision-ground table surface for maximum accuracy
✅ Smooth 90:1 worm gear reduction
✅ MT2 centre bore for versatile tooling
✅ 360° graduated satin chrome handwheel dial
✅ Durable wrinkle powder-coated finish
✅ Four precision-machined T-slots for secure work holding
📦 Package Includes
- 🔹 1 × HV6 Precision Rotary Table (150mm)
📐 Specifications
Brand: BLUEFOX
Model: HV6
Table Diameter: 6" (150 mm)
Mounting: Horizontal & Vertical
Construction: High-Grade Seasoned Cast Iron
Surface Finish: Precision Ground
Gear Ratio: 90:1
Centre Bore: MT2 (Morse Taper No. 2)
T-Slot Width: 16 mm
Number of T-Slots: 4
Horizontal Height: Approx. 80 mm (Base to Table Surface)
Graduation: 360°
Dial Finish: Satin Chrome
🎯 Ideal For
- Milling Machines
- Indexing Operations
- Circular Milling
- Drilling
- Slot Cutting
- Gear Cutting
- Precision Engineering
- Tool Rooms
- Machine Shops
- Metalworking Workshops
⭐ Why Choose BLUEFOX?
✔ High-precision machining performance
✔ Heavy-duty cast iron construction
✔ Horizontal and vertical mounting flexibility
✔ Smooth and accurate 90:1 worm gear drive
✔ Precision-ground table for reliable results
✔ Ideal for professional and industrial machining applications
Technical Specifications
xReturns Policy
You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Shipping
We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.
When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.
Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.
