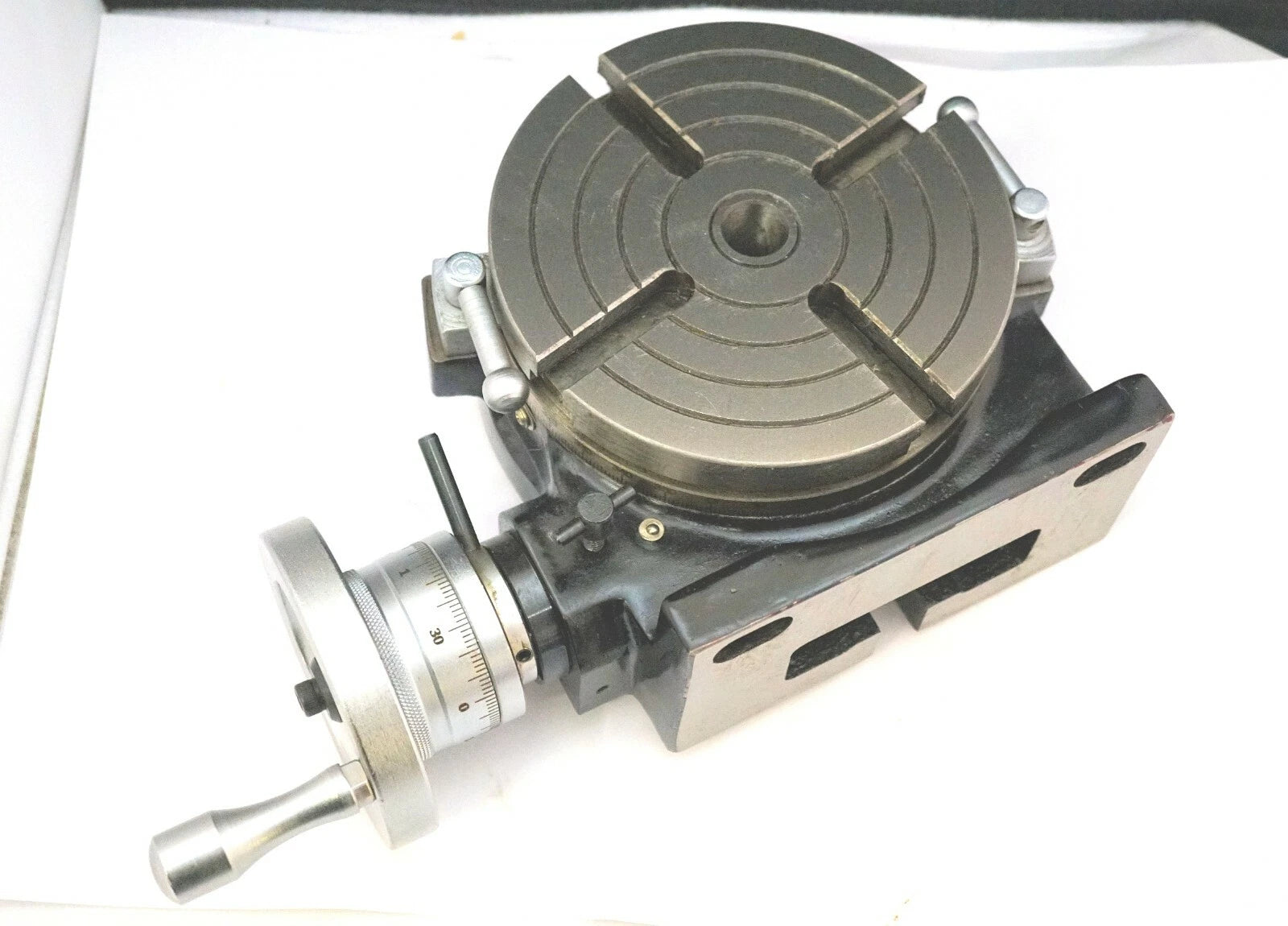

🔧 BlueFox Tools HV6 Rotary Table Complete Machining Kit

The BlueFox Tools HV6 Rotary Table Complete Kit is a professional all-in-one solution for precision milling, indexing, gear cutting, bolt circle drilling, and machining applications. This comprehensive package includes a 6" (150mm) Horizontal & Vertical Rotary Table, adjustable tailstock, 3-piece dividing plate set, and a complete clamping kit, providing everything needed for accurate and repeatable rotary machining.

Manufactured from high-grade seasoned cast iron with a durable powder-coated wrinkle finish, the HV6 rotary table features a precision 90:1 worm gear drive, MT2 centre bore, 4 precision T-slots, and 360° chrome graduated dials for smooth, accurate indexing.

The included adjustable tailstock provides secure support for long workpieces and features an adjustable centre height from 80mm to 100mm. The 3 dividing plates enable accurate indexing for gear cutting and equally spaced machining, while the clamping kit securely holds workpieces and fixtures during machining operations.

Perfect for machine shops, engineering workshops, tool rooms, prototype manufacturing, and model engineering.

✨ Key Features

✅ Complete Rotary Table Kit – Includes HV6 rotary table, tailstock, dividing plates, and clamping kit.

✅ 6" (150mm) Rotary Table – Precision horizontal and vertical rotary table for milling and indexing.

✅ 90:1 Worm Gear Drive – Smooth, accurate rotation with excellent positioning control.

✅ Horizontal & Vertical Operation – Suitable for a wide variety of machining applications.

✅ MT2 Centre Bore – Compatible with standard Morse Taper No.2 tooling.

✅ 4 Precision T-Slots – Secure workpieces, chucks, and fixtures safely.

✅ Heavy-Duty Adjustable Tailstock – Supports longer workpieces with adjustable centre height.

✅ 3 Precision Dividing Plates – Multiple indexing hole circles for gear cutting and precision indexing.

✅ Complete Clamping Kit Included – Securely mounts workpieces on HV4 & HV6 rotary tables.

✅ Professional Workshop Quality – Designed for industrial, educational, and precision engineering environments.

📏 Specifications

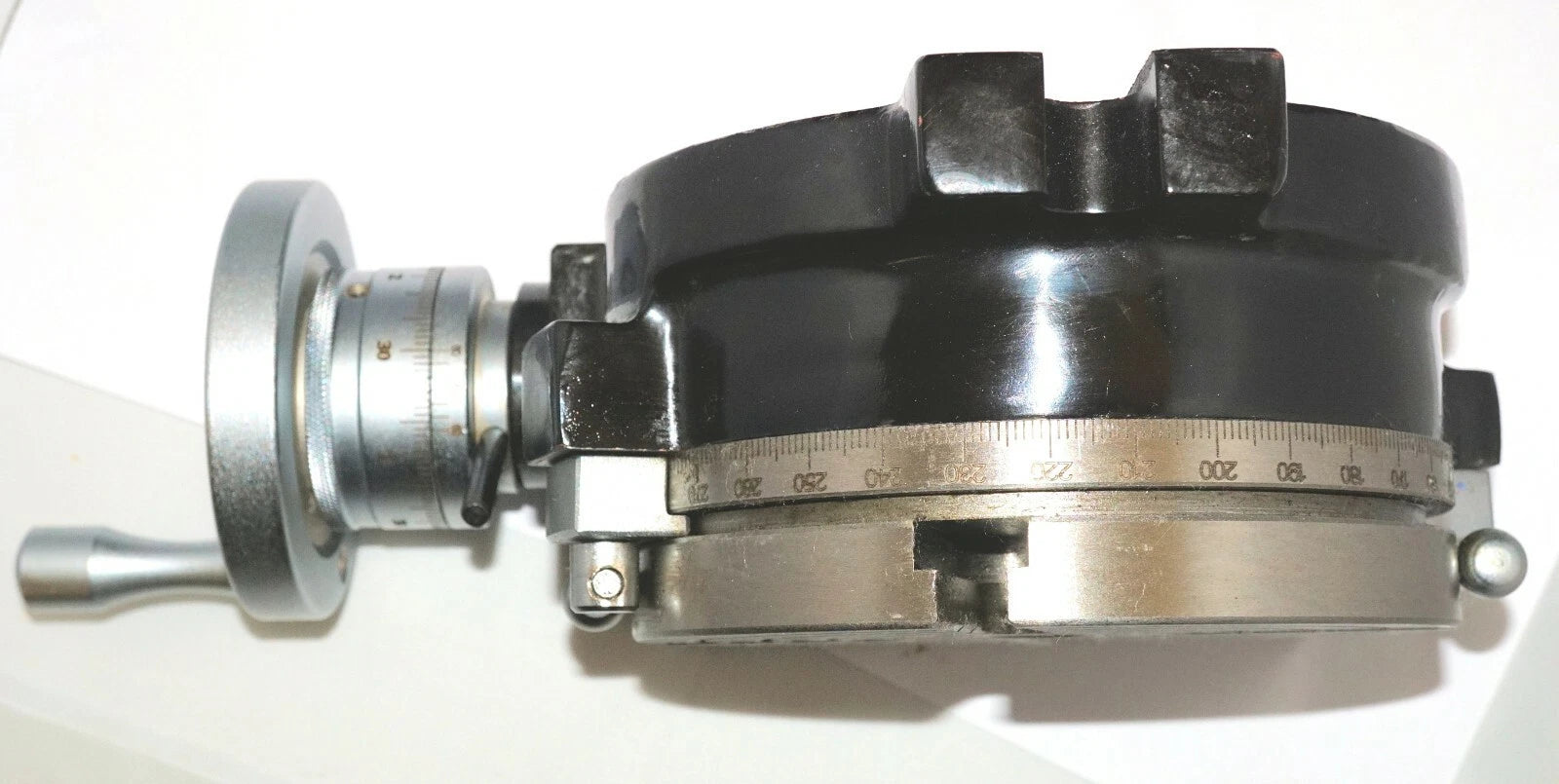

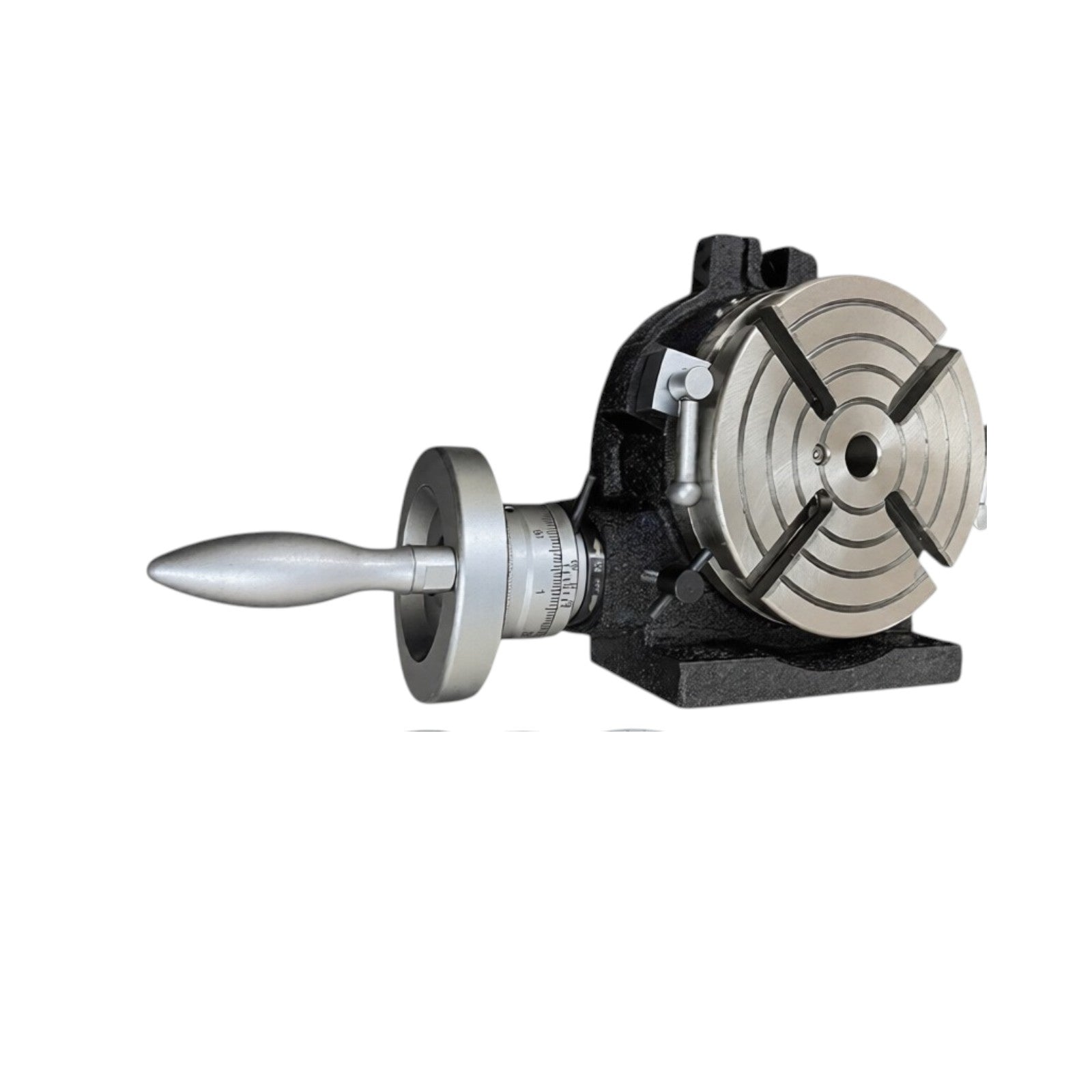

Rotary Table

• 🔹 Brand: BlueFox Tools
• 🔹 Model: HV6
• 🔹 Table Diameter: 6" (150mm)
• 🔹 Overall Height: 80mm
• 🔹 Vertical Centre Height: 105mm
• 🔹 Horizontal Height: Approx. 80mm
• 🔹 Centre Bore: Morse Taper No.2 (MT2)
• 🔹 Gear Ratio: 90:1
• 🔹 T-Slot Width: 16mm
• 🔹 Number of T-Slots: 4

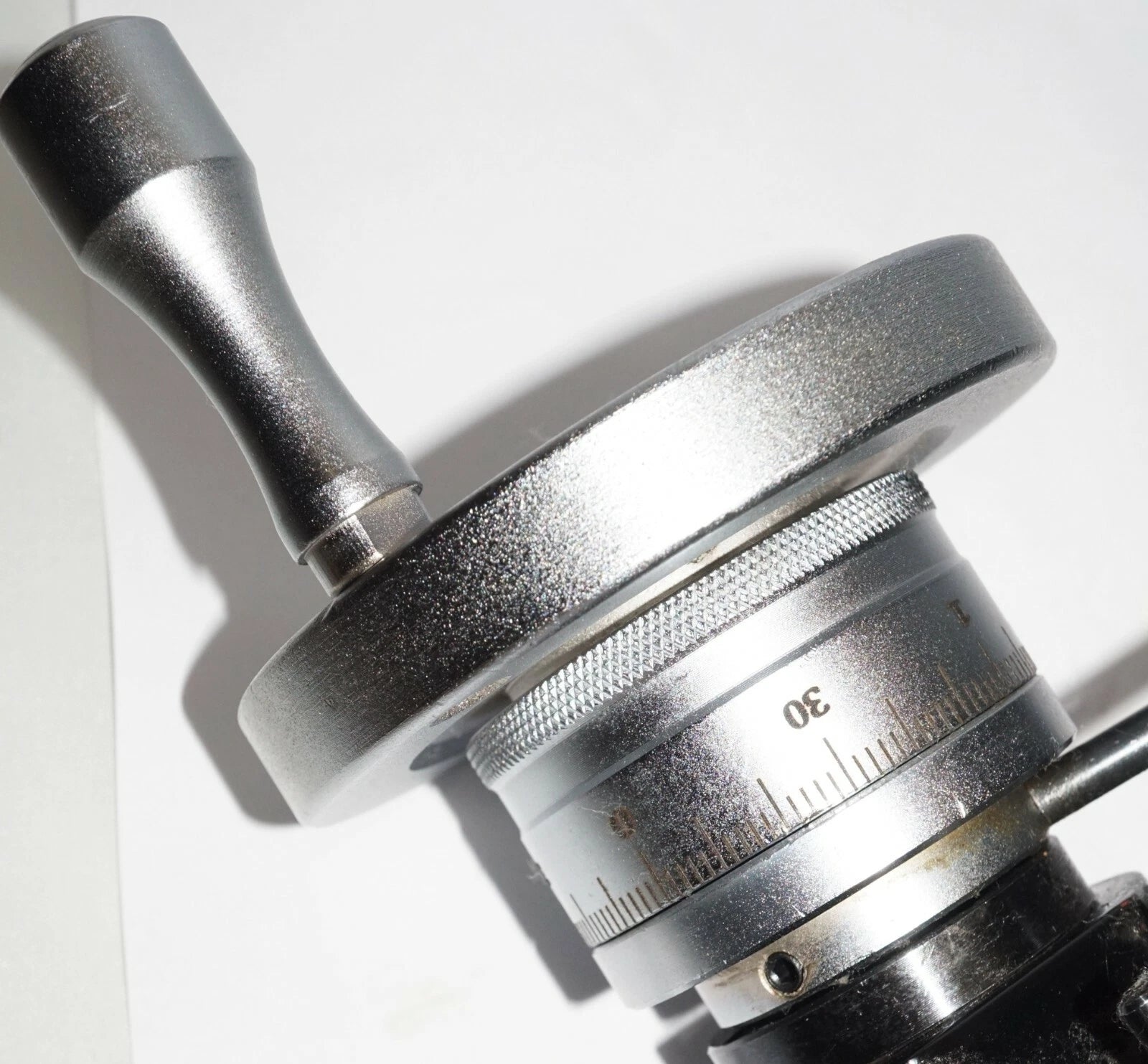

• 🔹 Graduation: 360° Chrome Dials
• 🔹 Construction: High-Grade Seasoned Cast Iron
• 🔹 Finish: Powder-Coated Wrinkle Finish

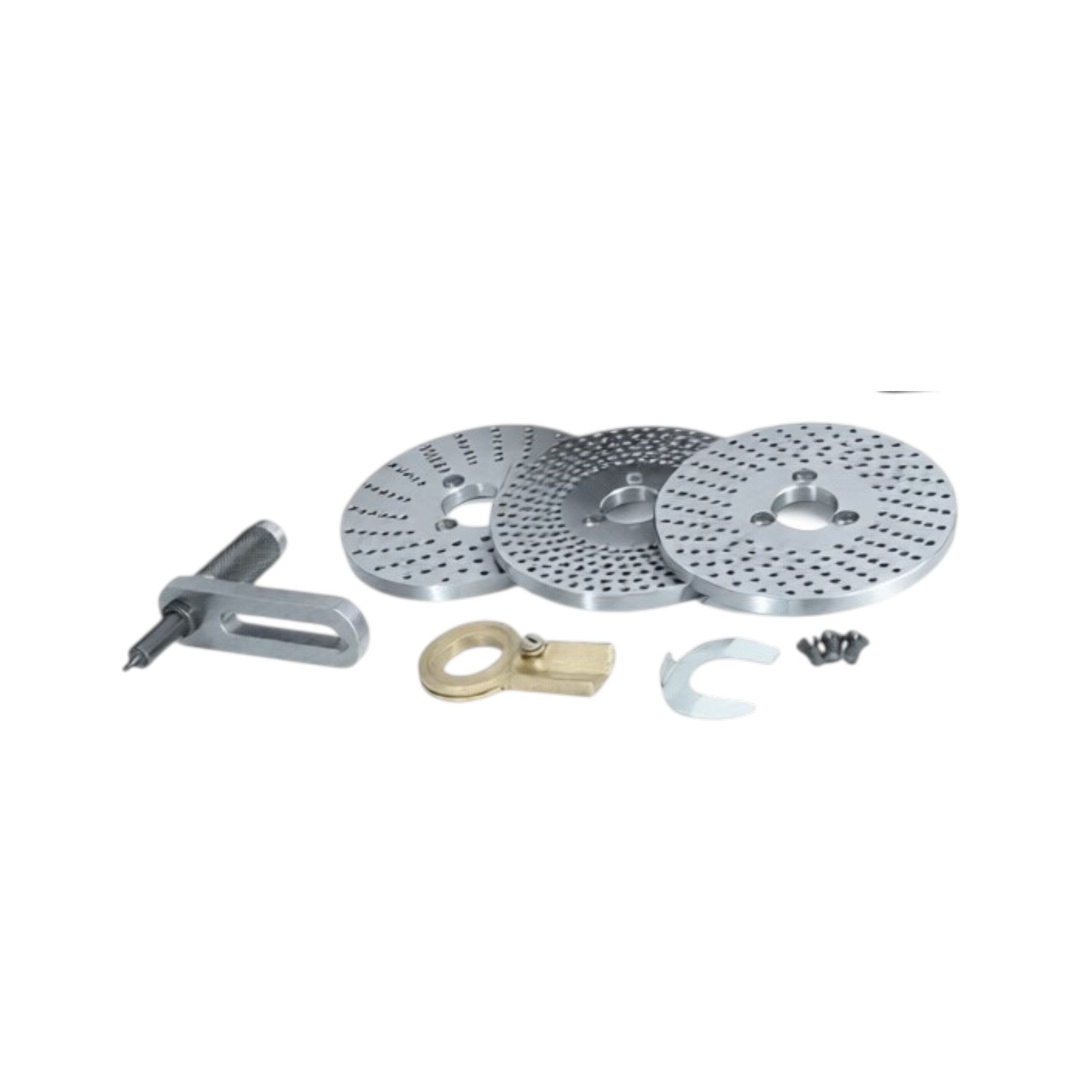

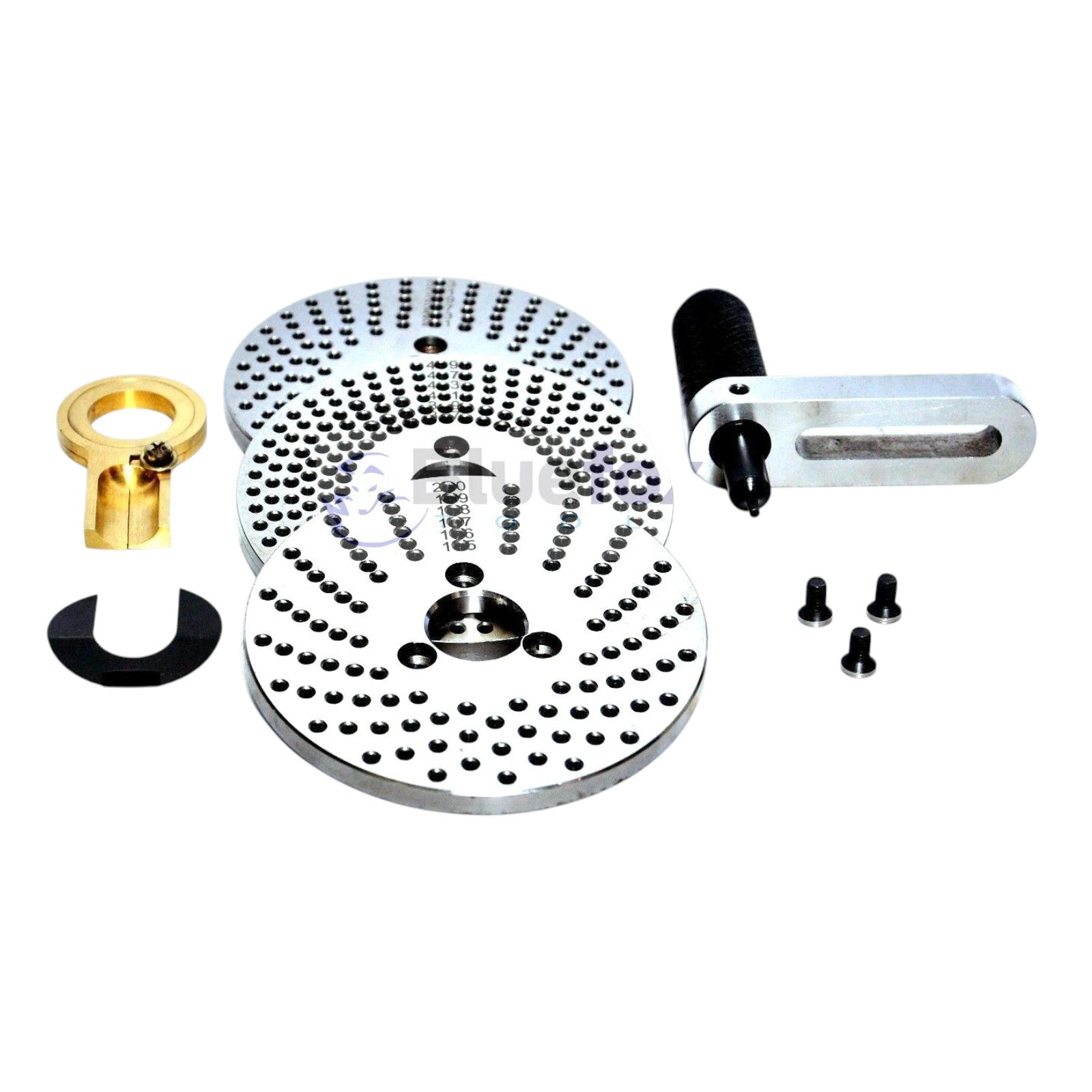

Dividing Plate Set

Plate A

• 15
• 16
• 17
• 18
• 19
• 20 Holes

Plate B

• 21
• 23
• 27
• 29
• 31
• 33 Holes

Plate C

• 37
• 39
• 41
• 43
• 47
• 49 Holes

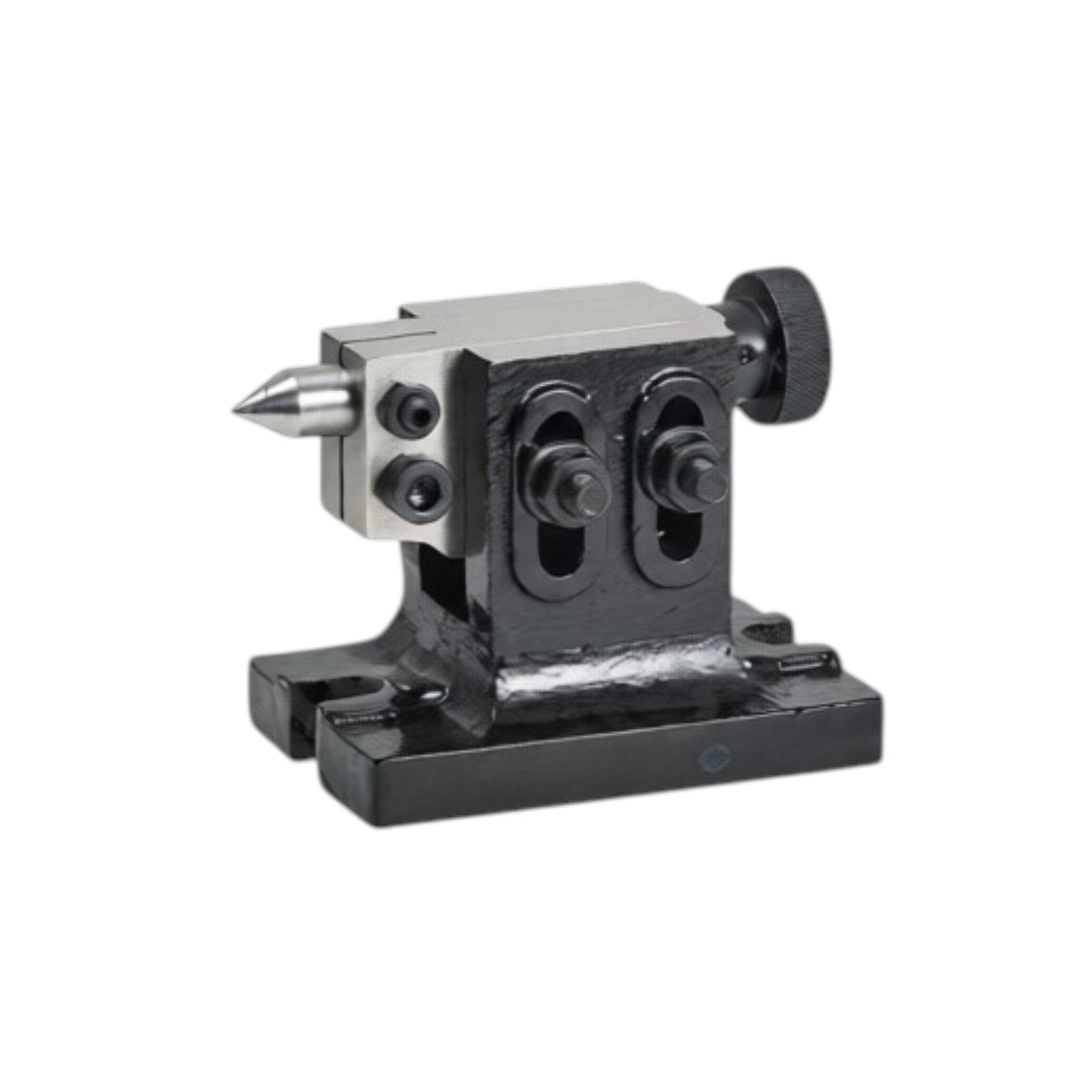

Tailstock

• 🔹 Heavy-Duty Close-Grain Cast Iron Construction
• 🔹 Adjustable Centre Height: 80–100mm

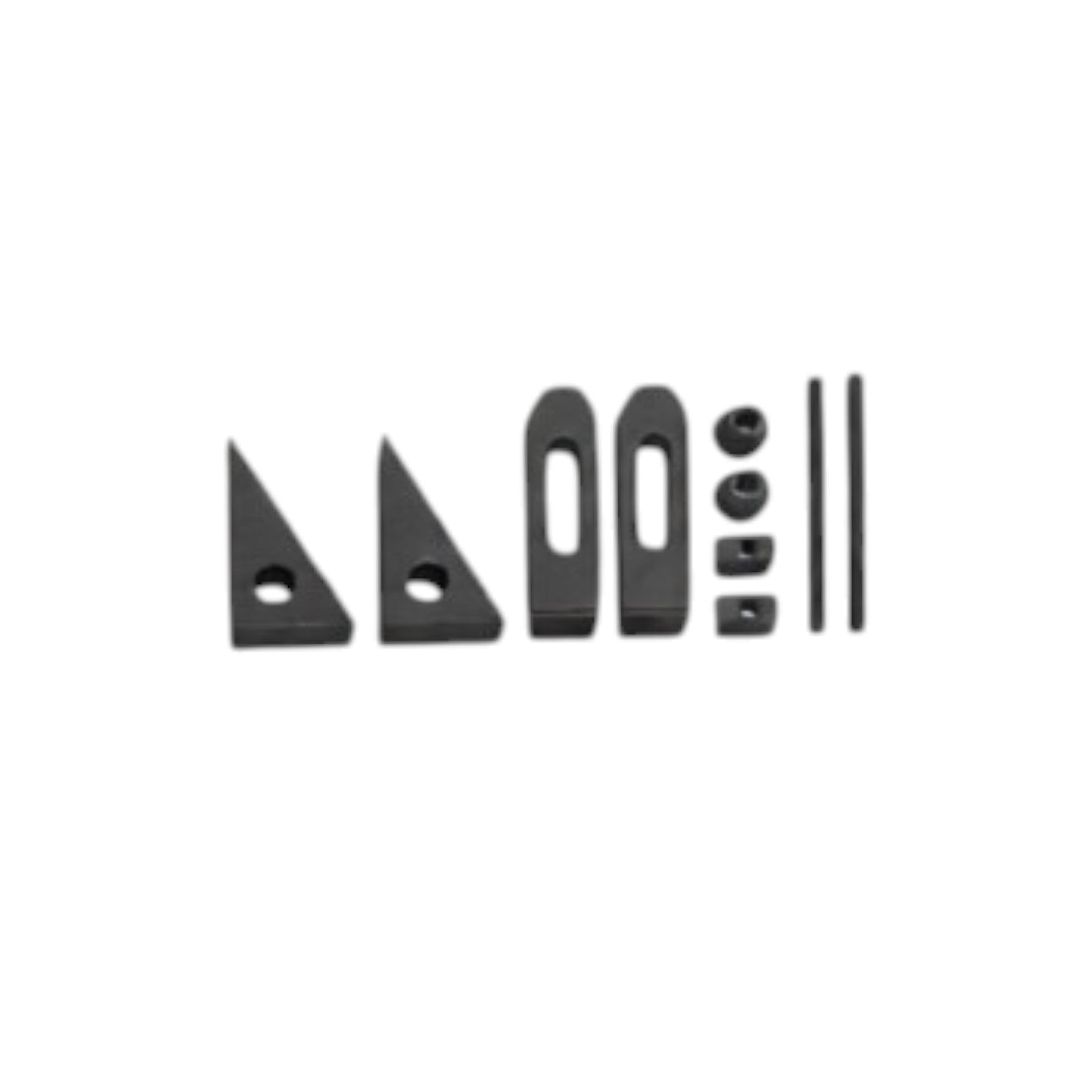

Clamping Kit

Includes:

• 🔹 4 × T-Nuts
• 🔹 4 × 3" Studs
• 🔹 4 × Nuts
• 🔹 2 × 2" Stepped Clamps
• 🔹 2 × 1-3/4" Slotted Step Clamps

Suitable for HV4 & HV6 Rotary Tables

🏭 Applications

⚙️ Precision milling

🦷 Gear cutting

🕳️ Bolt circle drilling

📐 Precision indexing

🔩 Circular machining

🛠️ Fixture machining

🏭 Tool room work

🚗 Automotive engineering

🏗️ General fabrication

🔧 Engineering workshops

🧰 Model engineering

⚙️ Prototype manufacturing

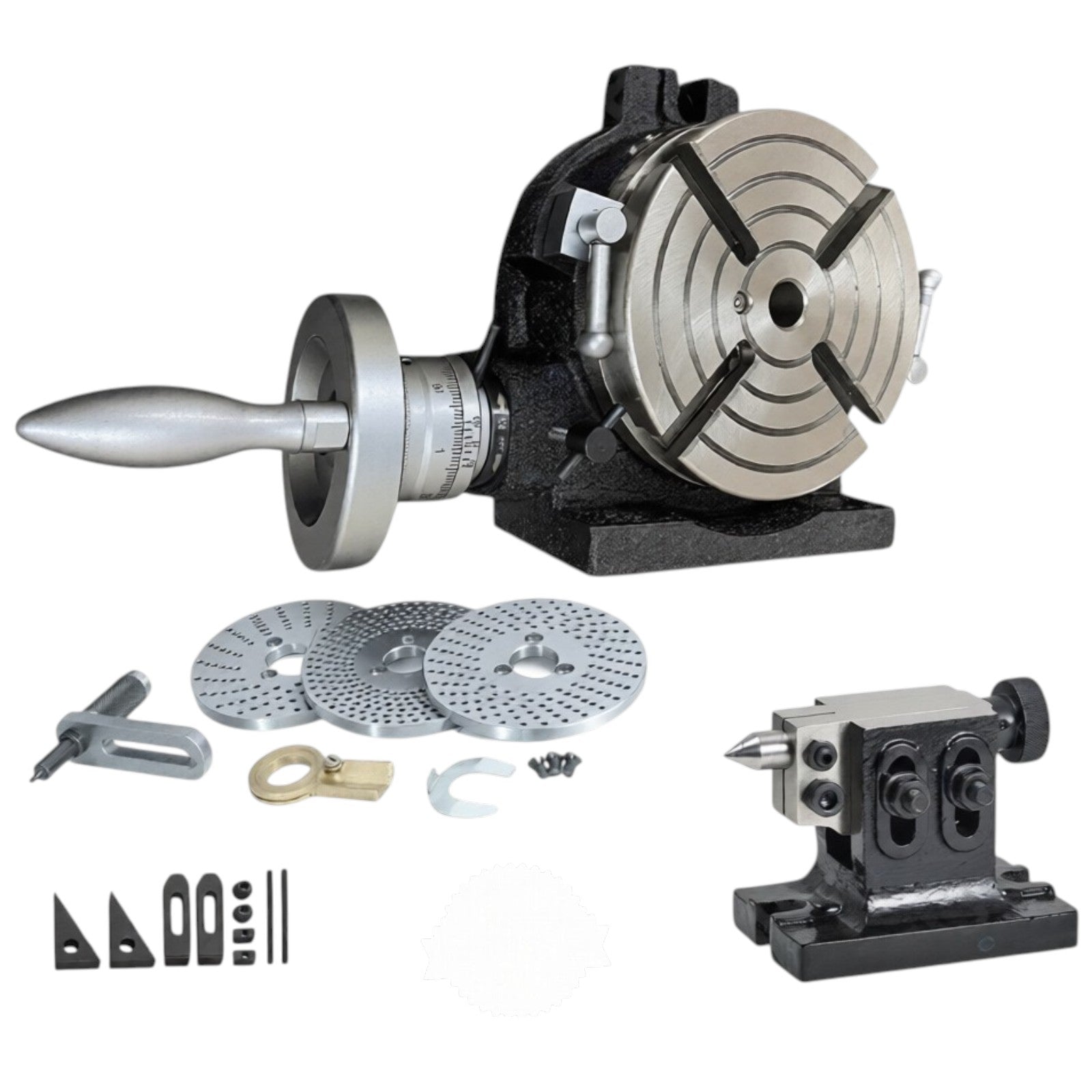

📦 Package Includes

• 📦 1 × HV6 6" (150mm) Horizontal & Vertical Rotary Table
• 📦 1 × Adjustable Tailstock
• 📦 3 × Precision Dividing Plates
• 📦 Complete Mounting Hardware
• 📦 4 × T-Nuts
• 📦 4 × 3" Studs
• 📦 4 × Nuts
• 📦 2 × 2" Stepped Clamps
• 📦 2 × 1-3/4" Slotted Step Clamps

🌟 Why Choose BlueFox Tools?

✔ Complete Rotary Table Machining Kit

✔ Precision 90:1 Worm Gear Drive

✔ MT2 Centre Bore

✔ Adjustable Tailstock Included

✔ Professional Dividing Plate Set

✔ Complete Clamping Kit

✔ Built for Accuracy & Durability
