🔧 BlueFox Tools HV6 Rotary Table with Tailstock & Dividing Plate Set

Upgrade your milling machine with the BlueFox Tools HV6 6" (150mm) Horizontal & Vertical Rotary Table, supplied complete with a heavy-duty adjustable tailstock and 3-piece dividing plate (indexing) set. Designed for precision milling, gear cutting, bolt circle drilling, indexing, and circular machining, this complete package delivers exceptional accuracy and versatility for professional workshops and serious hobby machinists.

Manufactured from high-grade seasoned cast iron with a durable powder-coated wrinkle finish, the HV6 rotary table features a 90:1 precision worm gear drive, MT2 centre bore, 4 precision T-slots, and 360° chrome graduated dials for smooth, repeatable positioning.

The included adjustable tailstock provides reliable support for long workpieces and features an adjustable centre height of 80–100mm. The 3 dividing plates offer multiple indexing hole circles for accurate gear cutting, fluting, bolt circle drilling, and equally spaced machining operations.

Built for durability, accuracy, and long service life, this complete rotary table package is ideal for milling machines, tool rooms, engineering workshops, maintenance departments, and model engineering applications.

✨ Key Features

✅ Complete Machining Set – Includes HV6 rotary table, adjustable tailstock, and 3-piece dividing plate set.

✅ 6" (150mm) Rotary Table – Precision-engineered for milling, drilling, indexing, and machining.

✅ Horizontal & Vertical Operation – Mounts in either position for maximum machining flexibility.

✅ 90:1 Precision Worm Gear Drive – Smooth rotation and precise indexing control.

✅ MT2 Centre Bore – Compatible with standard Morse Taper No.2 centres and accessories.

✅ 4 Precision T-Slots – Securely holds chucks, fixtures, and workpieces.

✅ Heavy-Duty Adjustable Tailstock – Provides stable support for longer shafts and components.

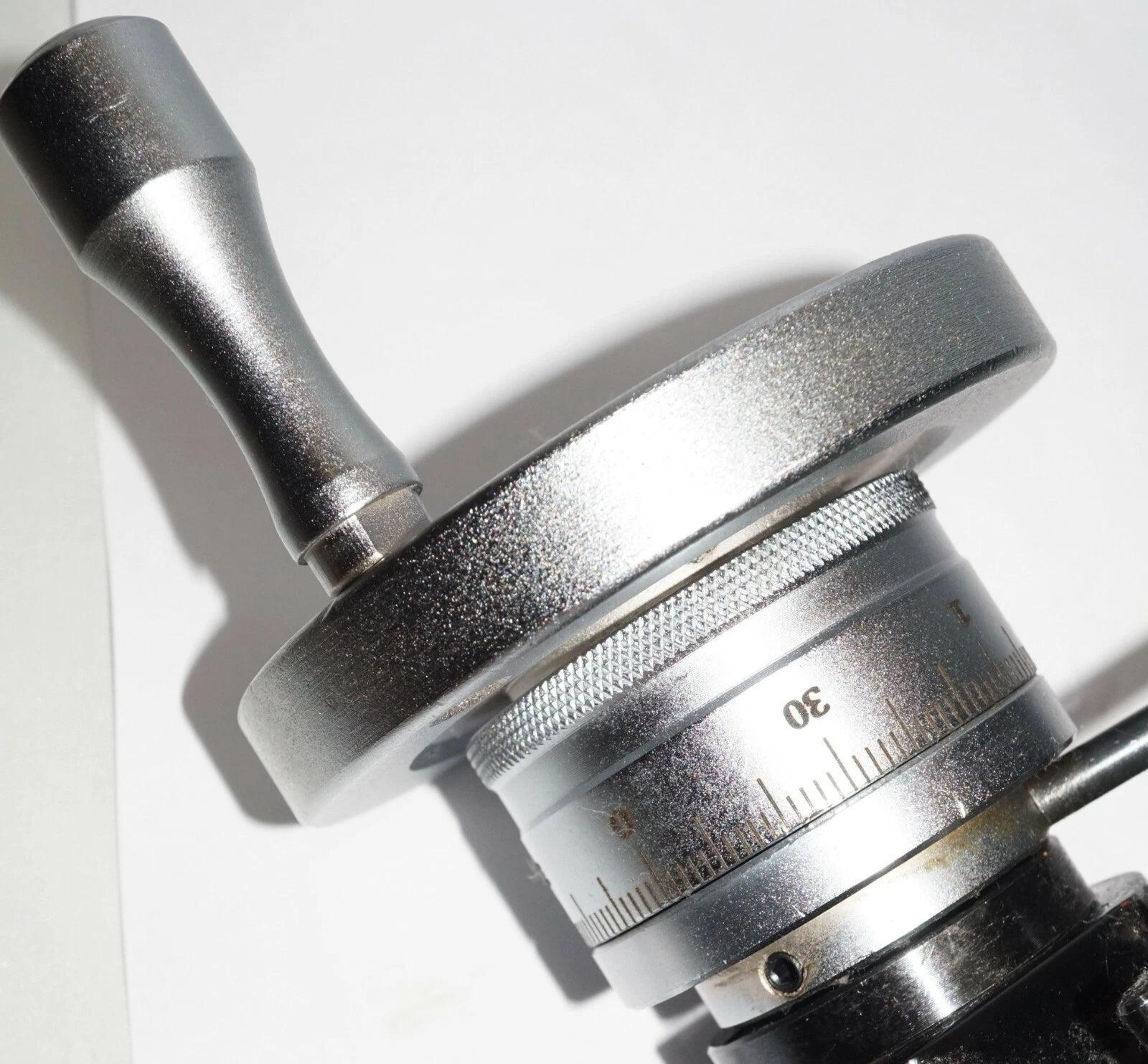

✅ 360° Chrome Graduated Dial – Easy-to-read graduations for accurate angular positioning.

✅ 3 Precision Dividing Plates Included – Multiple indexing hole circles for precision dividing operations.

✅ Professional Workshop Quality – Suitable for industrial machining, engineering, and model making.

📏 Specifications

Rotary Table

• 🔹 Brand: BlueFox Tools
• 🔹 Model: HV6
• 🔹 Table Diameter: 6" (150mm)
• 🔹 Overall Height: 80mm (3-1/4")
• 🔹 Vertical Centre Height: 105mm
• 🔹 Horizontal Height: Approx. 80mm
• 🔹 Centre Bore: Morse Taper No.2 (MT2)
• 🔹 Gear Ratio: 90:1
• 🔹 T-Slot Width: 16mm
• 🔹 Number of T-Slots: 4
• 🔹 Graduation: 360° Chrome Dial
• 🔹 Construction: High-Grade Seasoned Cast Iron
• 🔹 Finish: Powder-Coated Wrinkle Finish

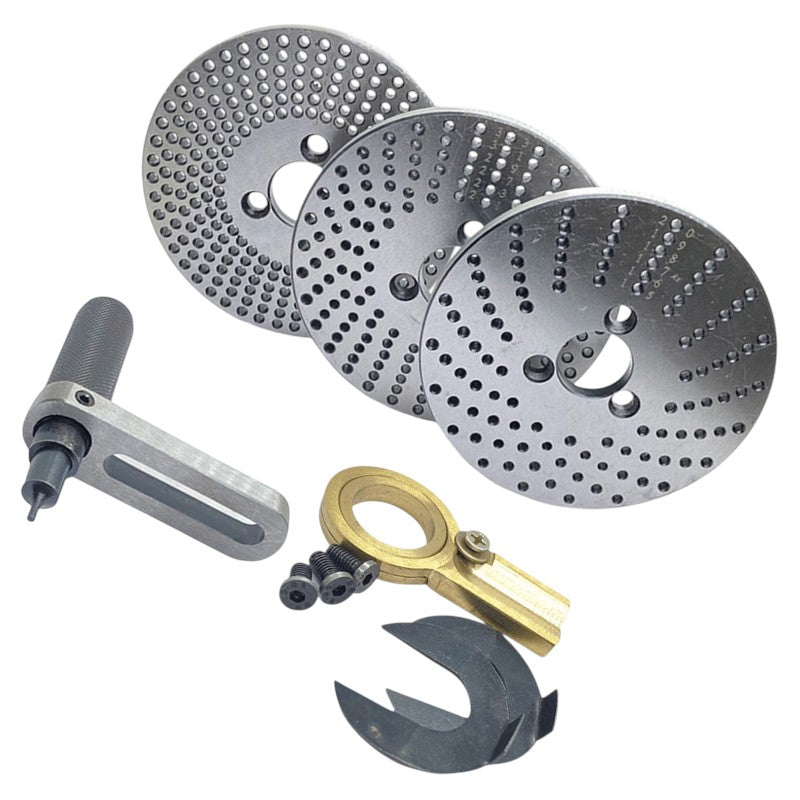

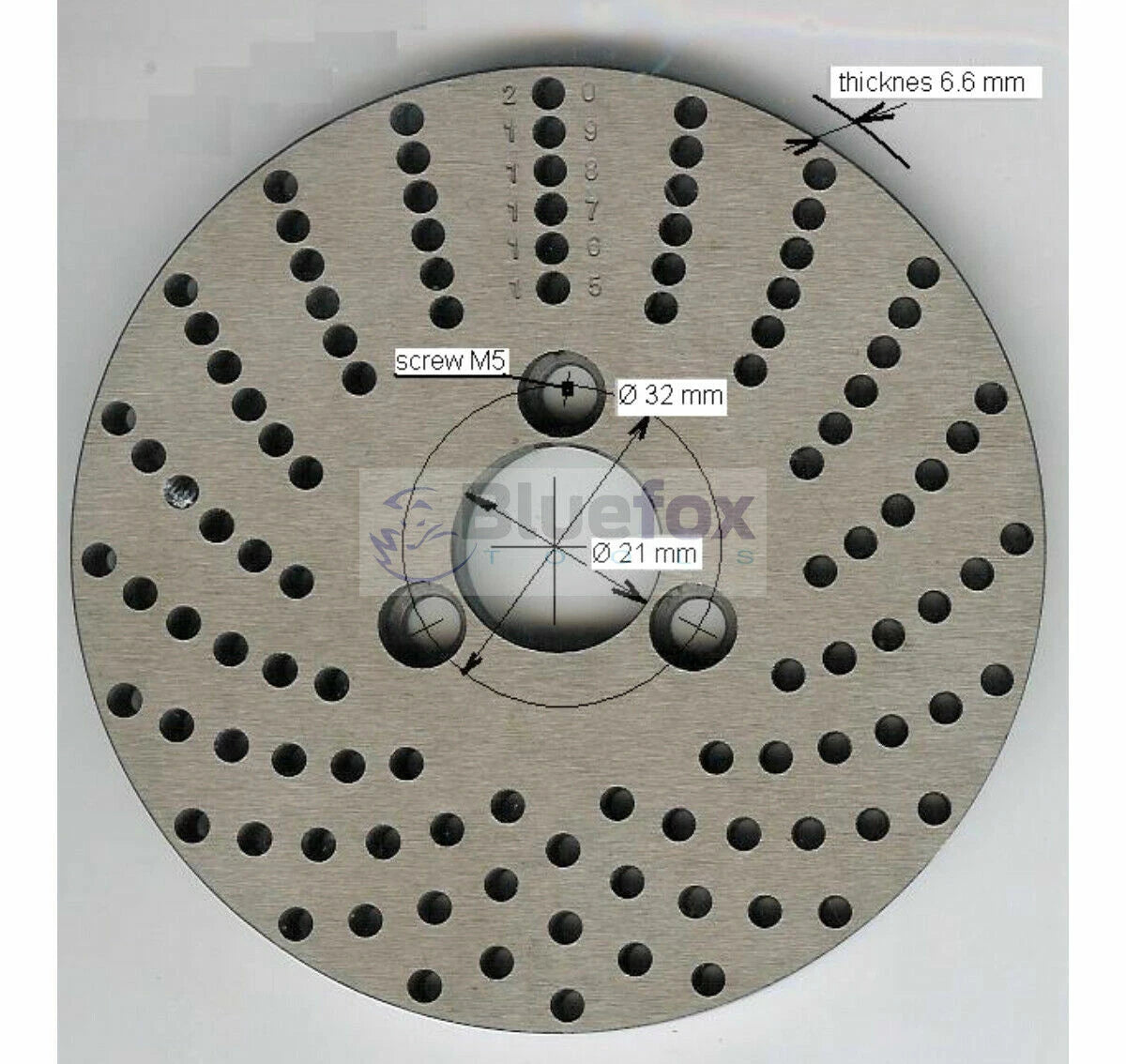

Dividing Plate Set

Plate A

• 15, 16, 17, 18, 19, 20 Holes

Plate B

• 21, 23, 27, 29, 31, 33 Holes

Plate C

• 37, 39, 41, 43, 47, 49 Holes

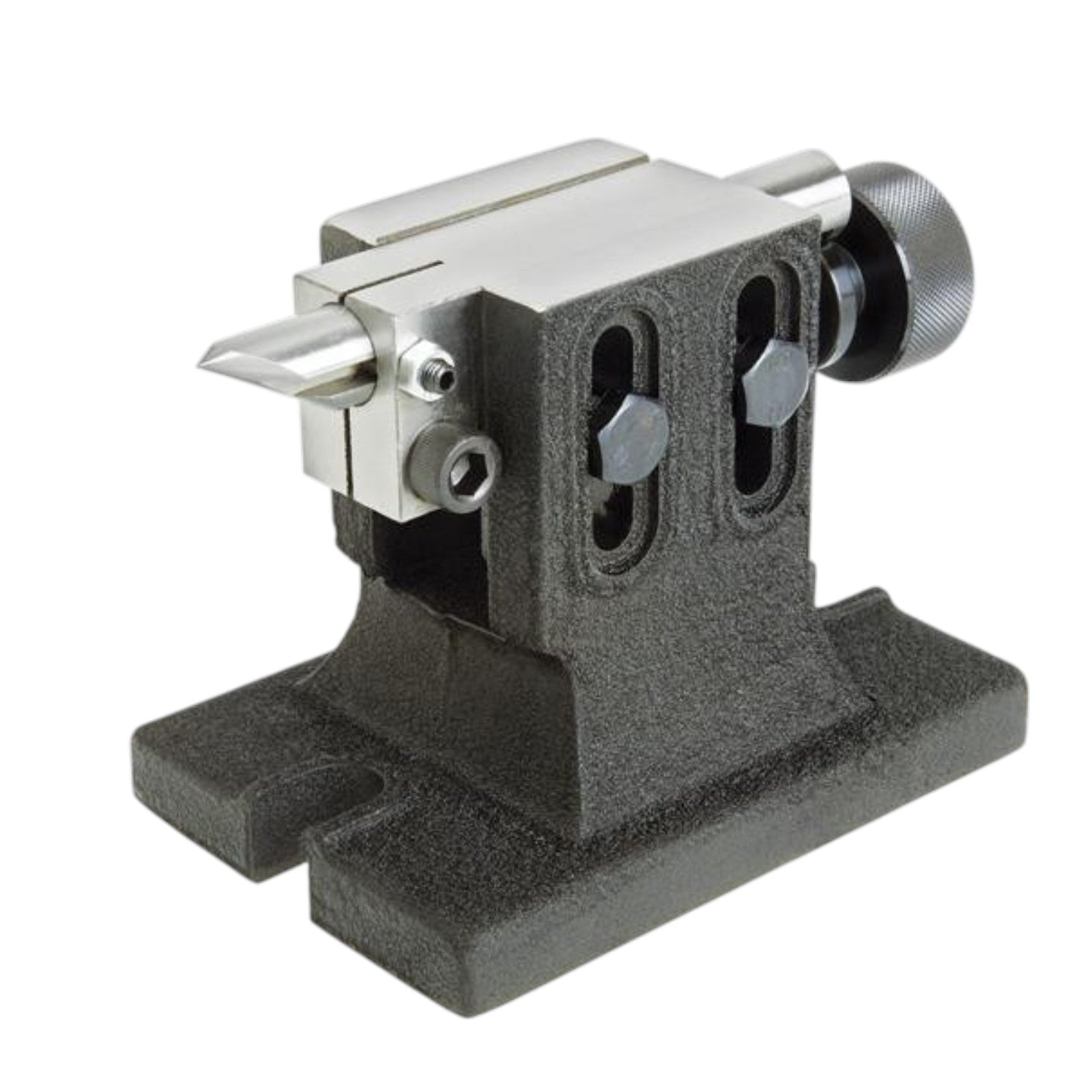

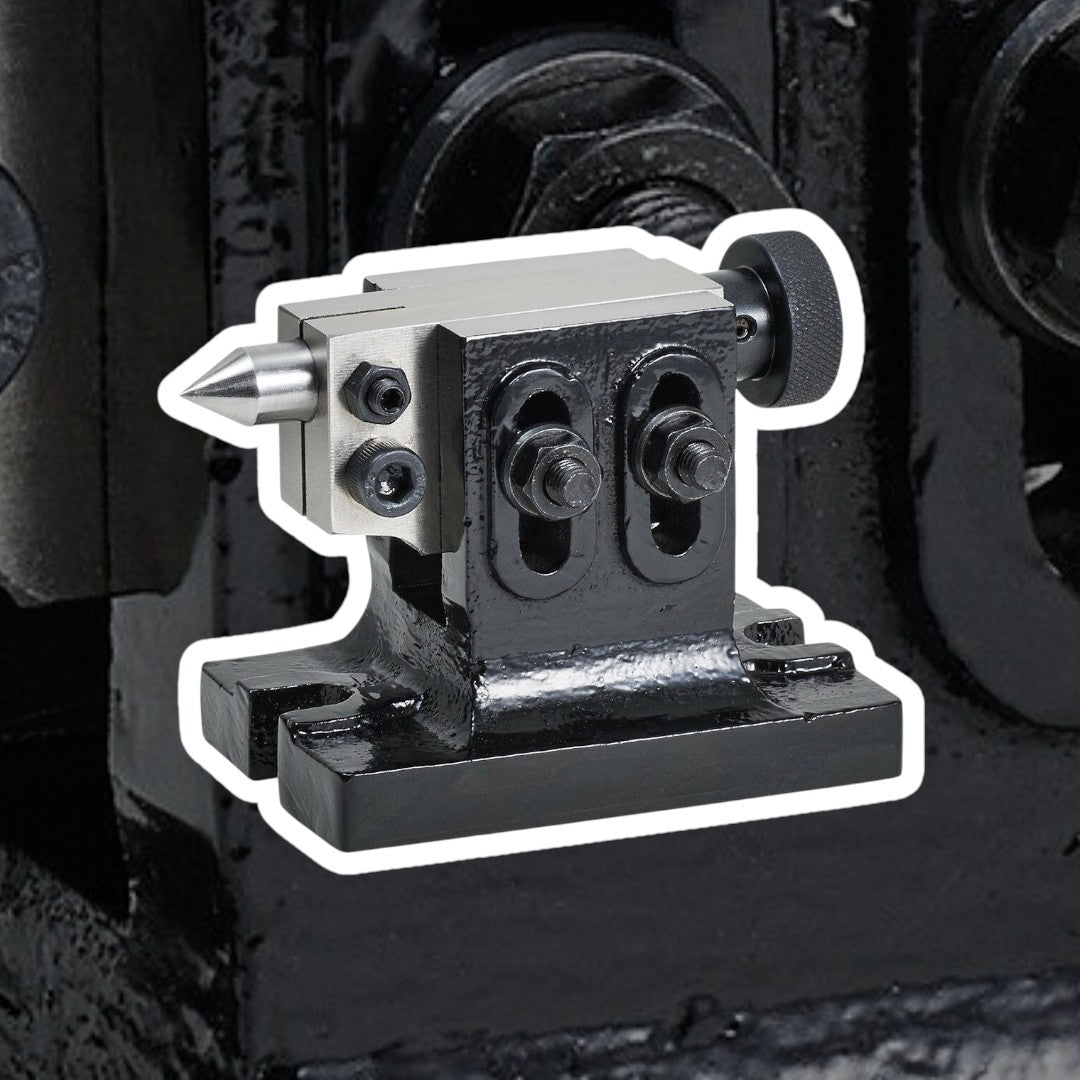

Tailstock

• 🔹 Heavy-Duty Close-Grain Cast Iron Construction
• 🔹 Adjustable Centre Height: 80–100mm

🏭 Applications

⚙️ Precision milling

🦷 Gear cutting

🕳️ Bolt circle drilling

📐 Indexing operations

🔩 Circular machining

🛠️ Fixture machining

🏭 Tool room work

🔧 Engineering workshops

🧰 Model engineering

🚗 Automotive machining

🏗️ Prototype manufacturing

⚙️ General metalworking

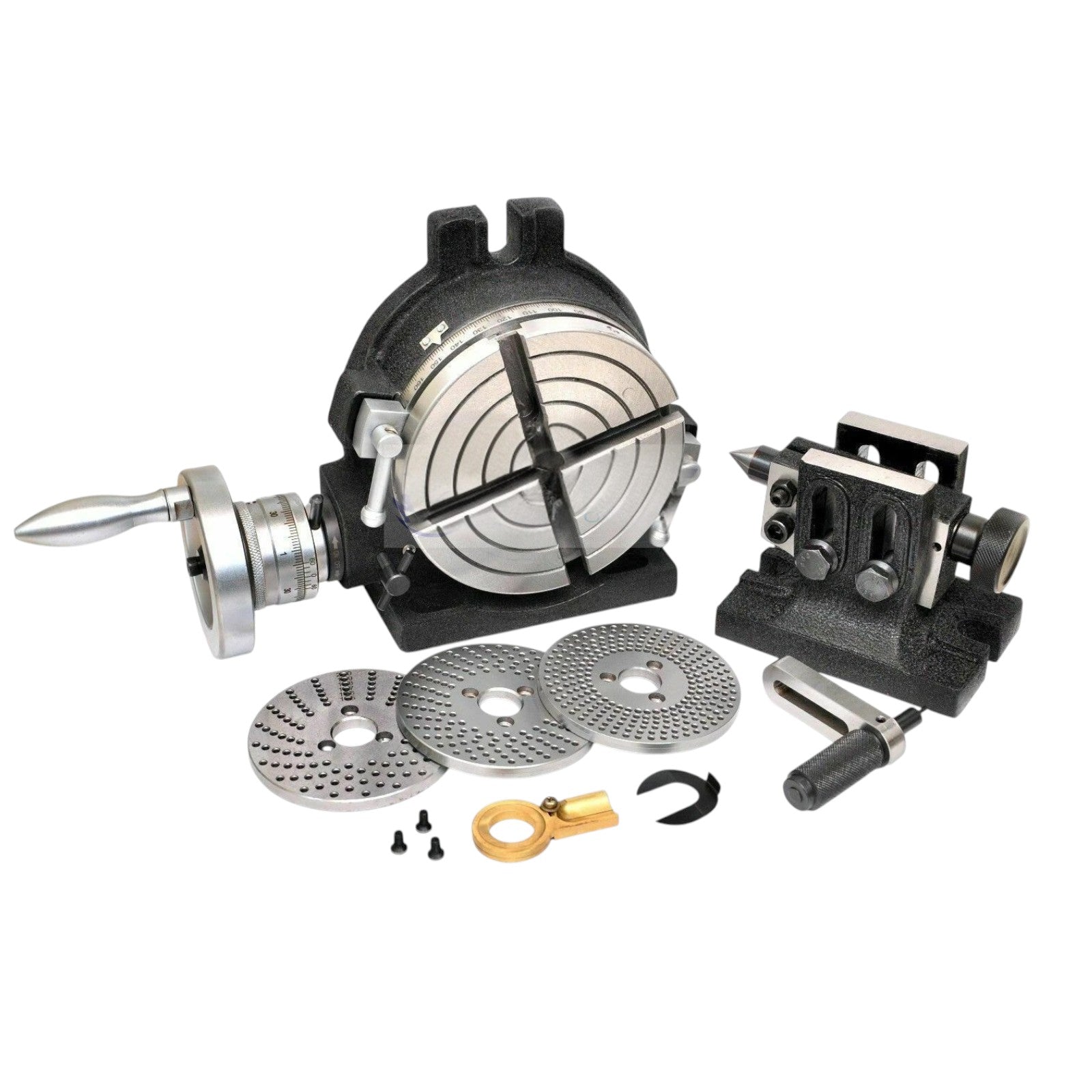

📦 Package Includes

• 📦 1 × HV6 6" (150mm) Horizontal & Vertical Rotary Table
• 📦 1 × Adjustable Tailstock
• 📦 3 × Precision Dividing Plates
• 📦 Mounting Screws, Washers & Handles

🌟 Why Choose BlueFox Tools?

✔ High-Precision 90:1 Worm Gear Drive

✔ MT2 Centre Bore

✔ Heavy-Duty Adjustable Tailstock

✔ Precision Dividing Plate Set Included

✔ Horizontal & Vertical Operation

✔ High-Grade Cast Iron Construction

✔ Trusted by Machinists & Engineers
