BlueFox Tools Indexing Plate Set for HV4 & HV6 Rotary Tables | 3 Dividing Plates with Mounting Hardware | 100mm Precision Dividing Attachment
- $62.69
- $62.69
- Unit price
- per
Tax included
Stock Availability
FBB221, 29 WYSOCKI PL, HACKENSACK, NJ 07601-6804 US
Phone: +1 646 224 0700
Phone: +1 646 224 0700
662/8-A, Gali No 1, First Floor,
Punjabi Basti, Anand Parbat
Phone: +91 8860055906
Punjabi Basti, Anand Parbat
Phone: +91 8860055906
Orange Connex Fulfilment Centre – UK04
Mill Road, Rugby, England
GB-CV21 1PR
Phone: +44 7747 770826
Mill Road, Rugby, England
GB-CV21 1PR
Phone: +44 7747 770826
Orange Connex Fulfillment Center – DE04
Bochumer Str. 119, Nordrhein-Westfalen
DE-44866 Bochum
Phone: +49 15563617045
Bochumer Str. 119, Nordrhein-Westfalen
DE-44866 Bochum
Phone: +49 15563617045
Orange Connex Fulfilment Centre – AU03
Warehouse L, Building 5, 161 Manchester Rd
Auburn, New South Wales
AU-2144
Phone: +61 416 989 802
Warehouse L, Building 5, 161 Manchester Rd
Auburn, New South Wales
AU-2144
Phone: +61 416 989 802
AVAILABLE IN INDIA •
AVAILABLE IN USA •
AVAILABLE IN UNITED KINGDOM •
AVAILABLE IN GERMANY •
AVAILABLE IN AUSTRALIA
Secured Payment
Description
x🔧 BlueFox Tools Indexing Plate Set for HV4 & HV6 Rotary Tables
Expand the capabilities of your rotary table with the BlueFox Tools Indexing Plate Set, a precision dividing attachment designed for HV4 and HV6 Rotary Tables. This complete set includes three accurately machined dividing plates with multiple indexing hole circles, allowing precise angular indexing for gear cutting, drilling, milling, machining, and other precision engineering operations.
Manufactured for reliable accuracy and durability, the indexing plates fit directly onto compatible HV4 and HV6 rotary tables. The set includes all necessary mounting screws, washers, and handles, making installation quick and hassle-free.
Whether you're producing gears, flanges, bolt circles, splines, or equally spaced components, this dividing plate set provides accurate and repeatable indexing for professional and hobby machinists alike.
✨ Key Features
✅ Designed for HV4 & HV6 Rotary Tables – Direct fit for compatible horizontal and vertical rotary tables.
✅ Complete 3-Plate Set – Covers a wide range of indexing requirements with multiple hole patterns.
✅ Precision Machined – Manufactured for accurate and repeatable indexing operations.
✅ Ideal for Dividing & Indexing – Perfect for gear cutting, bolt circles, drilling, milling, and machining.
✅ 100mm Plate Diameter – Compact and precise design for workshop use.
✅ Easy Installation – Includes mounting screws, washers, and handles.
✅ Durable Construction – Built for long service life and dependable workshop performance.
✅ Professional Workshop Quality – Suitable for machinists, engineers, toolmakers, and model engineers.
📏 Specifications
- 🔹 Brand: BlueFox Tools
- 🔹 Product Type: Indexing Plate / Dividing Plate Set
- 🔹 Compatibility: HV4 & HV6 Rotary Tables

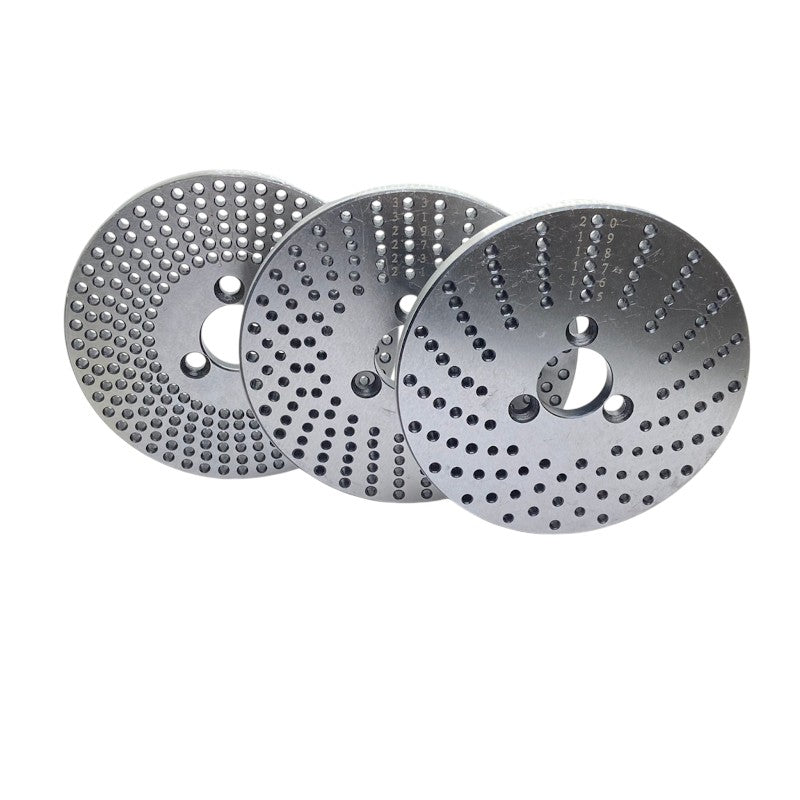

- 🔹 Number of Plates: 3

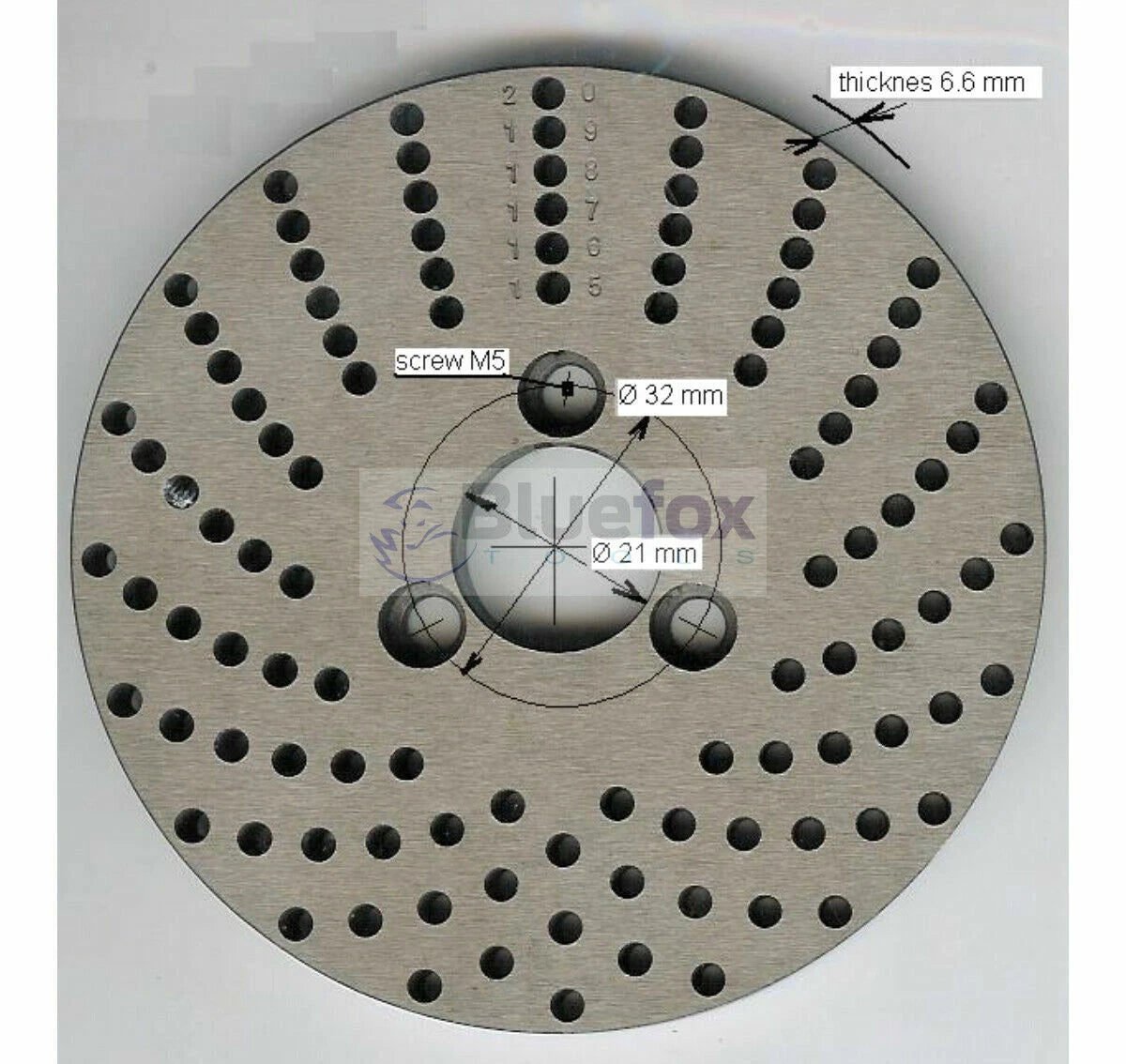

- 🔹 Plate Diameter: 100mm
- 🔹 Inside Diameter: 21mm
- 🔹 Plate Thickness: 7.5mm
Plate Hole Circles
Plate 1
- 15
- 16
- 17
- 18
- 19
- 20 Holes
Plate 2
- 21
- 23
- 27
- 29
- 31
- 33 Holes
Plate 3
- 37
- 39
- 41
- 43
- 47
- 49 Holes
🏭 Applications
⚙️ Gear cutting
🦷 Gear indexing
🕳️ Bolt circle drilling
📐 Precision indexing
🛠️ Milling operations
🔩 Rotary table machining
🏭 Tool room applications
🔧 Engineering workshops
🧰 Model engineering
📏 Precision machining
🚗 Automotive component manufacturing
🏗️ General fabrication

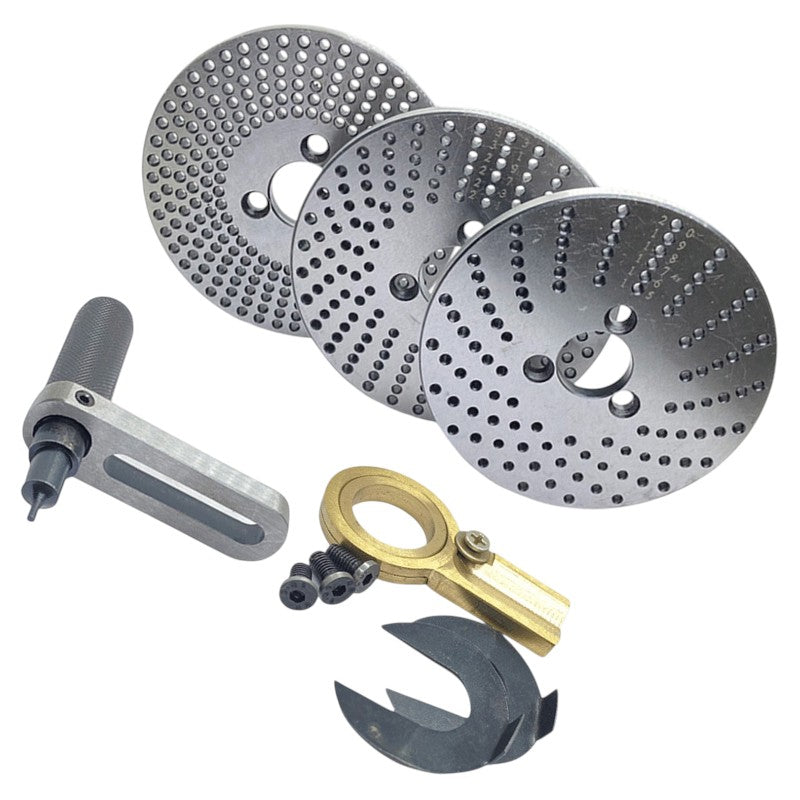

📦 Package Includes
- 📦 3 × Precision Indexing Plates
- 📦 Mounting Screws
- 📦 Washers

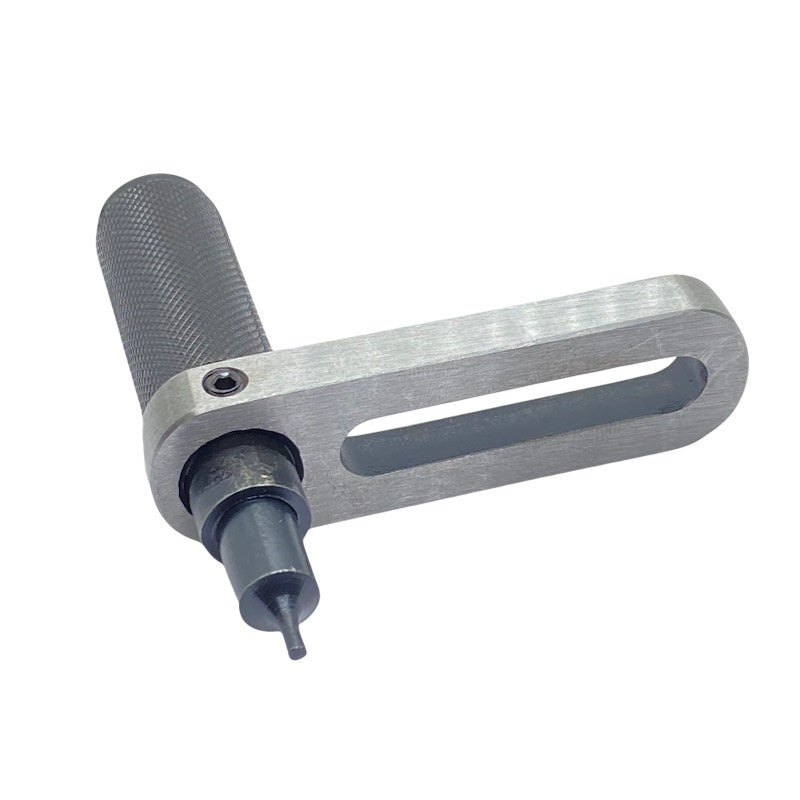

- 📦 Handles
🌟 Why Choose BlueFox Tools?
✔ Precision Machined Indexing Plates
✔ Compatible with HV4 & HV6 Rotary Tables
✔ Multiple Hole Circle Combinations
✔ Easy Installation
✔ Durable Workshop Construction
✔ Accurate & Repeatable Indexing
✔ Trusted by Machinists & Engineers
