BLUEFOX TOOLS 3" Screwless (Pin Type) Toolmaker Precision Grinding Machine Vice/Vise Premium | Low Profile CNC VICE | Toolmaker Steel 0.0002" (3IN) - Accurate and Versatile
Tags: / / / / / / /

BLUEFOX TOOLS 3" Screwless (Pin Type) Toolmaker Precision Grinding Machine Vice/Vise Premium | Low Profile CNC VICE | Toolmaker Steel 0.0002" (3IN) - Accurate and Versatile

4.5 rating ( 2334 )
$89.99
$89.99

Tax included

Stock Availability

FBB221, 29 WYSOCKI PL, HACKENSACK, NJ 07601-6804 US
Phone: +1 646 224 0700
662/8-A, Gali No 1, First Floor,
Punjabi Basti, Anand Parbat
Phone: +91 8860055906
Orange Connex Fulfilment Centre – UK04
Mill Road, Rugby, England
GB-CV21 1PR
Phone: +44 7747 770826
Orange Connex Fulfillment Center – DE04
Bochumer Str. 119, Nordrhein-Westfalen
DE-44866 Bochum
Phone: +49 15563617045
Orange Connex Fulfilment Centre – AU03
Warehouse L, Building 5, 161 Manchester Rd
Auburn, New South Wales
AU-2144
Phone: +61 416 989 802
AVAILABLE IN INDIA   β€’   AVAILABLE IN USA   β€’   AVAILABLE IN UNITED KINGDOM   β€’   AVAILABLE IN GERMANY   β€’   AVAILABLE IN AUSTRALIA
Secured Payment
Description
Description
x

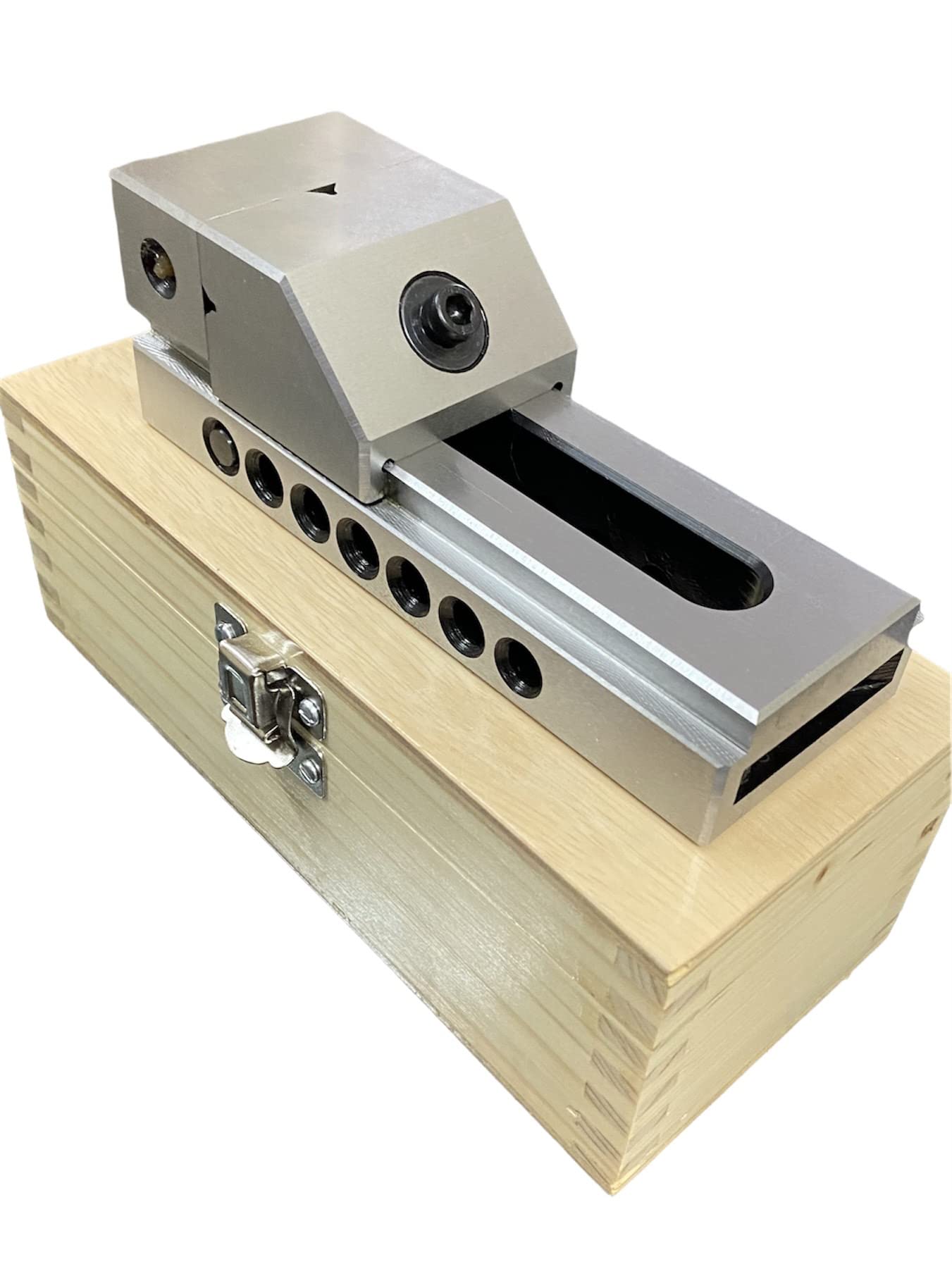

This 3" Screwless (Pin Type) Precision Grinding Vice is a professional-grade workholding tool designed for high-accuracy grinding, milling, EDM, and inspection operations. Manufactured from high-quality tool steel and hardened & precision ground, this toolmaker’s vice delivers exceptional rigidity, repeatability, and long-term durability in demanding workshop and toolroom environments.

The screwless pin-type clamping mechanism provides strong forward and downward clamping action, ensuring the workpiece is pulled firmly against the base and fixed jaw for maximum holding power and vibration-free machining. The moving jaw is slightly narrower than the base, allowing the vice to be safely and accurately used on its sides or end, making it extremely versatile for surface grinding and precision setups.

Ground square, parallel, and flat to the highest industrial accuracy standards, this precision grinding vise is ideal for toolmakers, die makers, mold shops, and precision engineers who demand consistent, repeatable positioning and reliable accuracy.

πŸ”§Β Key Features

  • 3" Screwless (Pin Type) Precision Grinding Vice / Vise

  • Hardened & precision ground tool steel construction for long service life

  • High clamping force with forward & downward action for secure holding

  • Extremely accurate, square & parallel – suitable for precision grinding work

  • Moving jaw narrower than base, allowing side and end usage

  • Highly repeatable positioning, ideal for toolroom and production work

  • Designed for surface grinding, milling, EDM, jig boring & inspection

  • Built to meet highest industrial accuracy standards

πŸ“Β Technical Specifications

  • Jaw Width: 3" (75 mm)

  • Overall Length: 177 mm

  • Overall Width: 75 mm

  • Overall Height: 64 mm

  • Jaw Depth: 35 mm

  • Maximum Jaw Opening: 100 mm

🏭 Applications

  • Surface grinding machines

  • Milling machines

  • EDM wire & spark erosion

  • Toolroom & inspection setups

  • Precision engineering & metalworking workshops
