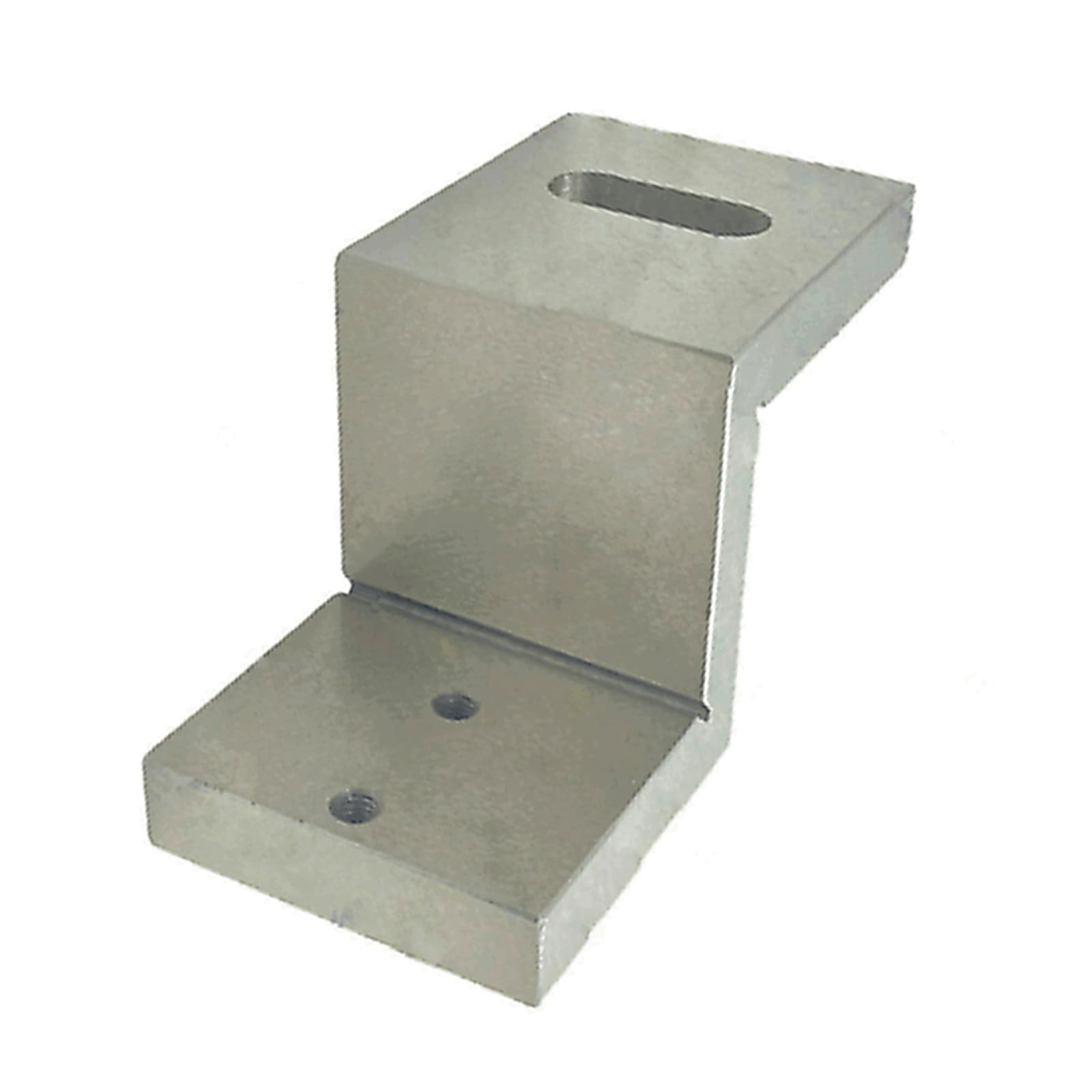

The Mini Vertical Slide Mounting Bracket (Z-Plate) is a precision-made adapter designed to securely mount a vertical slide onto mini lathes using the existing toolpost stud. This compact and rigid bracket provides a stable interface between the lathe cross slide and the vertical slide, making it ideal for milling, drilling, slotting, and light machining operations on mini lathes.

Manufactured for accuracy and strength, this mounting plate is an essential accessory for users looking to expand the capabilities of their mini lathe without permanent modification.

Key Features & Important Points:

• Purpose-Built Z-Plate for Mini Lathes – Specifically designed to mount a vertical slide onto a mini lathe cross slide using the standard toolpost stud location.

• Rigid & Compact Design – Provides a strong, stable mounting platform while maintaining a compact footprint suitable for small bench-top lathes.

• Toolpost Stud Fixing Slot – Features an 11mm × 30mm fixing slot, allowing secure attachment via the toolpost stud for quick and accurate alignment.

• Pre-Drilled Mounting Holes – Opposing face includes two precision-positioned holes for mounting a compatible vertical slide securely and squarely.

• Accurate Machining – Precisely machined surfaces ensure proper alignment and repeatable setup for accurate machining operations.

• Versatile Machining Applications – Enables light milling, drilling, facing, and slotting operations when used with a vertical slide on a mini lathe.

• Easy Installation – Installs without modification to the lathe; simply fits in place of the toolpost using the existing stud.

• Vertical Slide Not Included – Supplied as mounting bracket only; vertical slide shown or mentioned is for illustration and compatibility reference.

Dimensions:

  • Width (Top): 63 mm

  • Height (Down): 55 mm

  • Width (Bottom): 53 mm

  • Toolpost Stud Slot: 11 mm × 30 mm

Applications:

  • Mini lathe vertical slide mounting

  • Light milling on mini lathes

  • Drilling and slotting operations

  • Hobby, model engineering, and toolroom use
