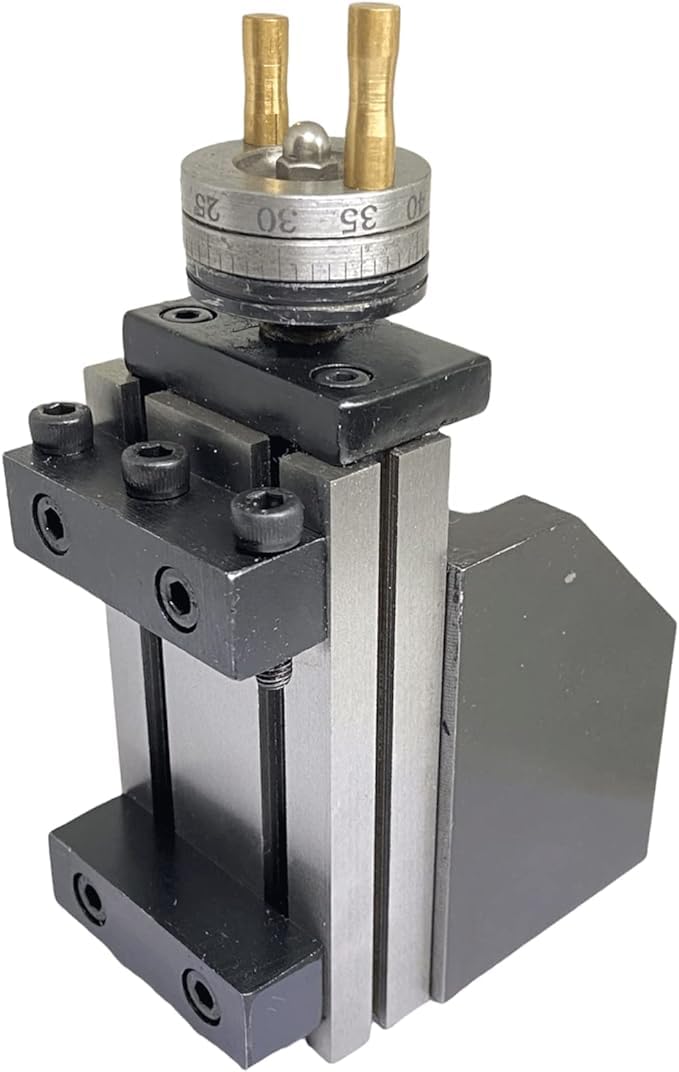

BLUEFOX TOOLS Mini Lathe Vertical Slide | 90 x 50 mm | Two Handle Milling Operation on Lathe | High Grade Casting with Smooth Finishing | Small Vertical Milling Slide for Bench Lathes

The Mini Vertical Slide 90 × 50 mm is a compact and highly efficient accessory designed to instantly expand the machining capabilities of your lathe by enabling vertical milling, drilling, slotting, and light machining operations. Ideal for bench and small lathes, this vertical slide provides precision, rigidity, and ease of use for model engineers and workshop professionals.

Manufactured from high-quality seasoned cast iron, the slide offers excellent strength, vibration damping, and long-term dimensional stability. Its robust construction ensures smooth vertical travel and accurate positioning during milling operations. Supplied complete and ready to fit, this unit is a simple and effective solution for converting your lathe into a small milling setup.

Designed to fit Emco, Myford, Warco, and Sieg C3 small lathes with minimal or no modification, this vertical slide is suitable for bench lathes up to 150 mm swing. A small gib extension allows mounting directly into the quick-change tool post, eliminating the need to remove the tool post or mount the slide on the cross slide—saving time and improving convenience.

The 90 × 50 mm sliding table provides adequate working space for small components, while the 40 mm vertical travel allows precise depth control. The graduated dial (0–50) ensures accurate adjustments, and the adjustable jaws with up to 70 mm opening securely hold a wide range of workpieces.

Key Features

  Mini Vertical Slide for Lathe Milling Operations

• Instant Milling Capability – Converts lathe into a light milling machine

• High-Quality Seasoned Cast Iron Construction – Strong, rigid, and vibration resistant

• Sliding Table Size: 90 × 50 mm

• Vertical Travel: 40 mm

• Base Dimensions: 50 × 55 mm

• Graduated Dial: 0–50 for precise depth control

• Maximum Jaw Opening: 70 mm (adjustable jaws)

• Fits Bench Lathes up to 150 mm Swing

• Compatible with Emco, Myford, Warco, Sieg C3 Lathes (minor modification may be required)

• Quick Change Tool Post Mounting – No need to remove tool post or mount on cross slide

Applications

• Vertical milling on lathe machines

• Slotting, drilling, and light cutting operations

• Model engineering and precision workshop tasks

• Small component machining on bench lathes
