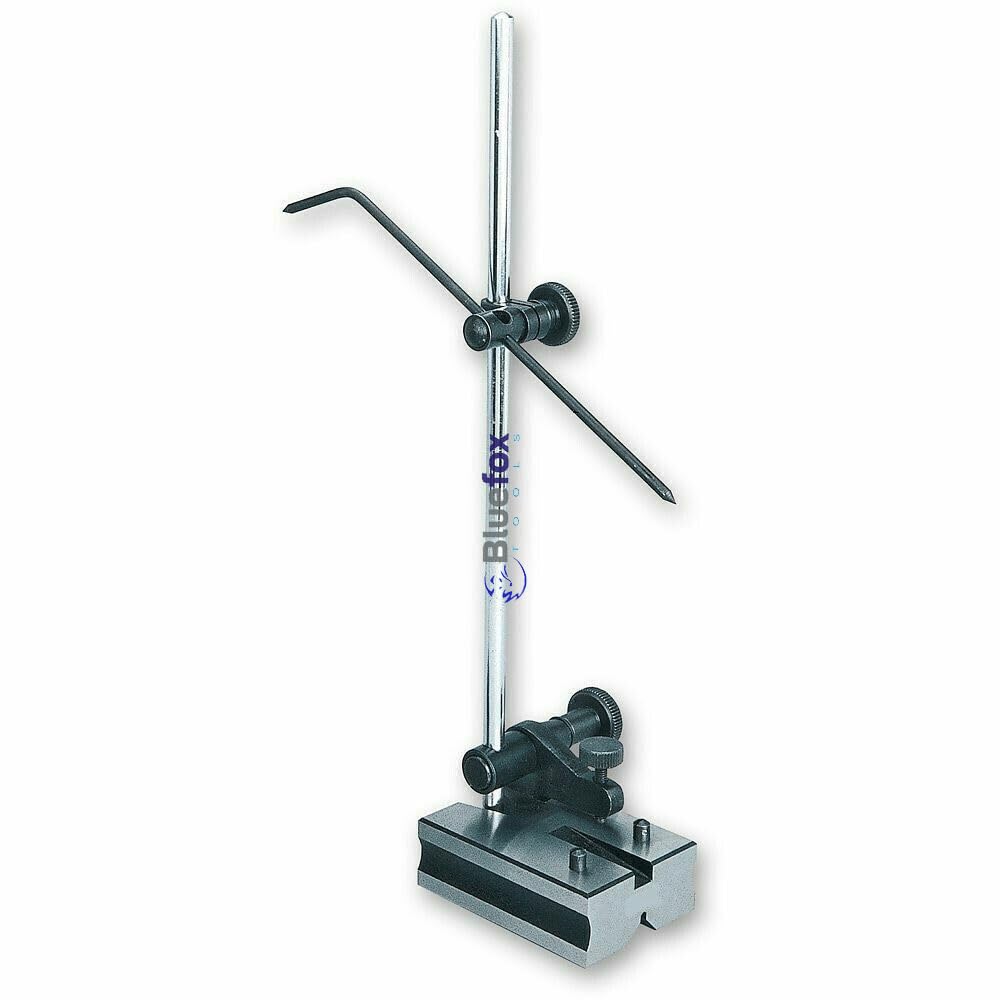

The Universal Surface Gauge is a precision-engineered tool designed for accurate marking, measuring, and layout work in machine shops, tool rooms, and inspection environments. Built for versatility and durability, it is ideal for both flat and cylindrical workpieces.
Featuring a hardened and ground V-groove base, the gauge ensures stable positioning on round surfaces. The adjustable spindle can be set at any angleβabove or below the baseβallowing the tool to function efficiently as both a height gauge and depth gauge.
Available in 9" (225mm) and 12" (300mm) spindle lengths, this surface gauge delivers reliable performance for precision machining and layout tasks.
Key Features
Base Dimensions: 3-1/8" x 2-1/2" x 1" (82mm x 63mm x 25mm)
Spindle Length Options: 9" (225mm) & 12" (300mm)
Spindle Diameter: 3/8" (9.5mm)
Hardened & ground V-groove base for cylindrical work
Adjustable spindle for angular positioning above or below base level
Front base groove enables use as height gauge and depth gauge
Includes extra 9" spindle for extended versatility
Robust construction for long-term accuracy and durability
Applications
Precision marking and layout
Height and depth measurement
Tool rooms, machine shops, and inspection work
Flat and cylindrical components
