Clamp Action Knurling Tool for Lathe | Spring Loaded 2 Wheel Knurling Tool | 2" Capacity | UK STOCK
Clamp Action Knurling Tool for Lathe | Spring Loaded 2 Wheel Knurling Tool | 2" Capacity | UK STOCK
Tags: / / / / / / / / / / / / / / / /

Clamp Action Knurling Tool for Lathe | Spring Loaded 2 Wheel Knurling Tool | 2" Capacity | UK STOCK

4.5 rating ( 2334 )
$29.25
$29.25

Tax included

Stock Availability

FBB221, 29 WYSOCKI PL, HACKENSACK, NJ 07601-6804 US
Phone: +1 646 224 0700
662/8-A, Gali No 1, First Floor,
Punjabi Basti, Anand Parbat
Phone: +91 8860055906
Orange Connex Fulfilment Centre – UK04
Mill Road, Rugby, England
GB-CV21 1PR
Phone: +44 7747 770826
Orange Connex Fulfillment Center – DE04
Bochumer Str. 119, Nordrhein-Westfalen
DE-44866 Bochum
Phone: +49 15563617045
Orange Connex Fulfilment Centre – AU03
Warehouse L, Building 5, 161 Manchester Rd
Auburn, New South Wales
AU-2144
Phone: +61 416 989 802
AVAILABLE IN INDIA   •   AVAILABLE IN USA   •   AVAILABLE IN UNITED KINGDOM   •   AVAILABLE IN GERMANY   •   AVAILABLE IN AUSTRALIA
Secured Payment
Description
Description
x

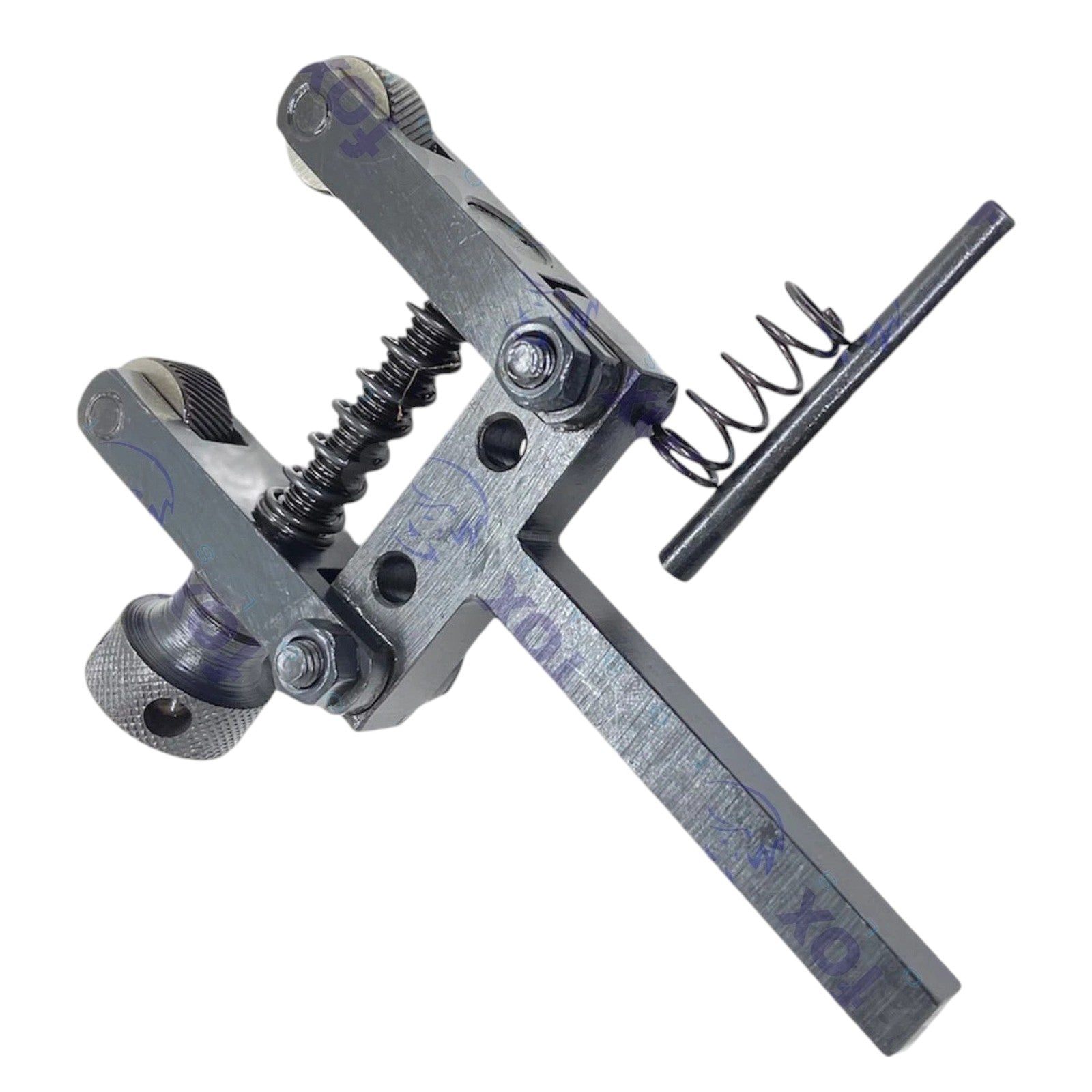

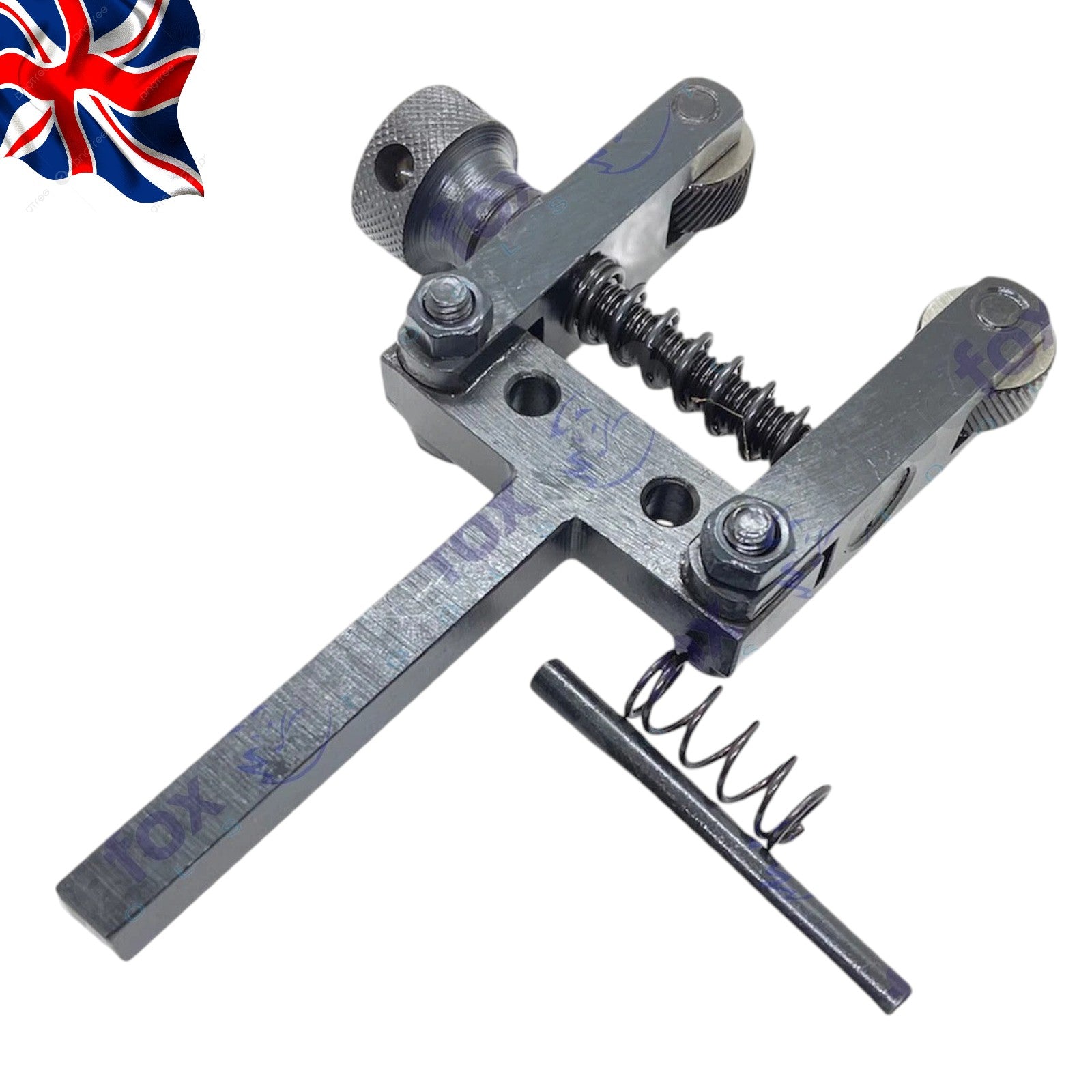

Industrial 2 Wheel Clamp Action Knurling Tool

This Clamp Action Knurling Tool is designed to produce clean and consistent knurl patterns while minimizing stress on the lathe spindle, bearings, and cross-slide. The spring-loaded clamp design allows both knurl wheels to apply pressure from opposite sides of the workpiece, reducing load on the machine and improving knurl quality.

The head automatically adjusts to centre height and clamps securely onto the workpiece using the knurled adjustment nut, making setup quick and easy. Suitable for use on Myford lathes and many other bench and workshop lathes.

Ideal for creating grip patterns, decorative finishes, and precision knurling on shafts, handles, knobs, and other turned components.

Key Features

  • Industrial 2 wheel clamp action knurling tool
  • Spring-loaded design for reduced machine load
  • Self-adjusting head automatically centres on the workpiece
  • Knurled adjustment nut for easy clamping
  • Produces clean and consistent knurl patterns
  • Suitable for mini, bench and workshop lathes
  • Strong and durable construction
  • Easy installation in standard tool posts
  • Ideal for professional and hobby workshops
  • Suitable for Myford and similar lathes

Specifications

Specification Details
Tool Type Clamp Action Knurling Tool
Knurl Wheels 2 Wheel Design
Shank Size 3/8"
Maximum Capacity 2" (50mm)
Design Spring Loaded
Centre Height Self Adjusting

Applications

  • Lathe knurling operations
  • Grip pattern creation
  • Handle manufacturing
  • Knob production
  • Precision machining
  • Model engineering
  • Toolmaking
  • Workshop projects
  • Metalworking applications
  • General engineering work

Benefits

Reduced Lathe Stress

Clamp action design absorbs knurling pressure between the wheels rather than transferring it to the lathe.

Automatic Centre Adjustment

Self-adjusting head simplifies setup and operation.

Consistent Knurl Quality

Spring-loaded mechanism helps maintain even pressure throughout the process.

Wide Compatibility

Suitable for Myford and many similar-sized lathes.

Durable Construction

Built for regular workshop and production use.

Package Includes

  • 1 × Clamp Action Knurling Tool
  • Fitted Knurl Wheels
