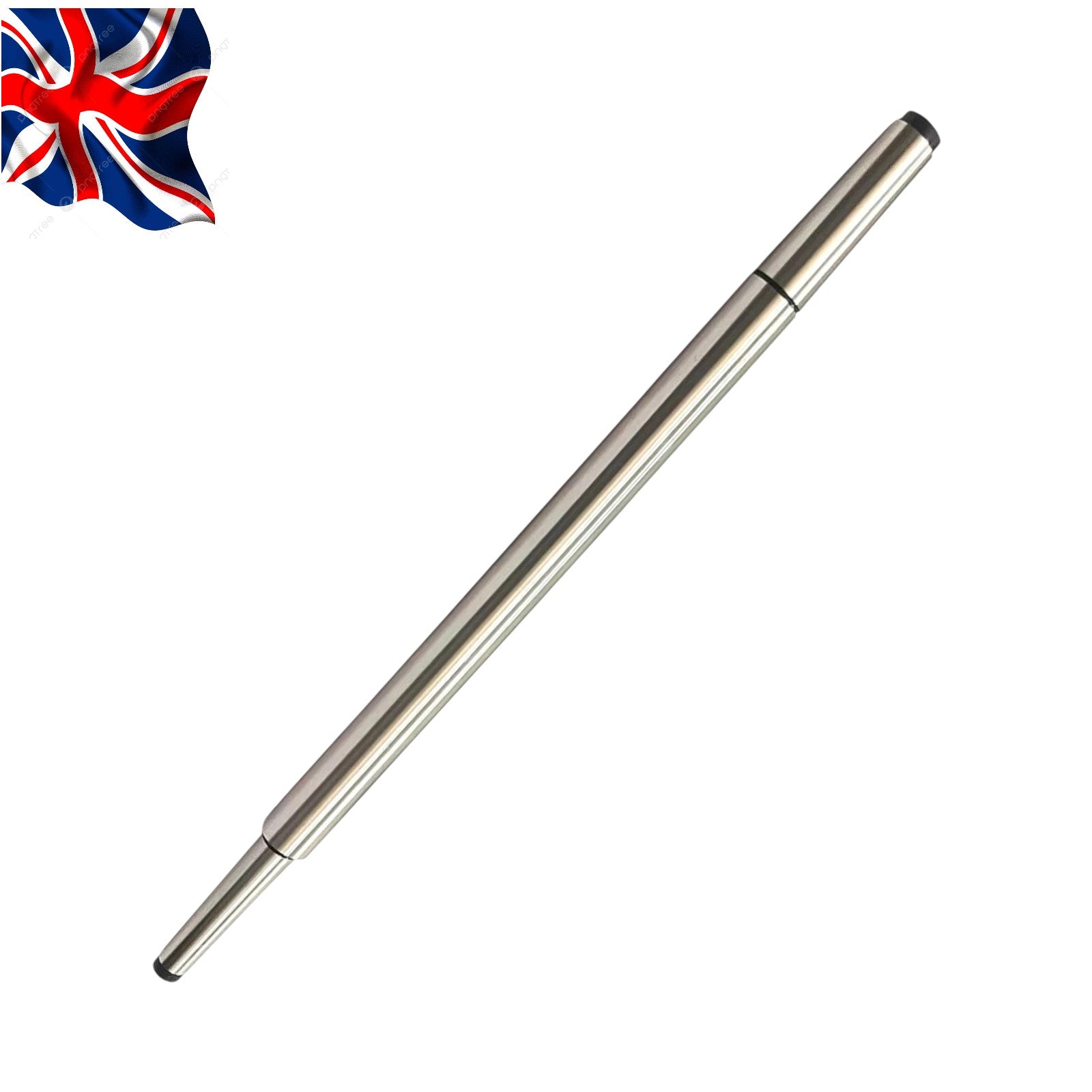

Double Ended MT2 & MT3 Lathe Alignment Test Bar | 450mm Precision Test Mandrel EN8 Steel | UK STOCK
- $56.50
- $56.50
- Unit price
- per
Tax included
Stock Availability
FBB221, 29 WYSOCKI PL, HACKENSACK, NJ 07601-6804 US
Phone: +1 646 224 0700
Phone: +1 646 224 0700
662/8-A, Gali No 1, First Floor,
Punjabi Basti, Anand Parbat
Phone: +91 8860055906
Punjabi Basti, Anand Parbat
Phone: +91 8860055906
Orange Connex Fulfilment Centre – UK04
Mill Road, Rugby, England
GB-CV21 1PR
Phone: +44 7747 770826
Mill Road, Rugby, England
GB-CV21 1PR
Phone: +44 7747 770826
Orange Connex Fulfillment Center – DE04
Bochumer Str. 119, Nordrhein-Westfalen
DE-44866 Bochum
Phone: +49 15563617045
Bochumer Str. 119, Nordrhein-Westfalen
DE-44866 Bochum
Phone: +49 15563617045
Orange Connex Fulfilment Centre – AU03
Warehouse L, Building 5, 161 Manchester Rd
Auburn, New South Wales
AU-2144
Phone: +61 416 989 802
Warehouse L, Building 5, 161 Manchester Rd
Auburn, New South Wales
AU-2144
Phone: +61 416 989 802
AVAILABLE IN INDIA •
AVAILABLE IN USA •
AVAILABLE IN UNITED KINGDOM •
AVAILABLE IN GERMANY •
AVAILABLE IN AUSTRALIA
Secured Payment
Description
xPrecision Double-Ended MT2 & MT3 Lathe Alignment Test Bar
The BLUEFOX Double Ended Lathe Alignment Test Bar is a precision-ground alignment mandrel designed for accurately checking and correcting tailstock alignment, spindle accuracy, and machine geometry on metalworking lathes. Manufactured from EN8D alloy steel, the test bar is induction hardened and precision ground to deliver outstanding accuracy and long service life.
Featuring Morse Taper 2 (MT2) on one end and Morse Taper 3 (MT3) on the other, this versatile alignment mandrel is suitable for a wide range of lathes and machine tools. With an overall length of 450mm and a 300mm parallel ground section, it provides an excellent reference for precision alignment between centres or directly in Morse taper spindles.
Ground to within 5 microns with a maximum run-out of approximately 0.0002", this test bar is ideal for professional machinists, toolmakers, maintenance engineers, educational workshops, and serious hobby users.
Key Features
- Double-ended design with MT2 and MT3 tapers
- Manufactured from premium EN8D alloy steel
- Induction hardened and precision ground
- Overall length: 450mm
- Parallel ground length: 300mm
- Accuracy within 5 microns
- Excellent concentricity for reliable measurements
- Suitable for tailstock and spindle alignment
- Professional workshop quality
- Durable corrosion-resistant finish
Specifications
| Specification | Details |
|---|---|
| Product Type | Lathe Alignment Test Bar |
| Material | EN8D Alloy Steel |
| Taper Ends | MT2 & MT3 |
| Overall Length | 450mm |
| Parallel Length | 300mm |
| Accuracy | Within 5 Microns |
| Construction | Induction Hardened & Precision Ground |
Applications
- Tailstock alignment
- Headstock alignment
- Morse taper spindle inspection
- Lathe calibration
- Machine setup
- Precision engineering
- Toolroom inspection
- Machine maintenance
- Workshop servicing
- Quality control
Benefits
Accurate Tailstock Alignment
Quickly identifies and corrects tailstock misalignment to eliminate unwanted taper during turning.
Dual Taper Compatibility
MT2 and MT3 tapers provide compatibility with a wider range of lathes and machine tools.
Precision Ground Accuracy
Manufactured to tight tolerances for dependable alignment and inspection work.
Durable Construction
EN8D alloy steel with induction hardening provides excellent wear resistance and long service life.
Professional Inspection Tool
Ideal for machine calibration, maintenance, precision machining, and workshop quality control.
Suitable For
- Engine Lathes
- Centre Lathes
- Toolroom Lathes
- Milling Machines with Morse Taper Spindles
- Machine Shops
- Engineering Workshops
- Maintenance Departments
- Educational Training Centres
Package Includes
- 1 × Double Ended MT2 & MT3 Lathe Alignment Test Bar (450mm)
Technical Specifications
