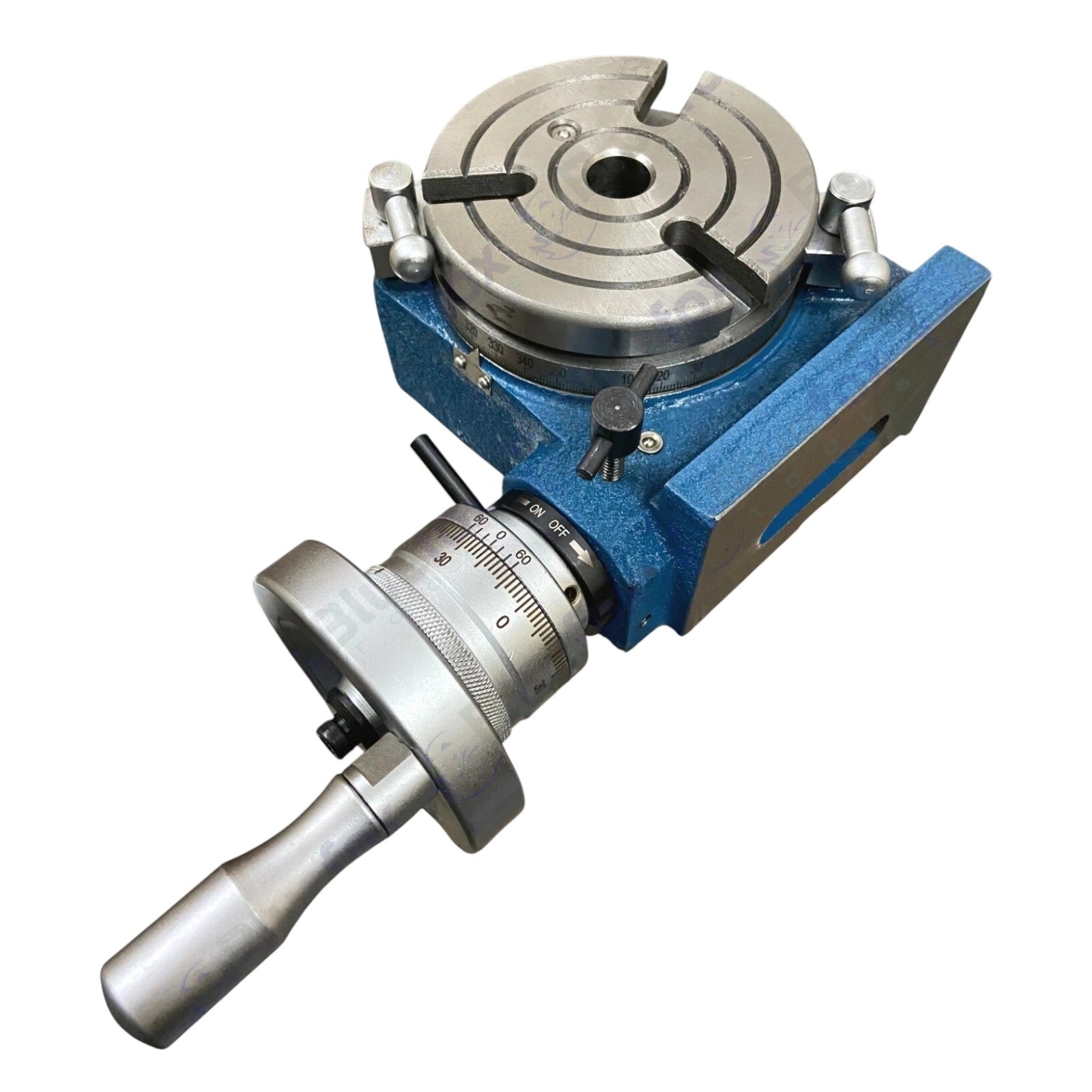

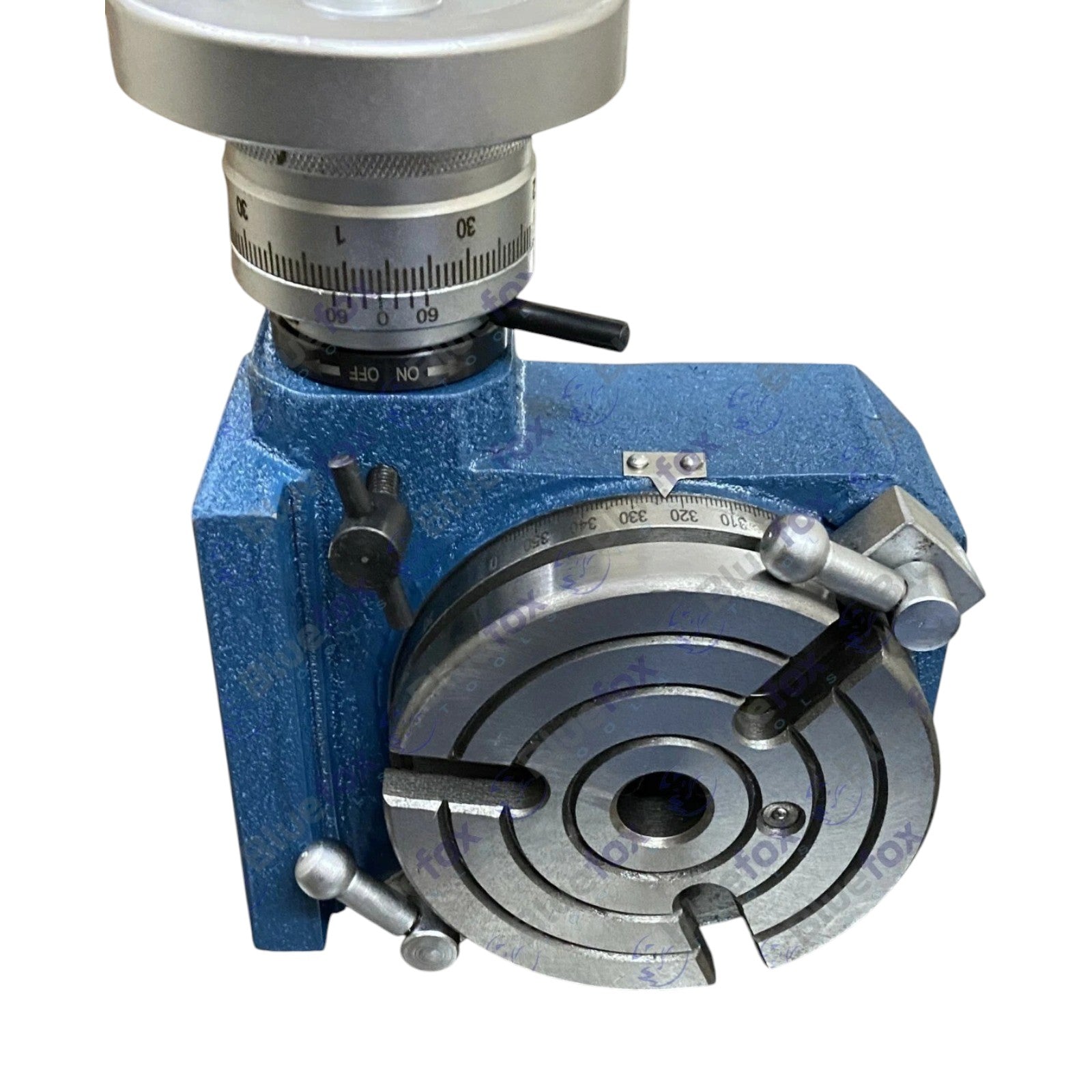

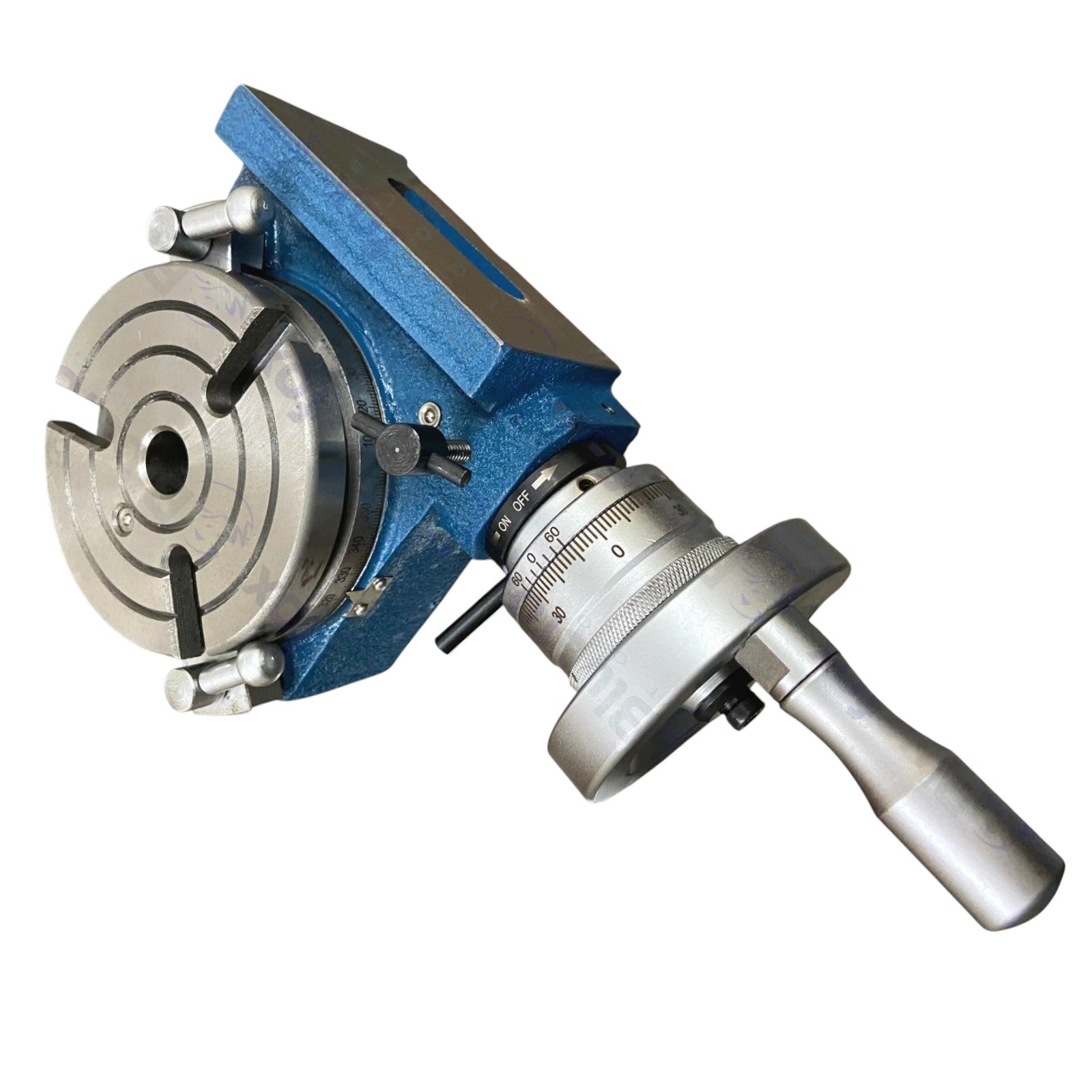

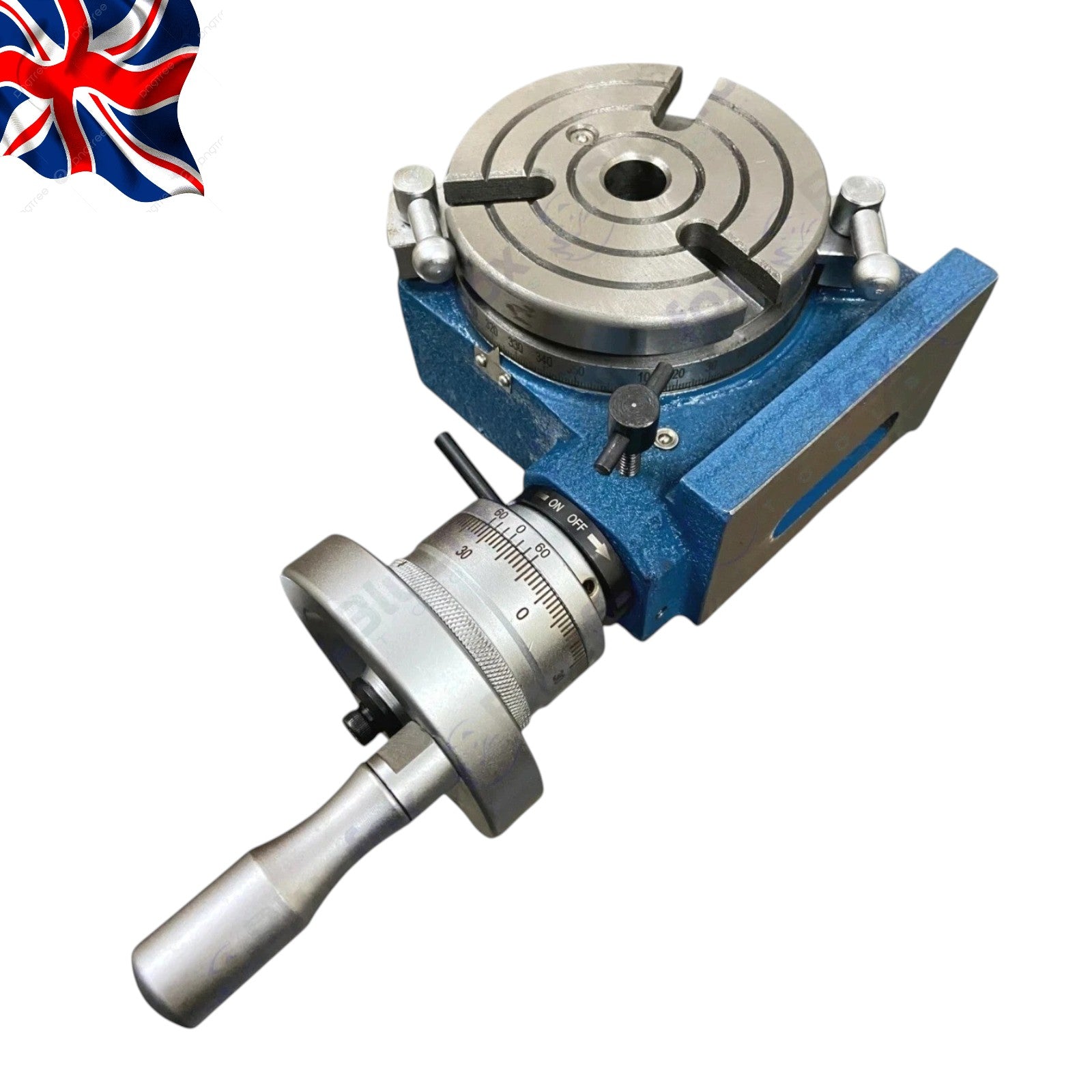

HV4 110mm (4") Horizontal & Vertical Rotary Table

The Bluefox Tools HV4 110mm (4") Horizontal Vertical Rotary Table is a high-precision indexing table designed for milling machines, drilling machines, tool rooms, and precision engineering workshops. Built from high-quality seasoned cast iron, this heavy-duty rotary table delivers exceptional accuracy, rigidity, and smooth operation for circular machining, indexing, angle cutting, and precision positioning.

The table features a 110mm (4") precision-ground surface with three T-slots for secure workholding and an MT2 Morse Taper centre bore, allowing the use of centres, arbors, and other compatible accessories. The 90:1 worm gear drive provides accurate rotational control, while the vernier scale calibrated to 10 arc-seconds enables precise angular adjustments for demanding machining operations.

A quick-release worm mechanism allows fast manual indexing and easy repositioning of the table, improving productivity during repetitive machining tasks. Designed for both horizontal and vertical mounting, the HV4 rotary table is suitable for a wide range of milling, drilling, engraving, and fabrication applications.

Features

  • Precision 110mm (4") HV4 rotary table
  • Horizontal and vertical mounting capability
  • Precision-ground table surface
  • Internal MT2 Morse Taper centre bore
  • Heavy-duty 90:1 worm gear drive
  • Smooth and accurate handwheel rotation
  • Vernier scale graduated to 10 arc-seconds
  • Quick-release mechanism for manual indexing
  • Three precision-machined T-slots for secure clamping
  • High-quality seasoned cast iron construction
  • Ideal for milling, drilling, indexing, and circular machining

Specifications

  • Brand: Bluefox Tools
  • Model: HV4
  • Table Diameter: 110mm (4")
  • Mounting: Horizontal & Vertical
  • Centre Bore: MT2 Morse Taper
  • Gear Ratio: 90:1
  • Table Height: 80mm
  • Centre Height (Vertical): 80mm
  • T-Slots: 3
  • Construction: High-Grade Seasoned Cast Iron
  • Indexing: Quick Release Worm Gear System
  • Graduation: Vernier Scale to 10 Arc-Seconds

Applications

  • Precision milling
  • Circular machining
  • Gear cutting
  • Indexing operations
  • Angle machining
  • Slot cutting
  • Drilling
  • Engraving
  • Tool room applications
  • Engineering workshops
  • CNC and manual milling machines
  • General metalworking
