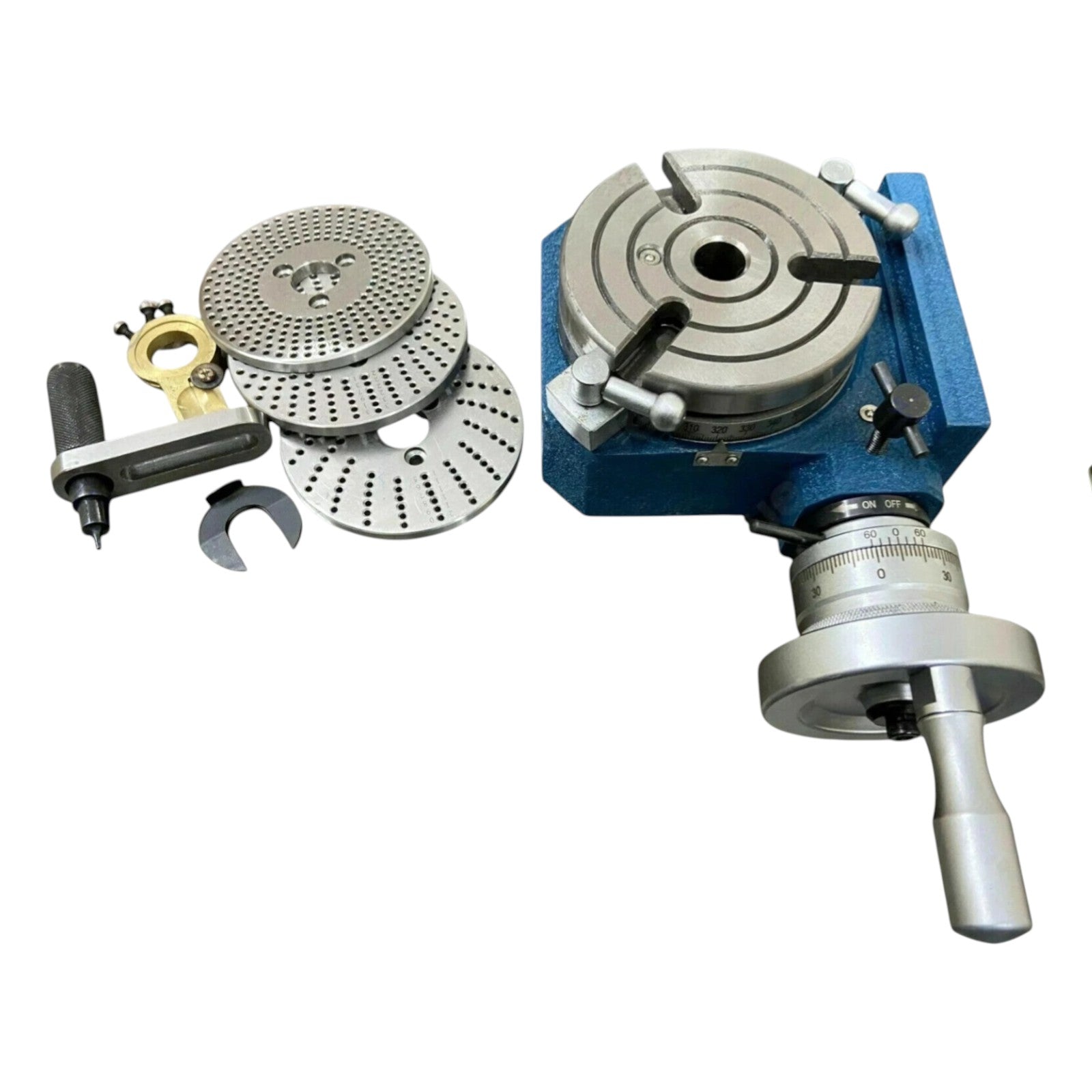

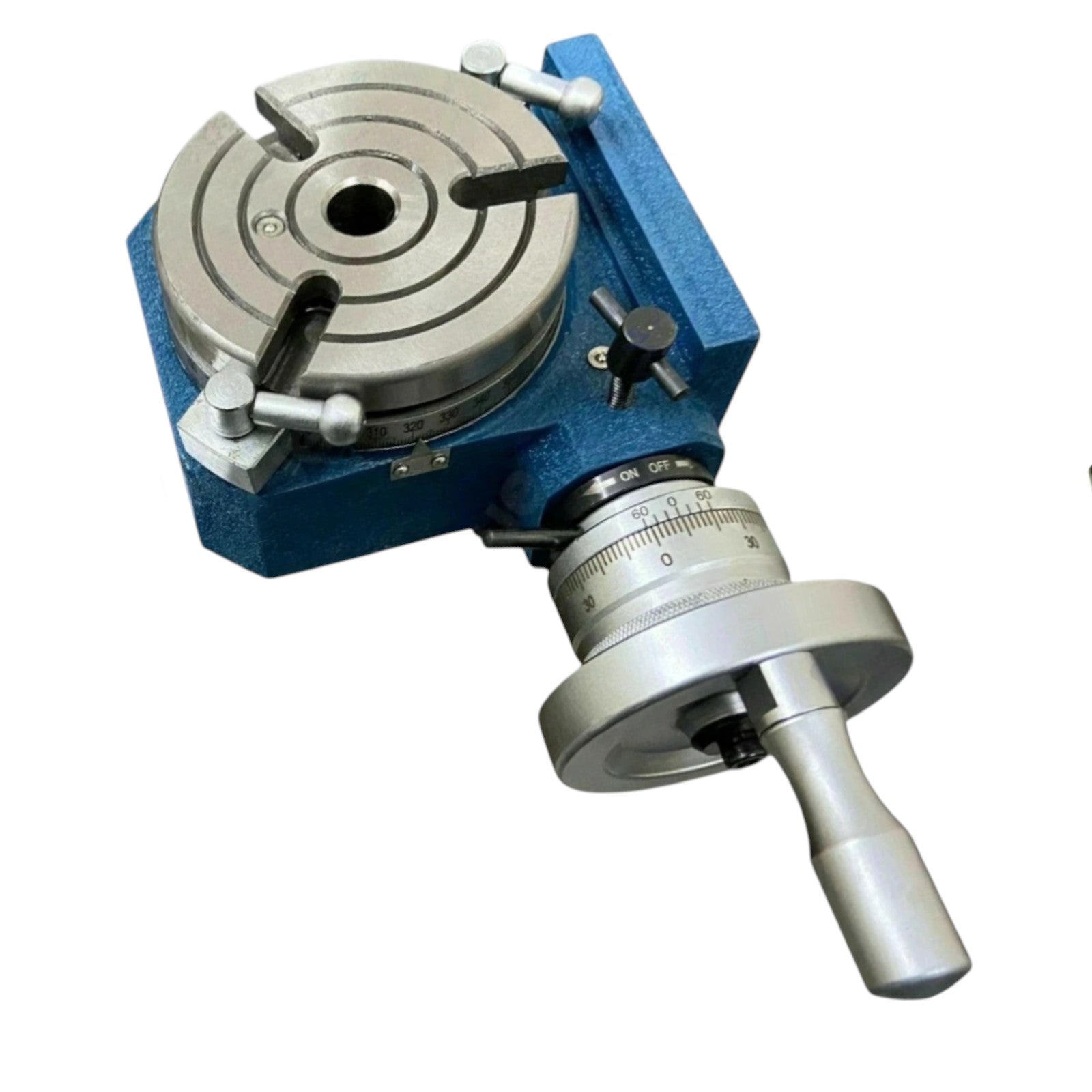

HV4 4" (110mm) Horizontal Vertical Rotary Table with Dividing Plate Set – Precision Milling Indexing Table

🔧 Precision Milling & Indexing Made Easy

Upgrade your milling accuracy with this HV4 Horizontal Vertical Rotary Table with Dividing Plate Set, engineered for precise indexing, gear cutting, slotting, drilling, and circular machining operations.

Manufactured by Bluefox Tools, this high-quality rotary table delivers smooth handwheel rotation, tight tolerances, and reliable positioning for both professional machinists and home workshops.

The 90:1 worm gear ratio allows accurate incremental movements, while the vernier scale calibrated to 10 seconds ensures ultra-fine adjustments. The table can be used in both horizontal and vertical positions, giving you maximum flexibility for different machining tasks.

Supplied with a complete dividing plate set, this attachment enables fast and accurate indexing for gears, splines, and repetitive cutting jobs.

Built tough with 3 T-slots, MT2 center taper, and quick-release indexing system, this compact yet powerful rotary table is ideal for milling machines, drill presses, and metalworking setups.

⭐ Key Features

✔ 4" (110mm) precision rotary table

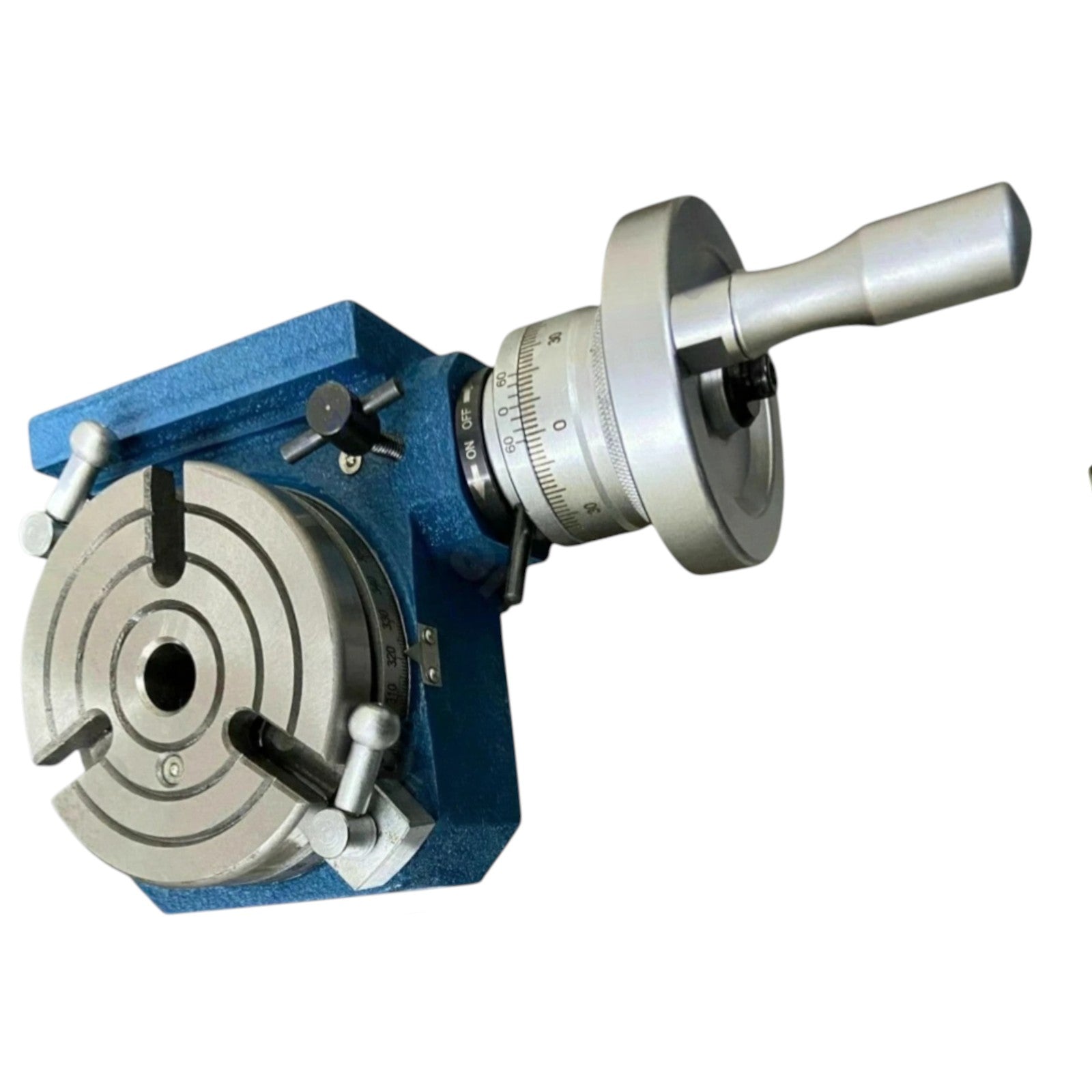

✔ Horizontal & vertical mounting positions
✔ Smooth handwheel rotation for accurate control
✔ 90:1 worm gear ratio for fine indexing
✔ Vernier scale calibrated to 10 seconds
✔ MT2 center taper
✔ Quick-release manual indexing
✔ 3 heavy-duty T-slots for secure clamping
✔ Solid, workshop-grade construction

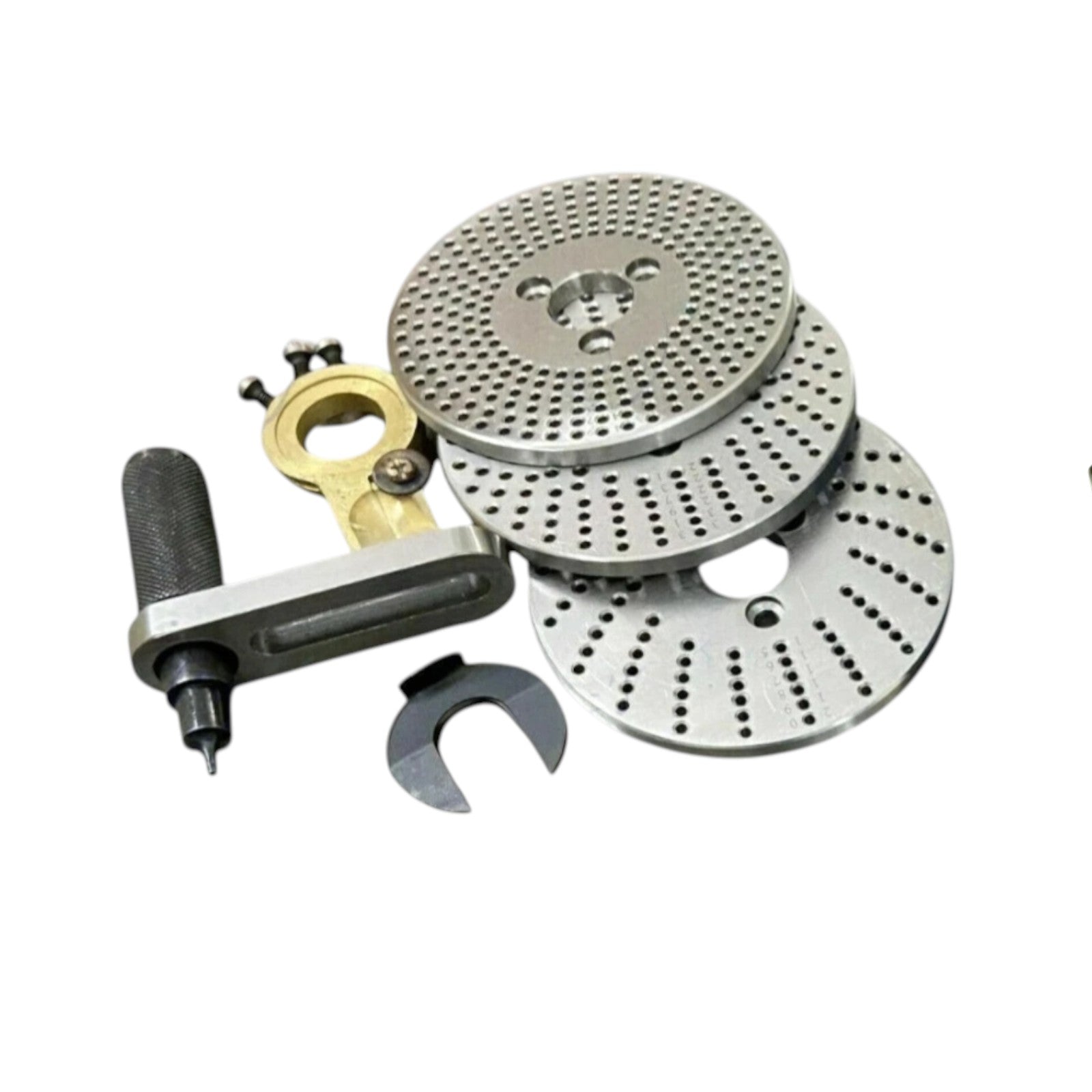

⚙️ Dividing Plate Set Included

Perfect for gear cutting & indexing work

Plate 1 – 15, 16, 17, 18, 19, 20
Plate 2 – 21, 23, 27, 29, 31, 33
Plate 3 – 37, 39, 41, 43, 47, 49

Includes:
✔ Screws
✔ Washers
✔ Handles

Plate Diameter: 100mm
Inside Diameter: 21mm
Thickness: 7.5mm

📏 Specifications

• Table Diameter: 110mm (4")

• Table Height: 80mm

• Centre Height: 80mm

• Worm Gear Ratio: 90:1

• T-Slots: 3

• Centre Taper: MT2

• Mounting: Horizontal & Vertical
