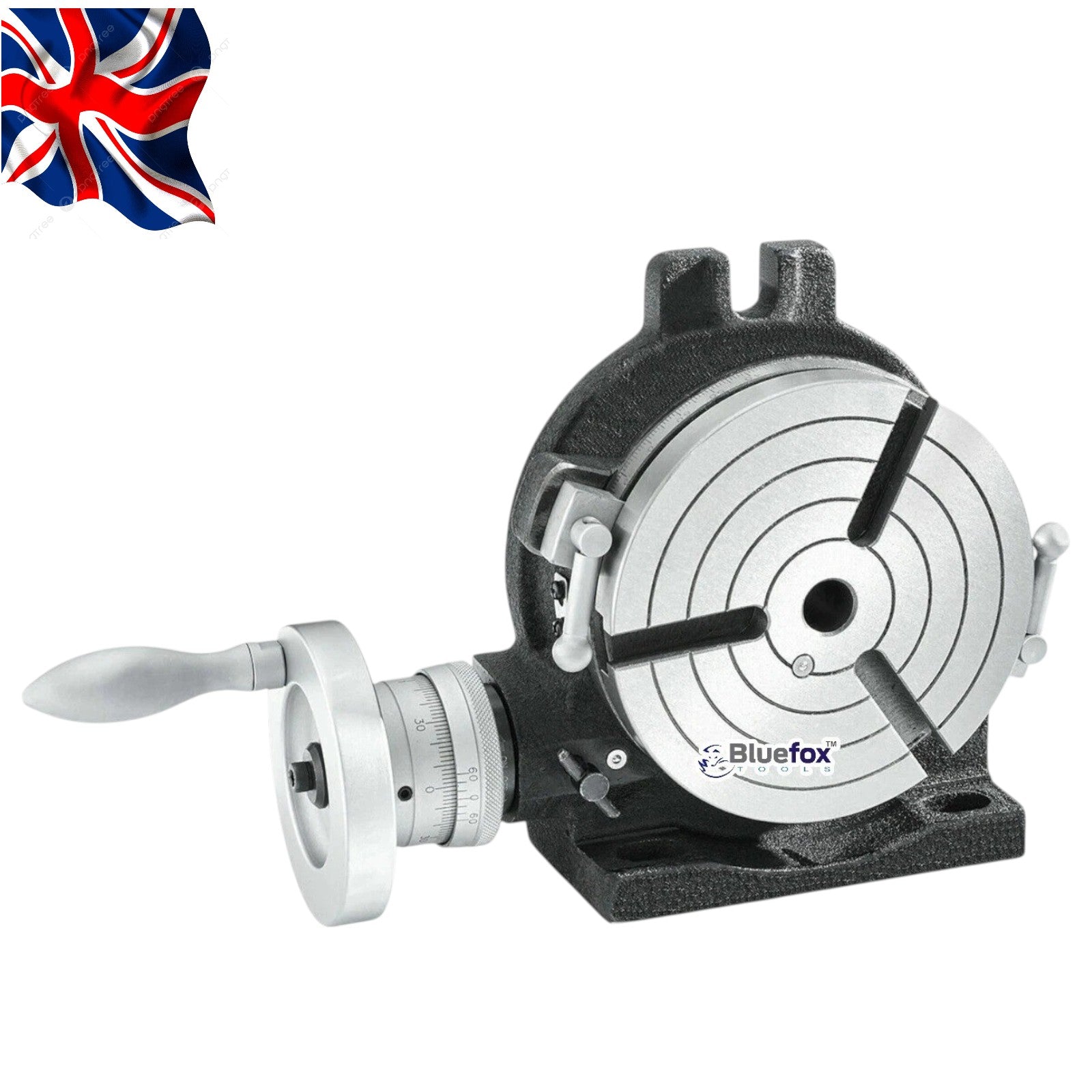

Precision HV6 6" Rotary Table for Milling Machines

The BLUEFOX HV6 Rotary Table is a precision-engineered 6" (150mm) indexing table designed for accurate machining, drilling, milling, and angular positioning. Suitable for both horizontal and vertical mounting, this rotary table provides excellent versatility for machine shops, toolrooms, and precision engineering applications.

Manufactured from high-quality cast iron, the HV6 features a hardened and ground worm gear, 90:1 gear ratio, 360° graduated table, and an MT2 Morse Taper centre bore for accurate workpiece positioning. The precision-machined 3-slot table allows secure mounting of chucks, fixtures, and workholding accessories.

Ideal for milling circular features, bolt-hole patterns, gear cutting, radius machining, indexing, and other precision workshop operations.

Key Features

6" (150mm) precision rotary table
Suitable for horizontal and vertical operation
3 precision-machined T-slots
MT2 Morse Taper centre bore
Hardened and ground worm gear
High-precision 90:1 gear ratio
Table graduated through 360°
One handwheel revolution equals 4° table rotation
Rigid cast iron construction
Professional workshop quality

Specifications

Specification	Details
Model	HV6
Table Diameter	6" (150mm)
Mounting Positions	Horizontal & Vertical
Horizontal Height	80mm
Vertical Centre Height	100mm
Centre Bore	MT2 Morse Taper
T-Slots	3
Gear Ratio	90:1
Table Graduation	360°
Handwheel Rotation	4° Per Revolution
Worm Gear	Hardened & Ground

Applications

Precision indexing
Circular milling
Bolt circle drilling
Gear cutting
Arc machining
Radius cutting
Slot machining
Toolroom work
Engineering workshops
General milling operations

Benefits

Accurate Indexing

The precision 90:1 worm gear delivers smooth, accurate, and repeatable positioning for demanding machining operations.

Horizontal & Vertical Use

Can be mounted in either orientation to suit a wide range of machining applications.

Precision MT2 Centre Bore

Allows accurate centering of workpieces and compatibility with Morse taper accessories.

Heavy-Duty Construction

Rigid cast iron body minimizes vibration and improves machining stability.

Professional Workshop Performance

Suitable for precision engineering, production machining, repair work, and educational workshops.

Suitable For

Vertical Milling Machines
Horizontal Milling Machines
CNC Milling Machines
Toolrooms
Engineering Workshops
Machine Shops
Model Engineering
Precision Metalworking

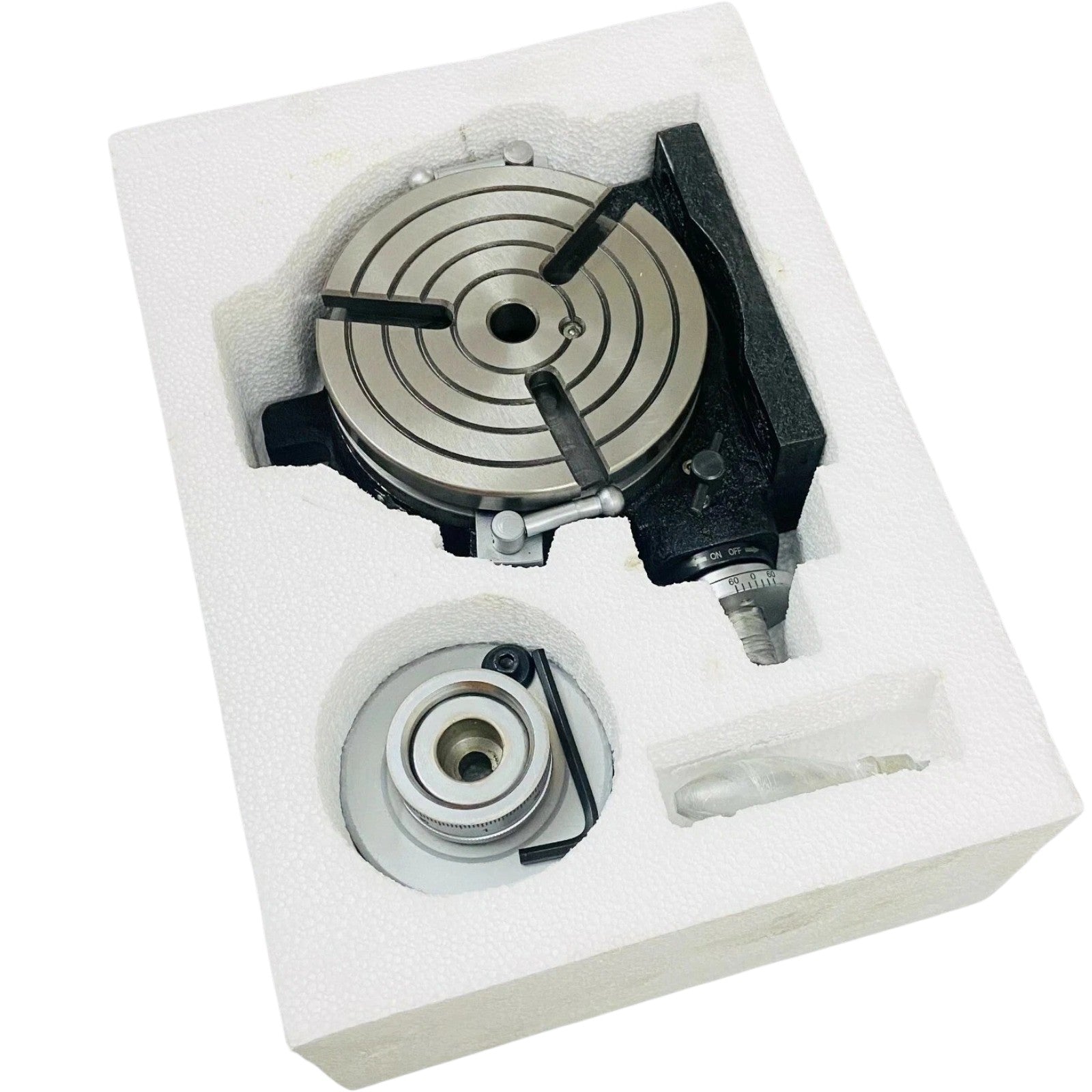

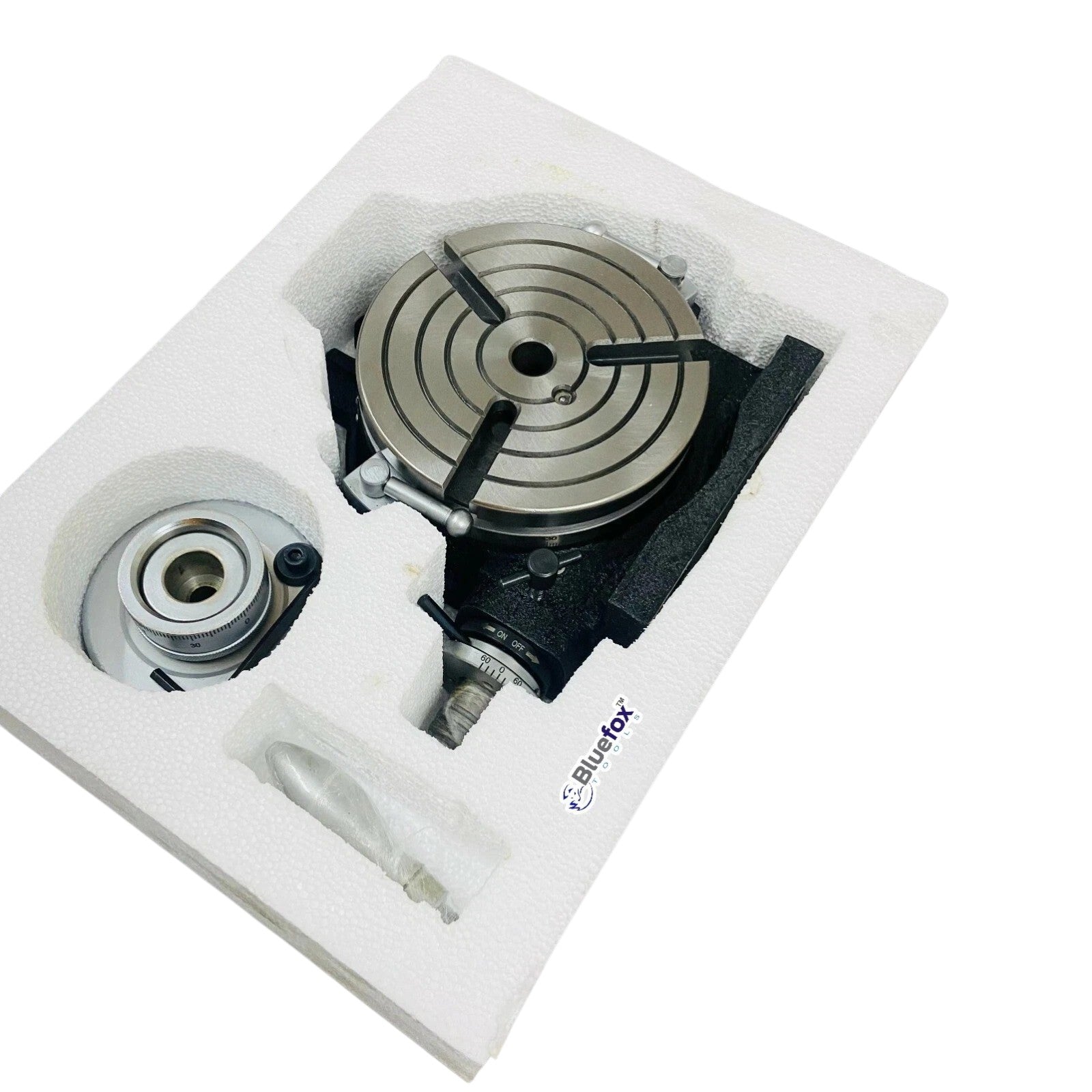

Package Includes

1 × HV6 6" Rotary Table
Operating Handle
