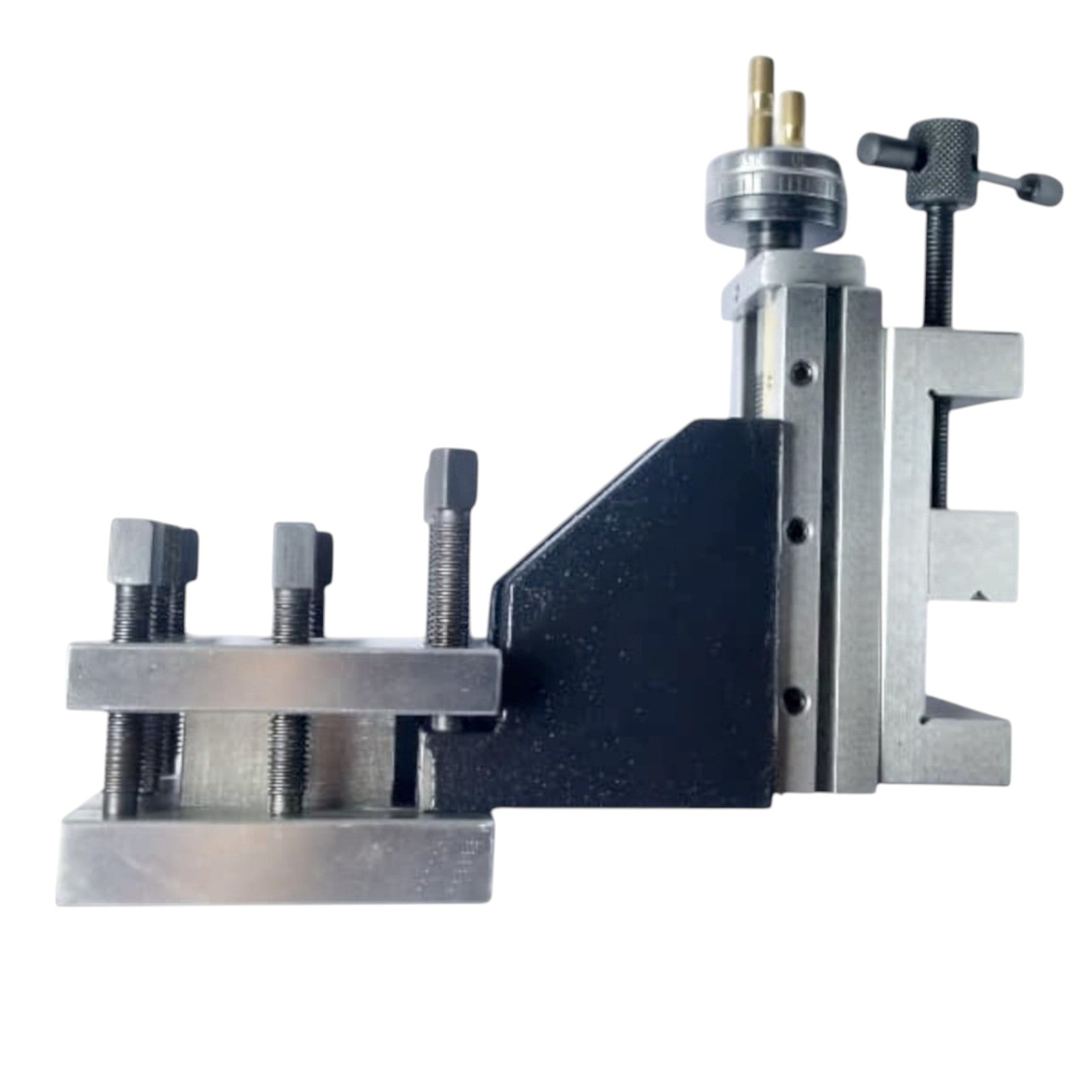

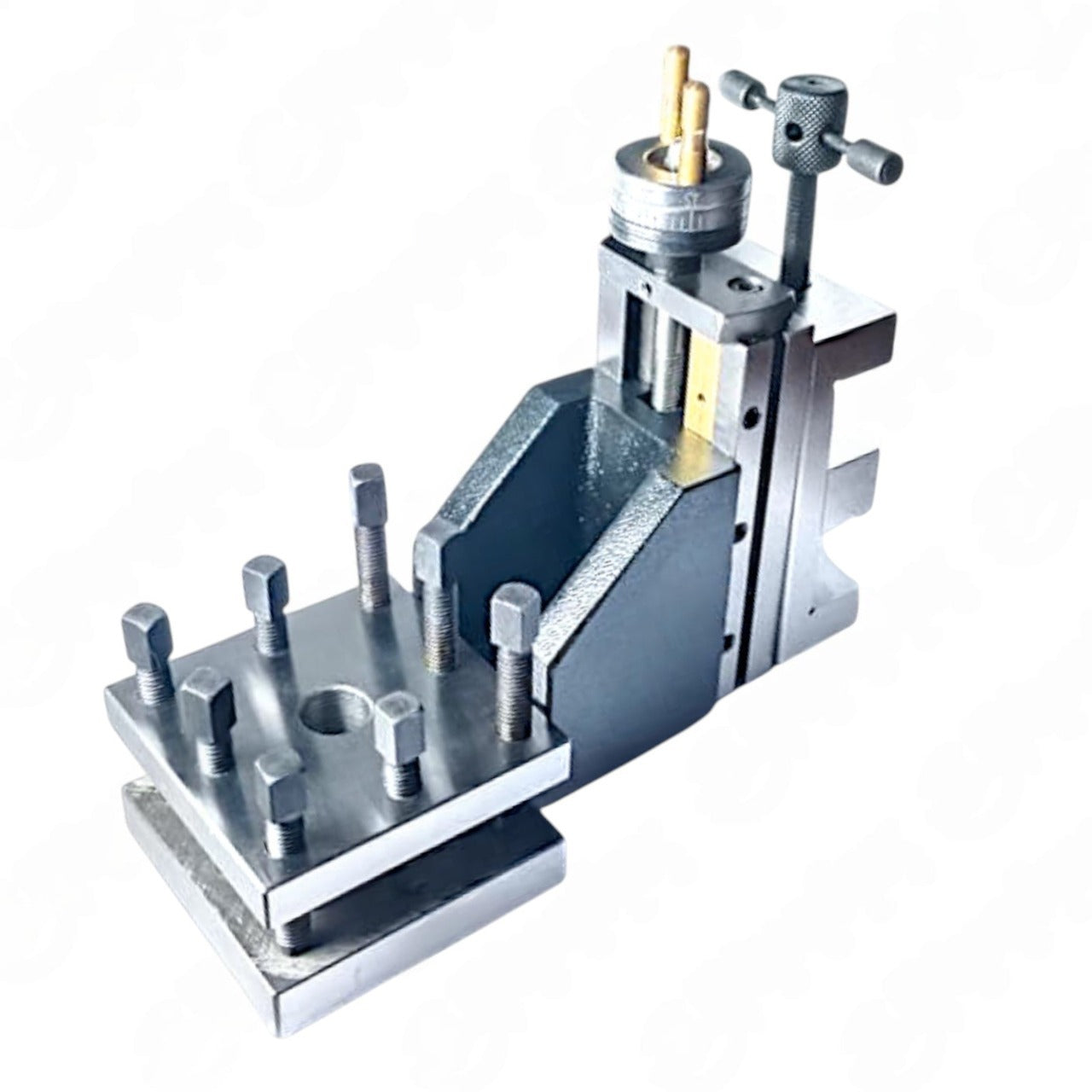

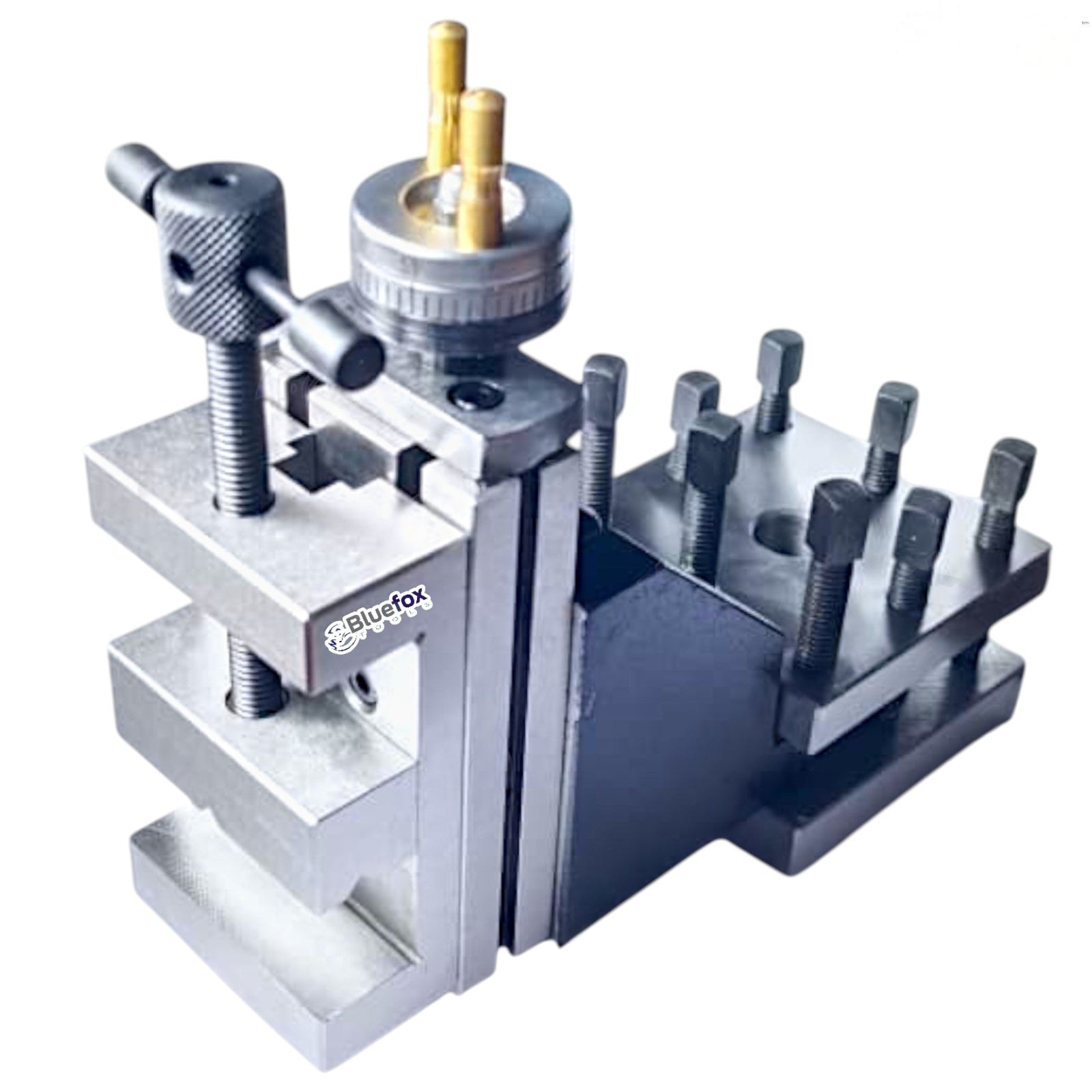

Lathe Vertical Slide Milling Attachment with 2" Mini Vice + 4-Way Toolpost (Boxford/Southbend Type)

Unlock powerful milling capability on your existing lathe with this precision Lathe Vertical Slide Milling Attachment, complete with a 2" Mini Vice and a heavy-duty 4-Way Toolpost. Perfect for model engineers, hobby machinists, and small workshops, this versatile setup lets you perform accurate milling, drilling, slotting, and facing operations directly on your lathe—saving valuable space while expanding your machine’s functionality.

⚙️ Vertical Slide Features

• Converts your lathe into a light-duty vertical milling machine

• Mounts easily in the tool post for fast, simple setup

• Adjustable angle for flexible machining operations and improved control

• Cast iron body for maximum rigidity, durability, and long service life

• Two vertical T-slots for securing workpieces or the included mini vice

• Compatible with four-way indexing tool posts and can rotate vertically for side access (depending on cross-slide travel)


  📏 Vertical Slide Specifications

  • Height: 100 mm

  • Width: 50 mm

  • Base: 77 × 60 mm

  • Jaw Opening: 70 mm

  • T-Slot Width: 10 mm

  • T-Slot Centres: 26 mm

  • Fixing Hole Centres: 22 mm (at 90° to slide face)

  • Clamping Depth: 13.3 mm


    🔩 Mini Vice Included

    A precision 2" Mini Vice is supplied, perfect for securely holding small or cylindrical parts during milling or drilling.

    Mini Vice Specifications

    • Diameter: 2″ (≈ 50.8 mm)

    • Overall Height: 43 mm

    • Precision-ground all over

    • Moveable jaw with vertical vee and horizontal vee

    • Jaw Capacity: 43 mm

    • Jaw Depth: 18.5 mm

    • Bottom of jaw to vee centre: 11.2 mm

    • Mounting holes: 30 mm × 26 mm



      🔧 4-Way Toolpost (Boxford / Southbend Type)

      Upgrade your setup with a robust steel 4-way toolpost, designed for excellent tool rigidity and rapid indexing.

      Toolpost Specifications

      • Heavy-duty all-steel construction

      • 8 square-headed screws for secure tool clamping

      • Bore in post: 15 mm

      • Bottom shelf height: 15.25 mm

      • Overall size: 75 × 75 × 45 mm

      • Maximum tool capacity: 18 mm

      • Fits 4½" Boxford lathes and other machines with similar centre height (check dimensions before ordering)



        🧰 Ideal For

        • Hobby machinists & model engineers

        • Precision light milling & slotting

        • Small workshop setups

        • Boxford / Southbend lathe users needing a rugged 4-way toolpost

        ---

        📦 Package Includes

        • Vertical Slide

        • 2" Mini Vice

        • 4-Way Toolpost
