Convert Your Bench Lathe into a Compact Milling Machine

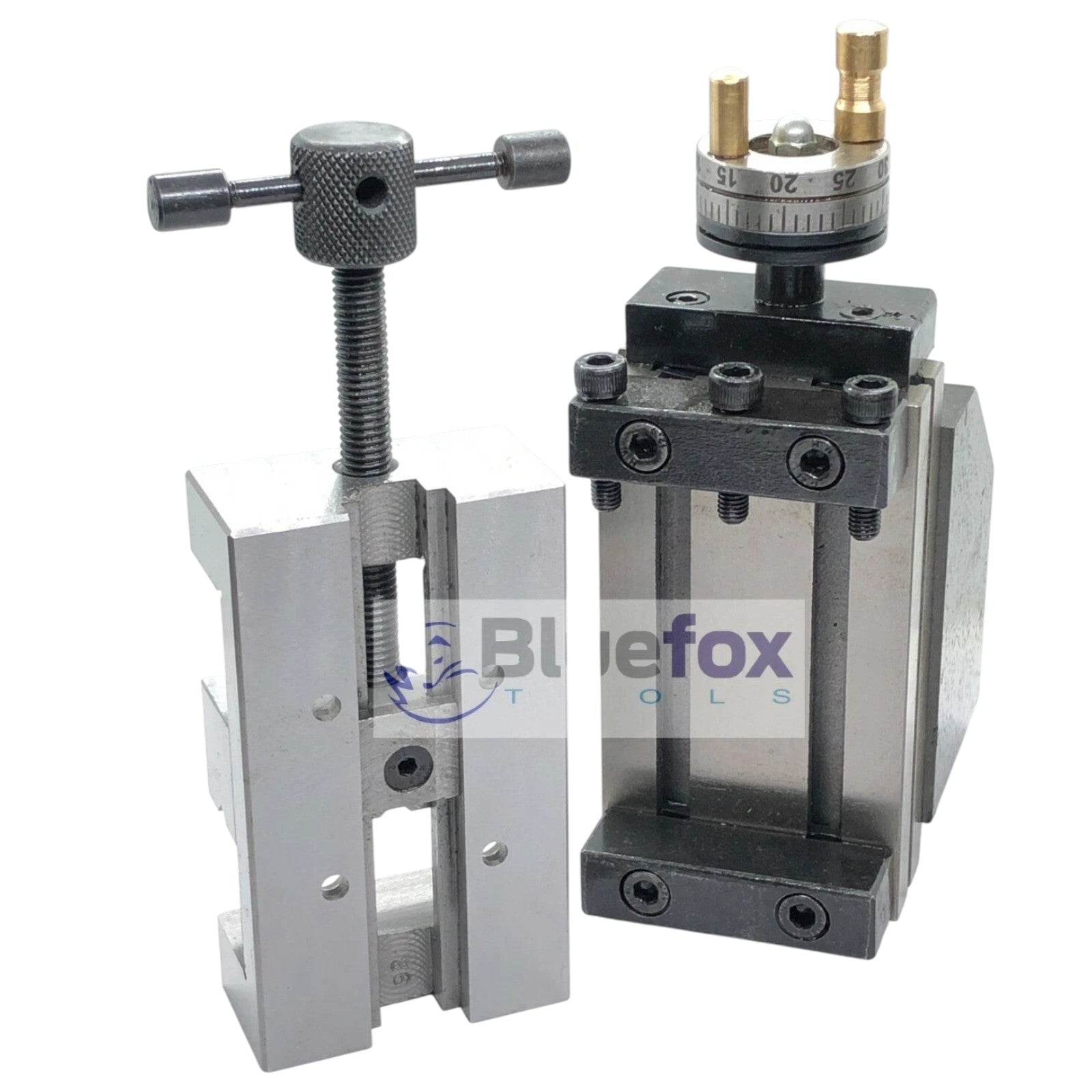

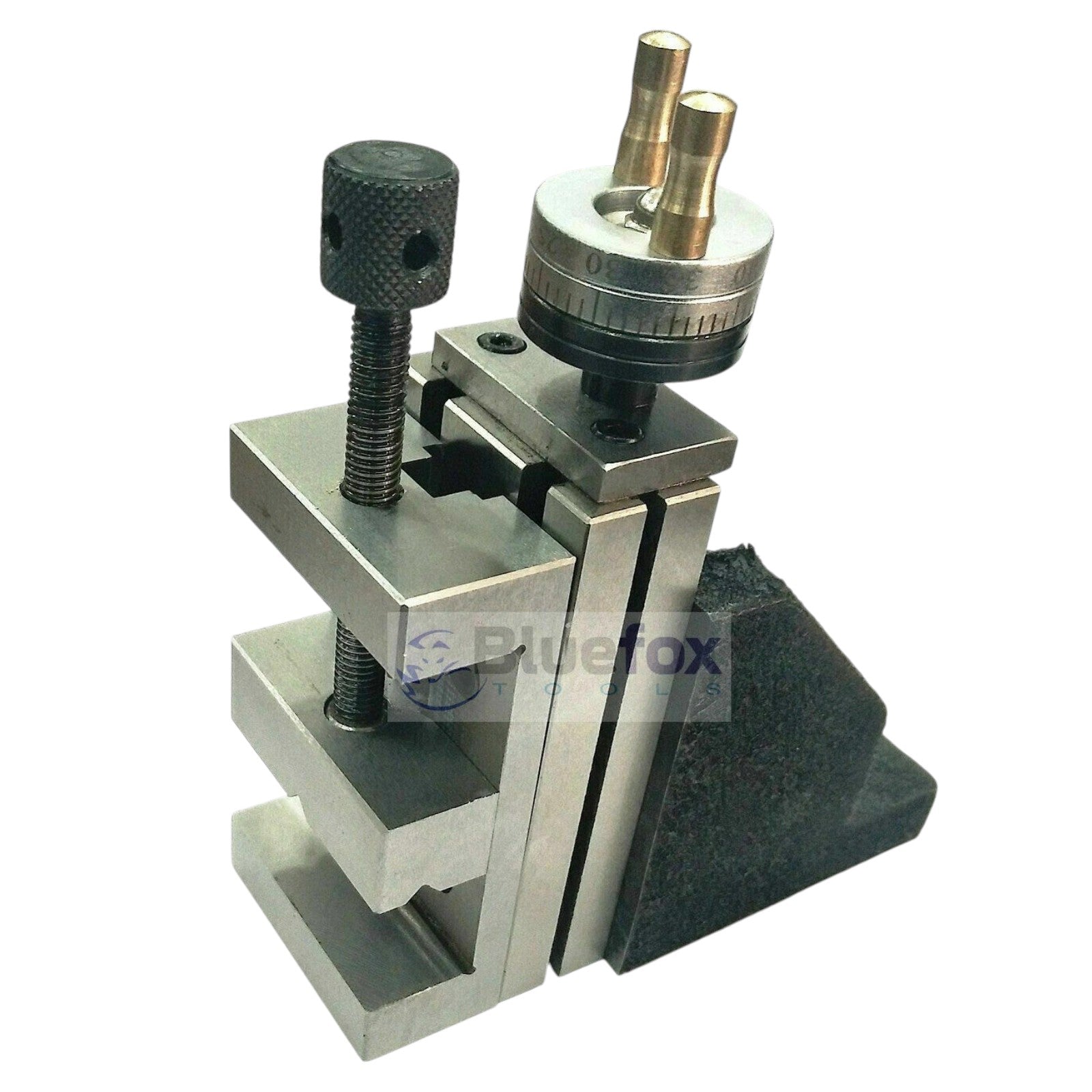

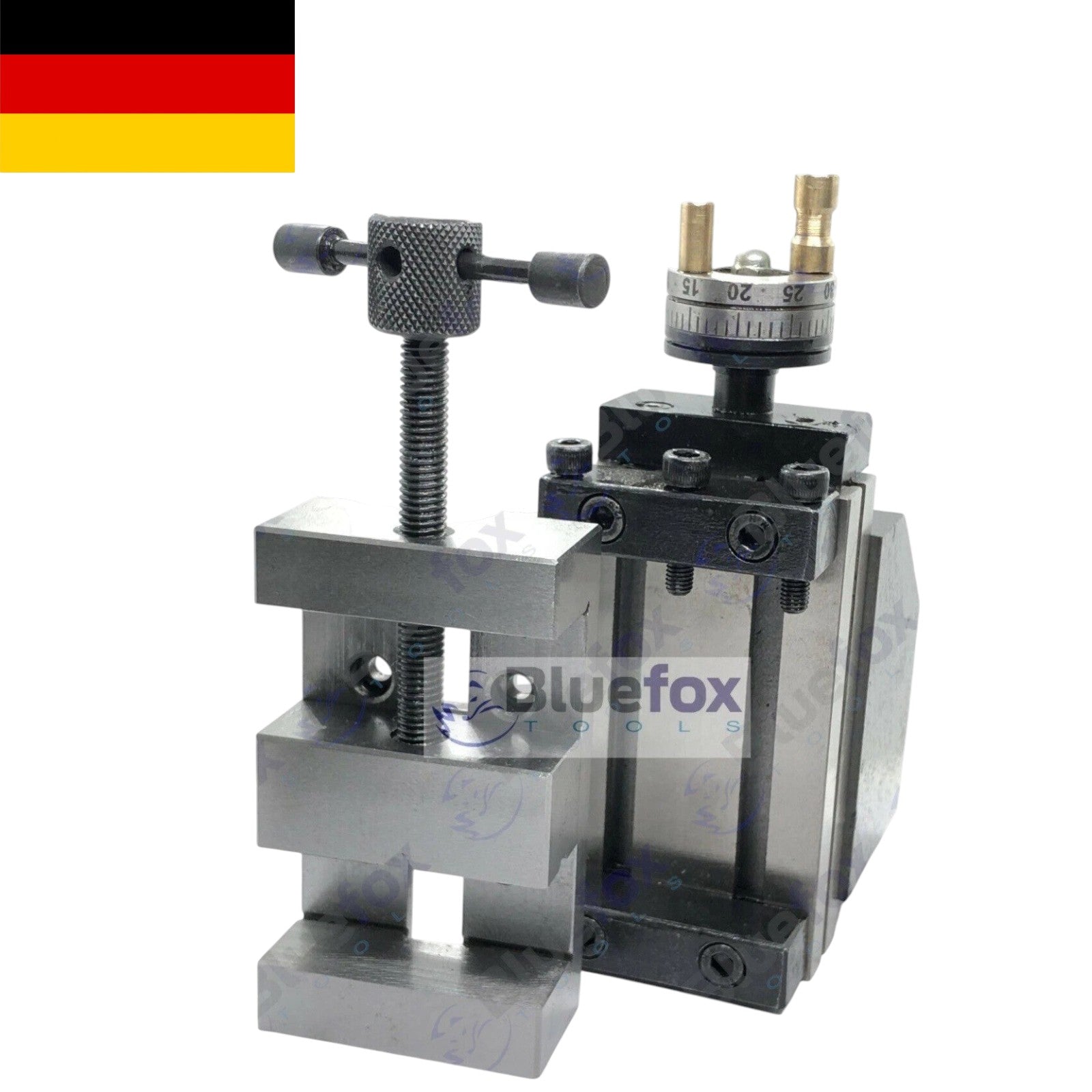

The Bluefox Tools Mini Vertical Slide with 2" (50mm) Precision Steel Vice is a practical and cost-effective milling attachment that instantly expands the capabilities of your bench lathe. Designed for bench lathes up to 150mm swing, this compact vertical slide enables precision milling, drilling, slotting, shaping, and keyway cutting without the need for a separate milling machine.

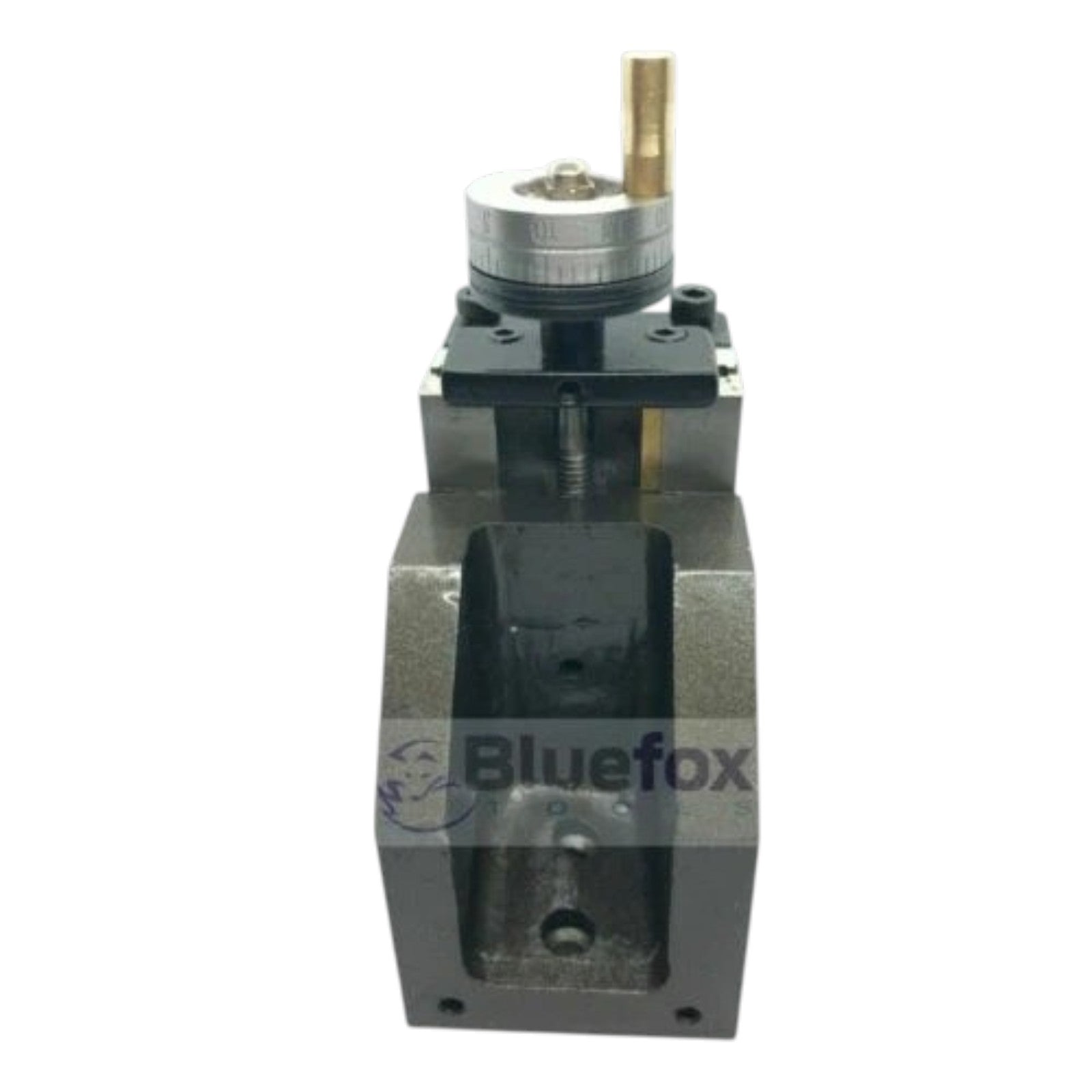

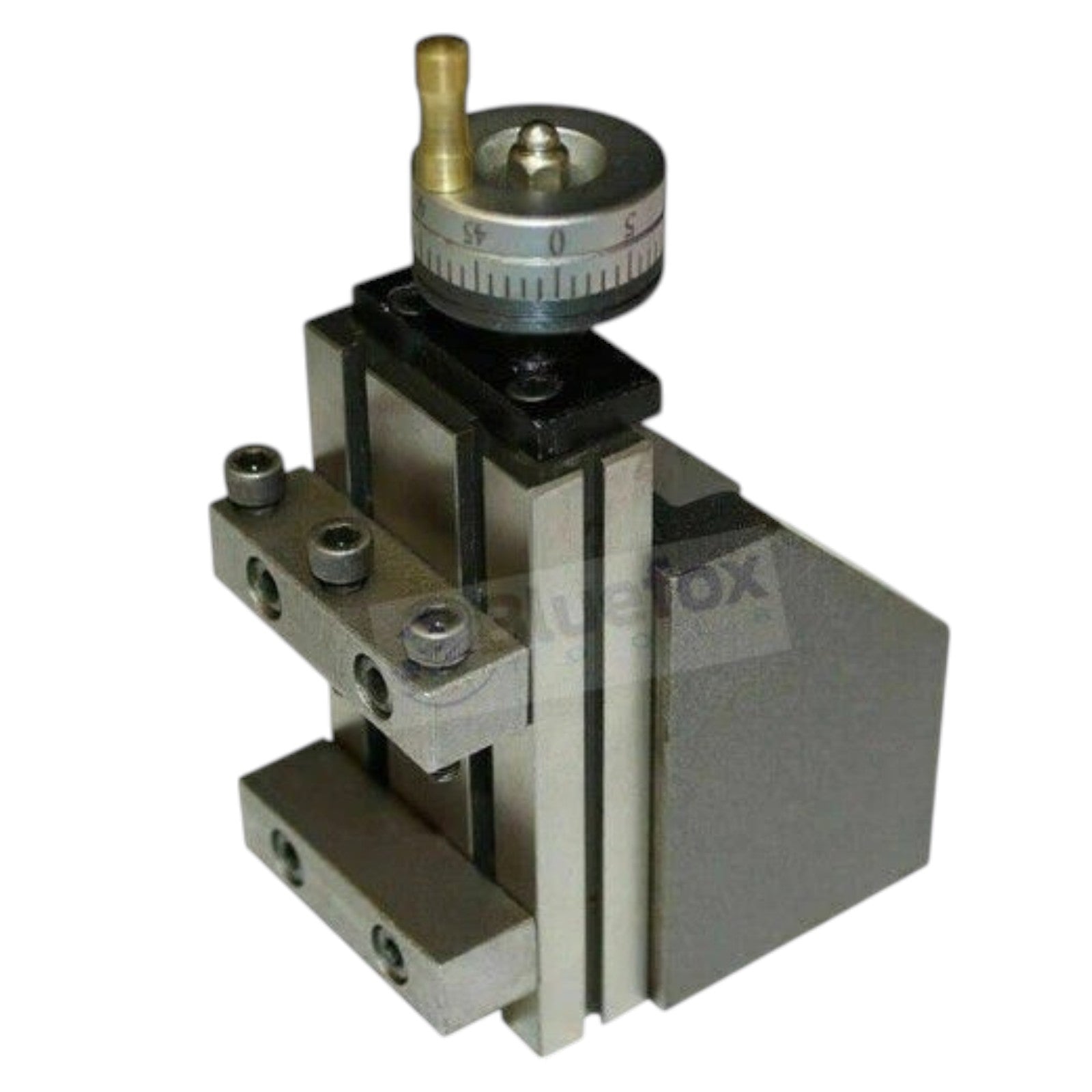

Manufactured from high-grade cast iron with precision-machined sliding surfaces, the vertical slide offers excellent rigidity, smooth operation, and long-lasting performance. It provides 40mm vertical travel with a graduated handwheel (0–50 divisions) for accurate positioning and repeatable machining.

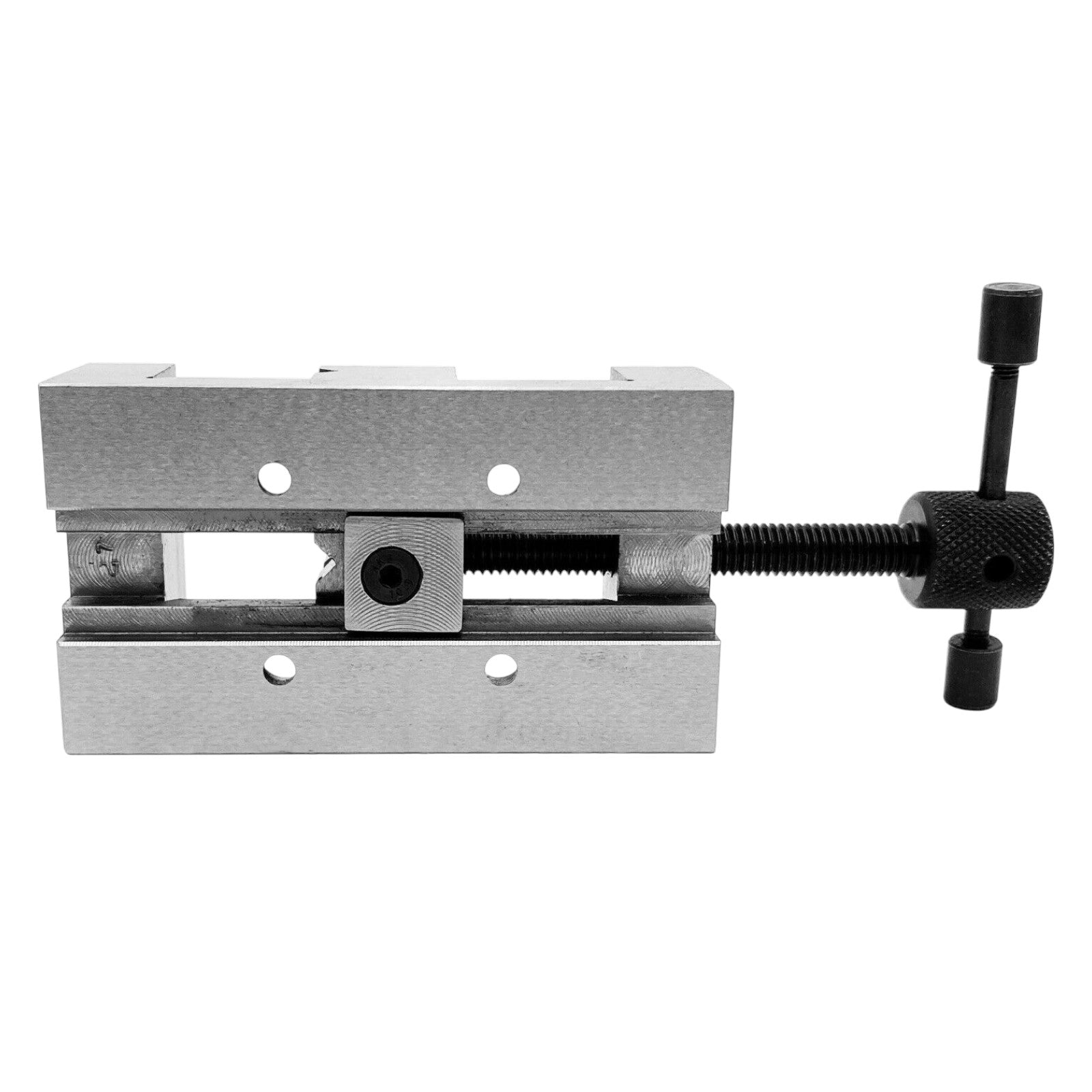

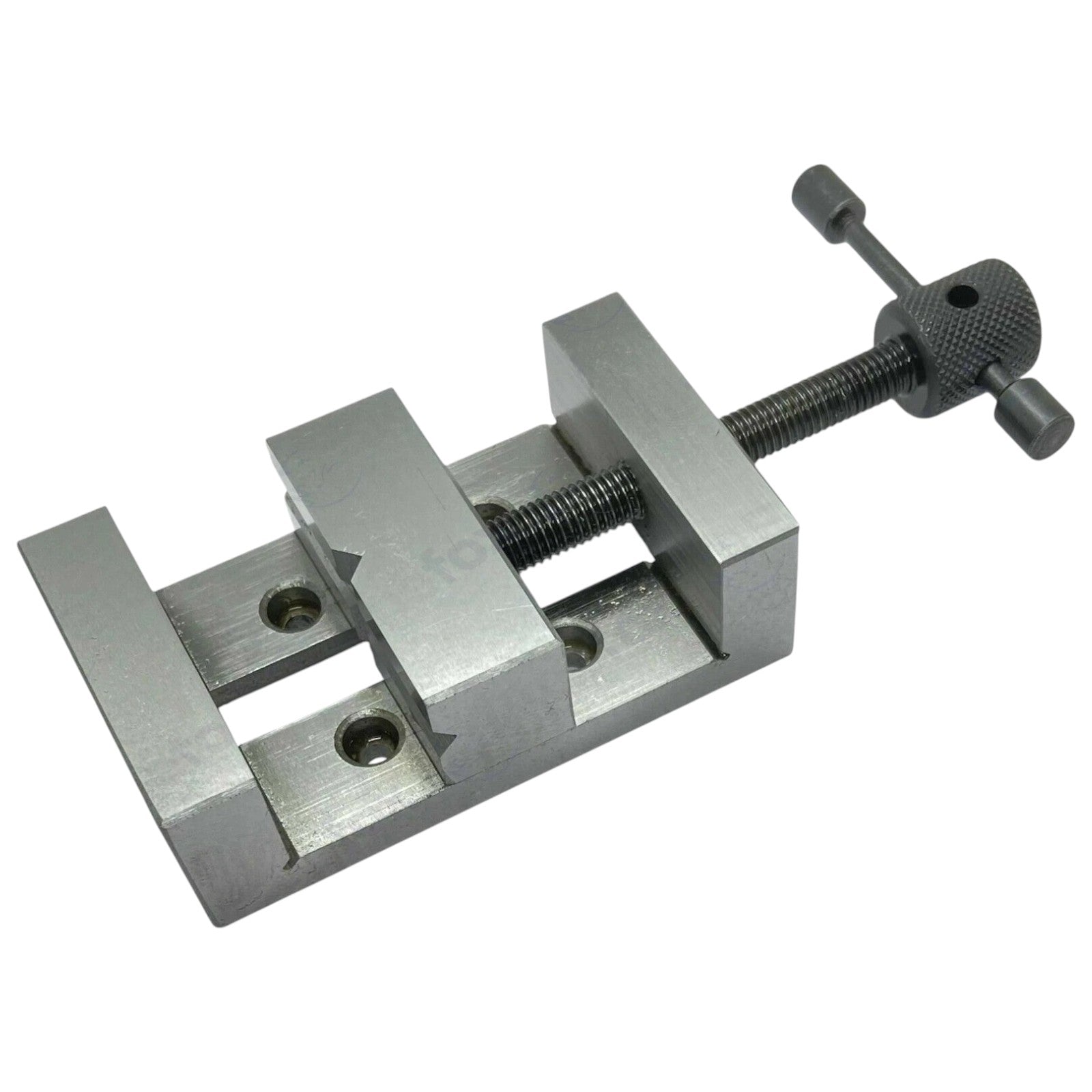

Included is a 2" (50mm) precision-ground steel grinding vice with hardened tool steel jaws. The moving jaw features both horizontal and vertical V-grooves, allowing secure clamping of flat, square, and round workpieces for versatile machining applications.

Easy to install using 2 tee nuts (10mm square), this complete set is ideal for hobby machinists, tool rooms, maintenance workshops, and professional engineering applications.

Features

  • Converts a bench lathe into a compact milling machine
  • Suitable for bench lathes up to 150mm swing
  • High-grade cast iron vertical slide
  • Precision-ground sliding surfaces for smooth movement
  • 40mm vertical travel for accurate machining
  • Graduated feed dial (0–50 divisions)
  • Includes 2" (50mm) precision steel grinding vice
  • Hardened tool steel jaws for durability
  • Horizontal and vertical V-grooves for holding round workpieces
  • Quick and easy installation with 10mm tee nuts
  • Compact, rigid, and ideal for precision machining

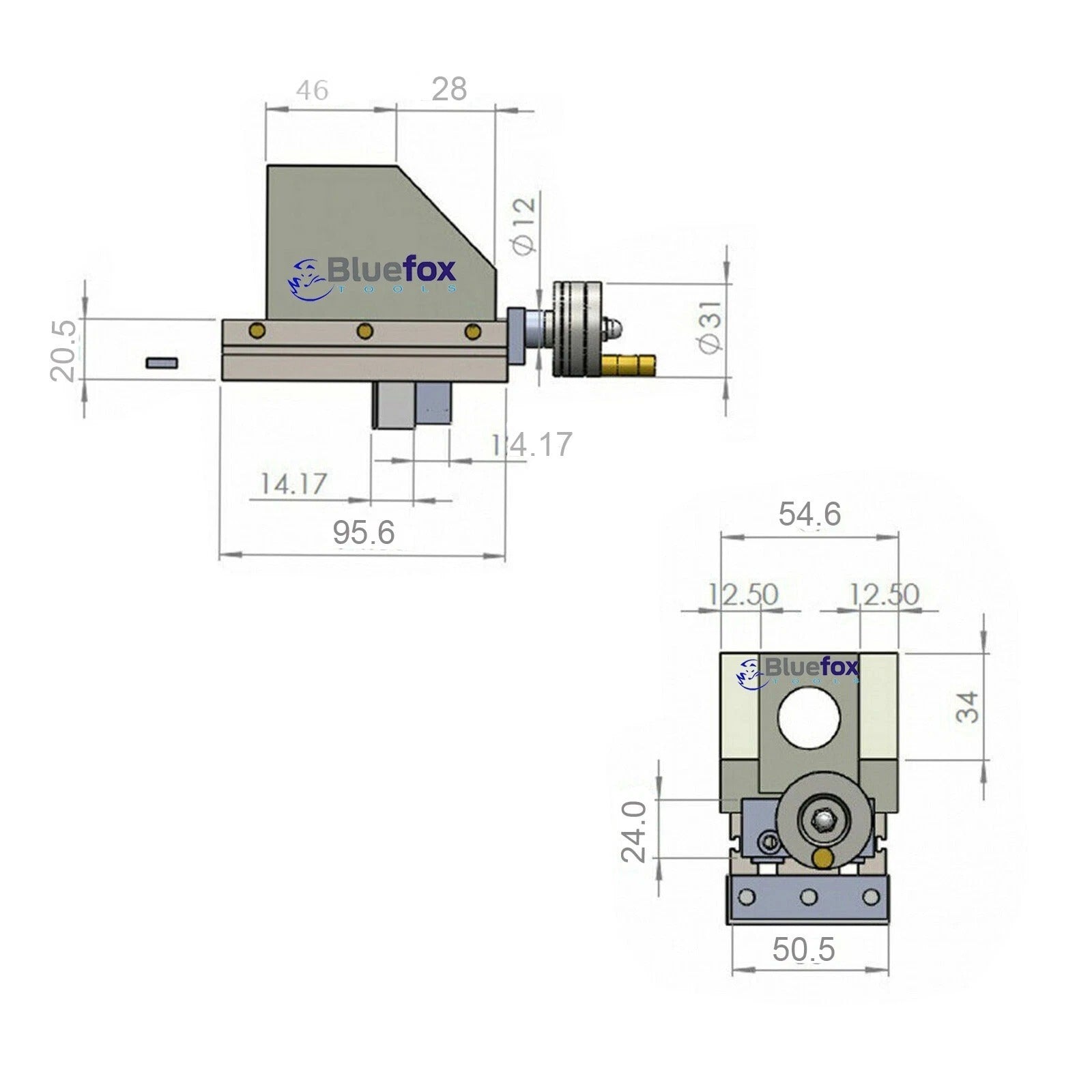

Specifications

Vertical Slide

  • Brand: Bluefox Tools
  • Suitable Lathe Swing: Up to 150mm
  • Material: High-Grade Cast Iron
  • Vertical Travel: 40mm
  • Sliding Table Size: 90 × 50mm
  • Base Dimensions: 50 × 55mm
  • Overall Height: 4" (Approx. 102mm)
  • Width: 2" (Approx. 50mm)
  • T-Slot Width: 3/8"
  • Base Size: 2-3/4" Square
  • Mounting: 2 Tee Nuts (10mm Square)
  • Dial Graduation: 0–50

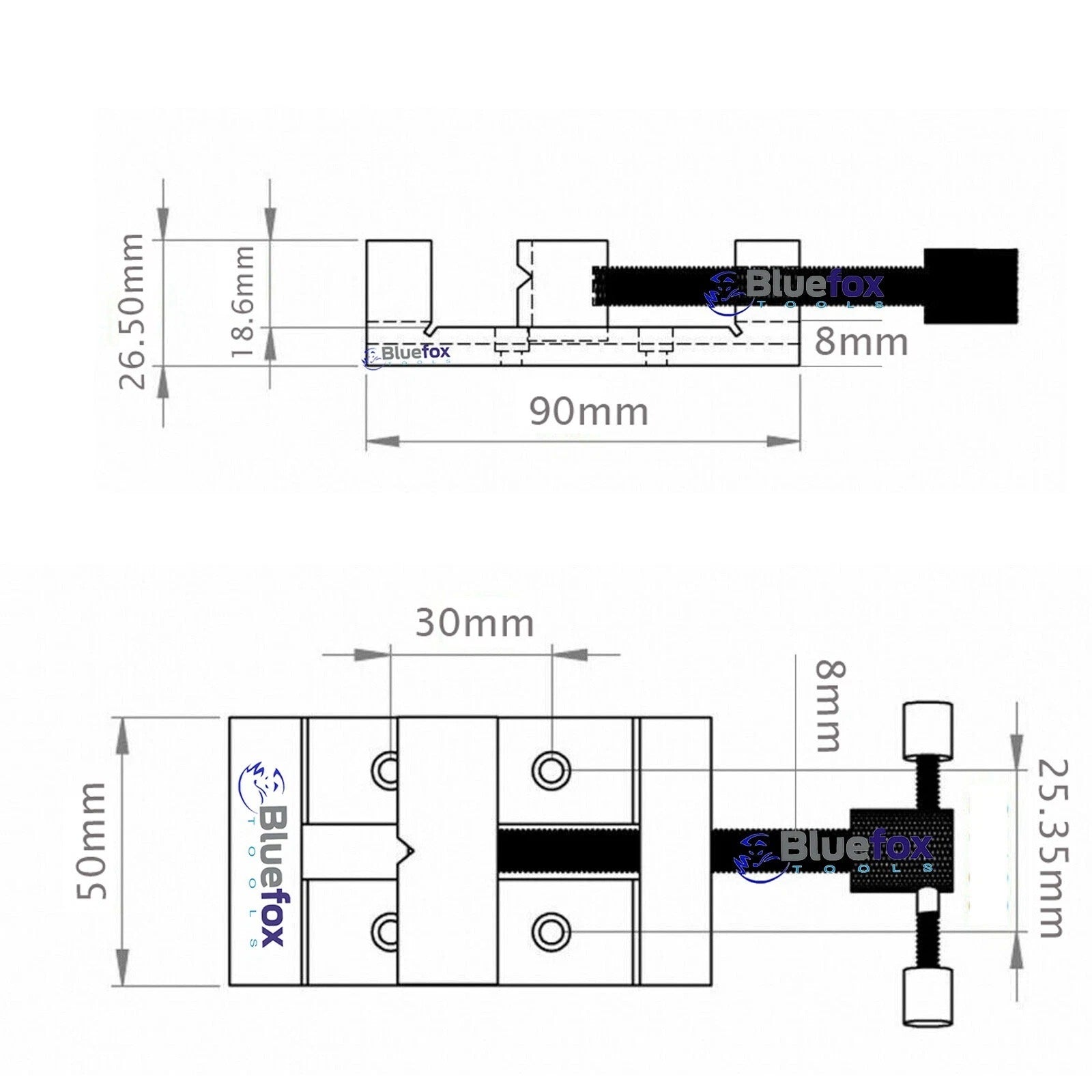

Precision Steel Vice

  • Jaw Width: 50mm (2")
  • Maximum Jaw Opening: 45mm
  • Vice Dimensions: 90 × 50mm
  • Jaw Material: Hardened Tool Steel
  • Special Feature: Horizontal & Vertical V-Grooves for Round Workpieces

Applications

  • Lathe milling
  • Slot cutting
  • Keyway machining
  • Drilling operations
  • Precision shaping
  • Surface machining
  • Model engineering
  • Tool room work
  • Workshop fabrication
  • Machine maintenance
  • Metalworking
  • Hobby and professional machining
