MT2 Lathe Alignment Test Bar M10 Tapped | 11-1/8" Precision Morse Taper Test Bar | UK STOCK
- $26.45
- $26.45
- Unit price
- per
Tax included
Stock Availability
FBB221, 29 WYSOCKI PL, HACKENSACK, NJ 07601-6804 US
Phone: +1 646 224 0700
Phone: +1 646 224 0700
662/8-A, Gali No 1, First Floor,
Punjabi Basti, Anand Parbat
Phone: +91 8860055906
Punjabi Basti, Anand Parbat
Phone: +91 8860055906
Orange Connex Fulfilment Centre – UK04
Mill Road, Rugby, England
GB-CV21 1PR
Phone: +44 7747 770826
Mill Road, Rugby, England
GB-CV21 1PR
Phone: +44 7747 770826
Orange Connex Fulfillment Center – DE04
Bochumer Str. 119, Nordrhein-Westfalen
DE-44866 Bochum
Phone: +49 15563617045
Bochumer Str. 119, Nordrhein-Westfalen
DE-44866 Bochum
Phone: +49 15563617045
Orange Connex Fulfilment Centre – AU03
Warehouse L, Building 5, 161 Manchester Rd
Auburn, New South Wales
AU-2144
Phone: +61 416 989 802
Warehouse L, Building 5, 161 Manchester Rd
Auburn, New South Wales
AU-2144
Phone: +61 416 989 802
AVAILABLE IN INDIA •
AVAILABLE IN USA •
AVAILABLE IN UNITED KINGDOM •
AVAILABLE IN GERMANY •
AVAILABLE IN AUSTRALIA
Secured Payment
Description

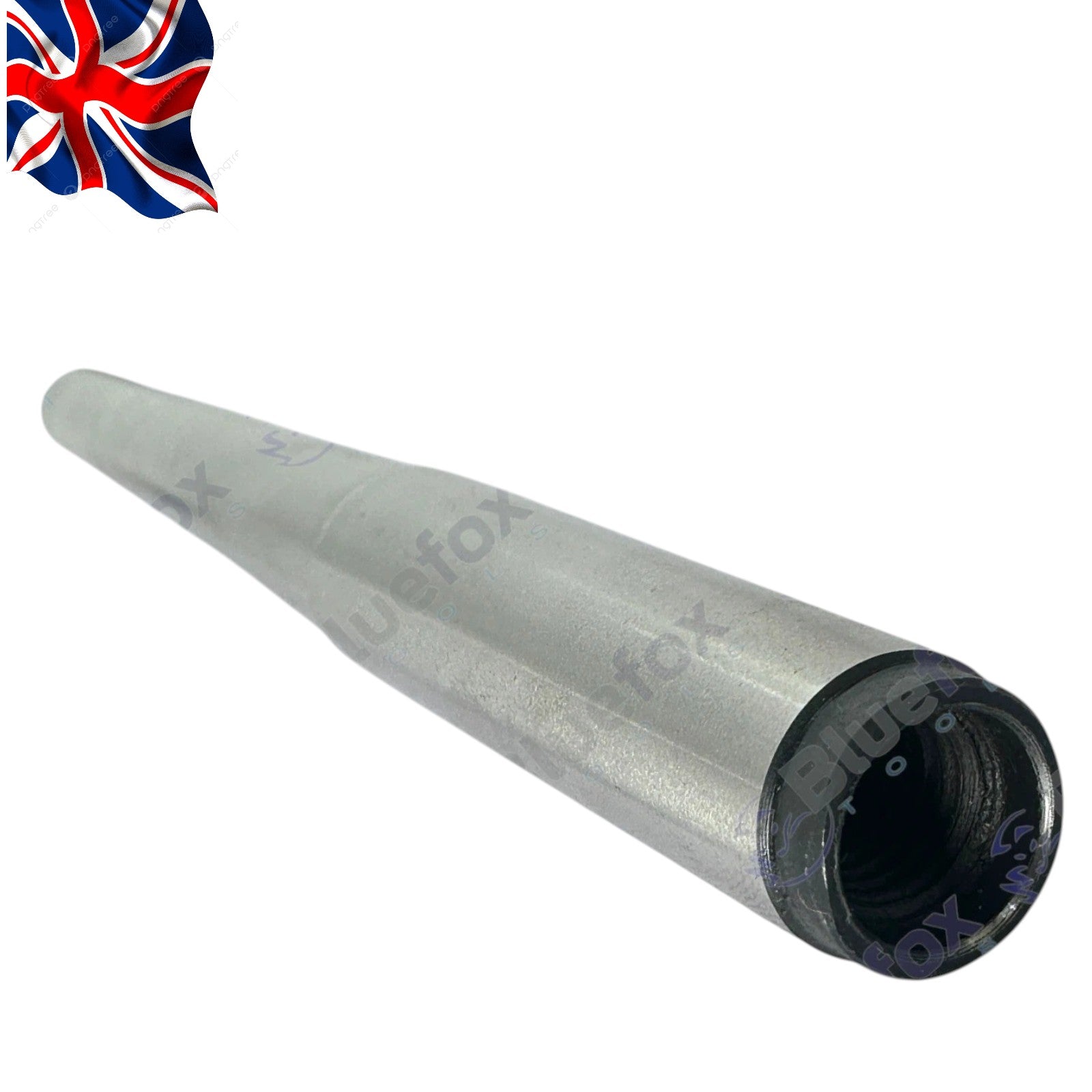

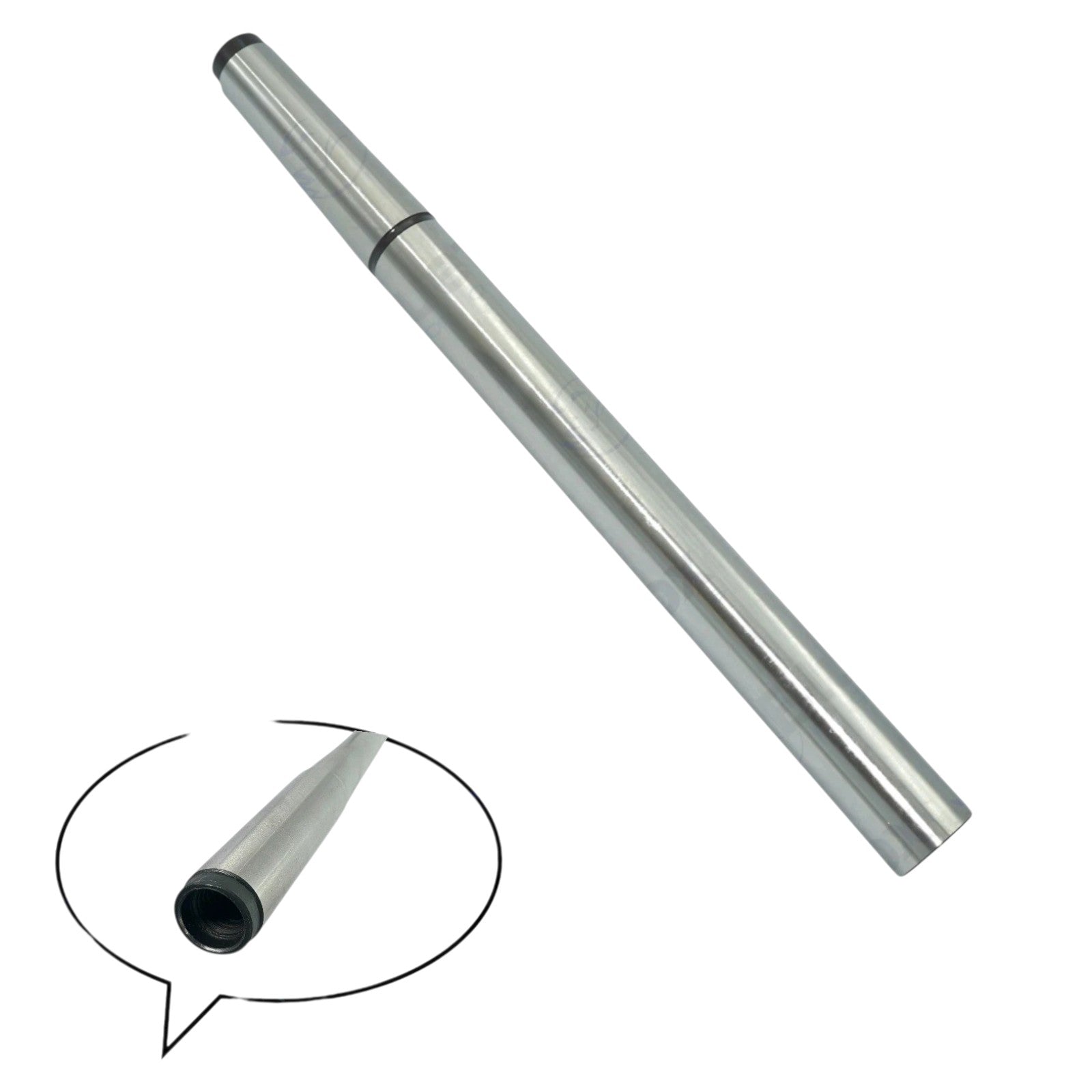

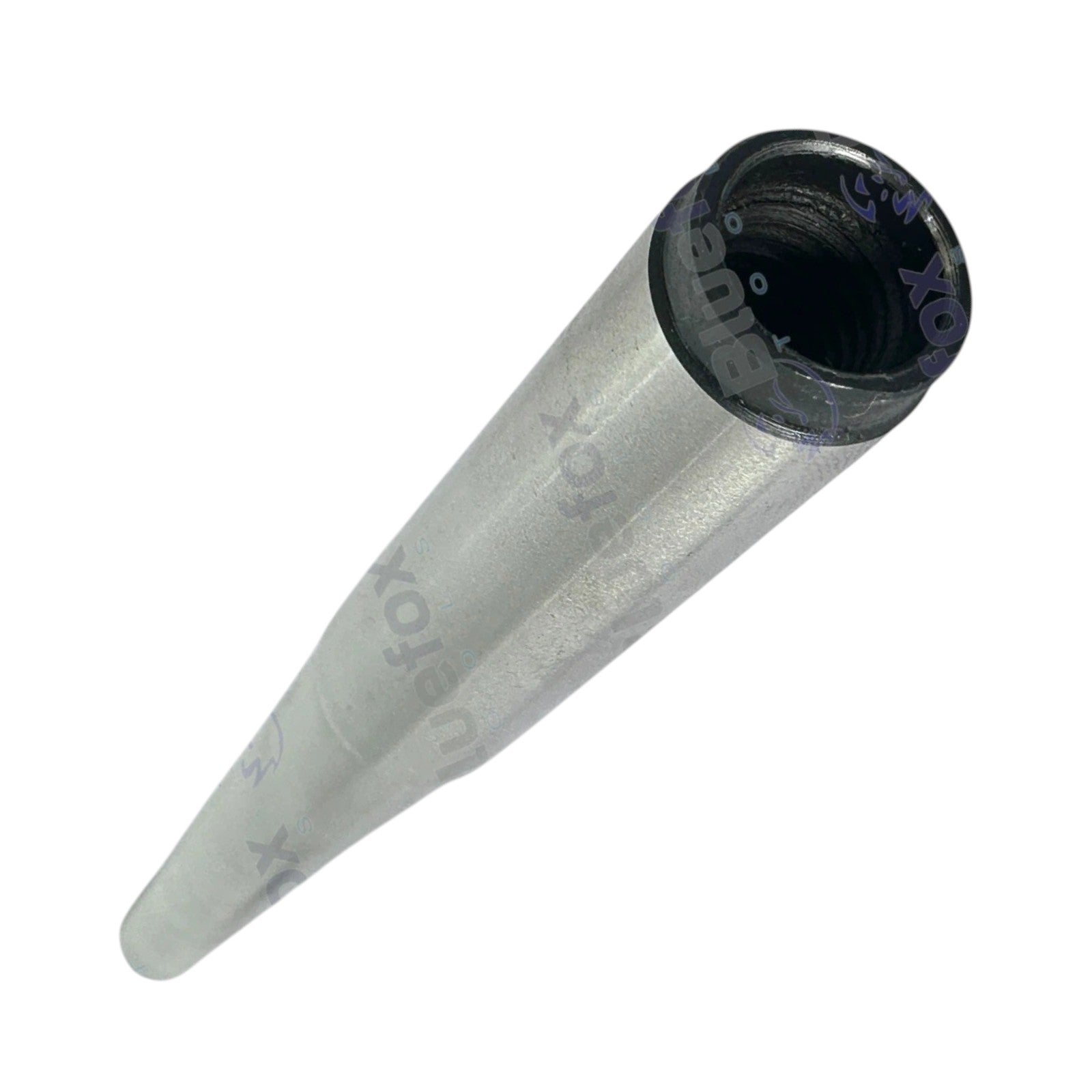

xPrecision MT2 Lathe Alignment Test Bar with M10 Thread
The BLUEFOX MT2 Lathe Alignment Test Bar is a precision inspection tool designed for checking and correcting lathe tailstock alignment. Manufactured from premium EN31 alloy steel, the bar is hardened, precision ground, and finished to an accuracy of 0.0002" maximum run-out, making it ideal for workshop, toolroom, and precision engineering applications.
If your lathe produces a slight taper when turning long workpieces, incorrect tailstock alignment is often the cause. This test bar allows quick and accurate alignment checks between the headstock and tailstock, helping restore turning accuracy and improve machining results.

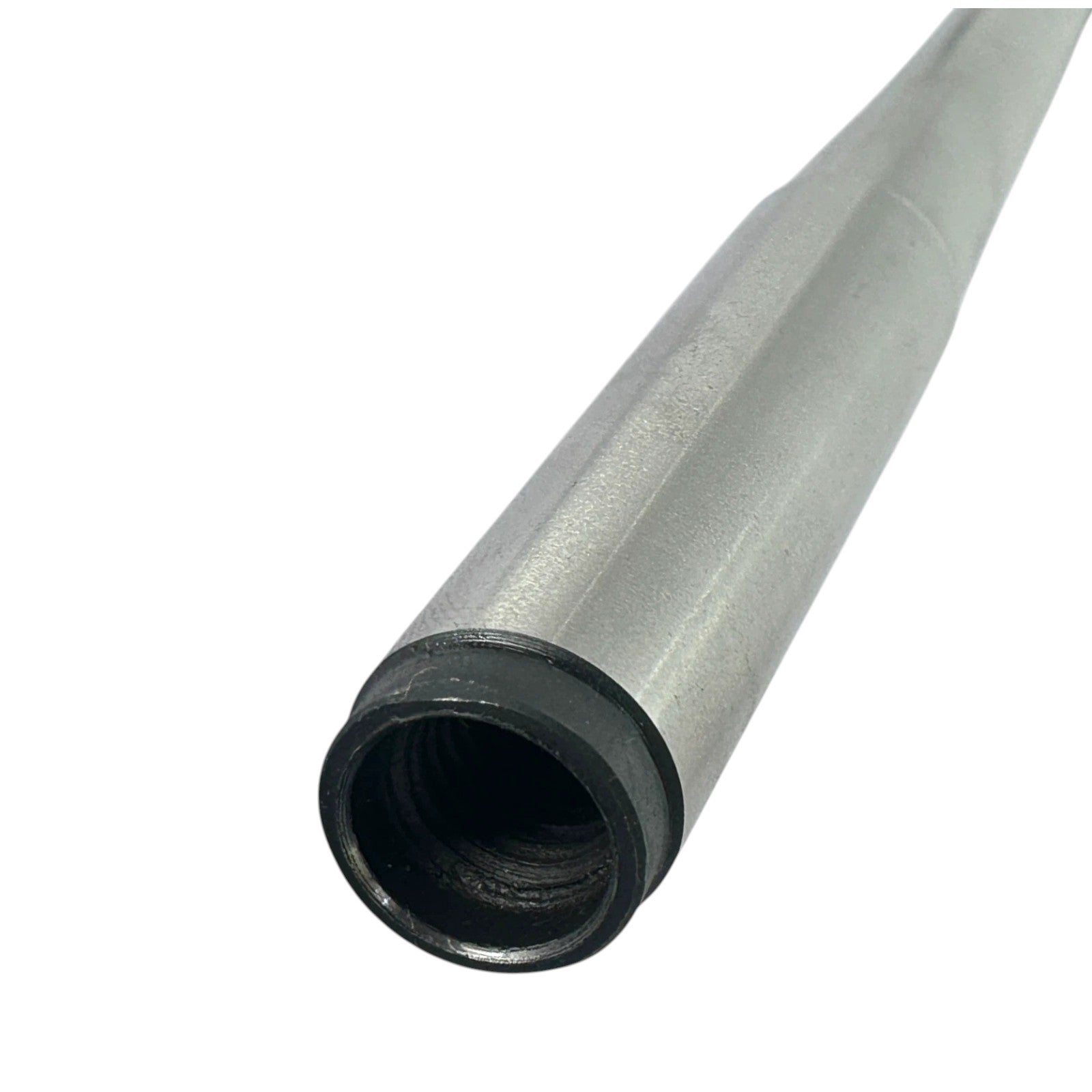

One end features a 2 Morse Taper (MT2) shank, while the opposite end is M10 tapped, providing versatility for setup and inspection tasks.
Key Features
- Precision MT2 lathe alignment test bar
- M10 tapped end for versatile mounting
- Manufactured from premium EN31 alloy steel
- Hardened and precision ground
- Maximum run-out of 0.0002"
- Accuracy within 1–5 microns
- Designed for tailstock alignment checks
- Suitable for Morse taper spindle inspection
- Helps eliminate taper turning errors
- Professional workshop and toolroom quality
Specifications
| Specification | Details |
|---|---|
| Shank Size | MT2 (Morse Taper 2) |
| Overall Length | 11-1/8" (283mm) |
| Material | EN31 Alloy Steel |
| Accuracy | 1–5 Microns |
| Maximum Run-Out | 0.0002" |
| End Configuration | One End MT2, One End M10 Tapped |
| Finish | Hardened & Precision Ground |
Applications
- Tailstock alignment
- Lathe accuracy testing
- Morse taper spindle inspection
- Precision engineering
- Toolroom inspection
- Workshop maintenance
- Machine setup
- Turning accuracy correction
- Model engineering
- Metalworking applications
Benefits
Improves Turning Accuracy
Helps eliminate unwanted taper when machining long workpieces.
Precision Ground Construction
Manufactured to high tolerances for accurate alignment measurements.
Premium EN31 Steel
Provides excellent rigidity, wear resistance, and dimensional stability.
Versatile Design
MT2 taper and M10 tapped end offer multiple workshop applications.
Professional Inspection Tool
Suitable for machinists, engineers, toolmakers, and maintenance workshops.
How It Works
- Install the MT2 taper into the headstock spindle.
- Support the opposite end with the tailstock center.
- Run a dial test indicator along the length of the bar.
- Adjust the tailstock until readings are consistent.
- Achieve accurate alignment and eliminate taper turning issues.
Package Includes
- 1 × MT2 Lathe Alignment Test Bar
- M10 Tapped End
- Precision Ground & Hardened Finish
Technical Specifications
