Description

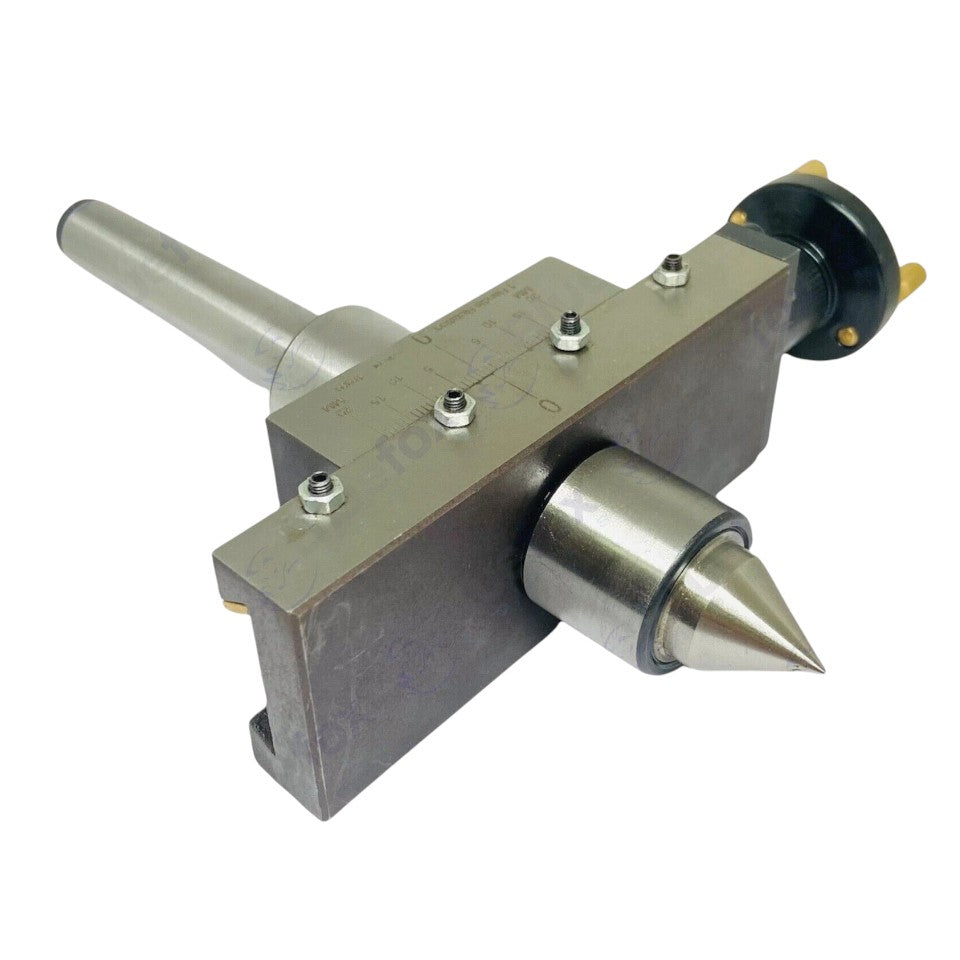

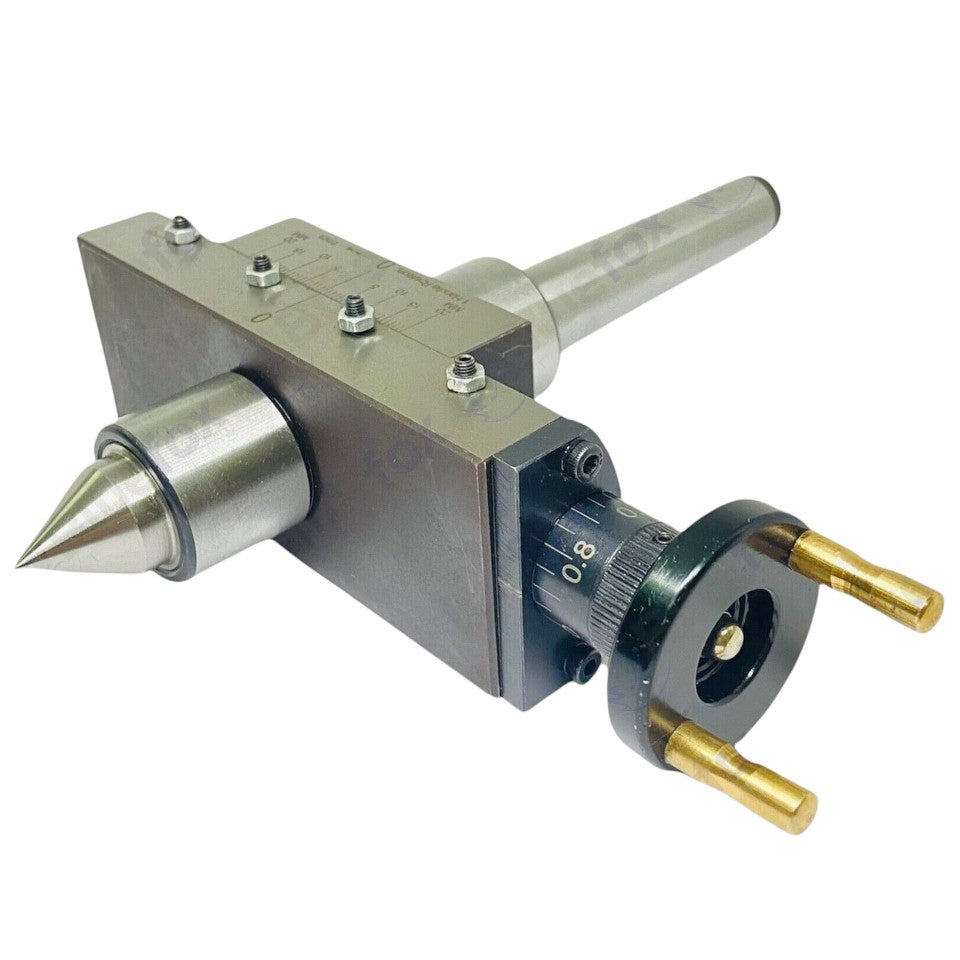

xPrecision Taper Turning Attachment for Lathe Tailstocks
This MT2 & MT3 Lathe Tailstock Taper Turning Attachment is a versatile and precision-engineered solution for producing accurate tapers on lathe machines. Designed with an improved offset mechanism and a hardened double-bearing revolving live center, this attachment allows precise tailstock offset adjustments while maintaining smooth support of the workpiece.
The attachment features a 20mm left and right offset travel, enabling accurate taper turning for a wide range of machining applications. Each full rotation of the adjustment handle provides 1mm of offset movement, giving excellent control over taper dimensions.
Supplied complete with an MT3 to MT2 reduction sleeve and MT2 drill drift, this upgraded model can be used with both MT2 and MT3 tailstock setups, offering exceptional versatility for workshops and machinists.
Key Features
- Precision lathe taper turning attachment
- Compatible with both MT2 and MT3 tailstocks
- Improved design with enhanced machining control
- Double-bearing revolving live center
- Hardened live center point
- 20mm left and right offset adjustment
- 1mm offset per handle revolution
- Hardened and ground shanks
- Smooth and accurate taper production
- Easy installation on Morse Taper tailstocks
Specifications
| Specification | Details |
|---|---|
| Product Type | Taper Turning Attachment |
| Primary Shank Size | MT2 |
| Compatibility | MT2 & MT3 |
| Offset Travel | ±20mm |
| Adjustment Rate | 1mm per Handle Rotation |
| Live Center Type | Double Bearing Revolving Center |
| Shank Finish | Hardened & Ground |
| Sleeve Included | MT3 to MT2 Reduction Sleeve |
| Drift Included | MT2 Drill Drift |

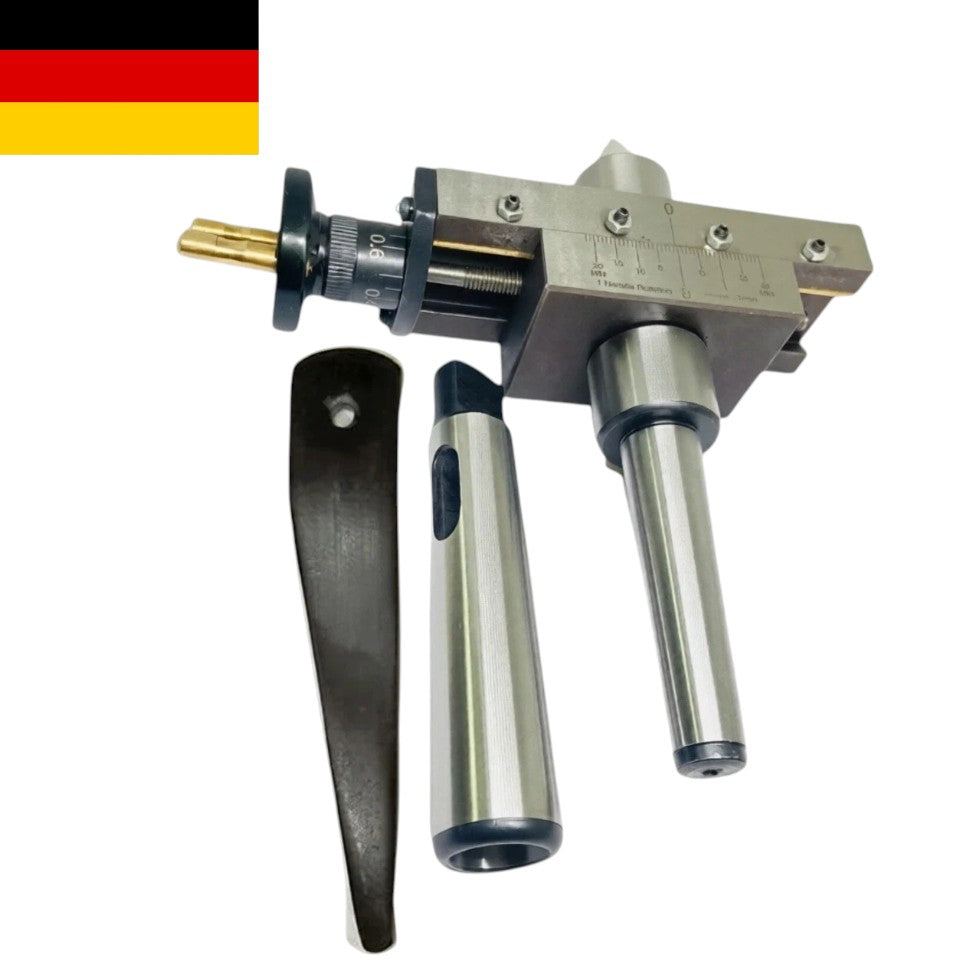

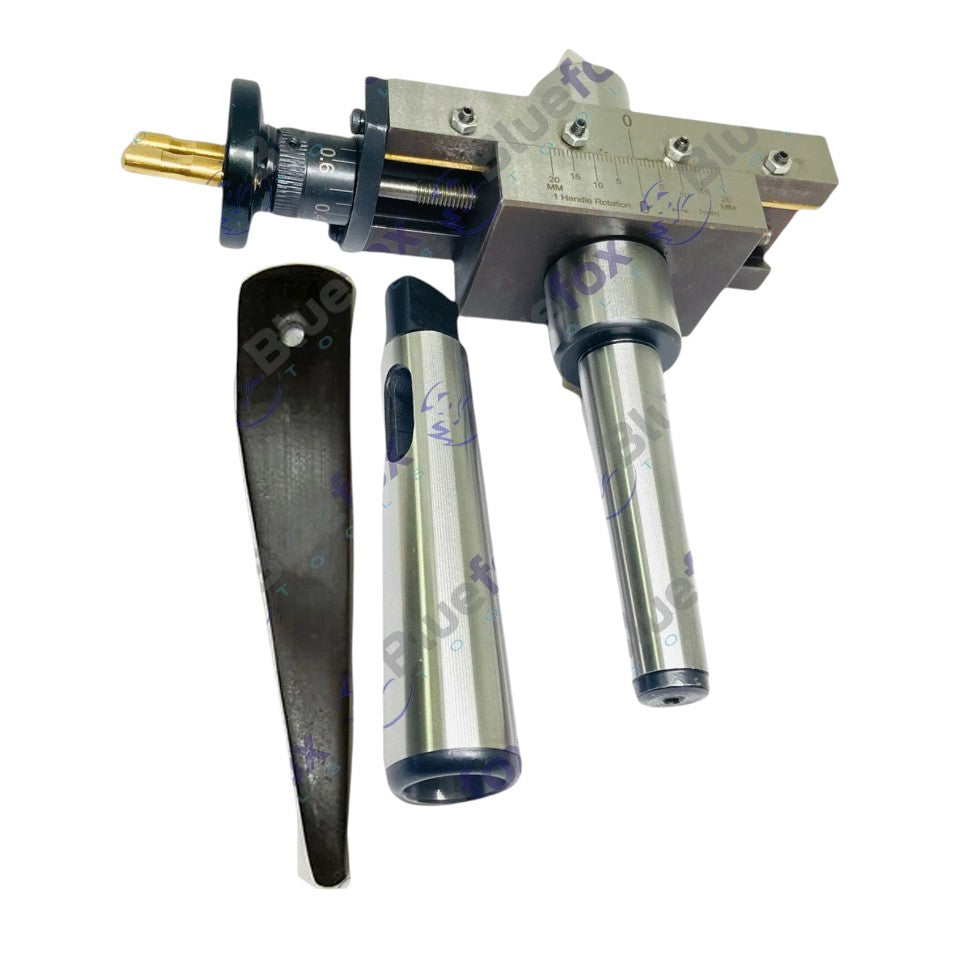

Included Components
- 1 × MT2 Taper Turning Attachment
- 1 × Double Bearing Live Center
- 1 × MT3 to MT2 Reduction Sleeve
- 1 × MT2 Drill Drift
Applications
- Precision taper turning
- Shaft taper machining
- Tailstock offset turning
- Engineering workshop operations
- Tool room machining
- Custom taper production
- General lathe work
- Precision turning applications
Benefits
Improved Accuracy
The upgraded adjustment mechanism provides precise and repeatable taper settings.
Smooth Operation
Double-bearing live center design ensures stable workpiece support during machining.
Dual Compatibility
Can be used as both MT2 and MT3 with the supplied reduction sleeve.
Easy Adjustment
Handle-controlled offset system allows quick and accurate taper setup.
Durable Construction
Hardened and ground components ensure long service life and reliable performance.
Suitable For
- Engine Lathes
- Bench Lathes
- Tool Room Lathes
- Precision Turning Machines
- Engineering Workshops
- Machine Shops
- Metalworking Applications
Package Includes
- MT2 Taper Turning Attachment
- Double Bearing Live Center
- MT3-MT2 Reduction Sleeve
- MT2 Drill Drift
Technical Specifications
